Tripp Lite Metered PDU, 7.4kW Single-Phase 230V Outlets (8 C19 and 40 C13), IEC-309 32A Blue Input, 10 ft. Cord (PDUMV32HV)

Name: Tripp Lite Metered PDU, 7.4kW Single-Phase 230V Outlets (8 C19 and 40 C13), IEC-309 32A Blue Input, 10 ft. Cord (PDUMV32HV)
Brand: Tripp Lite
SKU: N82E16812329251
Rating: 4 (1 reviews)

(1 from Tripp Lite) Write a Review

48 230V outlets-24 per bank (4 C19 and 20 C13
32A 7.4kW metered PDU
IEC-309 32A blue input plug with 10 ft. (3 m) cord
Dedicated 20A circuit breakers protect output

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Contact Manufacturer for Assistance

This item is covered by Newegg.com's Manufacturer Only Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 773-869-1234
Support Website
View other products from Tripp Lite

Type	Metered
Style	Vertical
Certifications	Tested to CE EN 60950-1, CE Class A (Emissions)

Input Voltage	230V
Maximum Input Current	32A

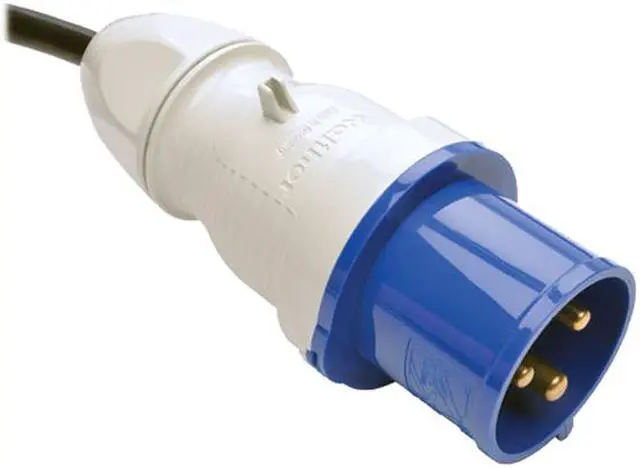

Input Connector(s)	IEC-309 32A BLUE (2P+E)
Cord Length	10 ft

Output Voltage	200-240V nominal, single phase
Output Frequency	50/60Hz

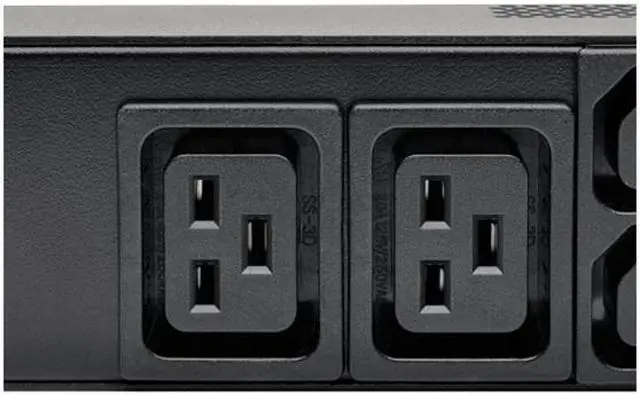

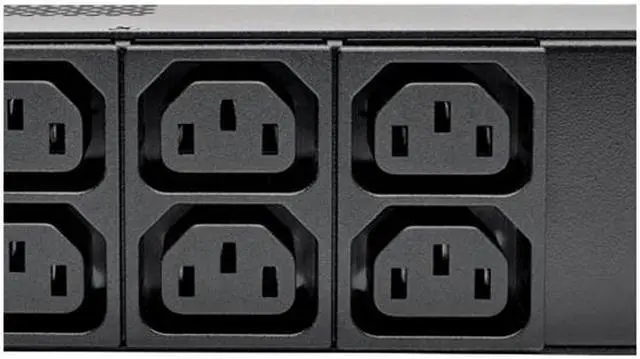

Output Connector(s)	40 x C13; 8 x C19

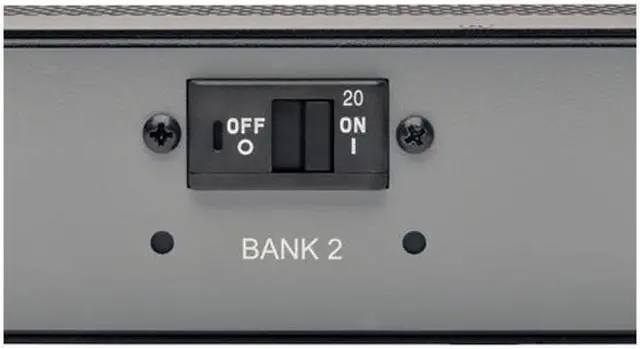

Overload Protection	Set of 2 20A breakers protect output Bank 1 and Bank 2

Operating Environment	0 degrees - 50 degrees C
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 3048 m
Storage Temperature	-15 degrees - 60 degrees C

Dimensions	70.00" x 2.17" x 2.52"
Weight	12.35 lbs.
