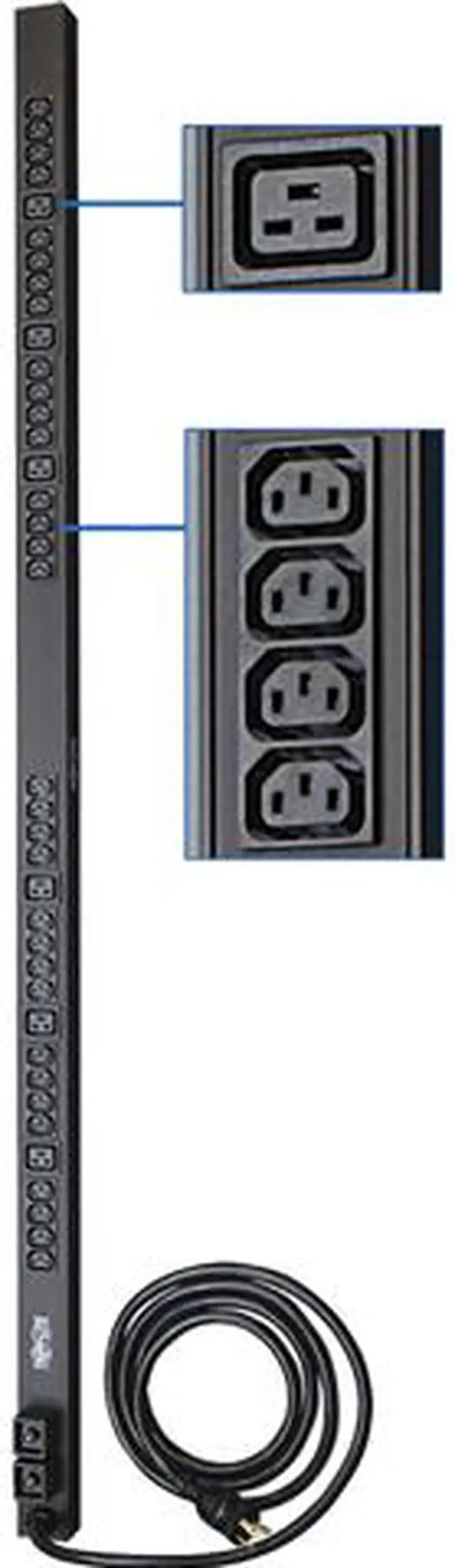

Tripp Lite Basic PDU, 30A, 38 Outlets (6 C19 & 32 C13), 208 / 240 V, L6-30P, 10 ft. Cord, 0U Vertical Rack-Mount Power (PDUV30HV)
- 5/5.8 kW Single-Phase 208 / 240 V Basic 0U 63.75 in. Vertical Rackmount Power Distribution Unit (PDU)
- NEMA L6-30P input with 10 ft. (3 m) power cord
- 38 total outlets - 32 C13 and 6 C19
- Switchless design prevents accidental shutdown
Any questions? Ask CelesteSM will help you find out quickly.
Tripp Lite Basic Power Distribution Units give IT Managers the ability to power multiple servers and vital networking hardware from a single input power source. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUV30HV 63.75 in. vertical 0U rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A). Includes 10 ft. attached line cord with L6-30P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in two separately breakered 15A load banks.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 5 years
- Limited Warranty period (labor): 5 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-773-869-1111
- Support Website
- View other products from Tripp Lite
The Tripp Lite PDUV30HV is a 0U vertical, single-phase 208/240V basic rack PDU with 38 outlets—32 C13 and 6 C19—for data centers and server racks that need high-density power distribution from an L6-30P source.
Recommended For
- Data-center operators powering a dense rack of 208/230 V servers or storage equipment with C13 and C19 cords, who want to distribute power vertically without using rack units.
- Network and telecom teams outfitting a fixed equipment rack that needs many C13 outlets, a smaller number of C19 outlets, and simple power distribution without remote outlet control.
- IT staff whose rack already has a compatible 208/230 V, 30 A L6-30R supply and who need a 10-foot input cord to reach the PDU mounting position.
- Installers adding fixed power distribution under a counter or on a workbench, where the included mounting brackets suit the installation and a long vertical rack PDU is practical.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Centralized power distribution for rack-mounted servers and networking equipment |
| Power Input And Output | Basic single-phase PDU rated for 208/240 V, 50/60 Hz, and 30 A maximum capacity (agency derated to 24 A); 5/5.8 kW. Uses a NEMA L6-30P input plug with a 10 ft cord |
| Outlets And Protection | 38 outlets: 32 C13 and 6 C19, divided into two separately breakered 15 A load banks with 16 C13 and 3 C19 outlets each. Circuit breakers protect against overloads and short-circuit faults; the switchless, sleeved-breaker design helps prevent accidental shutdown |
| Rack Mounting And Installation | 0U vertical form factor for rack mounting. Supports tool-less installation in button-mount-compatible racks, or installation with included mounting hardware on other racks or flat surfaces; cord-retention brackets help keep plugs connected |
| Dimensions And Materials | 63.75 × 2.25 × 3.75 in; 8 lb. Black enclosure made of aluminum and copper |
| Certifications | Tested to UL 60950-1 for the U.S. and Canada, and NOM for Mexico |
| Model Identifiers | Tripp Lite PDUV30HV |
