TRIPP LITE PV3000HF PowerVerter Ultra-Compact Inverter
- Full continuous load - 286A at 12VDC, No load - 1.5A at 12VDC, Shutdown / load sense mode - less than 100 microamps
+
+
Overview
Specs
Reviews (18)
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-773-869-1111
- Support Website
- View other products from Tripp Lite
LOADING...
LOADING...

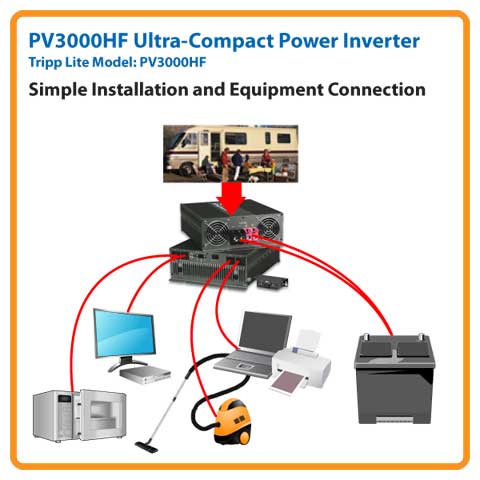

The TRIPP LITE PV3000HF is a 12V DC-to-120V AC power inverter that delivers 3,000 watts of continuous power and up to 6,000 watts peak, making it suitable for vehicle or battery-power setups running compatible appliances and equipment rated under 3,000 watts.
Recommended For
- Truck and fleet operators who need battery-powered 120V AC at a parked vehicle for mobile-office equipment, coffee makers, or other compatible loads.
- Contractors working at remote sites who have a suitable 12V battery system and need AC power for compatible tools, lights, or tool-battery chargers.
- RV and boat owners who want a permanently mounted inverter for selected 120V appliances or electronics while away from shore power, and can provide the required 12V battery capacity and heavy-duty wiring.
- Users with compatible 120V loads who value a vehicle-mounted setup with remote on/off control and battery/load status indicators.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Converting 12V battery power to run TVs, DVD players, microwaves, tools, coffeemakers, and game systems with a combined load under 3000W |
| Power Output | 3000W continuous and 6000W peak output at 120V AC, with a modified sine wave at 60Hz |
| Battery Input And Conservation | 12V DC input; draws 286A at full continuous load and 1.5A with no load, with shutdown/load-sense draw below 100 microamps. Battery Saver low-voltage alarm and shutdown, adjustable low-load shutoff, and battery charge-level LEDs help manage battery use |

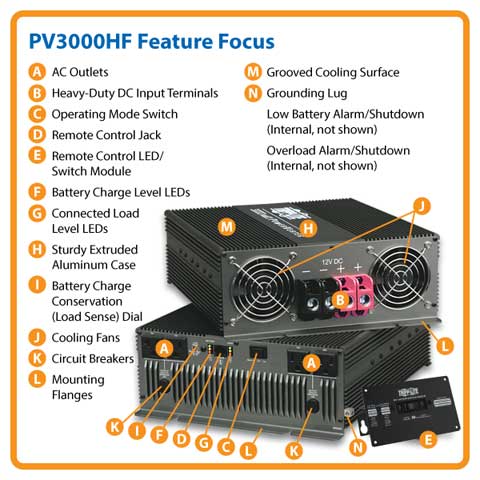

| Outlets And Controls | Two NEMA 5-15/20R outlets; operating-mode switch, remote-control jack, and included LED/switch module with an extra-long cable for remote monitoring and control |
| Protection And Cooling | Circuit breakers protect against equipment overload; cooling fans and a grooved cooling surface support cooling during operation |
| Installation And Construction | Heavy-duty DC input terminals with dual connections, mounting flanges, grounding lug, and a sturdy extruded-aluminum case |
| Physical Specifications | 16.55 lb; 41.91 × 30.99 × 13.46 cm (L × W × H); black |
| Model Identifiers | TRIPP LITE PowerVerter Compact Inverter, model PV3000HF |
