DC INPUT: Full continuous load - 282A at 12VDC. AC INPUT: 40 amps total (20A line 1 / 20A line 2) at 120VAC with full inverter and charger load (25A max charger-only from line 1 / combined input load to support charger and AC output is automatically contr
3000W (continuous) / 6000W (peak)
+
+
Overview
Specs
Reviews (1)

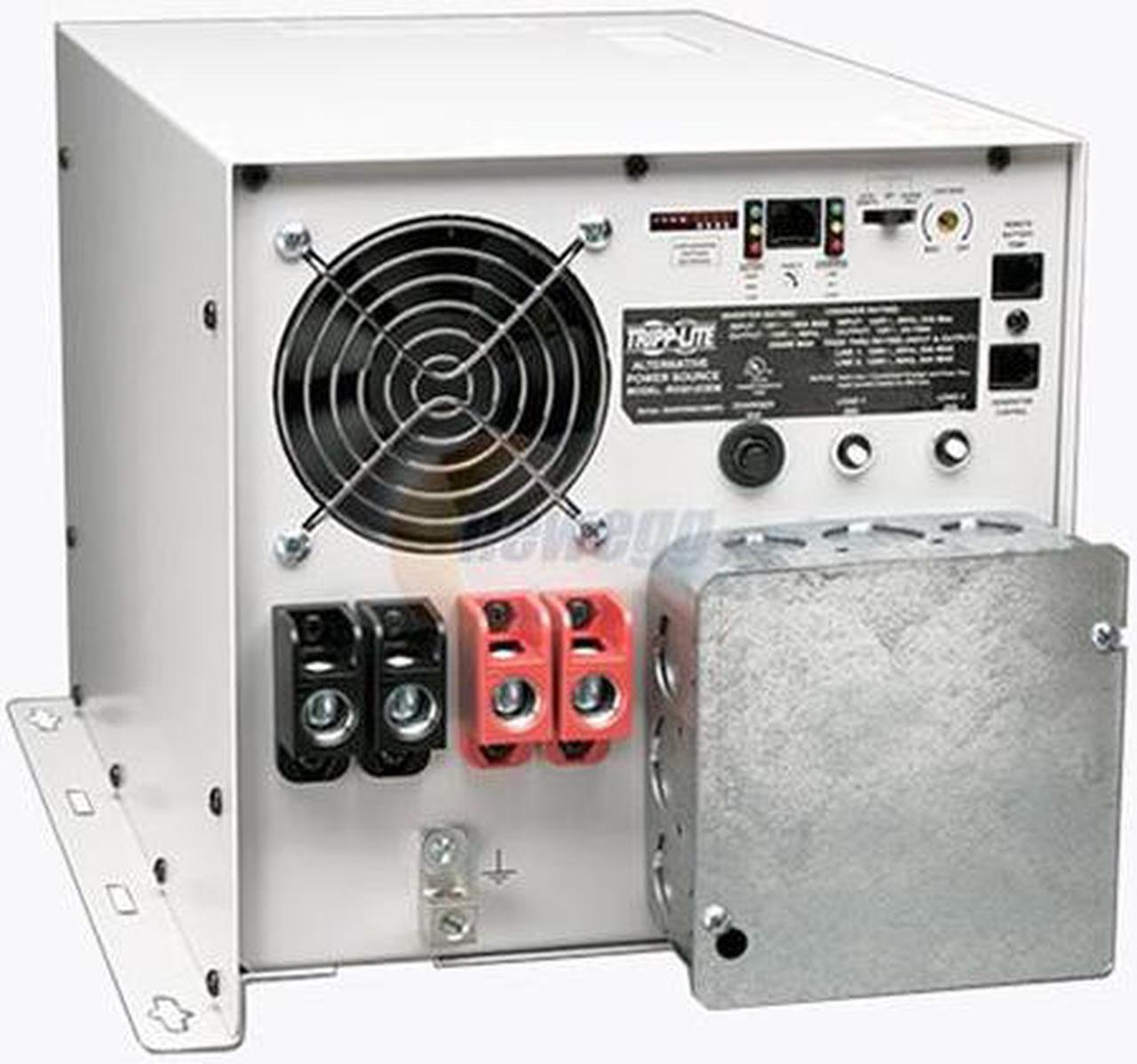

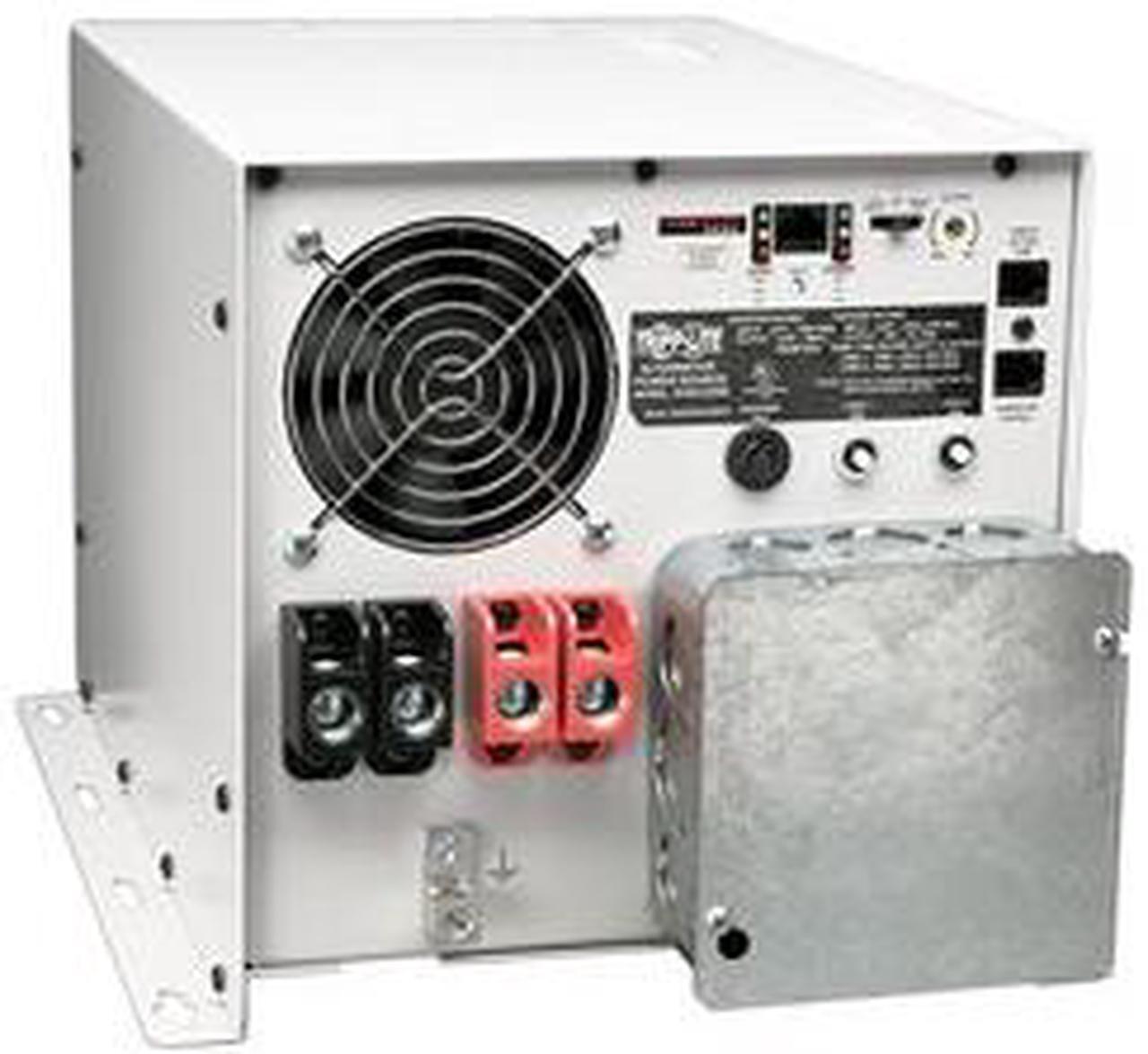

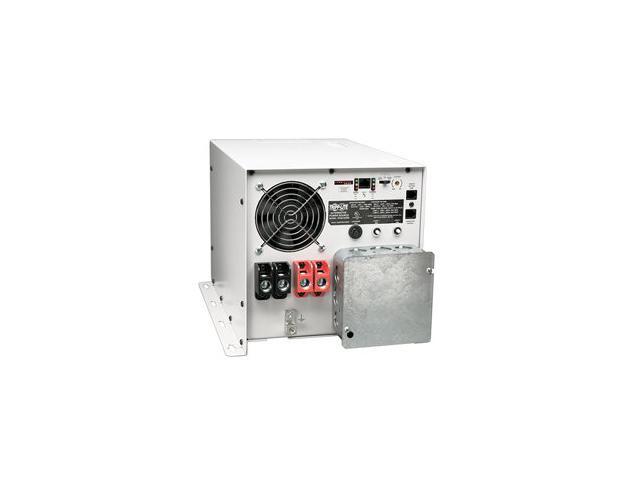

Learn more about the Tripp Lite RV3012OEM
Model
Brand
TRIPP LITE
Model
RV3012OEM
Details
Input
DC INPUT: Full continuous load - 282A at 12VDC. AC INPUT: 40 amps total (20A line 1 / 20A line 2) at 120VAC with full inverter and charger load (25A max charger-only from line 1 / combined input load to support charger and AC output is automatically contr
Output Voltage
120V (AC) / 12V (DC Charger)
Output Watt Capacity
3000W (continuous) / 6000W (peak)
Features
Features
RV3012OEM serves as an automotive or stationary DC-to-AC inverter with automatic line-to-battery transfer and integrated battery charger Supports 120V AC output from a 120V AC line power source or 12V DC battery source 16.6 millisecond automatic transfer between line and battery power supports UPS protection during blackouts and voltage fluctuations for equipment compatible with a one cycle transfer time 3000 watts continuous AC output in inverter mode, 4800 watts continuous via dual circuit AC output in AC mode Double Boost™ inverter output supports momentary startup loads up to 200% of the continuous rating for up to 10 seconds OverPower™ inverter output supports longer duration overloads to 150% for 1-60 minutes under ideal battery and temperature conditions. (For best results, utilize OverPower usage for as short of a duration as possible, ensure battery bank and cabling is able to provide full nominal DC voltage under load and allow inverter/charger to fully cool before and after OverPower usage.) 3 stage, selectable 35/140 amp battery charger with adjustable settings for wet/gel battery types offers fast, reliable battery recharging Protected hardwire bolt-down input lugs safely accept heavy gauge input wiring from attached battery bank Protected hardwire output passes 120V line power or inverter output through to connected equipment. Includes optional dual-circuit hardwire AC input to enable full charger output from the first 120V 20A circuit and full AC pass-through from the second 120V 20A input feed Reliability enhanced large-transformer design tested to UL (USA) and CSA (Canada) standards Moisture-resistant construction enables vehicular or marine operation in high humidity environments 3 position operating mode switch supports "AUTO" mode to enable automatic transfer between DC and AC modes, CHARGE-ONLY to maintain a full battery charge when AC is present without auto transfer and SYSTEM OFF settings
Additional Information
Date First Available
August 19, 2024
Customer Reviews of the Tripp Lite RV3012OEM
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
