Tripp Lite 1500 VA Smart UPS Back Up, 900 W Rack-Mount / Tower, LCD, AVR, Extended Runtime Option, USB, DB9 (SMART1500LCDXL)

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 1500 VA / 1.5kVA / 900 Watts Uninterruptible Power Supply (UPS) Battery Backup with LCD & AVR
  • Supports a half-load (450 W) up to 12 min. during power outage
  • Features 8 protected NEMA 5-15R outlets
  • RS232, USB & RJ45 Ethernet or TEL/DSL Protection
  • Extends runtime with optional BP24V15RT2U external battery pack

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

PRODUCT DESCRIPTION

Do you think power problems are no big deal? Think again. Power problems—including blackouts, brownouts, power surges and line noise—threaten your electronic investments every single day. They can damage or destroy PCs and other expensive equipment, wipe out valuable data and files, and degrade component performance. Protect against these all-too-common power threats with Tripp Lite's SMART1500LCDXL Digital UPS System. It provides reliable battery backup that can keep entry-level PC systems operational for up to 75 minutes during blackouts. Battery capacity is also expandable for even greater flexibility and system runtime. Automatic voltage regulation (AVR) corrects brownouts and overvoltages back to safe 120V power without draining the UPS battery. Surge suppression and EMI/RFI line noise filtering prevent hardware damage and performance problems such as poor-quality audio and video output. A large illuminated LCD screen with dimmer switch shows incoming power conditions and UPS operations in real time. Plus, the SMART1500LCDXL comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment and a 3-year warranty.

Ideal for Protection for Home or Office PCs and Home Theaters

Ideal for Protection for Home or Office PCs and Home Theaters

Featuring reliable battery backup, automatic voltage regulation, surge suppression, line noise filtering, USB and DB9 communication ports, eight AC outlets with a unique outlet design that accommodates two large transformers without blocking other outlets plus tel/Ethernet protection, the SMART1500LCDXL offers a complete power protection solution for PCs, A/V components and all home and office electronics.

Reliable Battery Backup

UPS battery backup support enables you to work through short power failures, and provides time to save files and perform an orderly system shutdown in case of a prolonged blackout. The SMART1500LCDXL features a large internal battery that provides 4 min. of battery support for a full load (900 watts), 12 min. for a half-load (450 watts) or 75 min. for a single PC. During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed.

SMART1500LCDXL Feature Focus
EMI/RFI Line Noise Filtering
Rotatable LCD Status Screen

Expandable Runtime for Greater Protection

The SMART1500LCDXL features the ability to attach an external battery pack (one BP24V15RT2U) and extend the time the unit can support loads while on battery. With a greater runtime, you have a longer period in which to shut down sensitive equipment, protect data and finish important functions when a blackout occurs.

Advanced Automatic Voltage Regulation (AVR)

Advanced AVR protects your equipment from incremental hardware damage, data loss and performance problems that can be caused by low-voltage conditions (brownouts) and overvoltages. The SMART1500LCDXL automatically corrects brownouts as low as 75V and overvoltages as high as 147V back to 120V without drawing on battery backup power that may be needed to support your equipment during a blackout.

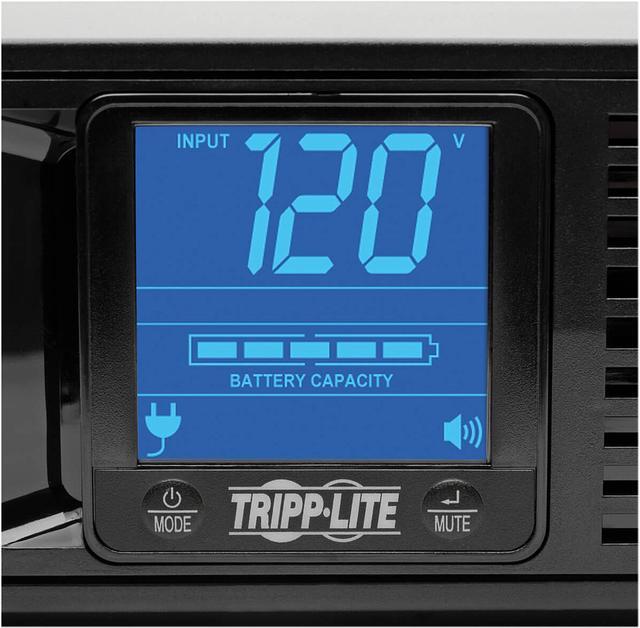

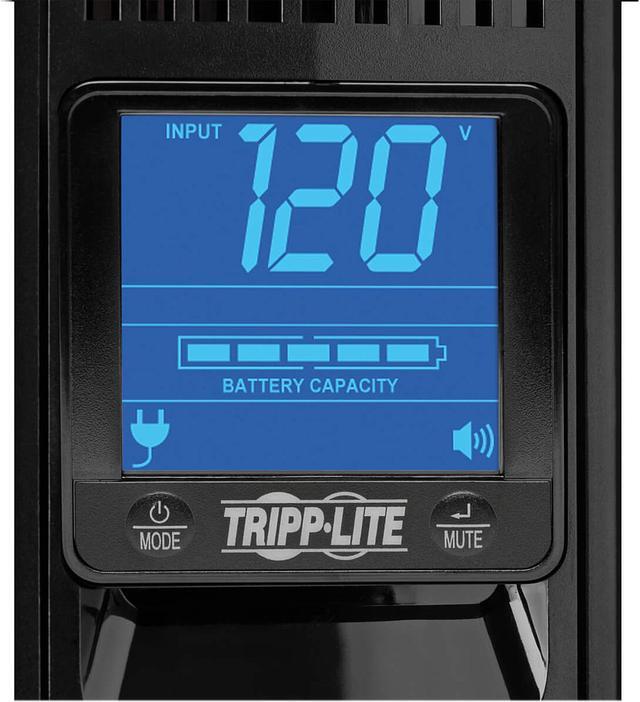

Rotatable LCD Status Screen

The SMART1500LCDXL features a large illuminated LCD screen with dimmer switch that alerts you to potential power problems. This screen shows input voltage, 5-bar battery charge level, overload, AVR, on battery and replace battery status at a glance. It can be rotated for easy viewing in both horizontal and vertical UPS installations.

AC Line and Tel/Ethernet Surge Suppression

A sudden power surge or spike on an AC, phone or network line can damage or destroy electronic components and wipe out irreplaceable data. The SMART1500LCDXL features a 480-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. One set of tel/Ethernet (RJ45) jacks provides surge protection for a standard phone, DSL or network connection.

EMI/RFI Line Noise Filtering

Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART1500LCDXL incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.

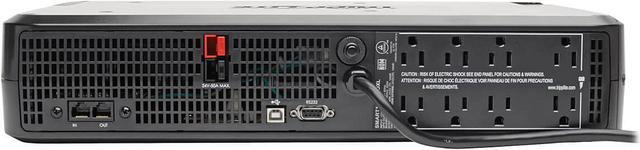

Communication Ports and Free PowerAlert Software

The SMART1500LCDXL features an HID-compliant USB port and a DB9 serial port (cables included). Used with Tripp Lite's free PowerAlert software (available from Tripp Lite as a Web download), these ports enable safe unattended system shutdown and file saves in the event of a prolonged power failure. The USB port also enables integration with built-in power management and auto shutdown features of Windows® and Mac OS® X.

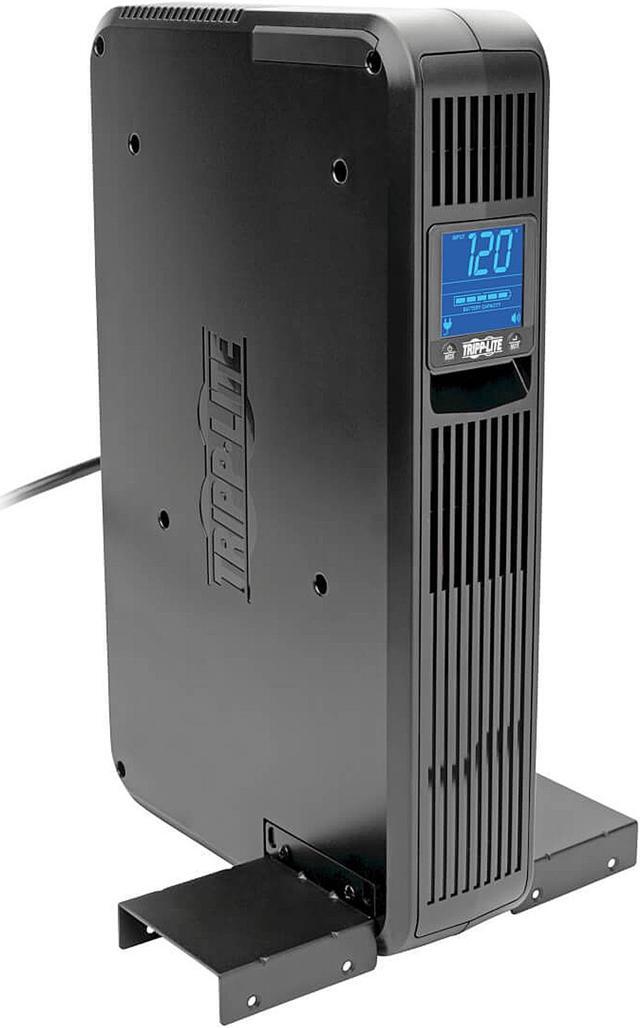

Versatile Installation Options

The SMART1500LCDXL is easily adaptable to vertical (tower), horizontal or rackmount installations. Its 6-ft. power cord features a space-saving right-angle plug that allows furniture to be placed flush against the wall. Included removable mounting ears are provided to facilitate 2U rackmount installation in standard 2- or 4-post racks.

Environmentally Responsible

The SMART1500LCDXL's efficient design conserves electricity, saves money and reduces CO2 emissions. This UPS system is manufactured in compliance with strict RoHS guidelines to minimize the use of hazardous materials, and its replaceable internal battery is 100% recyclable.

Ultimate Peace of Mind

The SMART1500LCDXL comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment insurance (USA/Canada only) and a 3-year product warranty.

Technical Specifications

  • Tripp Lite SMART1500LCDXL Digital UPS System
  • Voltage compatibility: 120 V (AC)
  • Frequency compatibility: 60 Hz
  • VA/wattage capacity: 1500/900
  • Battery runtimes (half/full): 12 min./4 min.
  • External battery pack compatibility: BP24V15RT2U (limit 1)
  • Outlet quantity/type: 8 x 5-15R
  • Signal line protection: RJ45 tel/Ethernet jacks (1 set)
  • Communications ports: 1 x HID-compliant USB; 1 x DB9
  • Input cord: 6 ft.
  • Input plug: 5-15P right-angle
  • Switches/LEDs/alarms: On/Off switch, Alarm cancel/self-test switch, LCD display, Audible alarm
  • Dimensions (HWD): 3.5 x 17.3 x 10.5 in.
  • Weight: 29.4 lb
  • Material of construction: Plastic
  • Agency approvals: UL 1778 (US) / CSA (Canada), NOM (Mexico), FCC Part 15 Category B (EMI), FCC Part 68 / Industrie Canada (telecom), RoHS

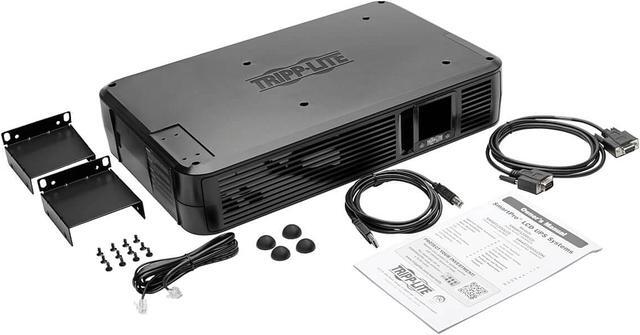

What's in the Box

  • SMART1500LCDXL Digital UPS
  • USB Cable
  • DB9 Cable
  • Network (RJ45) Cord
  • Mounting Hardware
  • Owner's Manual
What’s in the Box
Tripp Lite
LCD UPS Systems
SMART1000LCD
SMART1000LCD

SMART1200LCDSMART1200LCD
SMART1500LCD
SMART1500LCD
SMART1500LCDXL
SMART1500LCDXL
VA/Watts 1000/500 1200/700 1500/900 1500/900
Outlets & Protection 8 5-15R + tel/DSL + coax 8 5-15R + tel/Ethernet 8 5-15R + tel/Ethernet 8 5-15R + tel/Ethernet
LCD Screen Yes Yes Yes Yes
Half-Load Runtime 10 min. 12 min. 13 min. 12 min.
Expandable Runtime Yes
Battery Packs BP24V15RT2U
Communication Ports USB USB + DB9 USB + DB9 USB + DB9
Housing Material Plastic Plastic Plastic Plastic
Warranty 3-year 3-year 3-year 3-year

Learn more about the Tripp Lite SMART1500LCDXL

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: more than 1 year
Verified Owner
5/ 5
UPS Tripp Lite Unit 3/29/2020 5:36:23 PM

Pros: Purchased 11 2018 and still going strong. No issues since delivery. I've had multiple power outages and it's saved my system. It helped since I was home and knew about the problem.
- On side note to others: batteries need to be manually cycle to keep good health because they are always setting at 100%.
- Like that it has battery test function.

Cons: I wish there was a connector to connect to my servers to help trigger a save shutdown but it doesn't. My APC unit which is twice as small does have this but it doesn't have the power management I need that this once does.
- don't like that is non replaceable batteries but I got it for it's price target vs others which are usually triple or more the cost (haven't needed to use the warranty due to this).

Overall Review: As of April 2020, I would recommend this to others and will review again in another year or so.

Did you find this review helpful?
Michelle
5/ 5
I would recommend this product to anyone! 11/24/2019 9:00:00 PM

Overall Review: I use this unit for modem and router to be plugged into so I always have Internet even when the electricity goes out. It is working great!

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Used with a Leslie cabinet 10/9/2019 1:43:44 PM

Pros: I bought this because my rotating organ speaker (Leslie Cabinet) does not work properly when voltage dips. This was the solution! Played a 5 hour gig without issue. This unit is built very well, I'm very happy.

Overall Review: I bought this because my rotating organ speaker (Leslie Cabinet) does not work properly when voltage dips. This was the solution! Played a 5 hour gig without issue. This unit is built very well, I'm very happy.

Did you find this review helpful?
William
5/ 5
Good product and a good price. 9/23/2019 9:00:00 PM

Overall Review: Use with our home entertainment/whole house system and is great- silent but works great.

Did you find this review helpful?
Ownership: 1 day to 1 week
Verified Owner
4/ 5
Good product 6/6/2019 6:01:55 AM

Pros: Easy to install into my rack. Works as intended

Cons: I wish this product came with an easy to install and set up cd for communicating with the pc. trying to find online programs are difficult at best

Overall Review: I would recommend this product

Did you find this review helpful?
Ownership: more than 1 year
Verified Owner
1/ 5
Dosen't protect your hardware 5/3/2019 12:05:35 PM

Pros: None

Cons: First lighting storm, power went out came back right a way and the SMART1000LCD fried the USB port that it was plugged into, so now most of my USB ports don't work. Unit would not start back up or recharge, after a couple of months it started working again, I don't know why? It's not plugged into my USB port Because they don't work anymore. Wont buy another Tripp Lite again.

2 out of 2 people found this review helpful. Did you?
Manufacturer Response:
Hello Howard, We are sorry to hear that you’ve have a negative experience with the SMART1000LCD and we would like to help. We’d appreciate the opportunity to speak with you in order to recommend the best solution for your set-up. Please reach out to our Chicago-based Tech Support Team at 773-869-1234 (M-F 7AM-6PM Central) so that we may better assist you. Thank you.
Shawn
4/ 5
Worth it. Dimmable display is worth it 1/11/2019 9:00:00 PM

Overall Review: Good unit. Does and works as expected.
Didn't get a 5 star rating cause I have 2 of these plugged in side by side off the same breaker and the voltage between the two of them can have a 2 to 5 input volt difference.

Did you find this review helpful?
Big D
5/ 5
Wonderful product, with amazing performace. 12/14/2018 9:00:00 PM

Overall Review: Thank you so very much for a great product and wonderful protection plan for my equipment!

Did you find this review helpful?
