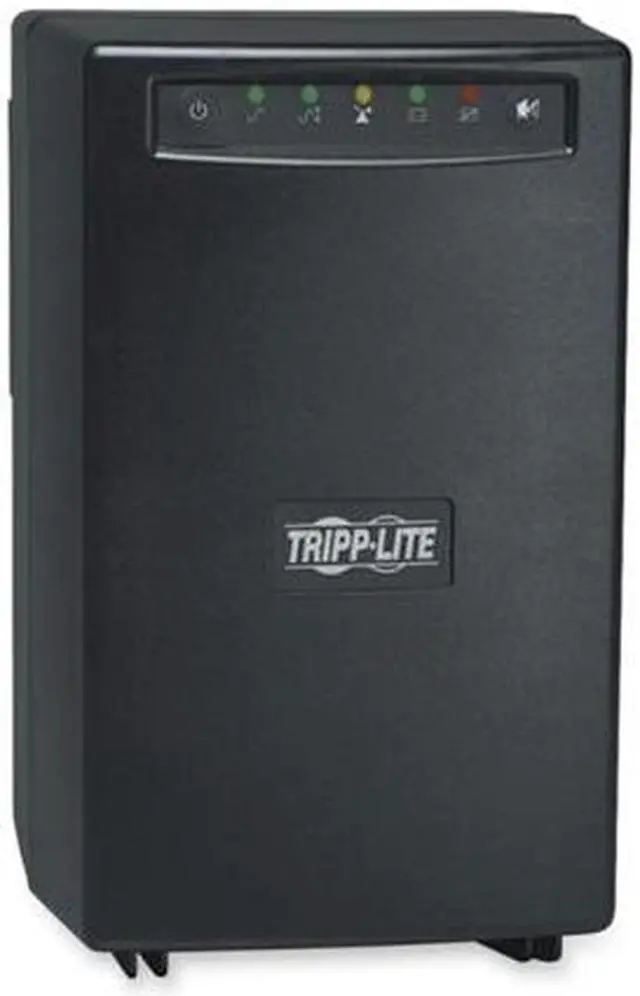

Tripp Lite SMART750 Smart Pro 750 VA 450 Watts 6 Outlets Tower Line Interactive UPS

Be the first to review this product...

750VA line interactive tower UPS system
120V nominal output during brownouts to 75V and overvoltages to 147V
USB communications port; Hot-swappable batteries
NEMA 5-15P input; 6 NEMA 5-15R outlets

Overview

Specs

Reviews

MAIN OVERVIEW FEATURES: Plug/Connector Type: NEMA 5-15PReceptacles: 12 x NEMA 5-15RTransfer Time: 4 msLoad Capacity: 750 VA/450 WInput Voltage: 120 V ACOutput Voltage: 110 V AC,115 V AC,120 V ACBackup/Run Time (Full Load): 5.60 MinuteTypical Battery Recharge Time: 6 HourHeight: 11.8"Width: 7.2"Depth: 7.5"Form Factor: TowerWeight (Approximate): 23 lbPackage Contents: SmartPro 750VA Tower UPSSMART750 UPS SystemMonitoring cablePowerAlert unattended shutdown and UPS/Power monitoring software CDInstruction manual with warranty informationLimited Warranty: 2 Year

Model
Brand	TRIPP LITE
Series	SmartPro
Model	SMART750

Output
VA Rating	750 VA
Watts	450 Watts
Output Voltage	LINE MODE: Sine wave line voltage 120V (-18% / +8%)
Outlets	6
Outlet Type	NEMA 5-15R

Battery
Battery Run Time	Full load runtime 5.5 minutes (750 VA) Half load runtime 16 minutes (375 VA)
Battery Recharge Time	Less than or equal to 6 hours to 90%

Details
Alarms	Audible alarm with 15-second delay sounds to indicate loss of utility power. Alarm can be silenced by pressing front panel alarm cancel button. Once silenced, alarm will re-sound when approximately 2 minutes runtime remain.
Interface Port	USB
Approvals	Tested to UL1778 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant

Surge Protection
Surge Energy Rating	510 Joules

Features
Features	Applications Ideal for the protection of fileservers, network accessories and telecommunications equipment. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems. Ideal for sensitive electronic applications in areas where brownouts and overvoltages are common. Built-in voltage regulation and battery support, plus complete AC line surge suppression prevents equipment damage, data loss and downtime Large internal batteries offer 16 minutes half load runtime and 5.5 minutes at full load during power failures Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 120V nominal output over an input voltage range of 75-147V Includes a total of 6 NEMA5-15R outlets Includes USB communications port for remote monitoring of UPS status and site power conditions Communications port enables safe unattended shutdown without data loss during extended power failures Communications port supports messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity Communications port supports timed inverter shutoff after unattended shutdown, activate self-test and 10-second reboot of connected equipment PowerAlert UPS monitoring and unattended shutdown software with complete cabling included Battery replacement door allows on-site hot-swap battery replacement Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again Notification of system status via 5 LEDs and multi-function audible alarms Wall mountable with UPSWM wallmount bracket Cold start capability enables UPS turn-on in battery mode during blackout conditions

Dimensions & Weight
Dimensions	11.75" x 7.25" x 7.50"
Weight	23 lbs.

Additional Information
First Listed on Newegg	January 21, 2009
