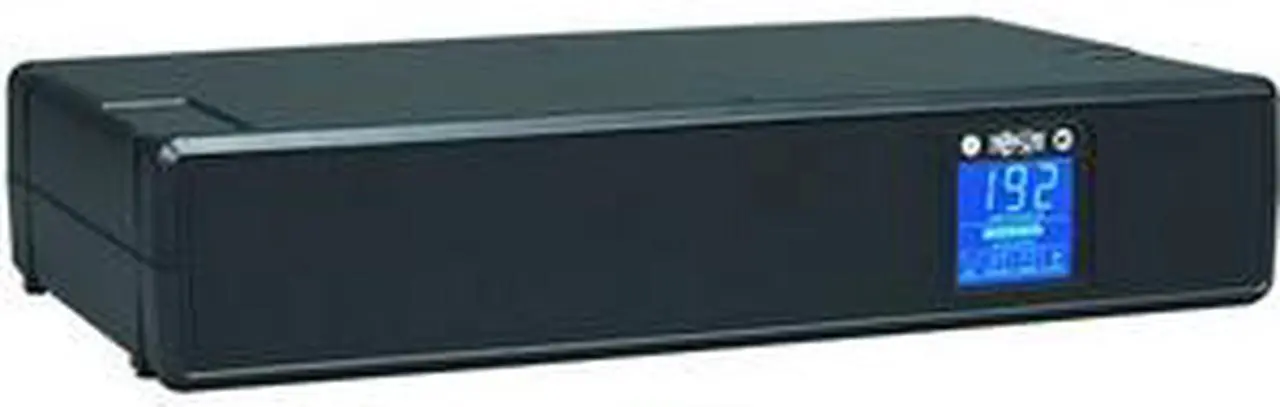

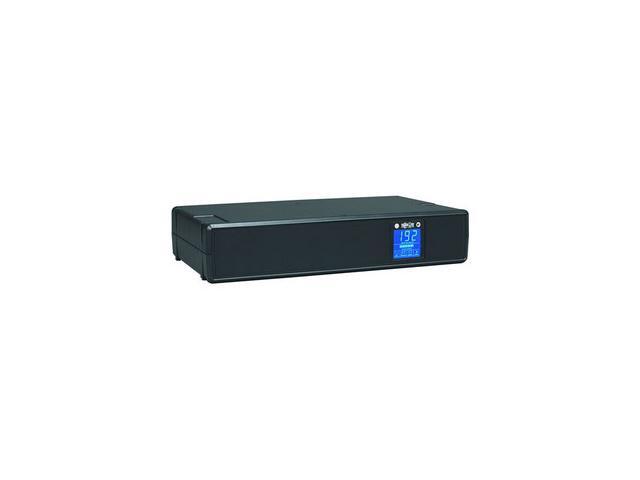

1500VA / 1.5kVA 2U rack/tower 230V line interactive UPS
Corrects brownouts and overvoltages from 144V to 282V
USB, DB9 serial, TEL/DSL/ethernet/coax protection
C14 input and 8 C13 outlets
+
+
Overview
Specs
Reviews (3)
The SMX1500LCD SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, point-of-sale applications, VoIP systems and small business networks, the SMX1500LCD switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss. Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCD has a user-replaceable internal battery that provides 12 minutes of support at half load and 4.5 minutes at full load. It can also power an entry-level PC up to 60 minutes or a single DVR/VCR component up to three hours. A front-panel LCD screen lets you monitor operating data, such as voltage, battery and overload statuses. Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 144V to 282V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. An 360-joule surge suppression rating protects your equipment from harmful power surges. USB communications port supports built-in power management and auto-shutdown features of Windows and Mac OS X or full featured monitoring and data-saving auto-shutdown options using Tripp Lite's free PowerAlert monitoring software.
Tripp Lite's SMX1500LCD Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs for up to 60 min. or individual VCR/DVR components for up to 3 hours during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 176V back to usable levels without consuming battery power. Offers complete power protection in an attractive black tower configuration. Includes 8 battery-supported AC outlets. USB port enables optional unattended system shutdown without data loss in case of extended power failure; USB cable included. PowerAlert Software available via free download from www.tripplite.com. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in single-line RJ-11 phone suppression jacks protect modem, satellite receiver or other peripherals with a standard dialup/DSL phone connection. Set of 2.2 GHz coaxial jacks protect against surges entering on CATV, satellite or broadcast antenna connections. Built-in audible alarm and large LCD front panel voltage displ
Learn more about the Tripp Lite SMX1500LCD
Model
Brand
TRIPP LITE
Series
SmartPro
Model
SMX1500LCD
Input
Input Voltage Range
230 V AC
Input Connection
C14 inlet
Output
VA Rating
1500VA
Watts
900W
Output Voltage
220V; 230V; 240V
Output Frequency
50 / 60 Hz
Outlets
8
Outlet Type
C13
Battery
Battery Type
Valve Regulated Lead Acid (VRLA)
Battery Run Time
Full Load Runtime: 4.5 min. (900w)
Half Load Runtime: 12 min. (450w)
Battery Recharge Time
Less than 4.5 hours from 10% to 90%
Details
Alarms
Audible alarm indicates power-failure, low-battery and overload status; alarm can be disabled using PowerAlert software
Interface Port
USB (HID enabled); DB9 Serial DB-9 Serial
Management Software
PowerAlert
Approvals
CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Meets FCC Part 15 Category A (EMI)
Rackmountable
2U
Surge Protection
Data Line Protection
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)
Surge Energy Rating
890 Joules
Features
Features
LCD Display indicates input voltage, battery capacity and a variety of operating conditions. Display is rotatable for easy viewing whether UPS is in vertical or horizontal position
Provides voltage regulation, surge suppression and long-lasting battery support during blackouts
8 AC outlets provide connected equipment with UPS battery support plus surge suppression
C14 inlet accepts user-supplied AC power cord with country specific plug.
Included DB9 serial and USB monitoring port and cable enables unattended shutdown in the case of extended power failure
HID-compliant USB port enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X
PowerAlert Software available via free download from www.tripplite.com
Set of tel/DSL jacks protects a single dialup/DSL phone line or Ethernet connection
Set of 2.2 GHz coaxial jacks protect against surges entering on CATV, satellite or broadcast antenna connections
1500VA/900W power handling ability supports a variety of sensitive computer, home theater and other equipment
4.5 min. full load runtime (1500VA/900W); 12 min. half-load runtime (750VA/450W)
Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
Cabinet adapts to tower or rackmount shelf format. Rackmount installation brackets for 2U installation in 2- or 4-post racks included
Dimensions & Weight
Dimensions
3.50" x 17.20" x 10.50" (H x W x D)
Weight
29.40 lbs.
Package Contents
Package Contents
SMX1500LCD Digital UPS System USB cable, phone (RJ11) cable and coax cable 2 C13-to-C14 jumper cables 2 tower/rackmount brackets Owner's manual with warranty information
Group
VA
1500 VA / LCD Screen
Additional Information
Date First Available
August 08, 2024
Customer Reviews of the Tripp Lite SMX1500LCD
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
