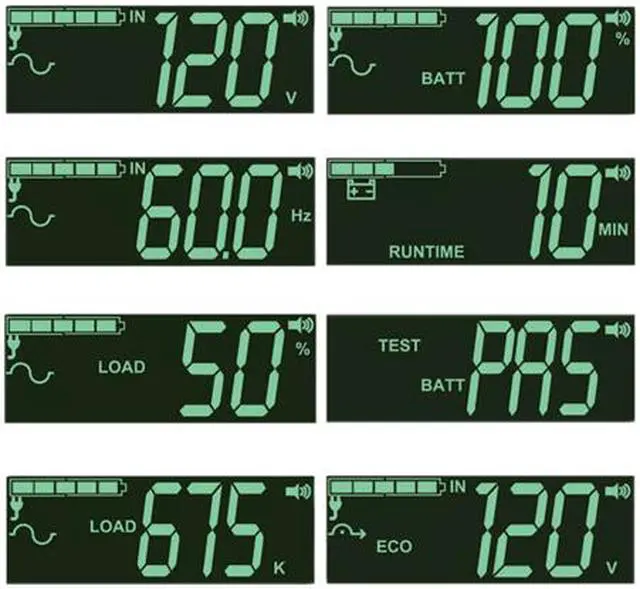

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in a variety of application environments. Online, double-conversion Uninterruptible Power Supply / UPS maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs.

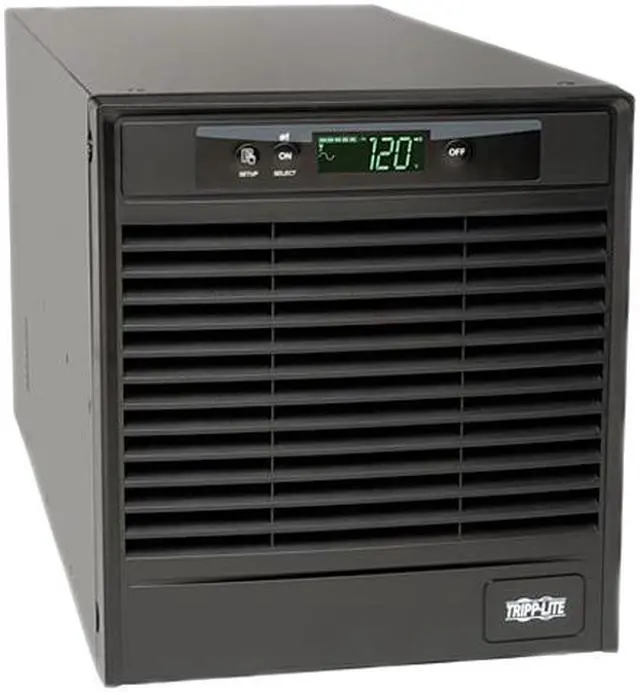

Learn more about the Tripp Lite SU3000XLCD
Model
Brand
TRIPP LITE
Series
SmartOnline
Model
SU3000XLCD
Input
International Version
120V
Input Connection

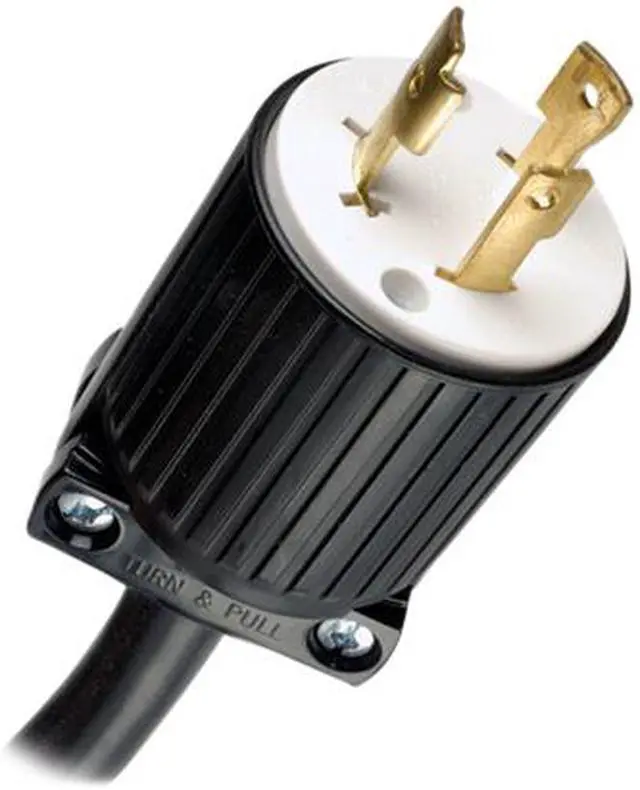

NEMA 5-20P
Output
VA Rating
1960 VA
Watts
1770 Watts
Output Voltage
120V
Output Frequency
50 / 60 Hz
Outlets
7
Outlet Type

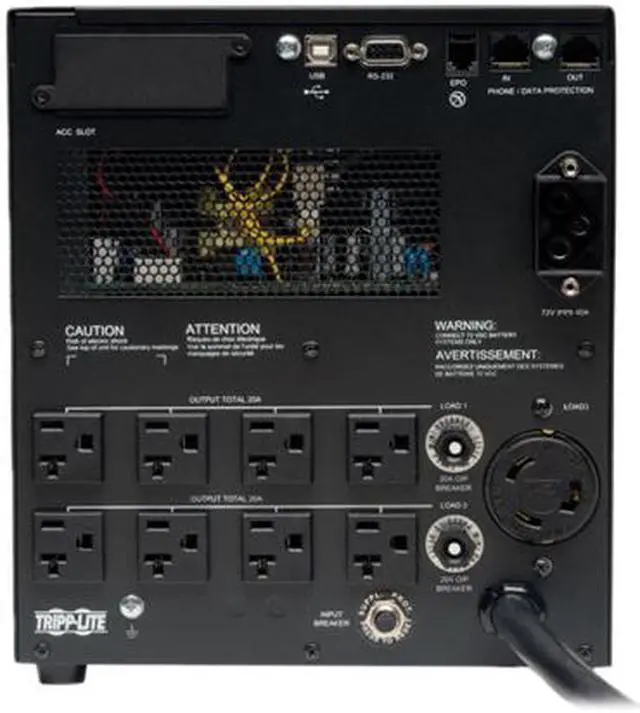

(6) NEMA 5-20R; (1) NEMA L5-20R
Battery
Battery Type
Valve Regulated Lead Acid (VRLA)
Battery Run Time
Full Load: 10.4 min. (1770W) Half Load: 26.2 min. (885W)
Battery Replaceable
User replaceable batteries
Details
Interface Port

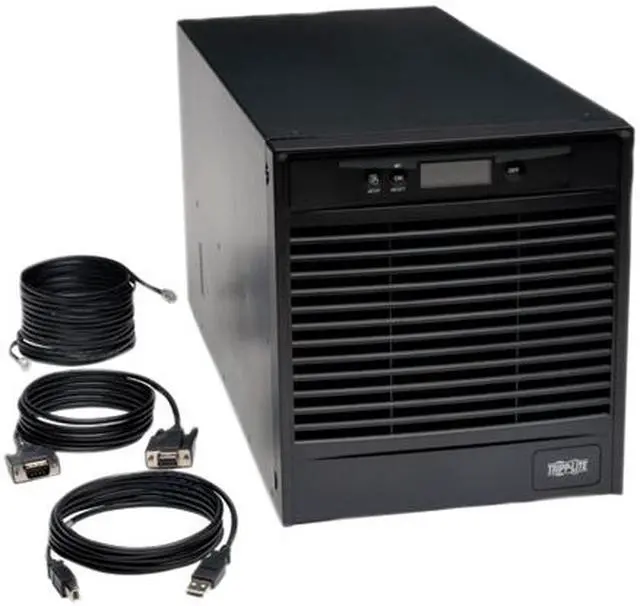

(1) Contact closure; (1) RS-232; (1) Slot for SNMP/Web interface; (1) USB
Surge Protection
Surge Energy Rating
190 Joules
Environmental
Temperature
Operating Temperature Range: 32° to 104°F (0° to 40°C) Storage Temperature Range: With battery: 32° to 104°F (0° to 40°C); without battery: -13° to 131°F (-25° to 55°C)
Humidity
0-96% non-condensing
Dimensions & Weight
Dimensions
13.63" x 8.43" x 16.23"
Weight
73.42 lbs.
Additional Information
First Listed on Newegg
July 28, 2013
