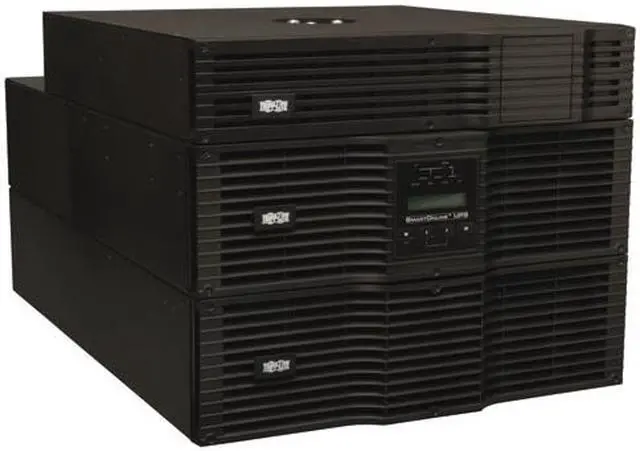

Learn more about the Tripp Lite SU8000RT3UN50TF
Model
Brand
TRIPP LITE
Series
SmartOnline
Model
SU8000RT3UN50TF
Input
Input Connection
Hubbell CS8265; Hardwire
Output
VA Rating
8000 VA
Watts
7200 Watts
Output Voltage
120V; 208V
Output Frequency
60 Hz
Outlets
18
Outlet Type
4 NEMA L6-20R 2 NEMA L6-30R 12 NEMA 5-15/20R
Battery
Battery Type
Valve Regulated Lead Acid (VRLA)
Battery Run Time
Full load runtime 5.5 min. (7200w) Half load runtime 13.5 min. (3600w)
Battery Recharge Time
Less than 6 hours from 10% to 90% (typical, full load discharge)
Details
Interface Port
USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Management Software
PowerAlert
Approvals
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Rackmountable
8U
Features
Features
8kVA / 8000VA / 7200W on-line double-conversion UPS; 0.9 power factor 208/120V 60Hz output; Economy mode option 8U Rack/Tower configuration; Hot-swap power and battery modules USB, RS232 & EPO ports; SNMP/WEB and contact-closure card options Front panel LEDs with detailed LCD monitoring and control screen Expandable runtime with optional external battery packs Hubbell CS8265 input (3 wire); L6-30R, L6-20R & 5-15/20R outlets
Dimensions & Weight
Dimensions
Power Module: 5.14" x 17.50" x 25.82" (H x W x D) Battery Pack: 5.25" x 17.50" x 25.00" (H x W x D) Step-down transformer: 3.50" x 17.50" x 20.80" (H x W x D)
SU8000RT3UPM 3U UPS power module BP240V10RT3U external battery pack SU5000XFMRT2U step down transformer SUPDMB710 Detachable PDU with manual bypass switch Four post compatible rack rail kit (3 sets) Tower stands for upright tower configuration PowerAlert software, complete data cabling and user manual
Additional Information
First Listed on Newegg
April 28, 2009
