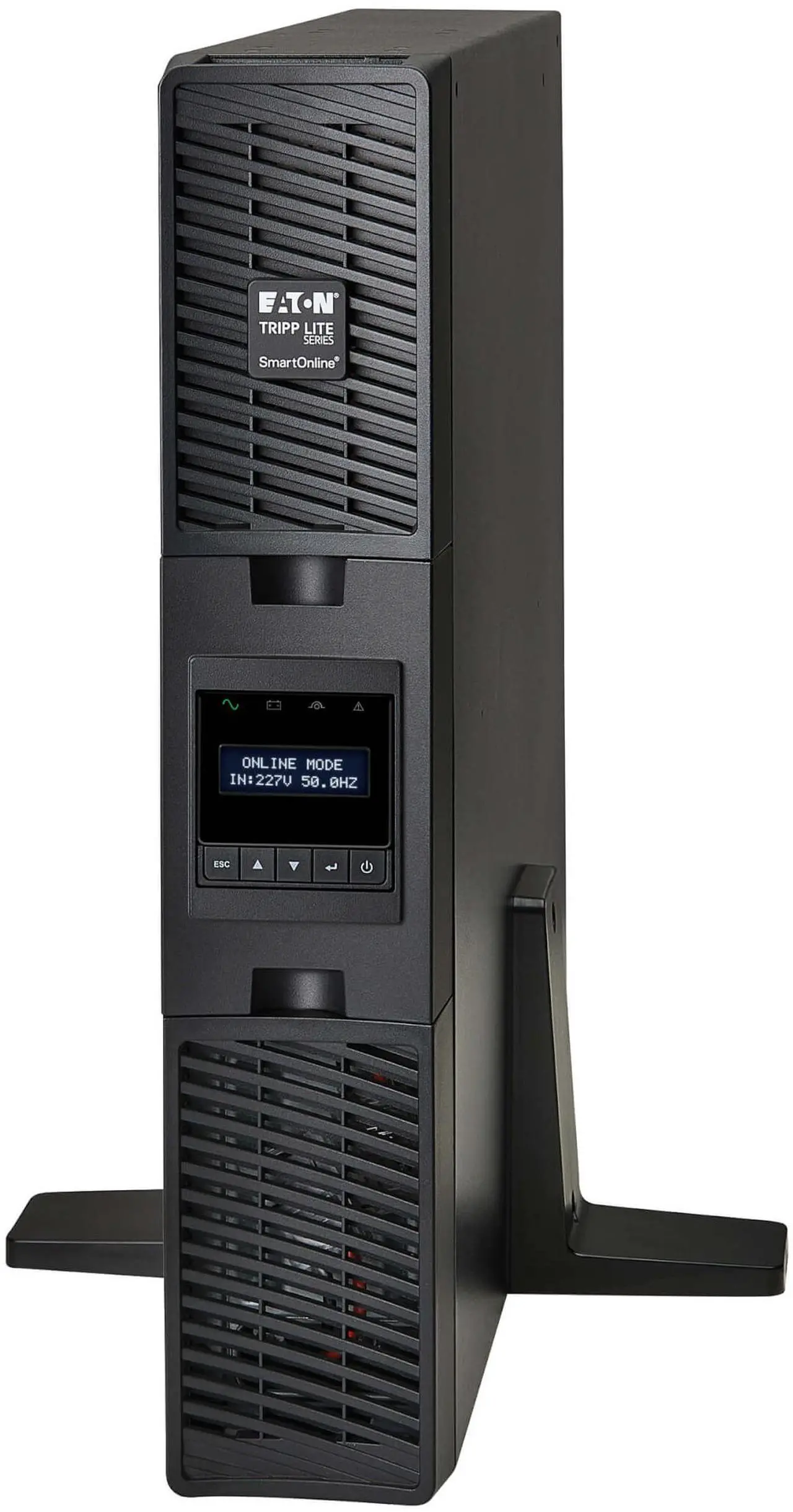

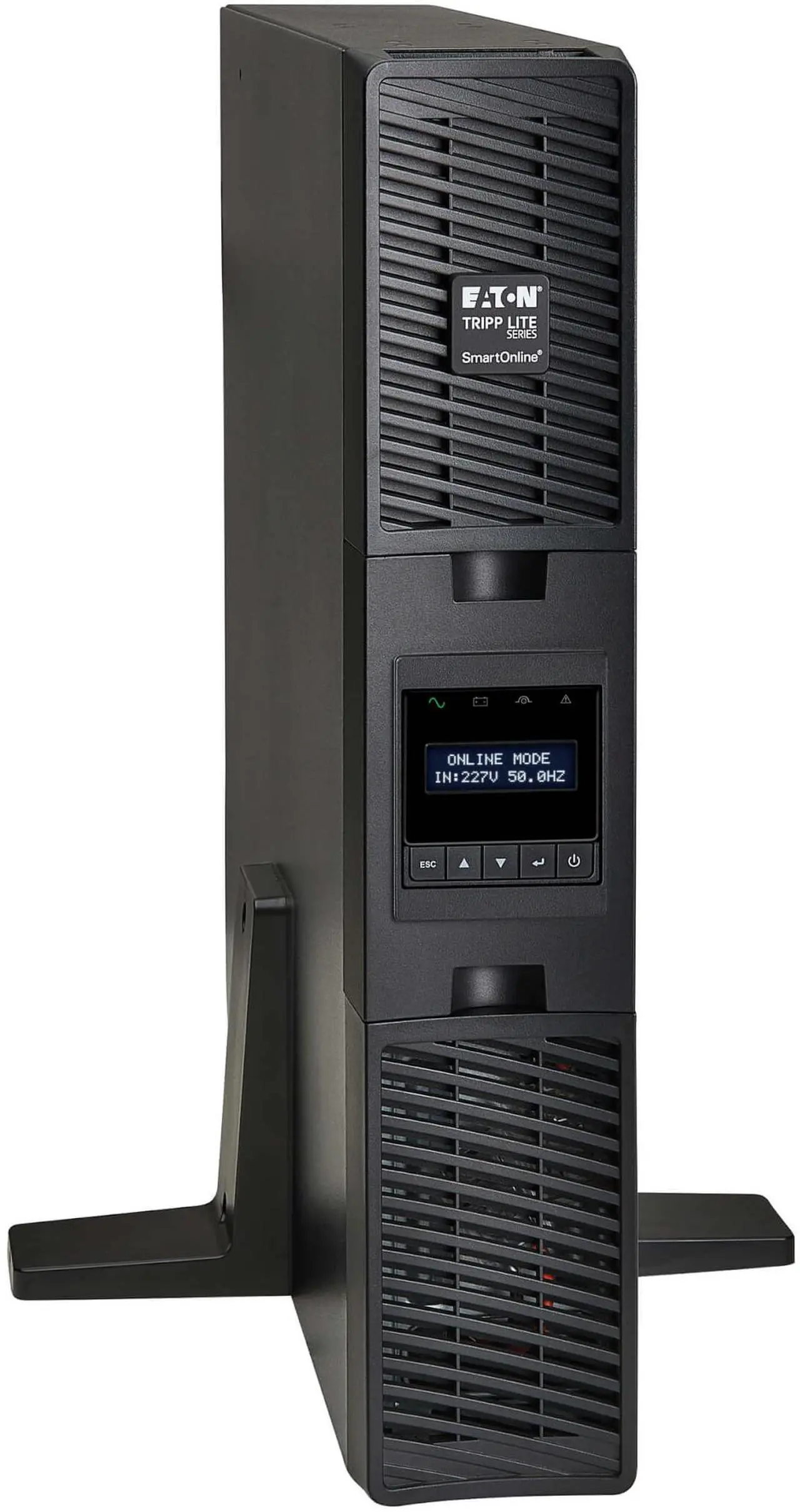

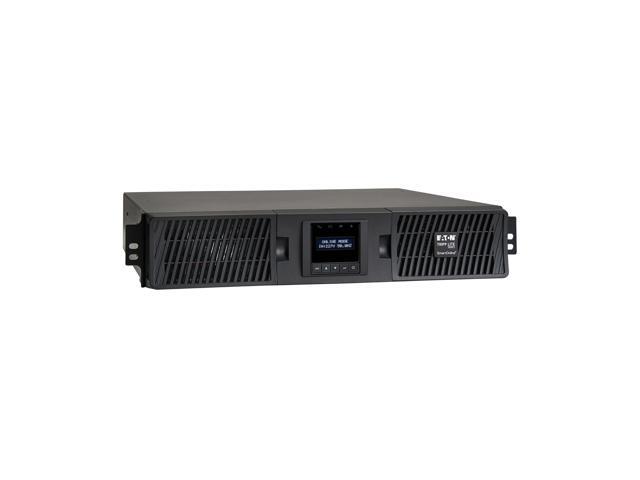

Tripp Lite series SmartOnline 1500VA 1350W 208/230V Double-Conversion UPS - 8 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower (SUINT1500LCD2U)

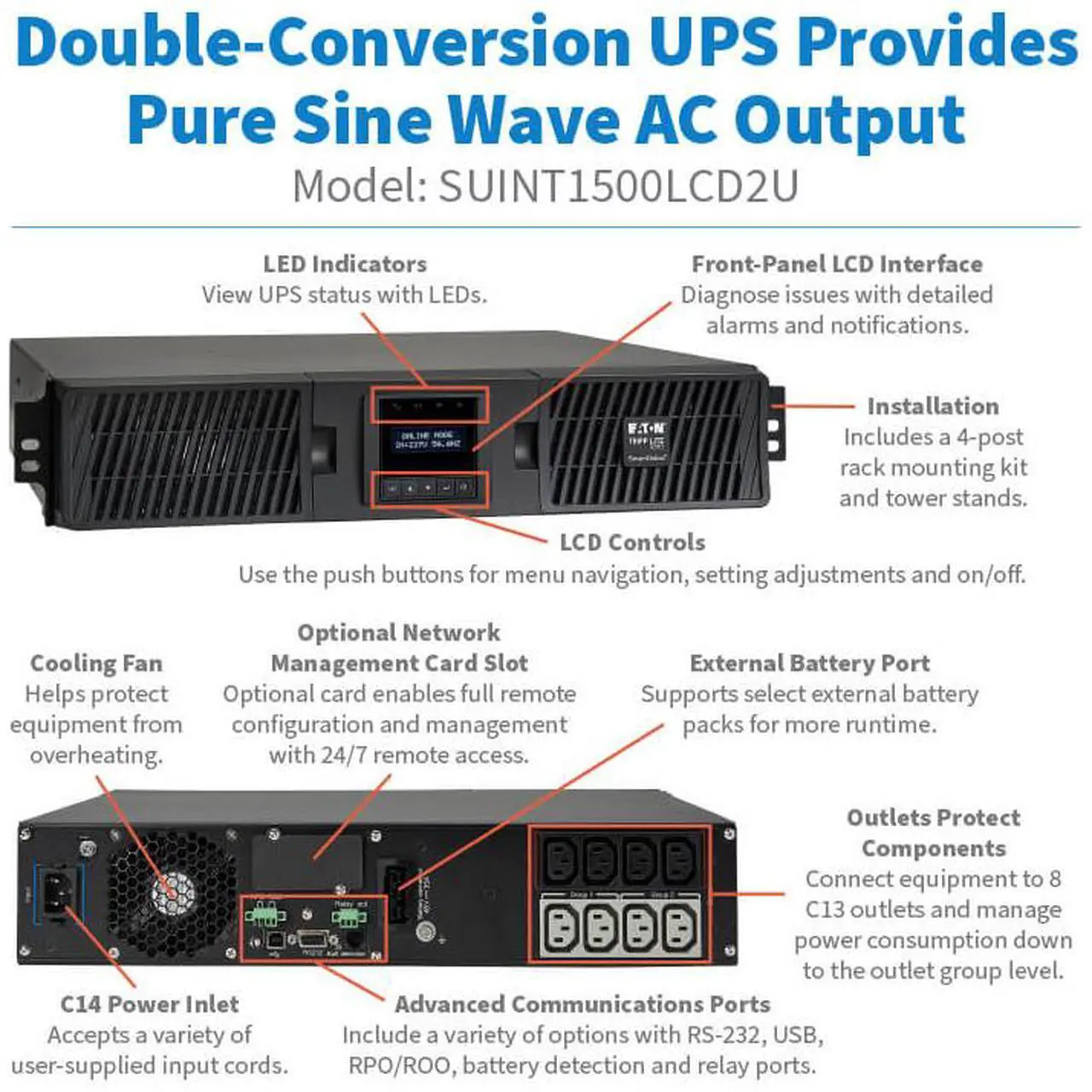

- Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
- Optional LX Platform Network Management Card Allows Remote Access 24/7

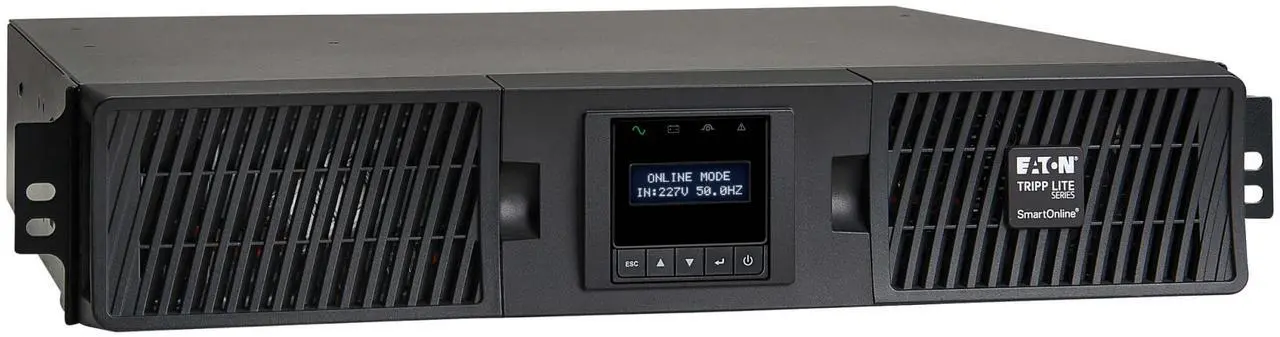

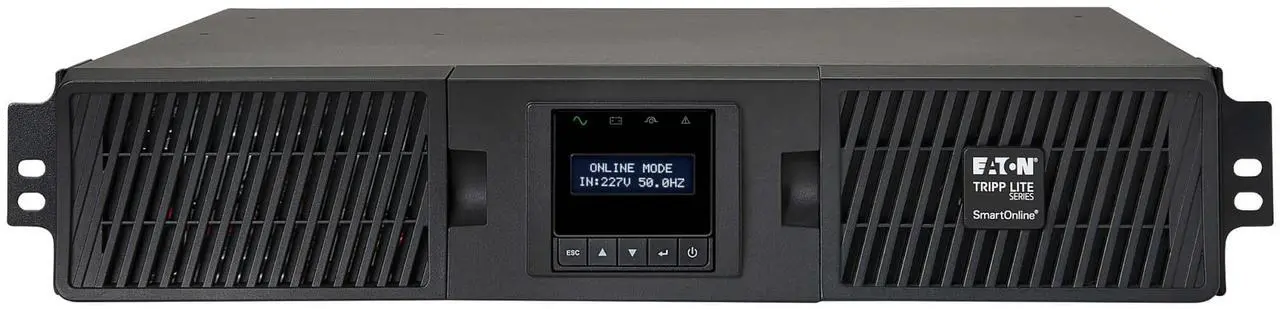

- Clear LCD Interface Keeps You Informed at a Glance
- Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
- C13 Outlets Protect Your Connected Components
- Advanced Communications Ports Allow for Automatic Saves and Shutdowns
- Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
- Automatically Turns Back On After Power Is Restored

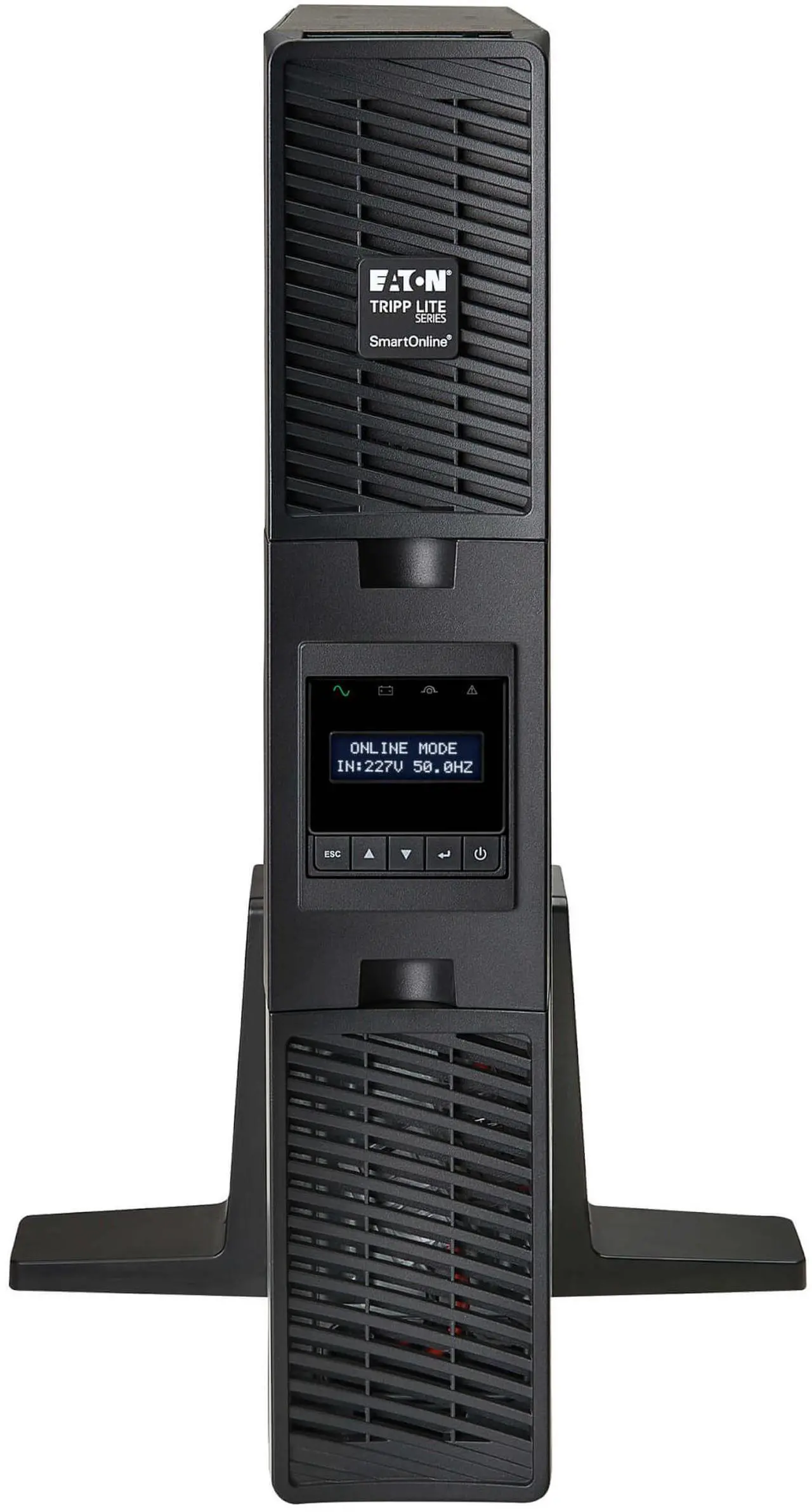

- Versatile Installation Options
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
SmartOnline 208/230V 1.5kVA 1.35kW Double-Conversion UPS, 2U, Extended Run, SNMP
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-773-869-1111
- Support Website
- View other products from Tripp Lite
LOADING...
The Tripp Lite SmartOnline SUINT1500LCD2U is a 1500VA/1350W, 208/230V double-conversion UPS for rack-mounted servers and other mission-critical equipment, with eight C13 outlets and a 2U rack/tower design.
Recommended For
- IT teams protecting rack servers, switches, or other sensitive equipment on a compatible 200–240V supply that need continuously conditioned power and no transfer gap when utility power fails.
- Small data rooms and edge-network installations that need a 2U rack/tower UPS with eight C13 outlets and battery backup for short outages or safe system shutdown.
- Administrators who need to monitor UPS status or coordinate alerts and safe shutdowns remotely, provided they add the compatible WEBCARDLXE network card.
- Rack operators who want to extend backup time beyond the internal batteries and can add compatible BP48RT external battery modules.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Mission-critical rack-mounted equipment that needs battery backup, replaceable batteries, and optional network management |
| Power Capacity And Electrical | 1500 VA / 1350 W capacity, 208V international version, 40–70Hz input frequency before battery transfer, 50/60Hz output frequency, and C14 input connection |
| Outlets And Load Management | Eight C13 outlets arranged in two load banks with switchable outlets |
| Battery And Runtime | Valve-regulated lead-acid batteries are hot-swappable and user-replaceable; runtime is 5.8 minutes at full load (1350W) or 16 minutes at half load (675W), with a 90% recharge in 3 hours |

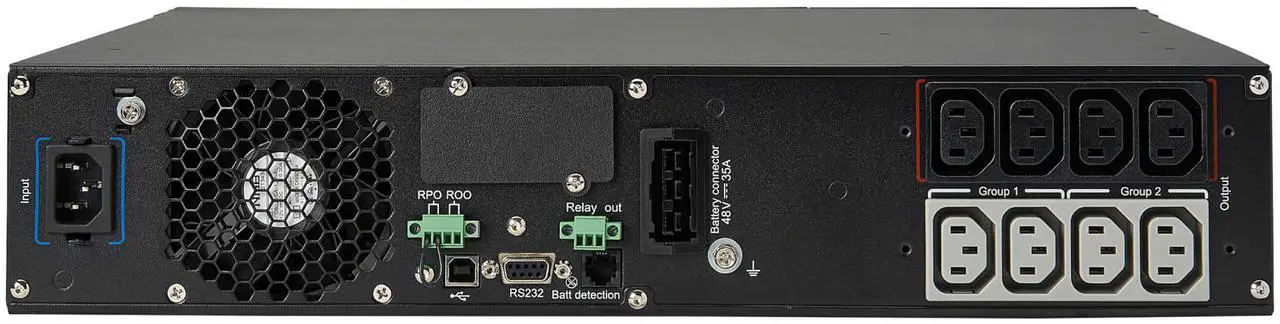

| Monitoring And Interfaces | Front-panel LCD, USB, RS-232, contact-closure, and a slot for an SNMP/Web interface; audible alarms indicate startup, power failure, low battery, overload, UPS fault, and remote shutdown conditions |
| Surge Protection And Operating Environment | 296-joule surge energy rating; operates from 32° to 104°F (0° to 40°C) at 0–96% non-condensing humidity |

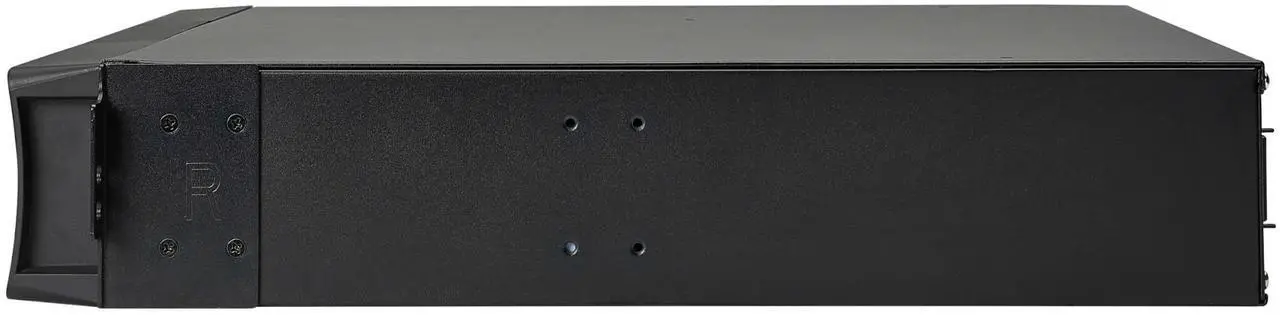

| Installation And Dimensions | Rack-mountable; 3.41 × 17.33 × 17.72 inches and 41.45 lb |
| Energy And Power Features | ENERGY STAR certified with five power strategies |
| Model Identifiers | Tripp Lite SmartOnline, model SUINT1500LCD2U |
