TURCK BI30U-CK40-AN6X2-H1141 1625820 Inductive sensor NPN
- TURCK BI30U-CK40-AN6X2-H1141 1625820 Inductive sensor NPN
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

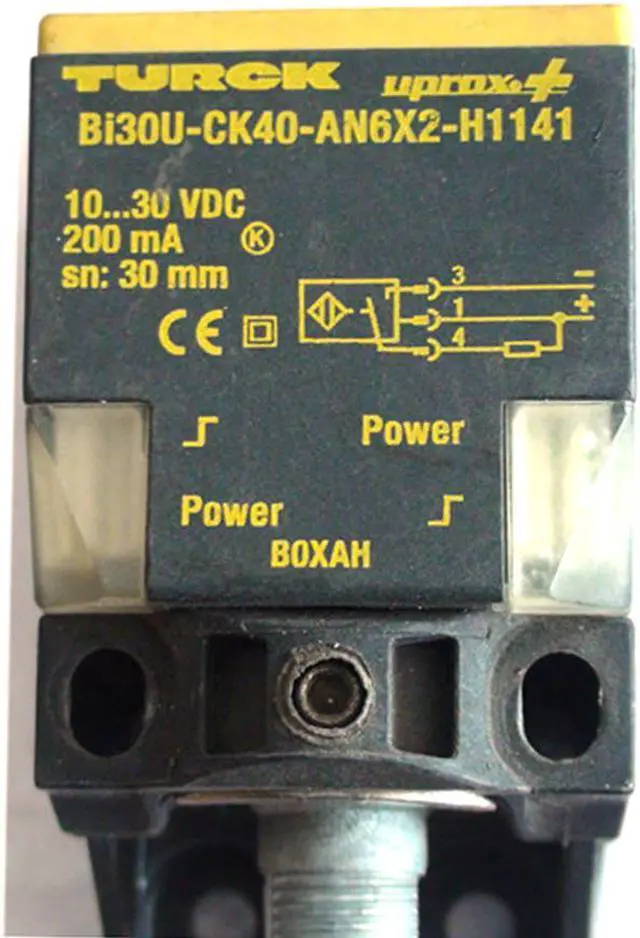

TURCK BI30U-CK40-AN6X2-H1141 1625820 Inductive sensor NPN
Order number: 1625820
Rectangular, height 40 mm
Variable orientation of active face in 5 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Large coverage
High switching frequency
DC 3-wire, 1030 VDC
NO contact, NPN output
M12 x 1 male connector
Country of origin DE
Weight 120 g
Technical Data
Design Rectangular

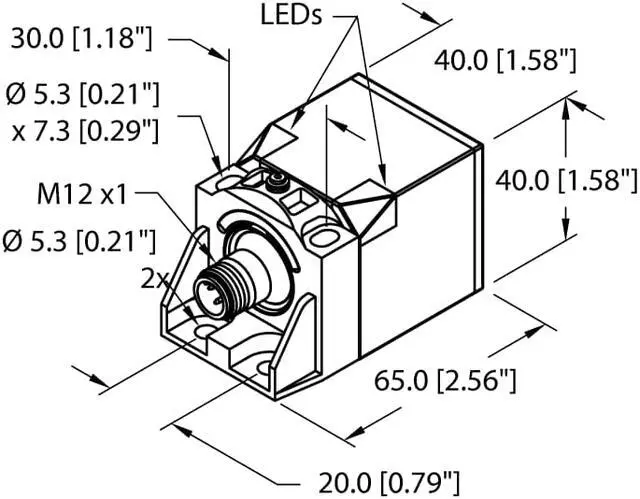

Construction size Rectangular, CK40, 65 x 40 x 40 mm
Rated switching distance 30
Operating voltage DC
Switching element function NO contact
Output function NPN
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF20-V0
Housing surface Black
Mounting Flush
Special features uprox®+, -Factor 1, -Resistant to magnetic fields
Order number: 1625820
Rectangular, height 40 mm
Variable orientation of active face in 5 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Large coverage
High switching frequency
DC 3-wire, 1030 VDC
NO contact, NPN output
M12 x 1 male connector
Country of origin DE
Weight 120 g
Technical Data
Design Rectangular
Construction size Rectangular, CK40, 65 x 40 x 40 mm
Rated switching distance 30
Operating voltage DC
Switching element function NO contact
Output function NPN
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF20-V0
Housing surface Black
Mounting Flush
Special features uprox®+, -Factor 1, -Resistant to magnetic fields
