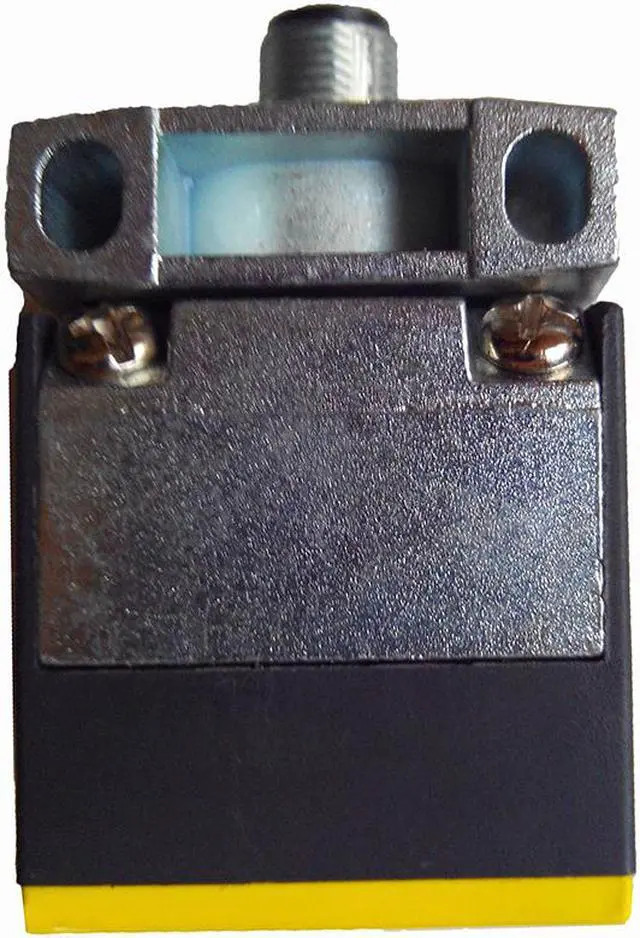

TURCK NI25U-CK40-AP6X2-H1141 1625700 Inductive sensor PNP
Order number: 1625700
Rectangular, height 40 mm
Variable orientation of active face in 5 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
Auto-compensation protects against pre-attenuation
DC 3-wire, 1030 VDC
NO contact, PNP output

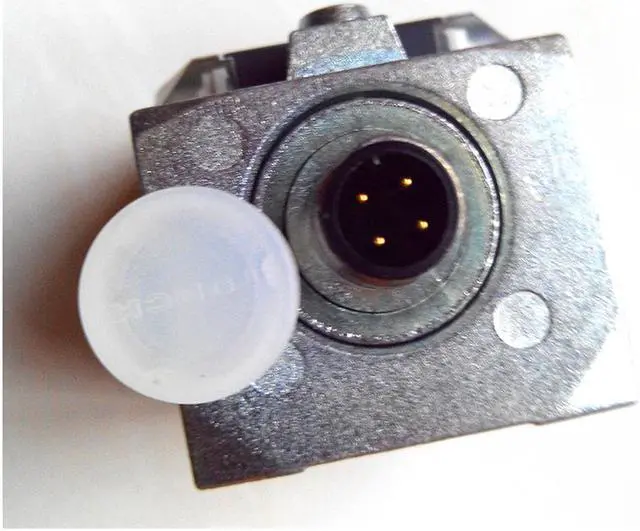

M12 x 1 male connector
Country of origin DE
Weight 119 g
Technical Data
Design Rectangular

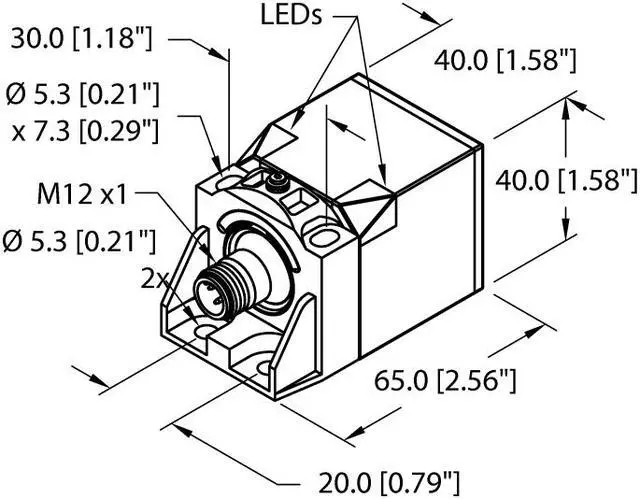

Construction size Rectangular, CK40, 65 x 40 x 40 mm
Rated switching distance 25
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF20-V0
Housing surface Black
Mounting Non-flush
Special features uprox®+, -Factor 1, -Resistant to magnetic fields
Order number: 1625700
Rectangular, height 40 mm
Variable orientation of active face in 5 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
Auto-compensation protects against pre-attenuation
DC 3-wire, 1030 VDC
NO contact, PNP output
M12 x 1 male connector
Country of origin DE
Weight 119 g
Technical Data
Design Rectangular
Construction size Rectangular, CK40, 65 x 40 x 40 mm
Rated switching distance 25
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF20-V0
Housing surface Black
Mounting Non-flush
Special features uprox®+, -Factor 1, -Resistant to magnetic fields
