TURCK NI40U-CP40-VP4X2-H1141 1540602 Inductive sensor PNP
- TURCK NI40U-CP40-VP4X2-H1141 1540602 Inductive sensor PNP
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

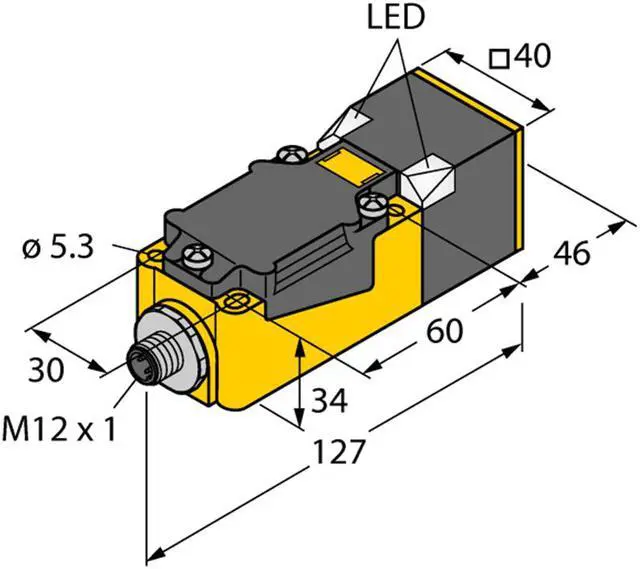

TURCK NI40U-CP40-VP4X2-H1141 1540602 Inductive sensor PNP
Order number: 1540602
Rectangular, height 40 mm
Variable orientation of active face in 9 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Increased switching distance
Protection class IP68
Large coverage
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 4-wire, 1065 VDC
Changeover contact, PNP output
M12 x 1 male connector
Country of origin None
Weight 224 g
Technical Data
Design Rectangular
Construction size Rectangular, CP40, 114 x 40 x 40 mm
Rated switching distance 40
Operating voltage DC
Switching element function Complementary contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Black
Mounting Non-flush
Special features uprox®+, -Sn +, -Factor 1
Order number: 1540602
Rectangular, height 40 mm
Variable orientation of active face in 9 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
Factor 1 for all metals
Increased switching distance
Protection class IP68
Large coverage
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 4-wire, 1065 VDC
Changeover contact, PNP output
M12 x 1 male connector
Country of origin None
Weight 224 g
Technical Data
Design Rectangular
Construction size Rectangular, CP40, 114 x 40 x 40 mm
Rated switching distance 40
Operating voltage DC
Switching element function Complementary contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Black
Mounting Non-flush
Special features uprox®+, -Sn +, -Factor 1
