Tyan System B7102T76V12HR-2T-N 2U Intel Xeon Scalable Thunder SX LGA3647 DDR4

Be the first to review this product...

Dual Socket Intel 2nd Gen Xeon Scalable Processor
Dual Socket 100G Omni-Path CPU support
(8) PCIe x8 slots / (4) PCIe x16 slots
NVIDIA NGC-Ready Server / NVIDIA EGX Platform:
Support for (4) single-wide NVIDIA T4 GPU cards
(12) 3.5" SATA 6G Drive Bays
AST2500 BMC with Redfish Support
1200W 1+1 Redundant PSU

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Tyan System B7102T76V12HR-2T-N 2U Intel Xeon Scalable Thunder SX LGA3647 DDR4 Retail

Thunder SX TN76-B7102

2GPUGPU PLATFORM

2U2S server platform with maximum memory support for 2GPGPU, technical computing and virtualization

B7102T76V12HR-2T-N

Dual LGA3647 Socket

Support Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor

support 100G Omni-Path CPU

PCIe Expansion Slots

(8) PCIe x8 slots / (4) PCIe x16 slots

NVIDIA NGC-Ready Server / NVIDIA EGX Platform

Support for (4) single-wide NVIDIA T4 GPU cards

Storage

(12) 3.5" SATA 6G Drive Bays

Graphic Chipset

AST2500 BMC with Redfish Support

Power Supply

1200W 1+1 Redundant PSU

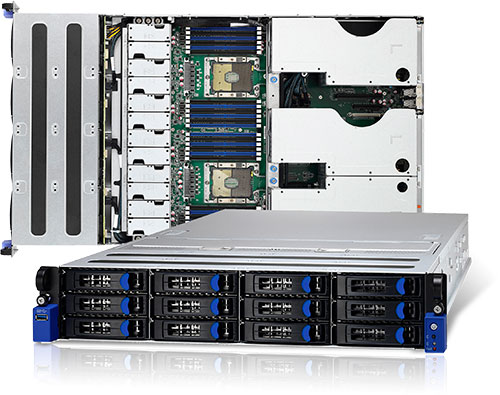

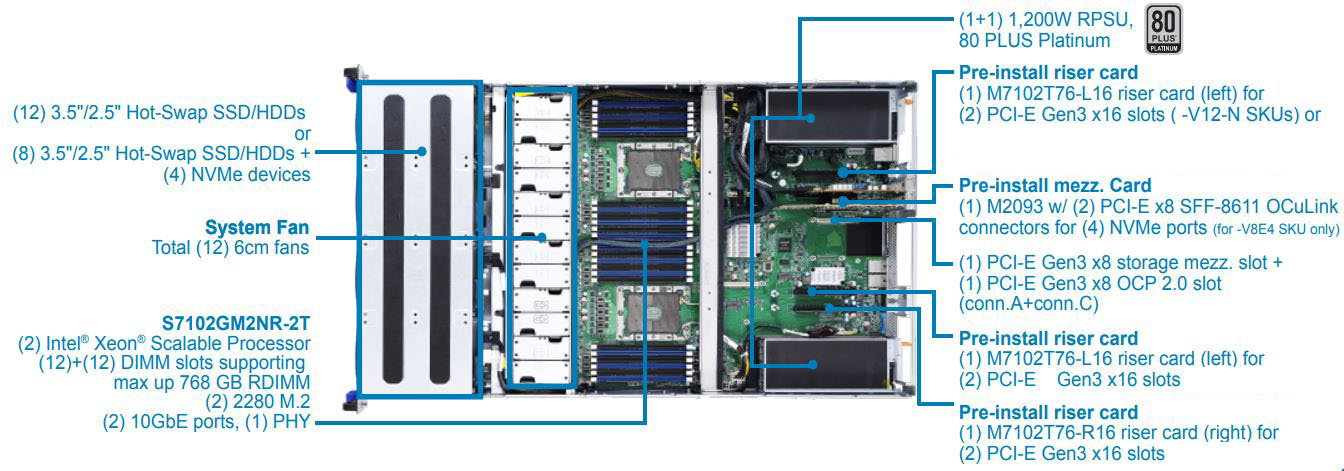

Top View

General
Brand	TYAN
Model	B7102T76V12HR-2T-N
Form Factor	2U Rackmount
Workload	AI/ML/HPC

CPU Supported
CPU Type	Dual Intel Xeon Scalable Processor
CPU Socket	Dual LGA 3647

Chipset
North Bridge	Intel C621

Memory Supported
Max Memory Supported	Up to 768GB RDIMM / 1,536GB LRDIMM / 3,072GB RDIMM 3DS / LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory Type Supported	DDR4 RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS 2666

Storage Supported
Serial ATA	12 x SATA 600

Graphics
GPU/VPU	Aspeed AST2500

Expansion Slots
PCI Express	2 x PCI-E Gen3 x16 slots (FH / 10.5"L / DW) or 6 x PCI-E Gen3 x8 slots (FH / 10.5"L / SW) * split by Mux. / 1 x PCI-E Gen3 x16 slot (HH / HL) or 2 x PCI-E Gen3 x8 slots (HH / HL) * split by Mux.

Communications
First LAN	Intel X550-AT2

Panel Ports
Rear USB	1 x USB 3.0 port
RJ45	2 x 10 GbE ports, 1 x GbE dedicated for IPMI

Features
Features	Dual Socket Intel Xeon Scalable Processor Dual Socket 100G Omni-Path CPU support 8 x PCIe x8 slots / 4 x PCIe x16 slots Support for two Nvidia Tesla GPU cards 12 x 3.5" SATA 6G Drive Bays AST2500 BMC with Redfish Support 1200W 1+1 Redundant PSU

Dimensions & Weight
Dimensions	3.40" x 17.20" x 29.90"
Weight	62.00 lbs.

Packaging
Package Contents	1 x TN76-B7102 w/NV Tesla supported Barebone 1 x Quick Installation Guide 1 x TYAN Device Driver CD
