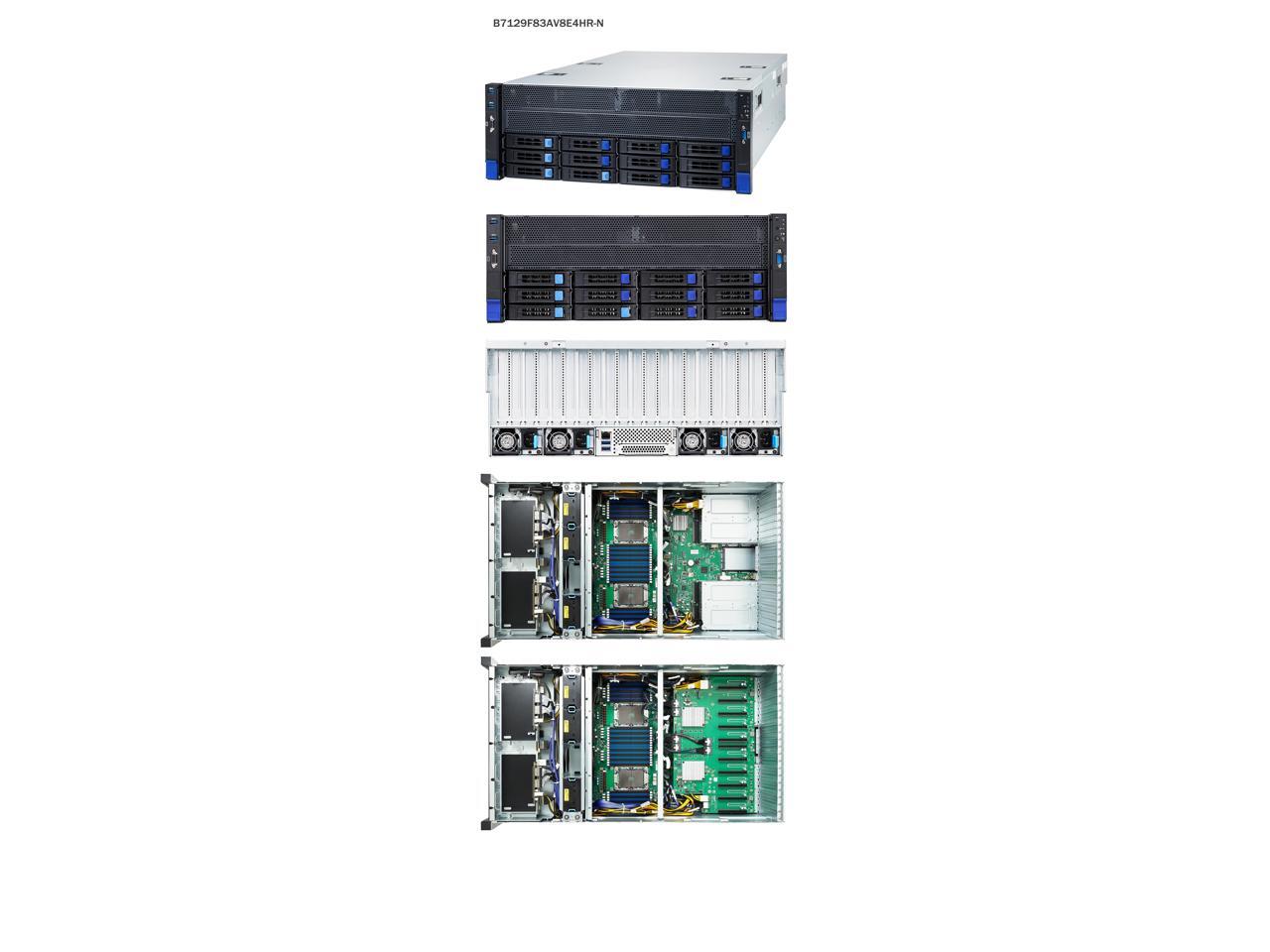

Tyan B7129F83AV8E4HR-N GPU Server Barebone, 4U , (10) DW GPUs, Intel 2S Xeon 3 Gen, (8) U.2 NVMe, 4,800 Watts RPSU

Dual Socket Intel Ice Lake Xeon GPU platform with support for up to 10 Double-Wide GPU cards. Support for PCIe Gen 4.0 and DDR4-3200. Server can be configured with GPUs evenly divided between the two CPUs or as a single-root topology with all GPUs under the same CPU socket via a BIOS setting.
Dimension: H176mm x W438mm x D830mm (32.7”)
Intel Xeon® Scalable Processor w/ TDP up to 270W
Chipset
Intel® C621A PCH + (2) PLX PEX88096 PCIe Switches
Memory
(32) DDR4-3200 DIMM slots (8 memory channels per CPU)
Supporting up to 8TB RAM (Assuming 32x256GB DIMMs)
256GB DIMM support stretch goal may not be validated until requested
PCIe Expansion Slots
(10) Full height / Full Length / Double Wide PCIe Gen 4.0 x16 slots
(1) Full Height / Full Length / Single Wide PCIe Gen 4.0 x16 slot
(2) Front Internal Full Height / Half Length PCIe Gen 4.0 x16 slots
Network
(1) Dedicated IPMI RJ45 Port
(1) PCIe Gen 4.0 x16 OCP 3.0 NIC Mezzanine Slot
Storage
(12) hot-swap 3.5” SAT
