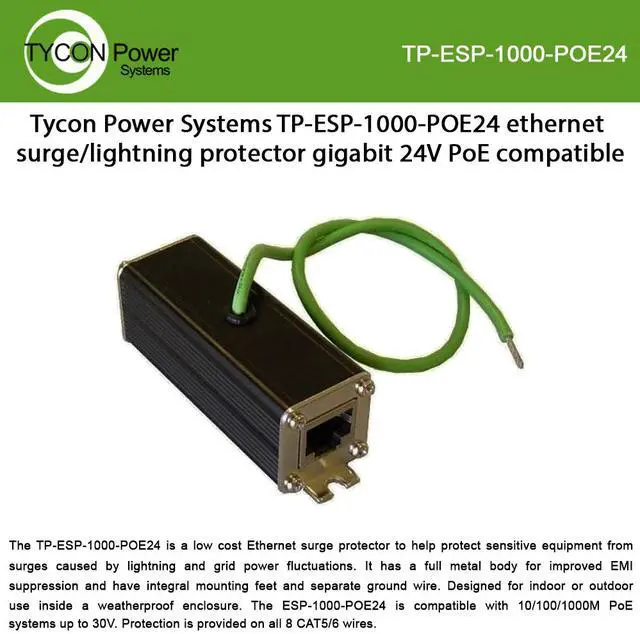

Tycon TP-ESP-1000-POE24 10/100/1000Mbps 24VPOE Network Lightning/Surge Protec

The ESP-1000-POE are a low cost 10/100/1000 (Gigabit) ethernet surge protector to help protect sensitive equipment from surges caused by lightning and grid power fluctuations. They have a full metal body for improved EMI suppression and have integral mounting feet and separate ground wire. They are designed for indoor or outdoor use inside a weatherproof enclosure. The ESP-1000 is compatible with POE systems up to 24V. Protection is provided on all 8 CAT5 wires.

The TP-ESP-1000-POE survives many surge events and keeps on ticking.

Specification:
Operating Voltage: Data 5V ; POE 24V
Clamping Voltage: 40V POE (All 8 Pins)
Max Surge Discharge Current: 5KA (8/20us)
Peak Pulse Current: 100A (10/1000us)

Features:
10/100/1000Mb Data Rate(24 or 48V POE Model)
7.5V Data Clamping Voltage
CAT5 and CAT5e Compatible. All 8 pins protected.
Shielded jacks and full metal housing
Complies with IEC 61643-21 Standard
Integral Mounting Feet and Ground Wire

Applications:
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems
Industrial Control Systems
