Tycon Power Systems - TP-VRHP-2456 - Tycon Power TP-VRHP-2456 DC Converter - 18 V DC, 36 V DC Input - 56 V DC/1.25 A

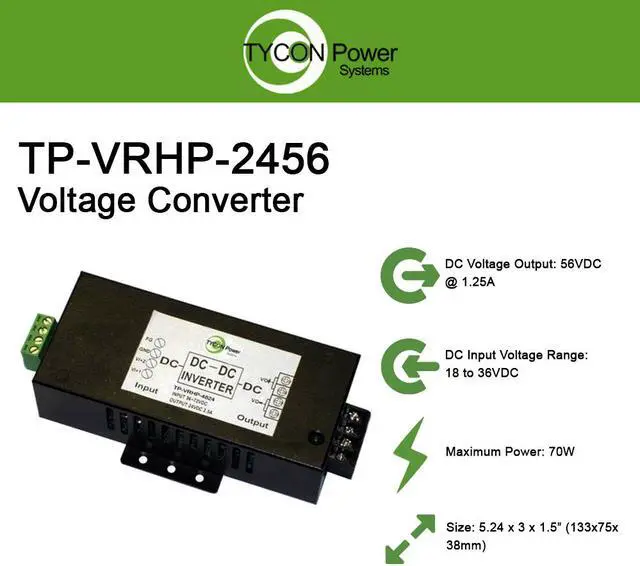

Tycon Power Systems TP-VRHP-2456 70W 24V to 56V Voltage Converter The TP-VRHP-2456 is a 70W voltage converter/regulator which accepts an input of plus or minus 18VDC to 36VDC and provides a regulated output of 56VDC @ 1.25A 70W. These units are perfect for providing 56VDC voltage from 24VDC battery banks. Input and outputs are wire terminals for wire up to 12AWG. Operates from -30 to +65 deg C.
Package Contents: TP-VRHP-2456 DC Converter DIN rail adapters
Product Type: DC
Converter Device Supported: Remote Power
System Device Supported: Wireless
Base Station Device Supported: Security Device
Input Voltage: 36 V DC
Input Voltage: 18 V DC
Product Type: DC
Converter Device Supported: Remote Power
System Device Supported: Wireless
Base Station Device Supported: Security Device
Input Voltage: 36 V DC
Input Voltage: 18 V DC
Manufacturer Part Number: TP-VRHP-2456
Limited Warranty: 2 Year
Output Voltage: 56 V DC
Weight (Approximate): 12.80 oz
Manufacturer: Tycon
Power Systems Product Model: TP-VRHP-2456
Product Name: TP-VRHP-2456 DC Converter
Brand Name: Tycon Power
Product Series: TP-VRHP
Brand Name: Tycon
Power Height: 5.2
Width: 3
Depth: 1.5
Maximum Output Current: 1.25 A Maximum
Output Power: 70 W
Maximum Output Current: 1.25 A Maximum
Output Power: 70 W
