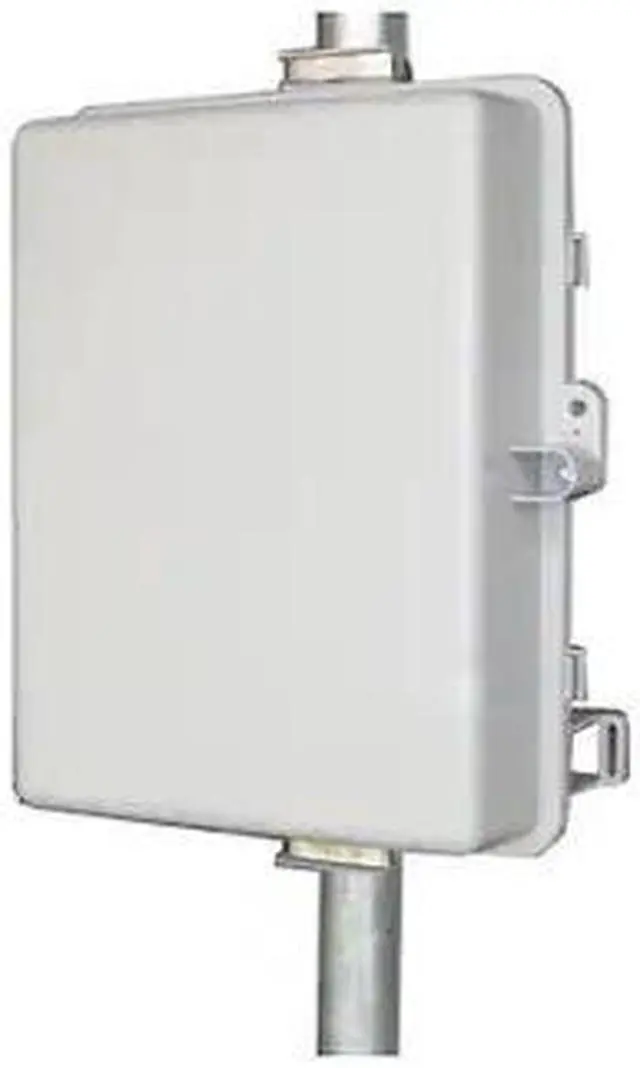

Tycon UPS-PL24-36-120 120W Max Output Power, 100W Maximum Instantaneous Load UPSPro120W Outdoor Backup Power System, 36Ah Battery, 24V, Pole/Wall Mt Polycarbonate Enclosure
- 120W Max Output Power, 100W Maximum Instantaneous Load
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Tycon Systems, Inc UPS-PL24-36-120
| Brand | Tycon |
|---|---|
| Model | UPS-PL24-36-120 |
| Input Voltage Range | 120/240VAC, 50/60Hz, 2.5A Max |
|---|
| Watts | 120W Max Output Power, 100W Maximum Instantaneous Load |
|---|
| Battery Type | Valve Regulated Sealed Lead Acid / Absorbed Glass Mat (AGM) |
|---|
| Features | Features: 24VDC System Weatherproof, UV resistant, outdoor enclosures Powered from AC mains power and/or Solar Interior space for customer electronics Wall or Pole Mounting Isolates Customer Equipment from Power Line Surges High Quality AGM Sealed Lead Acid Batteries Advanced battery charge controller protects against overcharge and over discharge Specifications: Battery Voltage (DC): 24V Available 12V Capacities (Amp Hr): 36Ah(4 batteries) Avail Storage Capacity (Watt Hr): 432Wh Maximum Instantaneous Load: 20A 500msec Battery Life: 5 Years Controller Type: 20A PWM Solar Controller with Status Display and Load on/off switch, Max Solar Panel Size 12V 240W , 24V 480W Controller Display Status: Battery Voltage, Charging Current, Load Current, Temperature Overcharge Protection: 14.4V / 28.8V Over-discharge protection: 11V / 22V Over-discharge recovery voltage: 12.3V / 24.6V Controller Self Consumption: <0.3W Enclosure Type: Polycarbonate Operating Temperature: -30°C to +60°C (-22°F to 140°F) Certifications: Individual components used have CE Certifications. Batteries have CE and UL. |
|---|
| Dimensions | Enclosure External Size: 17.5" x 12.5" x 6" Enclosure Internal Size: 14" x 10" x 5" |
|---|---|
| Weight | System Weight (without batteries): 6 lbs. Battery Weight (each): 5.5 lbs. |
| First Listed on Newegg | February 09, 2025 |
|---|
