U.S. Robotics USR9108 Wireless ADSL2+ gateway IEEE 802.3/3u, IEEE 802.11b/g
- IEEE 802.3/3u, IEEE 802.11b/g
- Up to 125Mbps Wireless Data Rates
Specs
Reviews (7)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the US Robotics USR9108
| Brand | U.S. Robotics |
|---|---|
| Model | USR9108 |
| Standards | IEEE 802.3/3u, IEEE 802.11b/g |
|---|---|
| Device Management | Web-Based |
| Security | Wi-Fi Protected Access 2 (WPA2)/802.11i Wi-Fi Protected Access, TKIP AES Encryption 64/128-bit Wired Equivalent Privacy (WEP) encryption SSID Broadcast Disabling 802.1x authentication WDS (Wireless Distribution System) Denial of Service IP Filtering – Destination for address or port and by IP protocol (outbound only) Syslog – Reporting of firewall events VPN Traversal (Pass-through IPSec, PPTP, L2TP) VPN termination upgradable SPI – Stateful Packet Inspection Password protected configuration access DMZ and virtual server support |
| WPA | WPA2 |

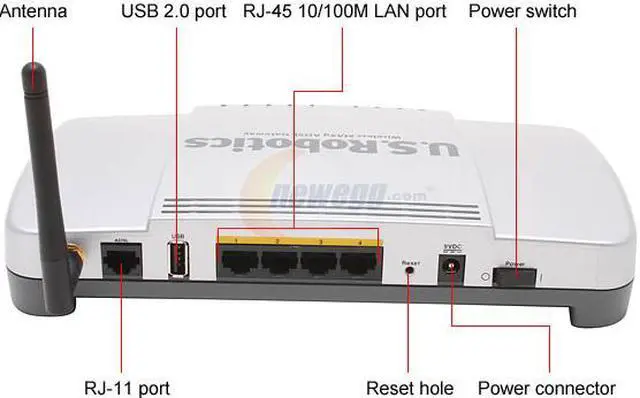

| WAN Ports | 4 RJ-45, 10/100 auto-sensing/auto-switching Ethernet ports RJ-11 ADSL port USB 1.1/2.0 port (for attaching USB printer) |
| LAN Ports | 4 x 10/100M |
| Wireless Data Rates | Up to 125Mbps |
| Frequency Band | 2400 ~ 2462 MHz for North America 2400 ~ 2483.5 MHz for ETSI 2454 ~ 2483.5 MHz for France, Outdoor 10mW |
| Antenna | 2 dBi swivel dipole removable antenna with reverse polarity SMA connector |
| Channels | 11 Channels (US, Canada) 13 Channels (Europe) |
| Transmitted Power | 19.8 dBm EIRP Average |
| Interface | Ethernet Port |
| VPN support | IPSec, L2TP, and PPTP VPN pass-through |
| Wireless Adapter included | No |
| System Requirements | HTML configuration is supported by any computer that supports TCP/IP and HTML Web Browser (4.01 specification or greater) Ethernet networking requires computers with an installed network interface card (NIC) Print Service works with any printer that supports a page description language (e.g. PostScript, PCL, etc.) |
| Dimensions | 9.2" x 5.5" x 1.6" |
| Weight | 1.0 lbs. |
| Features | Five products in one:ADSL2+ Modem, MAXg Access Point, 4-Port Router, Firewall and USB Print Server Integrated Print Server:Integrated print server turns a supported USB printer into a network printer which can be shared among all network users MAXg Technology: MAXimum Range – 50% greater than standard 802.11g MAXimum Speed – 125 Mbps performance MAXimum Security – Industry leading security protects your network from hackers and unauthorized access from the Internet and from wireless interlopers MAXimum Simplicity – Simple 1-2-3 configuration will have you up and running in minutes and the Web-based diagnostics and connection monitoring software sets a new standard for convenience and ease of use Advanced ADSL Technology: Support for the latest ADSL standards including ADSL2 and ADSL2+, for advanced speeds ATM QoS support for high quality Video over DSL (Bind ATM traffic to any Ethernet port) Industry Compatibility: Meets or exceeds key industry standards for performance and compatibility. Supports TR-48, UR-2, and other performance standards for DSLAM interoperability Complete compatibility with standard 802.11b, 802.11g and accelerated wireless technologies |
|---|
| Package Contents | USR9108 Power Adapter RJ45 Cable RJ11 Cable Resource Disk User Manual |
|---|
| First Listed on Newegg | November 03, 2005 |
|---|
