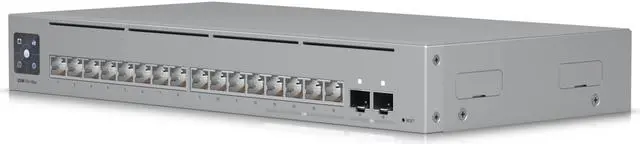

Main image of Ubiquiti Pro Max 16, 16-port Layer 3 (USW-Pro-Max-16)

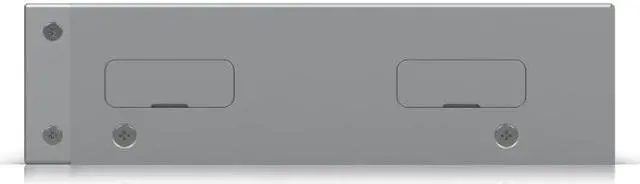

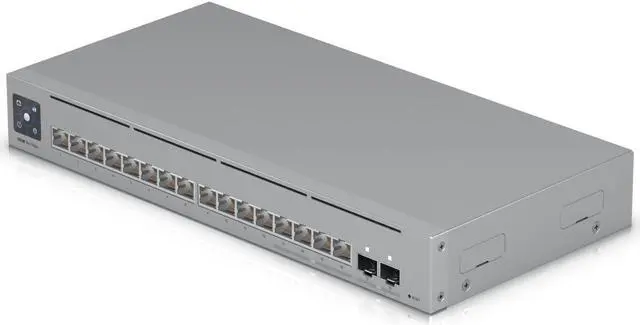

Alt view image 2 of 7 - Ubiquiti Pro Max 16, 16-port Layer 3 (USW-Pro-Max-16)

Alt view image 3 of 7 - Ubiquiti Pro Max 16, 16-port Layer 3 (USW-Pro-Max-16)

Alt view image 4 of 7 - Ubiquiti Pro Max 16, 16-port Layer 3 (USW-Pro-Max-16)

Alt view image 5 of 7 - Ubiquiti Pro Max 16, 16-port Layer 3 (USW-Pro-Max-16)

Alt view image 6 of 7 - Ubiquiti Pro Max 16, 16-port Layer 3 (USW-Pro-Max-16)

Alt view image 7 of 7 - Ubiquiti Pro Max 16, 16-port Layer 3 (USW-Pro-Max-16)

Shop All Ubiquiti Networks Products

Ubiquiti Pro Max 16, 16-port Layer 3 (USW-Pro-Max-16)

Name: Ubiquiti Pro Max 16, 16-port Layer 3 (USW-Pro-Max-16)
Brand: Ubiquiti Networks
SKU: 0XP-000A-00698
Price: 279.00 USD
Availability: InStock
Rating: 5 (2 reviews)

(2) Write a Review

Model: Pro Max 16

Pro Max 48 PoE
Pro Max 24 PoE
Pro Max 16 PoE
Pro Max 48
Pro Max 16

Primary Port: 16 Port

16 Port
48 Port
24 Port

16-port, Layer 3 Etherlighting switch.

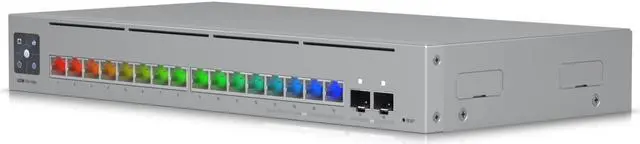

Etherlighting ports that illuminate to indicate port location, speed / link, and native VLAN / network.
(4) 2.5 GbE RJ45 ports.
(12) GbE RJ45 ports.
(2) 10G SFP+ ports.
Versatile desktop, wall, and rack mounting.
Silent, fanless cooling system.
Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Requires add-on Rack Mount accessory.
Power method: Type-C adapter.
Power supply: 5V, 25W.
Max. power consumption: 25W.
UniFi Network: Version 8.1.127 and later.

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

16-port, Layer 3 Etherlighting switch.
Etherlighting ports that illuminate to indicate port location, speed / link, and native VLAN / network.
(4) 2.5 GbE RJ45 ports.
(12) GbE RJ45 ports.
(2) 10G SFP+ ports.
Versatile desktop, wall, and rack mounting.
Silent, fanless cooling system.
Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Requires add-on Rack Mount accessory.
Power method: Type-C adapter.
Power supply: 5V, 25W.
Max. power consumption: 25W.
UniFi Network: Version 8.1. 127 and later.

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Return for refund within - Contact Manufacture for Assistance

Return for replacement - Contact Manufacture for Assistance

This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.

Format	Rackmount
Network Management Type	Managed

Primary Ports	16 x RJ45 + 2 x SFP
Primary Port Speed	Total non-blocking throughput 42 Gbps Switching capacity 84 Gbps Forwarding rate 62.496 Mpps
Primary Port Type	(12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports

Management Interface	Ethernet In-Band
VLAN Support	Yes
Jumbo Frames	Yes

PoE	No
Layer	3
Layer 2 Features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 Features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Port Mirroring	Yes
LEDs	Ethernet Locating Speed/link Native VLAN/network SFP+ Locating Speed/link Native VLAN/network
Button	Factory reset

Power	Power method Type-C adapter Power supply 5V, 25W Max. power consumption 25W
Max Power Consumption	25 W

Ubiquiti Pro Max 16, 16-port Layer 3 (USW-Pro-Max-16)

Learn more about the Ubiquiti Networks Pro Max 16

Customer Reviews of the Ubiquiti Networks Pro Max 16

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Manufacturer Contact Info

Brand	Ubiquiti Networks
Series	Network Switch
Model	Pro Max 16
Part Number	USW-Pro-Max-16

Dimensions	325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight	1.95 kg (4.3 lb)

Certification	CE, FCC, IC
System Requirement	UniFi Network Version 8.1.127 and later
Temperature	-5 to 40° C (23 to 104° F)
Humidity	10 to 90% noncondensing
