What is the maximum power consumption of the Ubiquiti EnterpriseXG 24 switch?

The maximum power consumption of the Ubiquiti EnterpriseXG 24 switch is 100W.

What types of ports does the Ubiquiti EnterpriseXG 24 switch support?

The Ubiquiti EnterpriseXG 24 switch supports 24 x RJ45 ports and 2 x SFP28 ports.

$1,986^.54

Free 30-day Returns

Limit 99999 per customer.

Ships from Canada.

Price alert

Add to wish list

Sold by BTE Outlet

Top Rated

3.5 (1,437 seller ratings)

Shipped by BTE Outlet

Best Sellers

Newegg

$1,299^.00
+ FREE SHIPPING

Meet Your Seller

BTE Outlet

See Seller Store

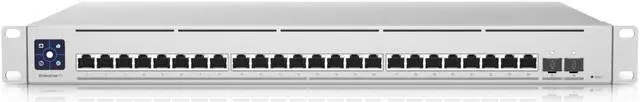

Main image of Ubiquiti EnterpriseXG 24 (Gen1), 24-port Layer 3 switch (USW-EnterpriseXG-24)

Alt view image 2 of 6 - Ubiquiti EnterpriseXG 24 (Gen1), 24-port Layer 3 switch (USW-EnterpriseXG-24)

Alt view image 3 of 6 - Ubiquiti EnterpriseXG 24 (Gen1), 24-port Layer 3 switch (USW-EnterpriseXG-24)

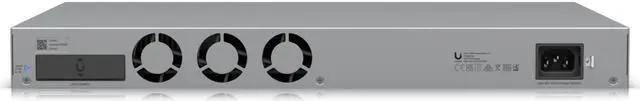

Alt view image 4 of 6 - Ubiquiti EnterpriseXG 24 (Gen1), 24-port Layer 3 switch (USW-EnterpriseXG-24)

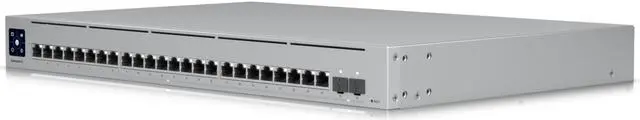

Alt view image 5 of 6 - Ubiquiti EnterpriseXG 24 (Gen1), 24-port Layer 3 switch (USW-EnterpriseXG-24)

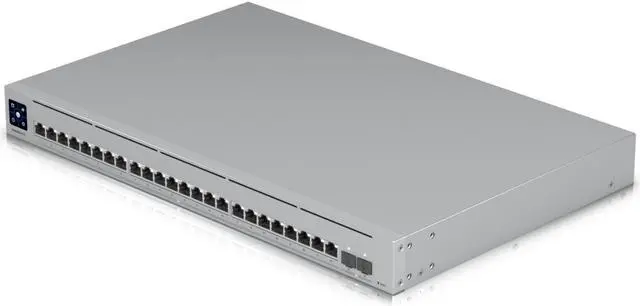

Alt view image 6 of 6 - Ubiquiti EnterpriseXG 24 (Gen1), 24-port Layer 3 switch (USW-EnterpriseXG-24)

Shop All Ubiquiti Networks Products | Visit BTE Outlet Store

Ubiquiti EnterpriseXG 24 (Gen1), 24-port Layer 3 switch (USW-EnterpriseXG-24)

Be the first to review this product...

Model: Enterprise XG 24

Enterprise 48 PoE
Enterprise 24 PoE
Enterprise XG 24
Enterprise 8 PoE

A 24-port, Layer 3 switch capable of supporting high-capacity 10 GbE RJ45 and 25G SFP28 connections.
(24) 10 GbE ports
(2) 25G SFP28 ports
DC power backup-ready
Layer 3 switching

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Ubiquiti USW-EnterpriseXG-24 Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports

Model
Brand	Ubiquiti
Series	Network Switch
Model	USW-EnterpriseXG-24
Part Number	USW-EnterpriseXG-24

Format & Standards
Format	Rackmount
Network Management Type	Managed

Ports & Interface
Primary Ports	24 x RJ45 + 2 x SFP
Primary Port Speed	Total non-blocking throughput 290 Gbps Switching capacity 580 Gbps Forwarding rate 431.52 Mpps
Primary Port Type	(24) 1/2.5/5/10 GbE ports (2) 25G SFP28 ports* *Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.

Data Transmission
Management Interface	Ethernet In-Band
VLAN Support	Yes
Jumbo Frames	Yes

Details
PoE	No
Layer	Full Layer 3
Layer 2 Features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 Features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Port Mirroring	Yes
LEDs	System Status Ethernet Link/activity

Power Supply
PoE Ports	1.7" x 17.4" x 11.2"
Power	Power method (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A Power supply AC/DC, internal, 100W
Max Power Consumption	100W

Dimensions & Weight
Dimensions	442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight	Without mounting brackets: 4.5 kg (9.9 lb) With mounting brackets: 4.6 kg (11 lb)

Environmental
Certification	CE, FCC, IC
System Requirement	UniFi Network Version 6.1.67 and later
Temperature	-5 to 40° C (23 to 104° F)
Humidity	10 to 95% noncondensing

Features
Features	Information Not Available

Packaging
Package Contents	Information Not Available

Additional Information
First Listed on Newegg	February 02, 2023
