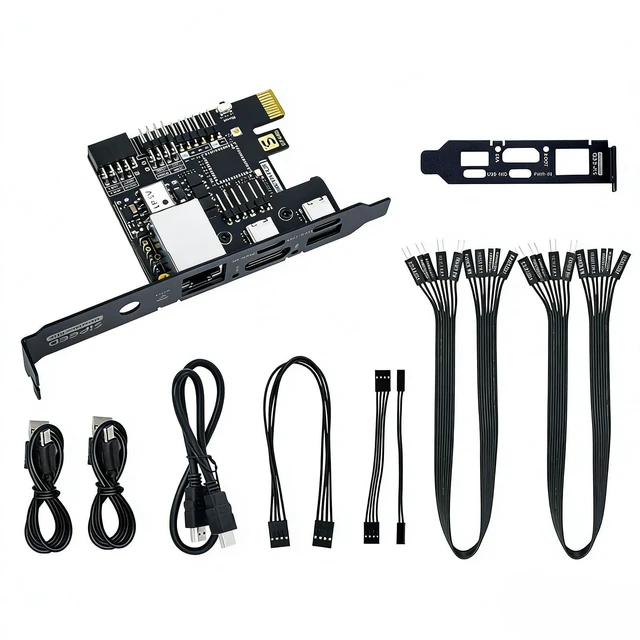

Sipeed NanoKVM PCIe IP KVM Remote Control via the Internet, 1080P HDMI, Keyboard Video and Mouse Remote Control, Ideal mini KVM for Home Offices Data Centres Server Management (NanoKVM PCIe ETH+POE)

-Introduction-

NanoKVM-PCIe is a new form factor of NanoKVM, featuring an integrated PCIe bracket for secure mounting inside the chassis, delivering an enhanced experience for desktop users.

Building upon the NanoKVM-Cube, NanoKVM-PCIe adds optional WiFi and PoE functionality (available as optional features); It features a PCIe slot for power delivery from the motherboard's PCIe interface. Additionally, its wired Ethernet (ETH) connection offers enhanced stability, meeting more professional requirements. Both NanoKVM-Cube and NanoKVM-PCIe share the same image and application suite, automatically adapting to different hardware versions.

The NanoKVM series includes an HDMI input port that can be recognized by the computer as a monitor to capture the computer's display. A USB 2.0 port connects to the host computer, functioning as a HID device (e.g., keyboard, mouse, touchpad), while utilizing spare TF card storage space to mount as a USB drive. All models include a standard 100Mbps Ethernet port for network transmission of video and control signals. The PCIe version features a standard 0.49-inch OLED display showing real-time status information, WiFi configuration details, and more.

Note: The NanoKVM PCIe version draws power exclusively from the PCIe interface and cannot function as a graphics card/display device directly receiving images from PCIe.

To meet diverse user needs, the NanoKVM-PCIe offers two optional modulesWiFi and PoEwhich can be freely combined.

-Use Cases-

- Server Management: Enables real-time server monitoring, status retrieval, and control operations.

- Remote Desktop & Power Management: NanoKVM eliminates dependency on network connectivity or host software, functioning as external hardware to deliver direct remote control capabilities.

- Remote System Installation: NanoKVM emulates a USB drive to mount installation images for OS deployment or access BIOS settings;

- Remote Serial Port: NanoKVM exposes two serial ports for IPMI integration or web-based serial terminal interaction with development boards. Users may also expand with additional accessories;

- Dual-Computer Collaborative Operation
