Suitable for Host Sever and Personal PC
PCI Express RTL8125B 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet.
Product Feature.
It offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
Specification
Chipset:RTL8125B
Port number:1* RJ45
Standard:IEEE 802.3?IEEE 802.3u?IEEE 802.3ab?IEEE 802.3az?IEEE 802.3bz
Network media:10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP
Data rate:PCI Express 1x slot
Auto MDIX:YES
Full Duplex Support:YES
LED Indicator:100M/1G/2.5G Link/Act
Dimension:71.5*50*1.6mm
Support OS:Windows 10(32/64), Win7 (32/64), Win8,8.1 (32/64),Windows Server,2012,2008,Linux,Mac OS
?Support PXE function.
?Support Wake on LAN
?Support 2.5G and 1G Lite mode
?Compatible with NBASE-T Alliance PHY Specification
?Supports PCI Express 2.1
?Supports 1-Lane 2.5G/5Gbps PCI Express Bus
?Compliant with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab
?Supports IEEE 802.1P Layer 2 Priority Encoding
?Supports IEEE 802.1Q VLAN tagging
?Supports IEEE802.3az(Energy Efficient Ethernet)
?Supports IEEE802.3bz(2.5GBASE-T)
?Supports Full Duplex flow control(IEEE 802 .3x)
Packing list

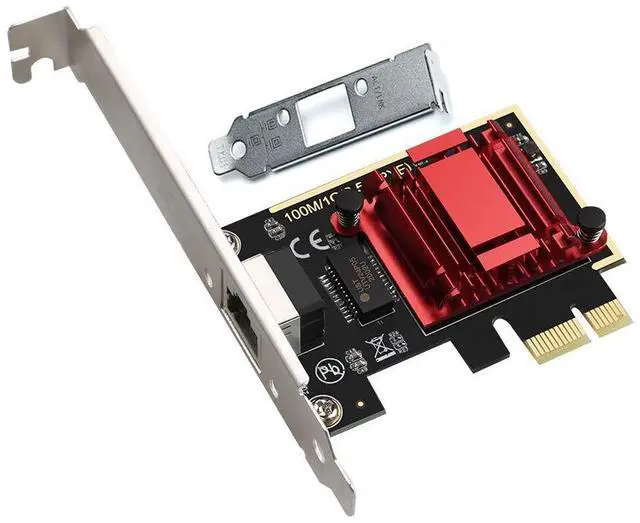

1xPCIE 2.5G LAN Card
1x Low profile Bracket
