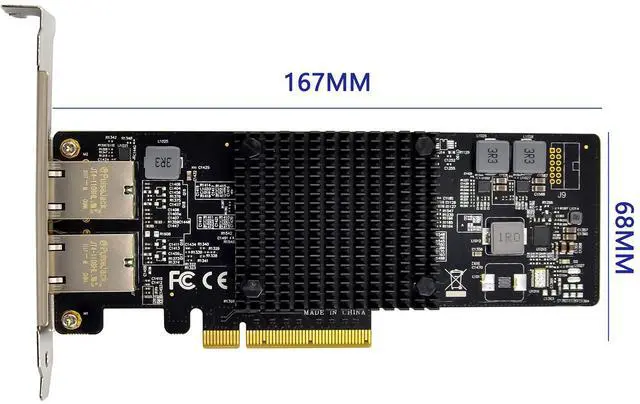

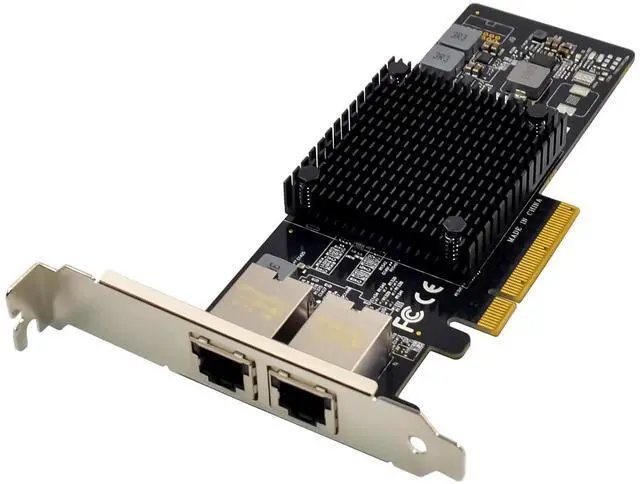

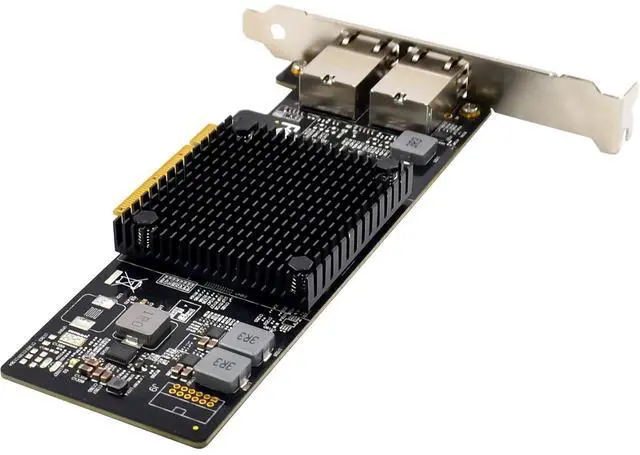

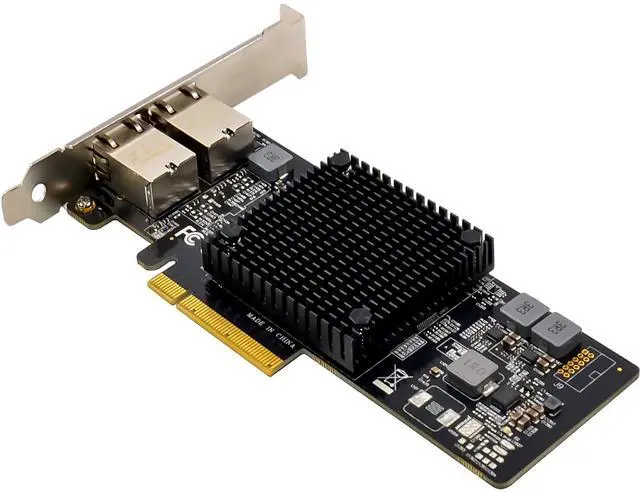

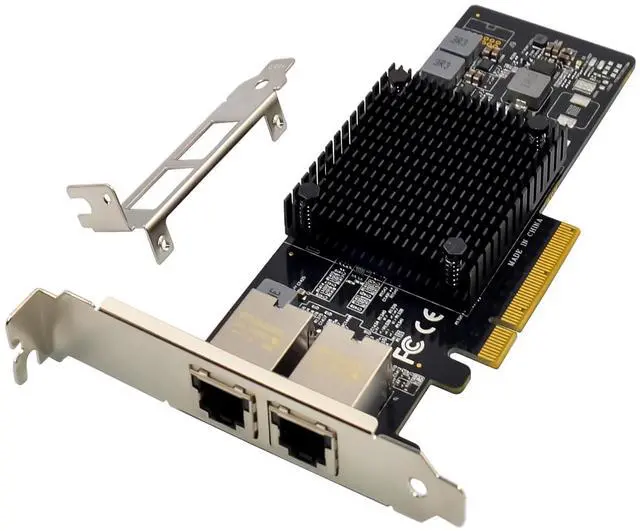

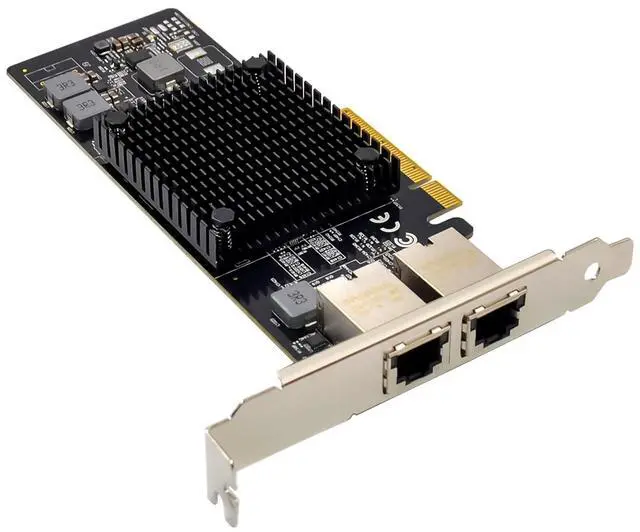

C&N Dual-Port 10G PCIe X8 Network Adapter Card with Intel-X550AT 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card(ST7280-X550AT2)

PCI Express X8 Network adapter adopts Intel a high performance 10G network controller ELX550-AT2 ,By providing unparalleled features of virtualization, flexible features, and proven reliable performance, it solves the high requirements of the generation data center, it has dual 10Gbps RJ45 port which can setup a long-distance link with a file server or a remote workstation.

Specification

PCIe interface 3.0 8.0GT/s, 5.0GT/s and 2.5GT/s

Two independent 10GBASE-T interfaces are used to connect the two X550 ports to external devices.

Each 10GBASE-T interface can operate at any of the following speeds:

10 Gb/s, 10GBASE-T mode

5 Gb/s, NBASE-T mode

2.5 Gb/s, NBASE-T mode

1 Gb/s, 1000BASE-T mode

100 Mb/s, 100BASE-TX mode

10 GbE/1 GbE/100 Mb/s copper PHYs integrated on-chip

Network Interfaces

IEEE 802.3 Ethernet interface for 10GBASE-T, 1000BASE-T, 100BASE-TX (IEEE 802.3an, 802.3ab, 802.3u)

NBASE-T technology support for 2.5GbE and 5.0GbE (pre-IEEE 802.3bz)

Integrated Copper 10GBASE-T PHYs

NBASE-T technology support (IEEE 802.3bzready)

802.3az Energy Efficient Ethernet (EEE) support

Provides 2.5GbE and 5.0GbE link speeds over CAT5e/CAT6 cabling deployments.

Firmware upgradable to IEEE 802.3bz¹

IEEE 1588 Protocol and IEEE 802.1AS Implementation

Support jumbo frames of up to 15.5 KB

MDIO interface Clause 45:Y (internally)

VLAN Support:

IEEE 801.1Q (VLAN)

IEEE 802.1ad (Double VLAN)

Automatic Cross-over Detection Function

(MDI/MDI-X)

I/O Features for Multi-core Processor Systems

Networking Specifications

Port Configuration:Dual

Data Rate Per Port:10/5/2.5/1GbE (NBASE-T in Linux Only)

System Interface Type:PCIe v3.0 (8.0 GT/s)

NC Sideband Interface :Yes

Jumbo Frames Supported:Yes

Interfaces Supported:100Base-T, 1000Base-T, 10GBase-T

Intel Virtualization Technology for Connectivity

Flexible Port Partitioning Yes

Virtual Machine Device Queues (VMDq) :Yes

PCI-SIG* SR-IOV Capable :Yes

Advanced Technologies

Intel® Virtualization Technology for Connectivity (VT-c)VMDq, SR-IOV

Fiber Channel over Ethernet Yes

MACsec IEEE 802.1 AE No

IEEE 1588 Yes

Supported Under Intel vPro® TechnologyNo

iWARP/RDMA No

Intel® Ethernet Power Management Yes

Intel® Data Direct I/O Technology Yes

Intelligent OffloadsYes

Storage Over EthernetiSCSI, FCoE, NFS

OS Support:

Windows* Client: 7/8/8.1/10/11;

Windows* Server: 2008R2/2012/2012R2/2016/2019/2022

WinPE 3.0 (2008 R2 PE), WinPE 4.0 (2012 PE), WinPE 5.0 (2012 R2 PE)

Linux:RHEL9.2, 9.1 &8.8, 8.7,RHEL8.x (8.6 and previous),SLES15 SP4,SLES 15 SP3 and previous,SLES12 SP5,SLES12 SP4 and Previous,Ubuntu* 22.04 LTS,Ubuntu*20.04 LTS,Debian*11,FreeBSD*13 / 12.3/12.2 and Previous,Linux Stable Kernel version 2.6/3.x, Linux Stable Kernel version 4.x,UEFI 2.1, UEFI 2.3, UEFI 2.4, VMware ESXi 5.5/6.0

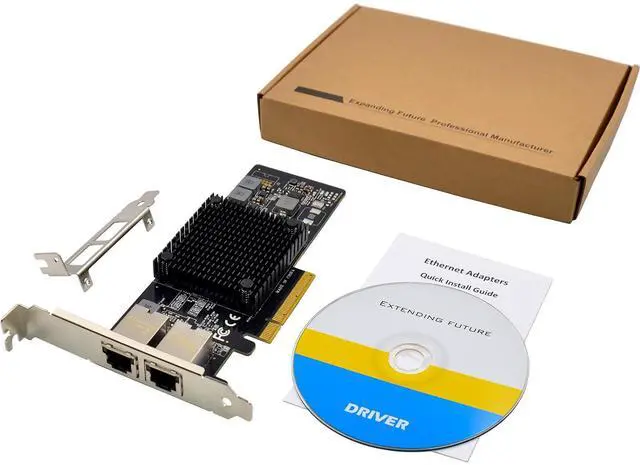

Package content

1 x PCIe Network card

1 x Users Manual

1 x CD Driver

1 x Low profile bracket
