    C&N 10Gb Open SFP+ PCI-e Network Card, with Intel 82599(X520-DA1) Controller, 10Gbps Ethernet Adapter, 10Gbe 10G NIC Card, Support Windows/Windows Server/VMware/Remote Wake-Up/PXE/UEFI

    Be the first to review this product...

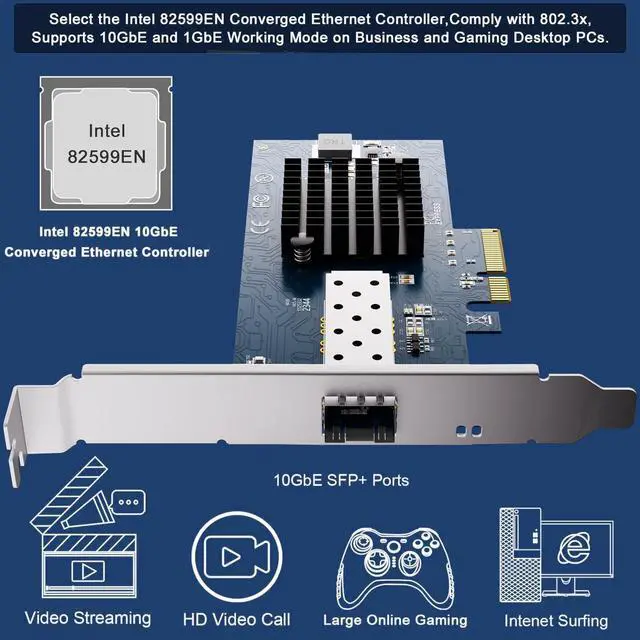

    • Adopting Intel 82599EN Chipset, it provides up to 10 Gbps of extreme speed to ensure the stability of Internet access and local data transmission, effectively preventing packet loss and making the server more stable.Support remote wake-up,PXE & UEFI

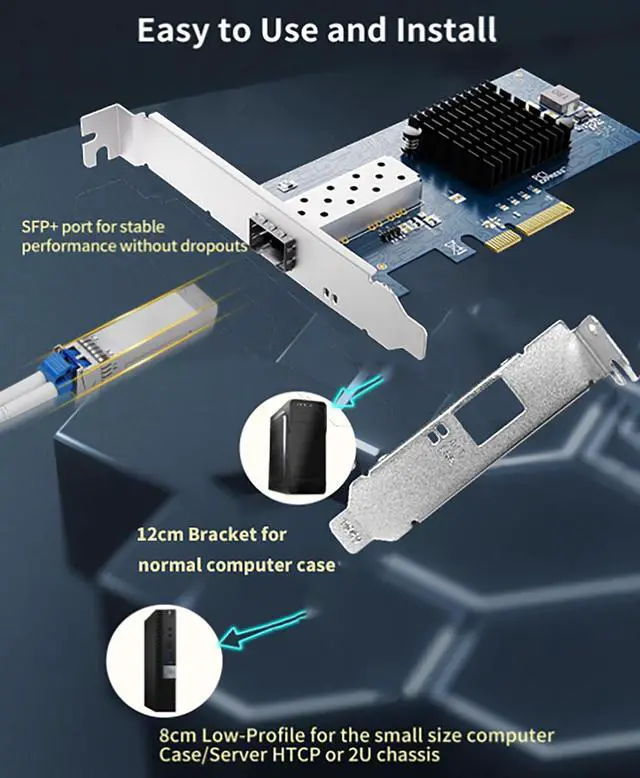

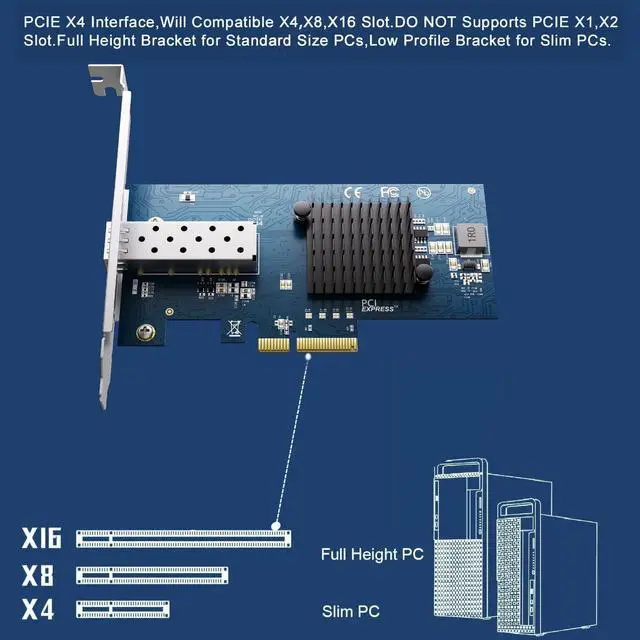

    • Single SFP+ port let you connect to 10 Gigabit SFP+ module/DAC/AOC for meeting the demands of data center environments. PCI-E X4 Lane is suitable for PCI-E X4 PCI-E X8 and PCI-E X16 slots.
    • Complies with the 10 Gb/s and 1 Gb/s Ethernet/802.3ap (KX/KX4/KR) ,10 Gb/s Ethernet/802.3ae (XAUI), 1000BASE-BX ,IEEE 802.3x 100BASE-TX
    • 180 day worry-free warranty and friendly customer service. If you have any questions, we will help you solve the problem when you need it, and if it cant be solved, we will provide a refund and no return is required
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    A sleek and modern product on a reflective surface, with abstract geometric shapes in the background

    10Gb Open SFP+ Network Card for Reliable High-Speed Connectivity

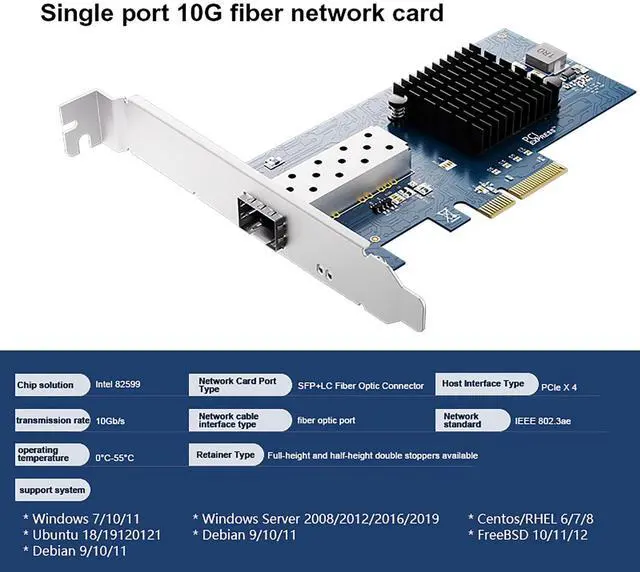

    This high-performance network card delivers reliable connectivity by adding an open SFP+ slot to your server or workstation. It provides an easy and cost-effective way to upgrade to 10 Gigabit fiber networking with the flexibility to use multi-mode or single-mode fiber.

    This fiber network card delivers reliable, high-performance network connectivity, by adding one open SFP+ slot to your server or workstation. It provides an easy and cost-effective way to upgrade your server or workstation to one 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multi-mode or single-mode fiber

    Hardware :

    Bus Type :PCI Express x4

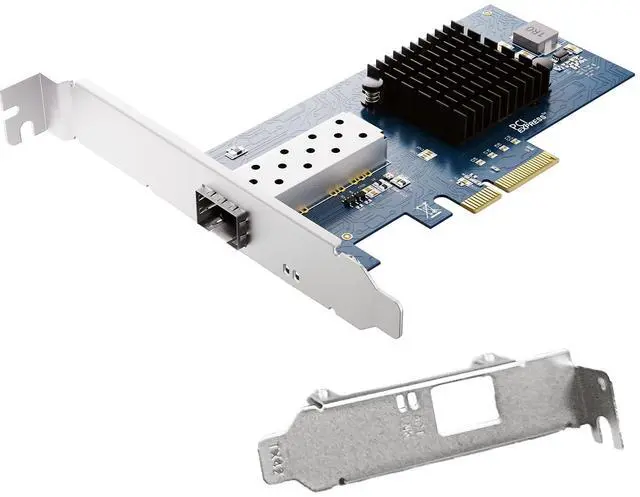

    Card Type :Standard/Low Profile

    Chipset ID :Intel – 82599EN

    Industry Standards :IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM)

    Supported Protocols :

    10GBase-SR/10GBase-LR/10GBase-ER/10GBase-ZR/10GBase-LRM IEEE 802.3ae/IEEE 802.3aq/IEEE 802.1Qbg/IEEE 802.1Qbb/IEEE 802.1Qaz/ IEEE 802.1Qau/IEEE 1588, 802.1as IEEE 802.3ad (Link Aggregation)

    IEEE 802.3x (Flow Control Support)

    IEEE 802.1Q (VLAN tagging)Networking Specifications

    Port Configuration:Single

    Data Rate Per Port:10/1GbE

    System Interface Type:PCIe v2.0 (5.0 GT/s)

    NC Sideband Interface:Yes

    Jumbo Frames Supported:Yes(15K max.)

    Interfaces Supported:SFIVirtualization Technology for Connectivity

    On-chip QoS and Traffic Management:Yes

    Flexible Port Partitioning :Yes

    Virtual Machine Device Queues (VMDq) :Yes

    PCI-SIG* SR-IOV Capable :Yes

    Advanced Technologies

    Virtualization Technology for Connectivity (VT-c):VMDq, SR-IOV

    Fiber Channel over Ethernet :Yes

    MACsec IEEE 802.1 AE :Yes

    IEEE 1588 :Yes

    Data Direct I/O Technology :Yes

    Intelligent Offloads:Yes

    Storage Over Ethernet:iSCSI, FCoE, NFSOS Compatibility

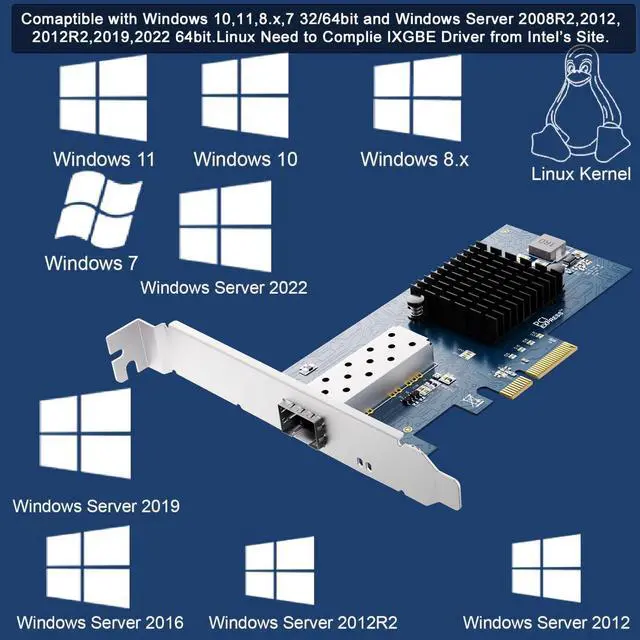

    FreeBSD, Linux , VMWare ESXi, Win 7/ Server2012/ Server 2008/ Win 8/Win 8.1/Server 2016/Win 10/Win11

    A sleek and modern product on a reflective surface, with abstract geometric shapes in the background

    10Gb Open SFP+ Network Card for Reliable High-Speed Connectivity

    This high-performance network card delivers reliable connectivity by adding an open SFP+ slot to your server or workstation. It provides an easy and cost-effective way to upgrade to 10 Gigabit fiber networking with the flexibility to use multi-mode or single-mode fiber.

    This fiber network card delivers reliable, high-performance network connectivity, by adding one open SFP+ slot to your server or workstation. It provides an easy and cost-effective way to upgrade your server or workstation to one 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multi-mode or single-mode fiber

    Hardware :

    Bus Type :PCI Express x4

    Card Type :Standard/Low Profile

    Chipset ID :Intel – 82599EN

    Industry Standards :IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM)

    Supported Protocols :

    10GBase-SR/10GBase-LR/10GBase-ER/10GBase-ZR/10GBase-LRM IEEE 802.3ae/IEEE 802.3aq/IEEE 802.1Qbg/IEEE 802.1Qbb/IEEE 802.1Qaz/ IEEE 802.1Qau/IEEE 1588, 802.1as IEEE 802.3ad (Link Aggregation)

    IEEE 802.3x (Flow Control Support)

    IEEE 802.1Q (VLAN tagging)Networking Specifications

    Port Configuration:Single

    Data Rate Per Port:10/1GbE

    System Interface Type:PCIe v2.0 (5.0 GT/s)

    NC Sideband Interface:Yes

    Jumbo Frames Supported:Yes(15K max.)

    Interfaces Supported:SFIVirtualization Technology for Connectivity

    On-chip QoS and Traffic Management:Yes

    Flexible Port Partitioning :Yes

    Virtual Machine Device Queues (VMDq) :Yes

    PCI-SIG* SR-IOV Capable :Yes

    Advanced Technologies

    Virtualization Technology for Connectivity (VT-c):VMDq, SR-IOV

    Fiber Channel over Ethernet :Yes

    MACsec IEEE 802.1 AE :Yes

    IEEE 1588 :Yes

    Data Direct I/O Technology :Yes

    Intelligent Offloads:Yes

    Storage Over Ethernet:iSCSI, FCoE, NFSOS Compatibility

    FreeBSD, Linux , VMWare ESXi, Win 7/ Server2012/ Server 2008/ Win 8/Win 8.1/Server 2016/Win 10/Win11

    This fiber network card delivers reliable, high-performance network connectivity, by adding one open SFP+ slot to your server or workstation. It provides an easy and cost-effective way to upgrade your server or workstation to one 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multi-mode or single-mode fiber

    Hardware : Bus Type :PCI Express x4

    Card Type :Standard/Low Profile

    Chipset ID :Intel 82599EN

    Industry Standards :IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM)

    Supported Protocols :

    10GBase-SR/10GBase-LR/10GBase-ER/10GBase-ZR/10GBase-LRM IEEE 802.3ae/IEEE 802.3aq/IEEE 802.1Qbg/IEEE 802.1Qbb/IEEE 802.1Qaz/ IEEE 802.1Qau/IEEE 1588, 802.1as IEEE 802.3ad (Link Aggregation)

    IEEE 802.3x (Flow Control Support)

    IEEE 802.1Q (VLAN tagging)

    Networking Specifications

    Port Configuration:Single

    Data Rate Per Port:10/1GbE

    System Interface Type:PCIe v2.0 (5.0 GT/s)

    NC Sideband Interface:Yes

    Jumbo Frames Supported:Yes(15K max.)

    Interfaces Supported:SFI

    Virtualization Technology for Connectivity

    On-chip QoS and Traffic Management:Yes

    Flexible Port Partitioning :Yes

    Virtual Machine Device Queues (VMDq) :Yes

    PCI-SIG* SR-IOV Capable :Yes

    Advanced Technologies

    Virtualization Technology for Connectivity (VT-c):VMDq, SR-IOV

    Fiber Channel over Ethernet :Yes

    MACsec IEEE 802.1 AE :Yes

    IEEE 1588 :Yes

    Data Direct I/O Technology :Yes

    Intelligent Offloads:Yes

    Storage Over Ethernet:iSCSI, FCoE, NFS

    OS Compatibility

    FreeBSD, Linux , VMWare ESXi, Win 7/ Server2012/ Server 2008/ Win 8/Win 8.1/Server 2016/Win 10/Win11


    Product information

    BrandC&N
    Hardware InterfacePCI Express x4, PCIE x 4
    Compatible DevicesDesktop
    Data Link ProtocolFast Ethernet
    Data Transfer Rate10 Gigabits Per Second
    ManufacturerULANSON
    Package Dimensions7.01 x 5 x 1.26 inches
    Item Weight5.3 ounces
    Item model numberTXA309
    Date First AvailableMay 23, 2025


    Additional Features

    1. Compatible with Windows 7/8.1/10/11,Windows Sever 2012/2012R2/2016/2019/2022,Microsoft Windows * (32 & 64 bit), SC0 UnixWare* 7.x , Open Unix* 8.0 , Novell ODI*, Novell Netware*, SUSE Linux Enterprise Server* 9.0 , Red Hat Enterprise Linux* 4.0 , Linux*, FreeBSD* , Sun Solaris* Microsoft DoS*, VMWare ESX* Driver Pack https://www.intel.com/content/www/us/en/download/15084/intel-ethernet-adapter-complete-driver-pack.html
