UIC 8310-50KR ST8310 MICR Check Reader
- Black
- Non-IBM4683 Interface
- No Aux
- No Scanner Port
- No MSR
- USB keyboard Integrated Port
+
+
Overview
Specs
Reviews

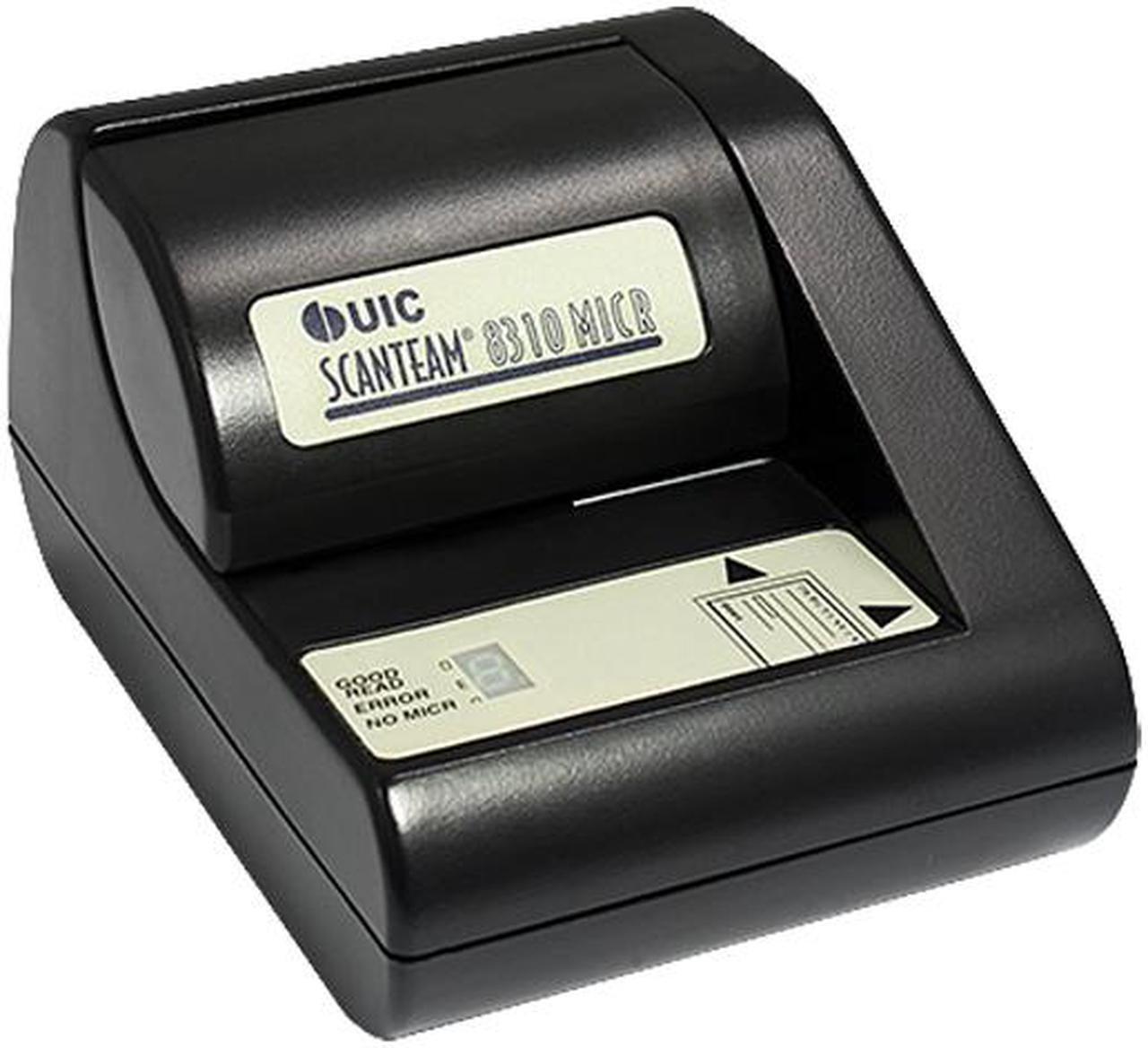

ST8310
Countertop Smart Motorized Check Reader
The SCANTEAM® 8310 is a smart check reader that come with Magnetic Ink Character Recognition (MICR) data capture functionality. The ST8310 has built-in flash memory for easy firmware upgrades in the field without the need to disassemble the product.
The SCANTEAM 8310 contains communications support for traditional PC COM ports for PC-POS applications. It has PC and video terminal keyboards in a keyboard wedge mode, as well as support for communications with many credit authorization terminals, including Hypercom, Data Card, Verifone Tranz and ZON series products.
The SCANTEAM 8310 was developed specifically to help retail and financial systems integrators to become more flexible in their data capture capability. The ST8310 can adapt to a variety of applications, giving the integrator the ability to better control fraud, as well as further enhance customer service.
Overview
Features & Benefits
The SCANTEAM® 8310 is a reduced feature set member of the SCANTEAM 8310 of check reader products. The ST8310 products contain FLASH memory, which allow for easy firmware upgrades in the field without the need to disassemble the product. It also has a magnetic read head for MICR data capture.
- Compact Size
- Direct Connect lnterfaces
- Optional MSR Port
- Motorized Check Handling and Transport.
- Flash Memory - Based Firmware
- MICR Line Exception Table
- E13-B and CMC
Specifications
ELECTRICAL
- Power Requirement: Regulated +SVDC?10%, 100mV ripple max, or Regulated or unregulated + 7 to + 13.5 VDC, SOOmV ripple max
- Power Consumption: With motor on: 385mA (typical average) With motor off: 125mA (typical)
INTERFACES
- PC, XT, AT, PS/2 keyboard wedge
- Serial RS-232 (Supports RTS/CTS hardware flow control)
- Wand Emulation
MECHANICAL
- Body Material: PC+ABS
- Dimensions: 87.1H x 104W x 1460 mm
- Weight: 567g
- Card Handling Method: Manual swipe
ENVIROMENTAL
- Operating Temperature: 0°C to +50?
- Storage Temperature: -18? to +60?
- Humidity: 95% max, non-condensing
- ESD Protection: 8KV discharge w/out degradation in performance 15KV top surface / 10KV bottom surface discharge without permanent damage
AGENCY APPROVAL
- FCC class A, CE: complies with EMC 89/93/EEC and LVD 73/23/EEC
PERFORMANCE
- Check Reading: Check Read/Decode/Transmit Time: 2 seconds with 99% first pass good rate,99.9% second pass good read rate.
- MICR Fonts Supported: E13-B and CMC-7, auto discrimination
DATA FORMATS
- MICR Output Formats: Every ST8310 contains a user selectable table of common MICR data output fomats.
- Data Editor: The output data can be uniquely edited by the ST8310 data editor to add or delete characters, including prefix and suffix characters
- MICR Exception Tables: The parsing rules for non-standard?d MICR line checks can be added in the field via programming checks, bar code menu, clone memory transfer from another ST8310, and host download.
- Options: Integrated dual or triple track magnetic stripe reader
- Accessories: Power adapter, Host interface cables, MICR head cleaning checks,MICR programming checks,PC Windows based programming utility, Quick*Load™
ACCESSORIES
- Power adapter, Host interface cables, MICR head cleaning checks,MICR programming checks,PC Windows based programming utility, Quick*Load&trade
