DC 24V 80A SPDT Automotive Car Relay 5 Pin 5 Wires w/ Harness Socket Plug 5pcs
- DC 24V 80A 5 pin SPDT electrical relay with pre-wired relay socket harness.Relay socket with 5 wires.High 80A coil capacity- able to handle those high current applications with ease.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:

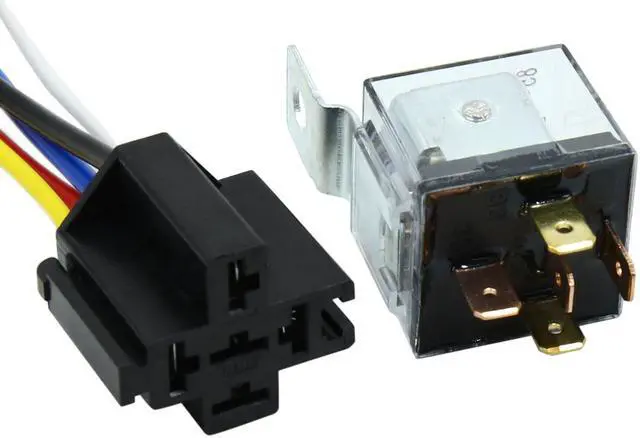

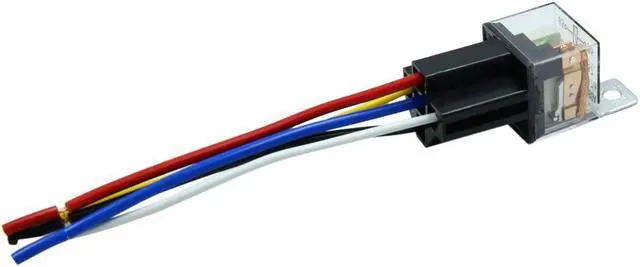

- DC 24V 5 pin relays with sockets wires(5 wires).
- Features standard 5 pin layout that accepts female spade terminals.
- 80A high switching capability.
- The interlocking design on the harness allows multiple harnesses to be coupled together for organization and ease of setup.
- Featuring brass or copper contacts where specified for extended wear.
- Great for adding car stereo,alarm system remote start,fog lights, undercar lighting,turn on domelight,shared door handle,truck release,reverse polarity,door locks,honk the horn and more.

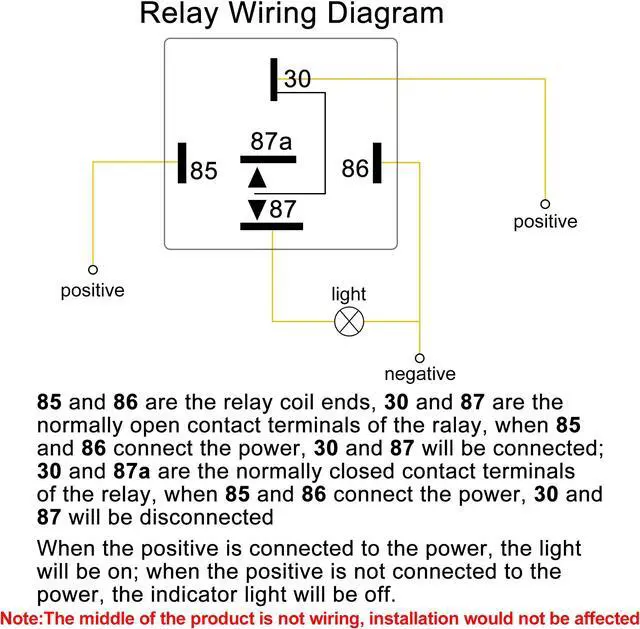

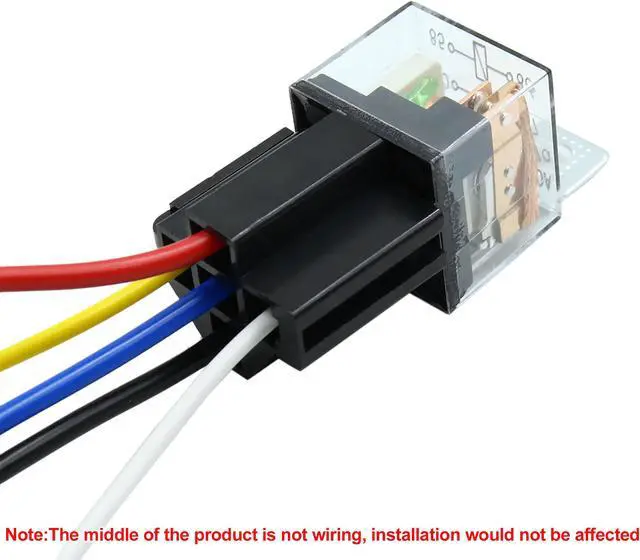

- Wire Specifications: Black-Power Input(Pin 30),White-Positive(Pin 85),Yellow-Negative(Pin 86),Red-Normally Open Ouput(Pin 87),Blue-Normally Closed Ouput(Pin 87a).
Package Include:

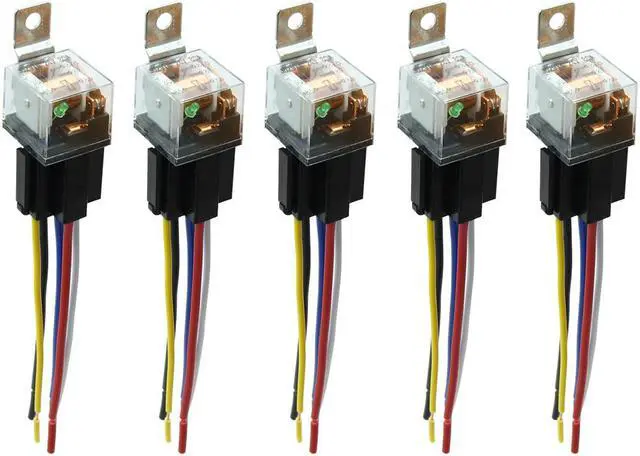

- 5 x Car Relays
- 5 x Relay Sockets
