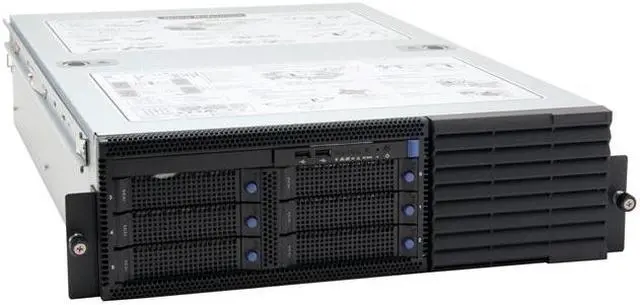

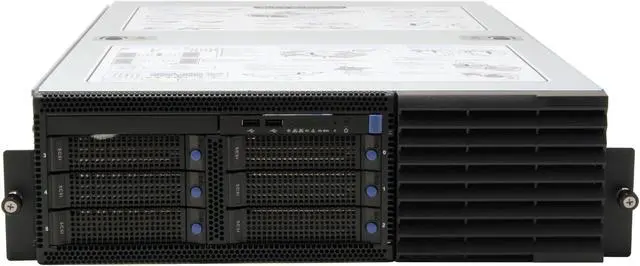

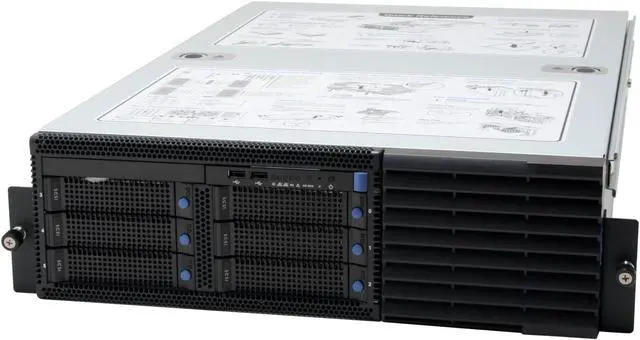

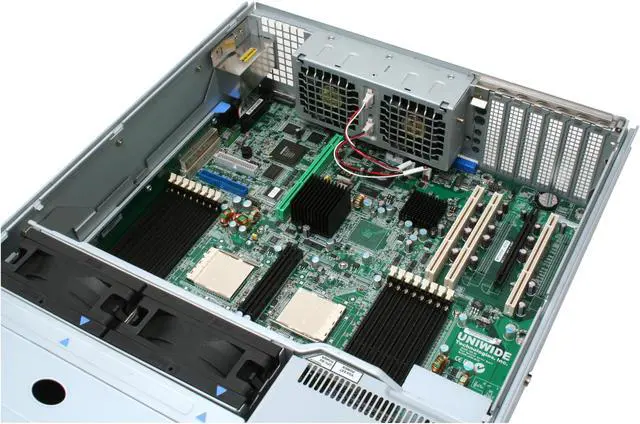

UNIWIDE 3326ES 3U Rackmount Barebone Server Dual 940 NVIDIA nForce4 Professional 2200 + AMD 8132 DDR 400/333 registered ECC

OPEN BOX Product Type
  • Dual 940
  • Dual AMD Opteron
  • 16 x 184Pin Memory Slots
  • 500W(1+1) host-swap redundant P.S with PFC
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Uniwide 3326ES

General
Brand UNIWIDE
Series UniServer
Model 3326ES
Form Factor 3U Rackmount
CPU Supported
CPU Type Dual AMD Opteron
CPU Socket Dual 940
Chipset
North Bridge NVIDIA nForce4 Professional 2200 + AMD 8132
Memory Supported
Memory Slots 16 x 184Pin
Max Memory Supported Up to 64GB memory capacity(with 4GB modules)
Memory Type Supported DDR 400/333 registered ECC
Storage Supported
ATA 1x ATA 33/66/100/133
Serial ATA 6 x SATA 300
SATA RAID RAID 0/1/0+1
SCSI Adaptec 7902W Dual-Channel Ultra320 SCSI
SCSI Type 68PIN
SCSI RAID Adaptec HostRAID
Graphics
GPU/VPU ATI Rage XL
Video Memory Dedicated 8MB
Expansion Slots
PCI Express Two full length PCI-Express, x16 slots
One half length PCI-Express, x4 slot
PCI-X Two half length PCI-X, 64-bit 133/100/66 MHz
One full length PCI-X 64-bit 133/100/66 MHz
Communications
First LAN Broadcom 5721
Second LAN Broadcom 5721
Max. LAN Speed 1 Gigabit
Expansion Bays
Slim Bays Supports slim CD-ROM or DVD Combo and slim FDD

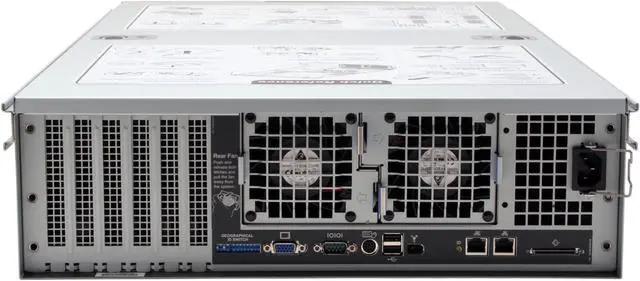

Panel Ports
Front USB 2
COM 1
PS/2 1
VGA 1
Rear USB 2
Rear IEEE 1394 1
RJ45 2
Other Ports One VHDCI External SCSI Port
Power Supply

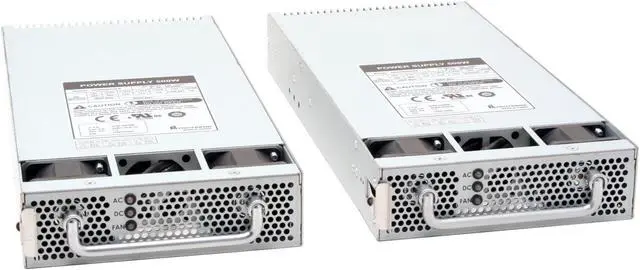

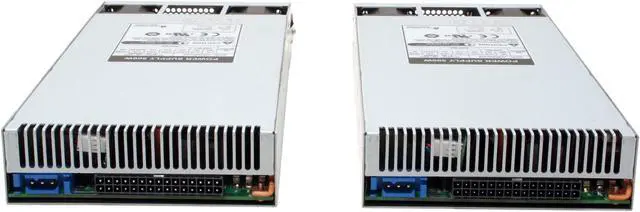

Max. Power 500W(1+1) host-swap redundant P.S with PFC
Features
Features Auto fan speed control
Voltage and fan speed monitoring
Supports six hot-swap SATA HDD
Supports six hot-swap U320 SCSI HDD (optional)
On-board Adaptec 7902W SCSI chip with ZCR support
Dimensions & Weight
Dimensions 5.2" x 16.9" x 27.5"
Additional Information
First Listed on Newegg July 13, 2006
