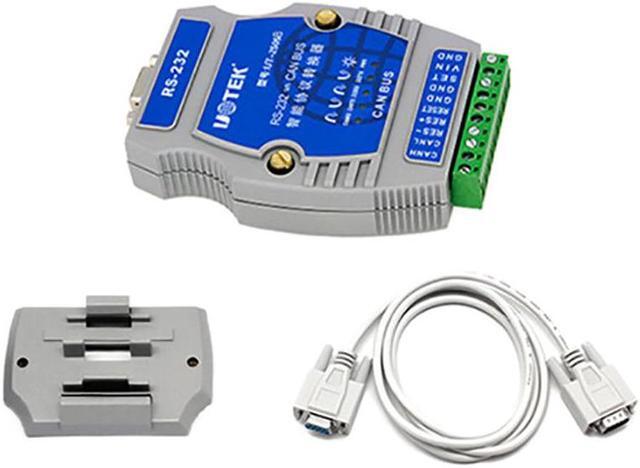

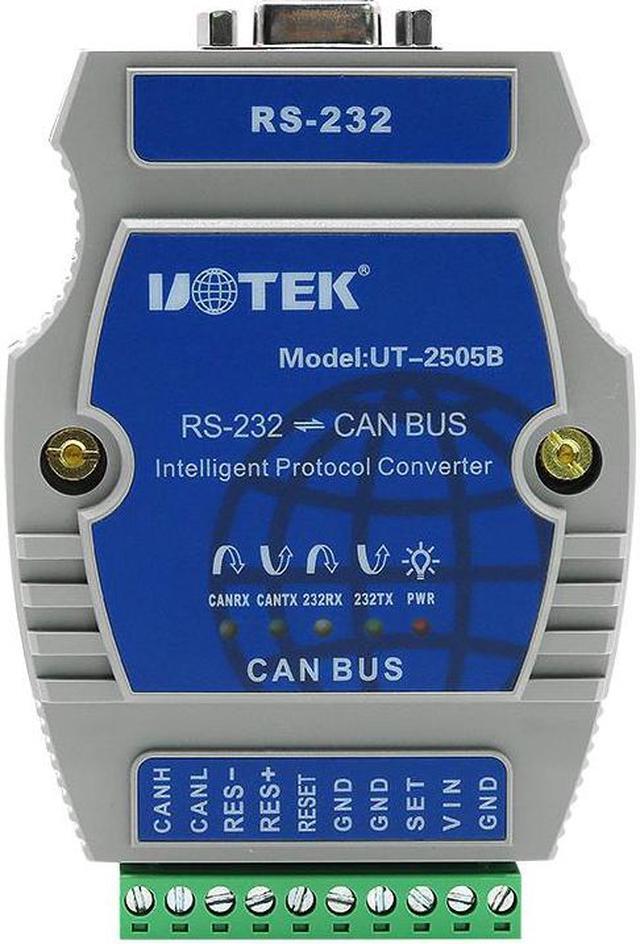

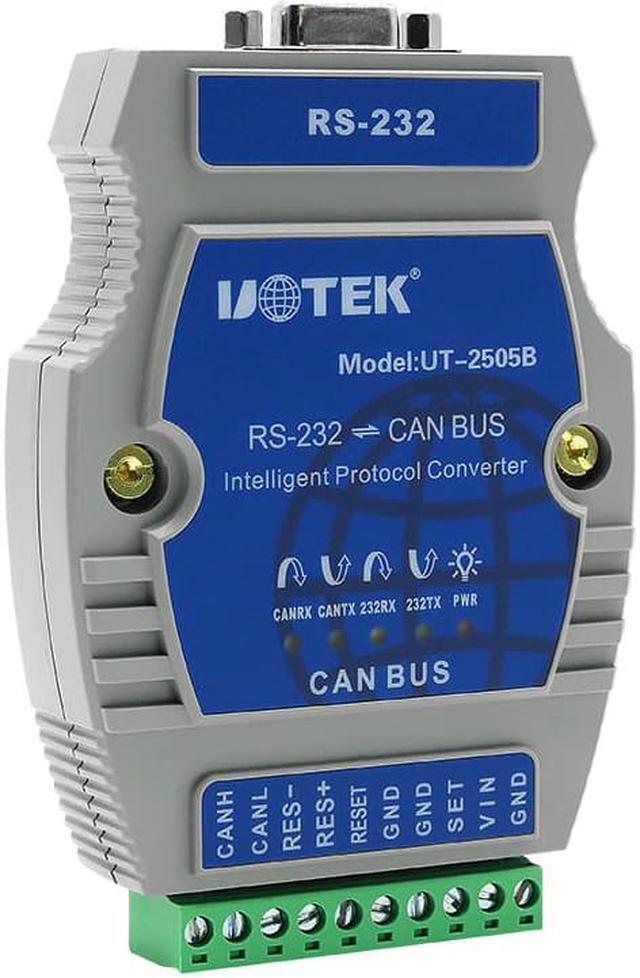

UT-2505B is a high performance RS-232 to CAN-bus converter. It supports the interconnection between RS-232 and CAN-Bus. Rs-232 baud rate is 1, 200-115, 200bps, and CAN-bus baud rate is 5kbps-1Mbps. The converter supports three data conversion modes: transparent conversion, transparent tape identification conversion and Modbus protocol conversion. This extends the application scope of this converter. UT-2505B converter provides configuration tools that allow users to set the interface parameters of UT-2505B. It is industrial standard design; CAN communication interface and system is isolated; with anti-interference and surge protection ability, it is widely used in industrial control, data communication systems.
Specifications
:
Supports bidirectional data transmission between CAN-bus and RS-232
Supports CAN 2.0 protocol

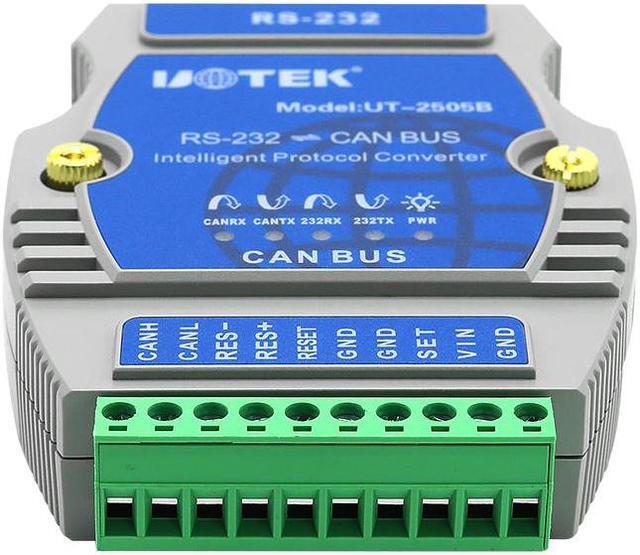

1-ch CAN-bus interface, 5Kbps-1Mbps transmission rate

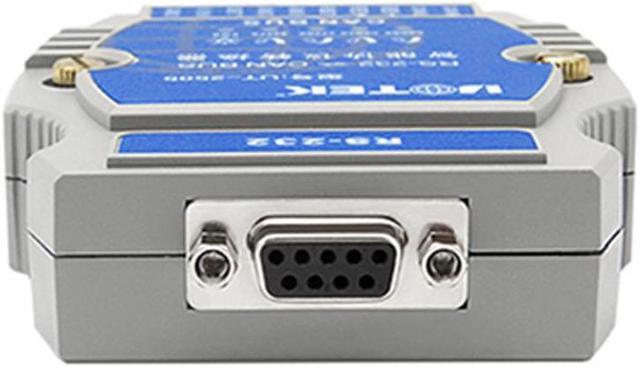

1-ch RS-232 interface, 600bps-230Kbps transmission rate
Provides 3 data conversion mode: transparent conversion, transparent tape identification conversion, Modbus protocol conversion
Operating voltage: 12-36 V DC
Operating current: 150mA@12V
Operating temperature: -40 ~ 85
Storage temperature: -40 ~ 85
Relative Humidity: 5 ~ 95%(non-condensation)
Storage humidity: 5 ~ 95%(non- condensation)
Isolated voltage: 1, 000VDC
