- UT-2506A is a high performance RS-232/485 to CAN-Bus converter. It supports interconnection between RS-232/485 and CAN-Bus. RS-232/485 baud rate is 1,200-115,200bps, and CAN-bus baud rate is 5kbps-1Mbps.The converter supports three data conversion modes: transparent conversion, transparent tape identification conversion and Modbus protocol conversion. This extends the application scope of this converter.
- UT-2506A converter provides configuration tools that allow users to set the interface parameters. It is industrial standard design; CAN communication interface and system is isolated; with anti-interference and surge protection ability, it is widely used in industrial control,data communication systems.
- Supports bidirectional data transmission between CAN-bus & RS-232/485
- Supports CAN 2.0 protocol
- 1-ch CAN-bus interface, 5Kbps-1Mbps transmission rate1-ch RS-232/485 interface, 600bps-230Kbps transmission rate
- Provides 3 data conversion mode: transparent conversion, transparent tape identification conversion, Modbus protocol conversion
- Working voltage: 12-36V DC
- Working current: less than 150mA@12V
- Operating temperature: -40~ 85 Celsius
- Storage temperature: -40~ 85 Celsius
- Relative Humidity: 5% to 95%(non-condensing)
- Storage humidity: 5% to 95%(non-condensing)
- Isolated voltage: 1,000VDC

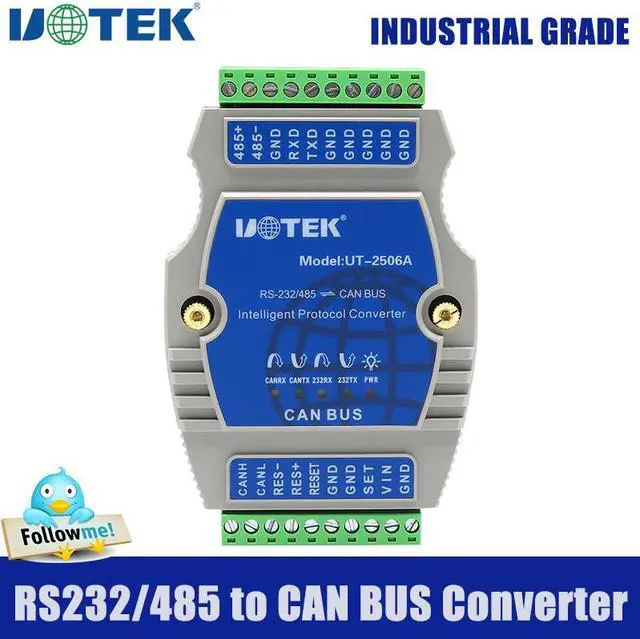

UT-2506A is a high performance RS-232/485 to CAN-Bus converter. It supports interconnection between RS-232/485 and CAN-Bus.
RS-232/485 baud rate is 1, 200-115, 200bps, and CAN-bus baud rate is 5kbps-1Mbps.
The converter supports three data conversion modes: transparent conversion, transparent tape identification conversion and Modbus protocol conversion. This extends the application scope of this converter. UT-2506A converter provides configuration tools that allow users to set the interface parameters. It is industrial standard design; CAN communication interface and system is isolated; with anti-interference and surge protection ability, it is widely used in industrial control, data communication systems.
specifications:
Supports bidirectional data transmission between CAN-bus & RS-232/485
Supports CAN 2.0 protocol
1-ch CAN-bus interface, 5Kbps-1Mbps transmission rate
1-ch RS-232/485 interface, 600bps-230Kbps transmission rateProvides 3 data conversion mode: transparent conversion, transparent tape identification conversion, Modbus protocol conversion
Working voltage: 12-36V DC; Working current: 150mA@12V
Operating temperature: -40~ 85; Storage temperature: -40~ 85
Relative Humidity: 5% to 95%(non-condensing);
Storage humidity: 5% to 95%(non-condensing)
Isolated voltage: 1, 000VDC

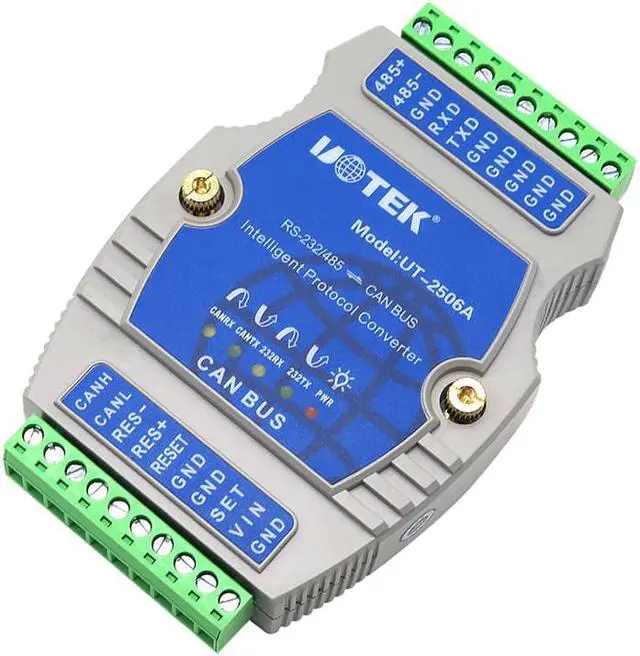

PWR: red, working power, the light indicates that the converter power is working properly
232TX: Green, serial port transmitting, the light is flashing to indicate the serial port is sending data
232RX: yellow, serial port receiving, the light is flashing to indicate that the serial port is receiving data
CANTX: green, CAN transmit, the light flashes to indicate that CAN is sending data
CANRX: yellow, CAN receive, the light flashes to indicate that CAN is receiving data
