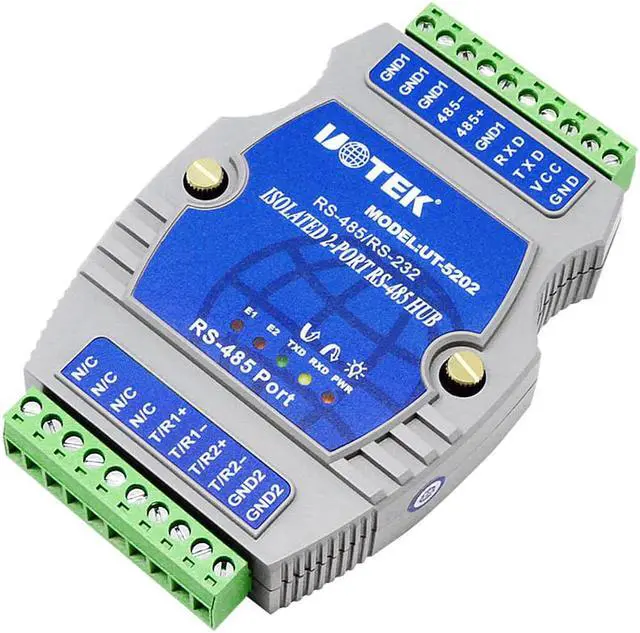

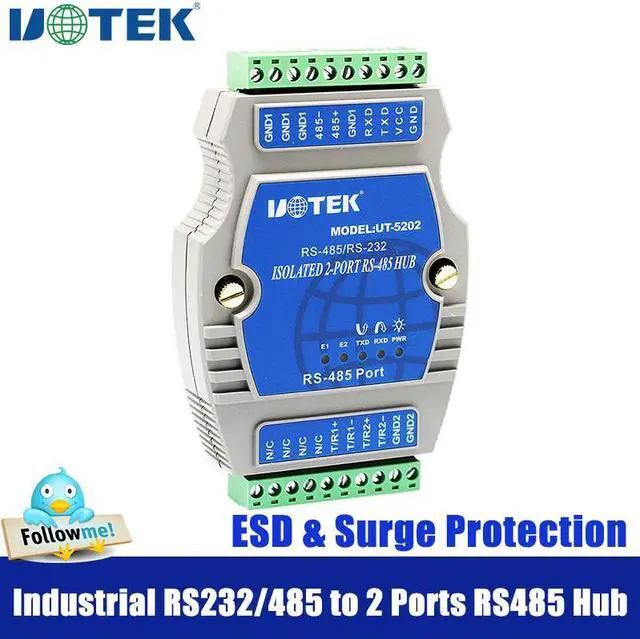

UOTEK Industrial Grade RS232 RS-485 to RS485 Hub 2 Ports Din Rail Installation with Isolation Surge Protection UT-5202

Parameter:
Standards: RS-232CRS-485 EIA/TIA
Interface: RS-232C: 10-pin terminal block
RS- 485: 10 -pin terminal block
Transmission media: Twisted-pair or shielded wire
Working mode: Asynchronous half-duplex
Operating power: 9-30VDC/150mA

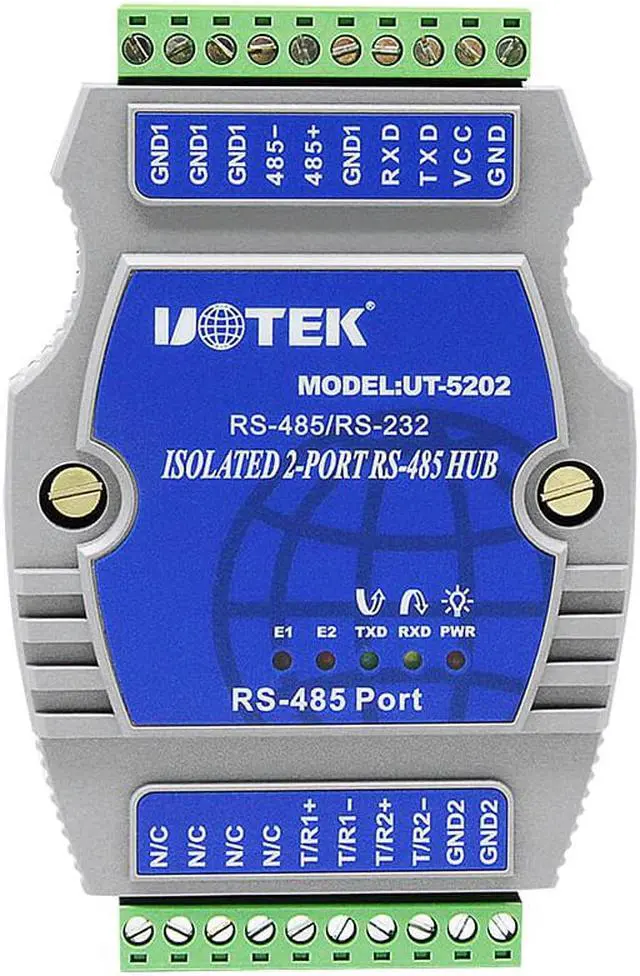

LEDs for indicating PWR TXD, RXD, and E1-E2 activity
Isolation: 2, 500VRMS 500 DC continuous isolated vlotage, DC/DC module
Baud rate: 300bps- 115.2 kbps
Protection: RS-232 ±15KV ESD protection, RS-485 each wire 600W lightning surge protection
Transmission distance: 0-5, 000m (115, 200-300bps)

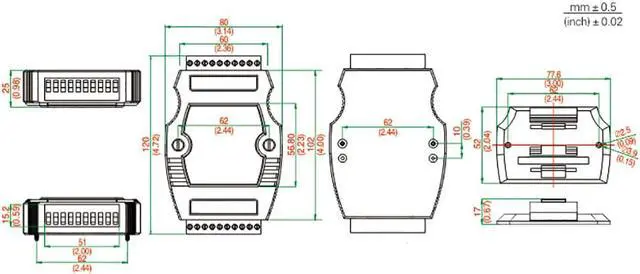

Dimension: 120×80×25mm
Operating temperature: -40 to 85
Relative humidity: 5% to 95%

UT-5202 is a hub special designed for RS-485 BUS under complicated electromagnetic field. The transmission rate for this hub is as high as 115.2KBPS. To ensure the safety and reliability of the data communication, RS-485 port adopts optoelectronic isolation technology to prevent from lightning and surge; the built-in optoelectronic isolator and 600W surge protection circuit can provide 2, 500V isolated voltage for lightning and ESD protection. Meanwhile, it adopts external switch power, prevents from common ground interference; it is quite good for outdoor application.

Under RS-485 working mode, the distinguished circuit can auto sense the direction of data flow, and switch it automatically, so as to control the circuit, solve RS-485 time delay problem. The transmission distance of RS-485 port is more than 1, 200m. This model is widely used in highway toll system, road monitoring system, and power system.

UT-5202 RS-485 HUB supports star RS-485 BUS connection. Each port supports short-circuit, open-circuit protection, 2, 500V optoelectronic isolation. User can easily change the structure of RS-485 BUS, divide the network segment, and improve the communication reliability. When the device break down, the network segment with problem will be isolated, so as to ensure other network segment working smooth; this performance greatly improve the reliability of RS-485, and shorten the maintenance time of the network.
