Parameter:
>>Main Functions & Features
Bidirectional data transmission over Ethernet and RS-232/485/422/TTL
Integrated 1 RS-232/485/422/TTL communication interface, supporting 300bps-921600bps communication rate

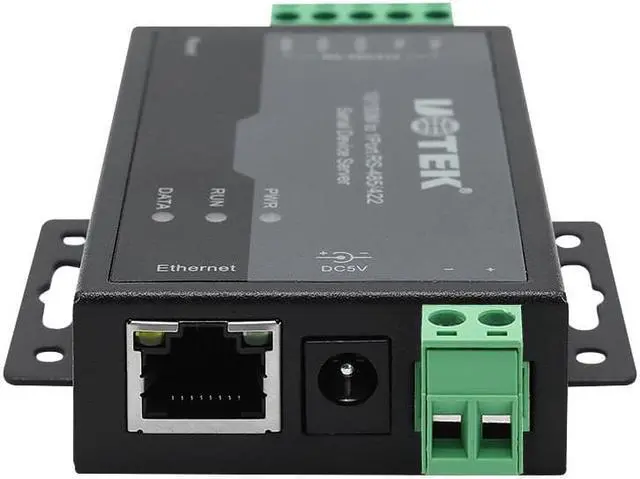

Integrated 1 10M/100M Ethernet interface
Power supply interface: DC-JACK, 5.08 -2P Phoenix terminal
Parity bit: None, Odd, Even
Data bit 5, 6, 7, 8
Stop bit 1, 1.5, 2
Flow control RTS/CTS, XON/XOFF
Working voltage: DC 5V±5%
Working current: 80mA@5V
Operating temperature: -40~85°C
Storage temperature: -40~85°C
Operating humidity: 5~95% (no condensation)
Storage humidity: 5~95% (no condensation)
Electrostatic protection: air 4kV, contact 4kV
Surge protection: Serial port 600W

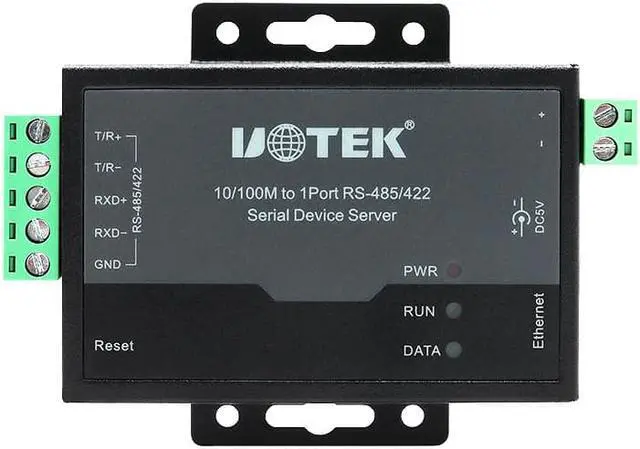

>> Indicator Light
PWR: red, power indicator; long light when power supply is normal.
RUN: green, system operation indicator; flashes when the system is running normally.
DATA: green, communication indicator; light is on when the serial port sends or receives data; off when sending or receiving is completed

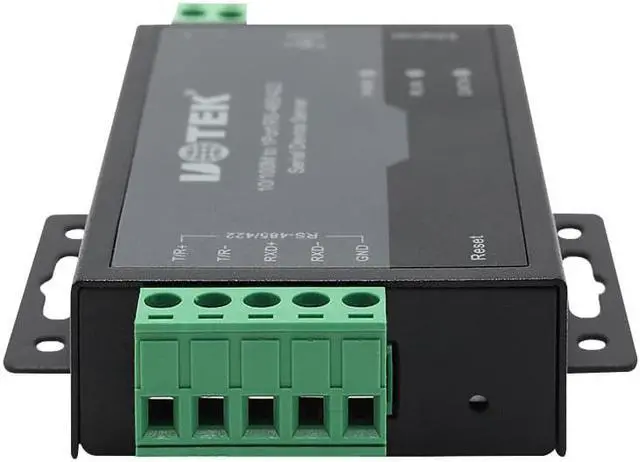

UT-6311 series serial device server, also called terminal server or serial server, is a converter between asynchronous serial port RS232/422/485 and Ethernet. It is a standalone intelligent device with CPU and full TCP/IP protocol stack. It accomplishes transparent data transfer between RS232/422/485 and Ethernet in both directions, allowing RS232/422/485 serial devices to connect to the network immediately. The converter provides a web configuration interface that allows the user to set the converter's operating parameters flexibly. The small size and industrial-grade high standard design make it easy for customers to install and use; it is widely used in industrial communication and data conversion systems.
