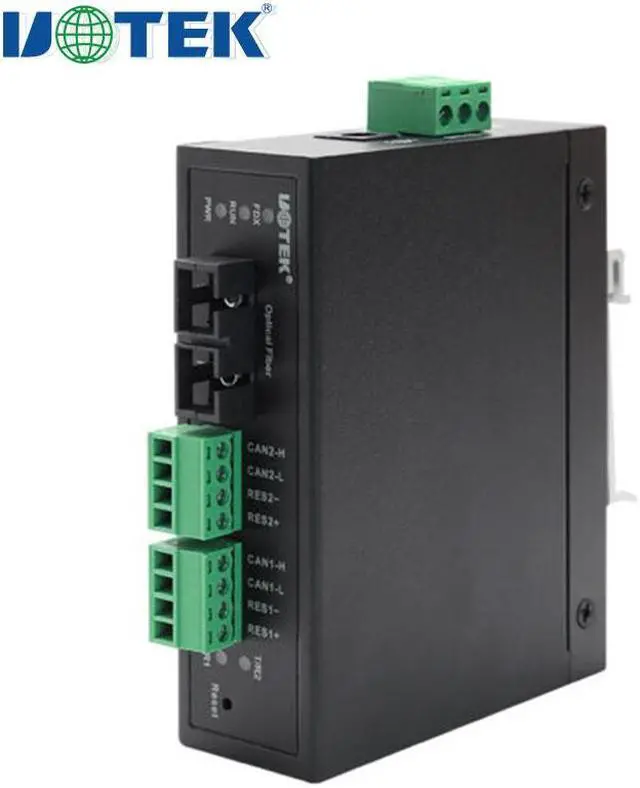

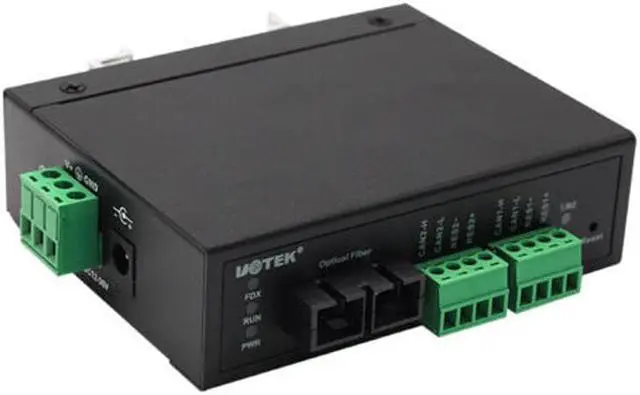

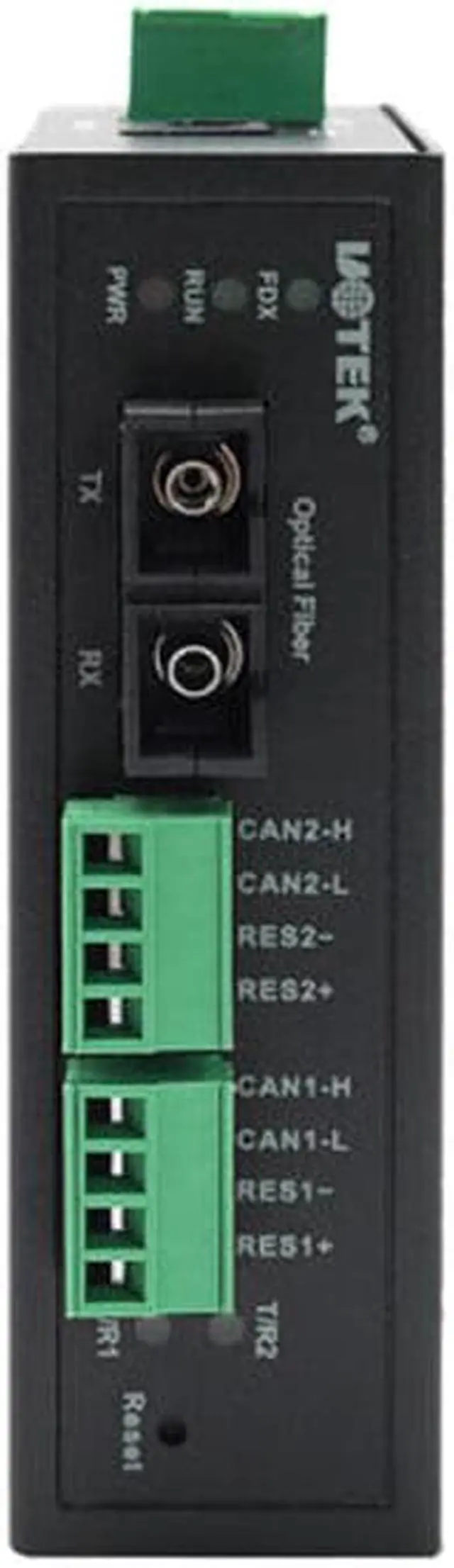

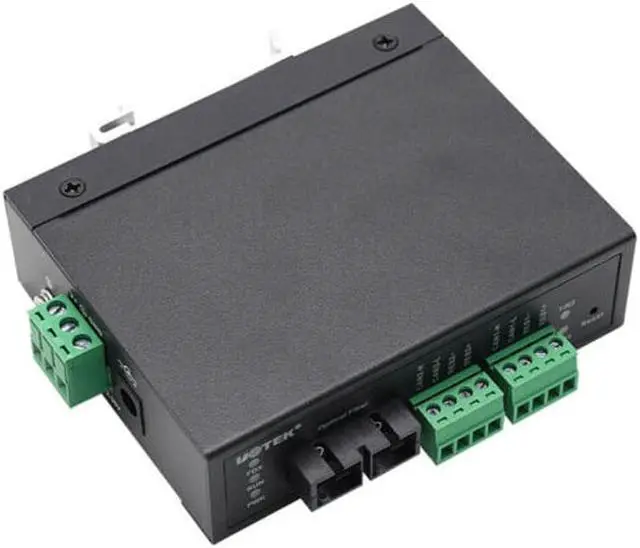

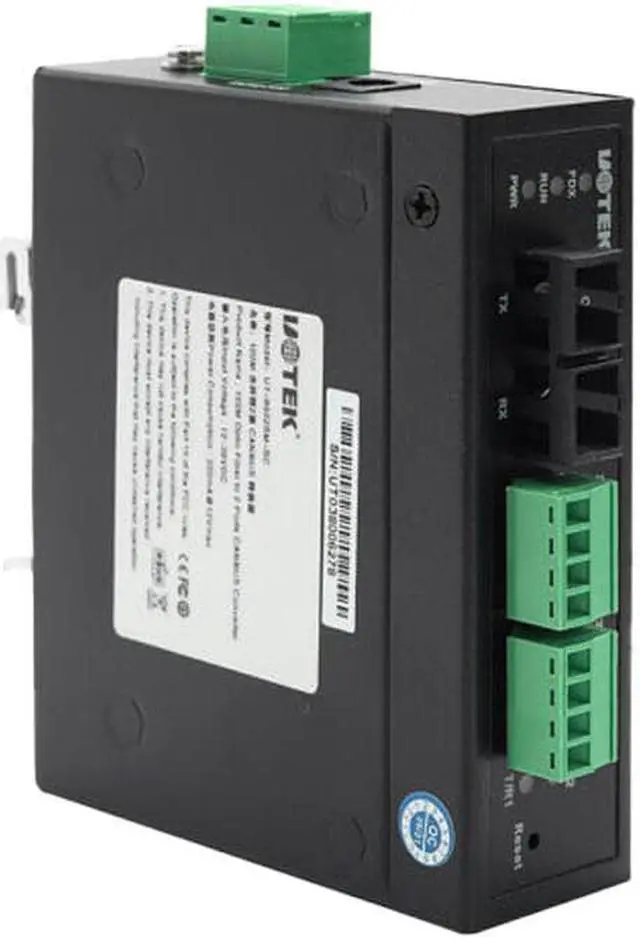

UOTEK 100M Fiber to Canbus Converter CAN BUS Modbus Adapter Can Gateway 2 Ports Can Interface Converter

The UT-6502SM-SC is a high-performance CAN-bus communication converter with 2 CAN interfaces and 1 fiber optic interface. The converter supports interconnection and interoperability between 100M fiber optic network and CAN-bus with communication rate from 5kbps to 1Mbps, which further extends the application range of CAN-bus and fiber optic, and the UT-6502SM-SC converter provides web configuration interface, so that users can flexibly set the operation parameters of the UT-6502SM-SC converter. The UT-6502SM-SC is designed with high industrial standard; the communication interface is isolated from the system and has certain anti-interference and anti-surge capability, which is widely used in industrial control and data communication system.

Paremeter:
Realizes bidirectional data transmission between CAN-bus and fiber optic network
Support CAN 2.0 protocol
Integrated 2-port CAN-bus communication interface, supporting 5Kbps-1Mbps custom rate
Integrated 1-port 100M fiber optic network interface
Operating voltage: 12-36V DC
Operating current: 150mA@12V
Operating temperature: -40~85°C
Storage temperature: -40~85°C
Operating humidity: 5~95% (No condensing)
Storage humidity: 5~95% (no condensing)
Isolation voltage: 1000VDC
Static protection: Air 8kV, contact 6kV
Surge protection: Power
port: 1.2 /50us common mode 2kV, differential mode 1kV
CAN port: 600W
