UOTEK Industrial PCI to 2-Port RS232 High-speed Serial Card Port Wiring for 2U Chassis DR44 Female 32 Bit Universal PCI Connector Adapter with 600W Surge Protection UT-752E
- Transmission rate: 300bps-921.6Kbps
- Checksum bit: None, Even, odd
- Flow control: RTS/CTS XON/XOFF
- Operating temperature: -40~85°C
- Interface protection: RS-232 interface 600W surge protection, ±15KV electrostatic protection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter:
Hardware Interface

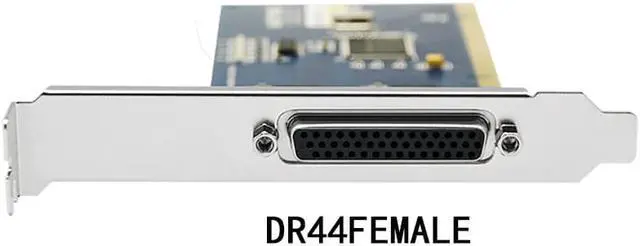

Connection type: 1 DR44 female
Bus: 32 bit Universal PCI
Signal RS-232: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
Transmission rate: 300bps- 921.6K bps
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Checksum bit: None, Even, odd
Flow control: RTS/CTS XON/XOFF
Operating temperature: -40~85°C
Interface protection: RS-232 interface 600W surge protection, ±15KV electrostatic protection
Support system: Win98/2000, WinXP/2003/Vista/2008/7/8/ 8.1, 32/64, DOS/Linux 2.4 / 2.6

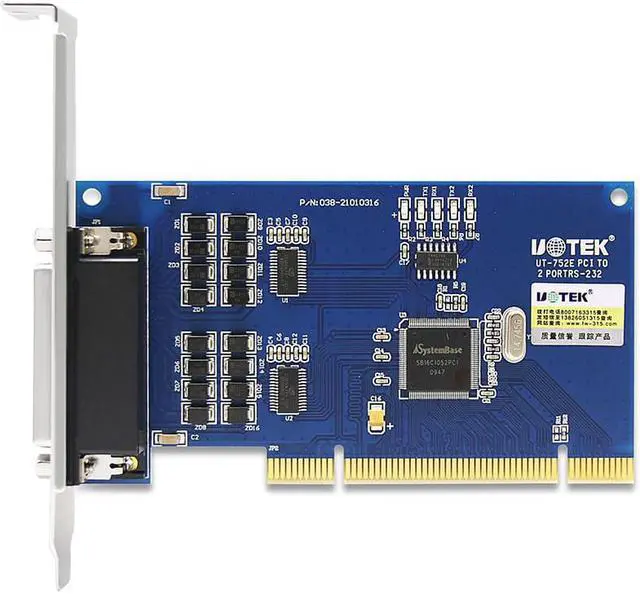

UT-752E is a universal PCI serial card designed for POS, ATM and other applications that can be used in automation system manufacturing and system integration. UT-752E provides 2 RS-232 serial ports, each with 600W surge protection, and can connect to a wide range of serial devices such as PCs, terminals, modems, printers, scanners and etc. Each port is capable of data transfer rates up to 921.6K bps, providing modem control signals to ensure compatibility with serial device peripherals. the UT-752E can operate under both 3.3V and 5V PCI buses, allowing the multi-serial card to be installed in any available PC or server.
Hardware Interface
Connection type: 1 DR44 female
Bus: 32 bit Universal PCI
Signal RS-232: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
Transmission rate: 300bps- 921.6K bps
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Checksum bit: None, Even, odd
Flow control: RTS/CTS XON/XOFF
Operating temperature: -40~85°C
Interface protection: RS-232 interface 600W surge protection, ±15KV electrostatic protection
Support system: Win98/2000, WinXP/2003/Vista/2008/7/8/ 8.1, 32/64, DOS/Linux 2.4 / 2.6
UT-752E is a universal PCI serial card designed for POS, ATM and other applications that can be used in automation system manufacturing and system integration. UT-752E provides 2 RS-232 serial ports, each with 600W surge protection, and can connect to a wide range of serial devices such as PCs, terminals, modems, printers, scanners and etc. Each port is capable of data transfer rates up to 921.6K bps, providing modem control signals to ensure compatibility with serial device peripherals. the UT-752E can operate under both 3.3V and 5V PCI buses, allowing the multi-serial card to be installed in any available PC or server.
