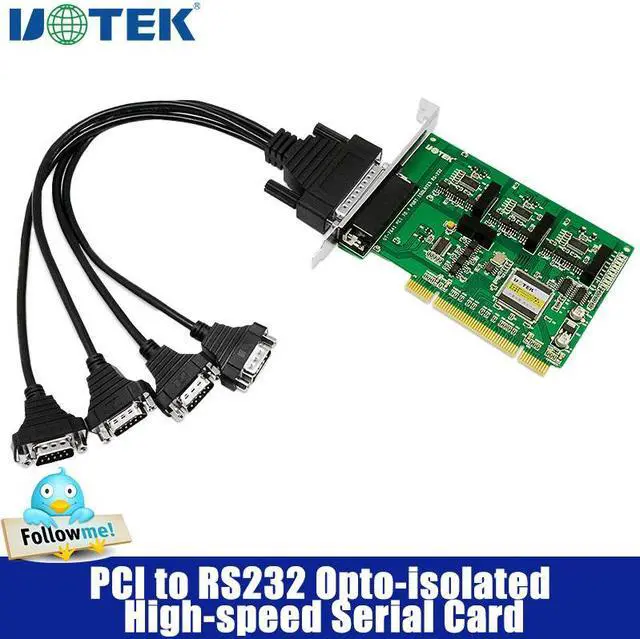

UOTEK Industrial PCI to 4-Port RS232 High-Speed Serial Card with Optical Isolation RS232 Serial Expansion Card DB9 Connector Adapter UT-764I

Parameter:
Hardware Interface

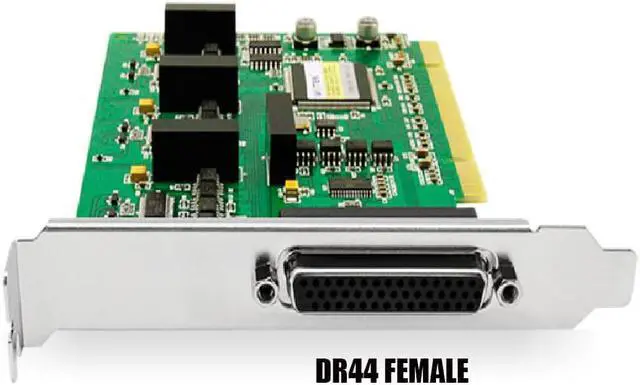

Connection Type: 1 DR44 Female
BUS: 32 bit Universal PCI
Signal:

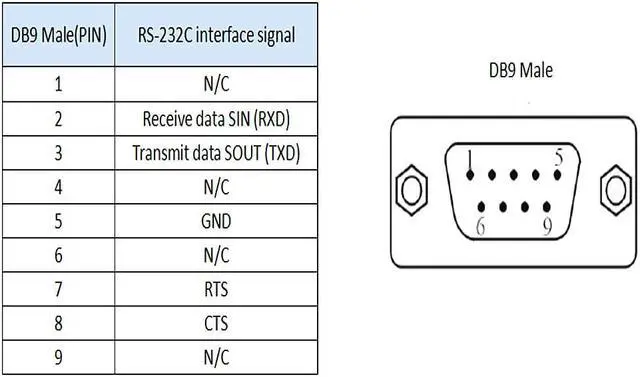

RS-232: RXD, TXD, GND, RTS, CTS
Transmission rate: 300bps- 921.6 kbps
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parity bits: None, Even, odd, space, Mark
Stream control: RTS/CTS XON/XOFF
Operating temperature: -40~85°C
Support system: Win2000/2003/XP/Vista/2003_Server/Win7/8/ 8.1 /10/NT 4.0 /CE 4.2 / 5.0 / 6.0 /Vxworks/ Linux 2.4. x/ 2.6. x

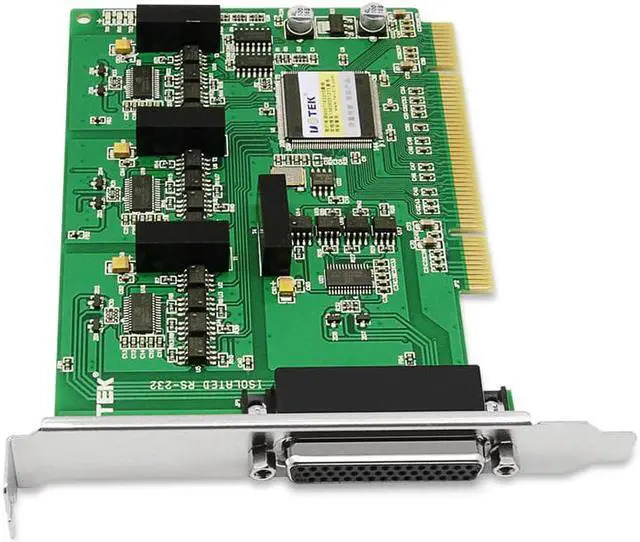

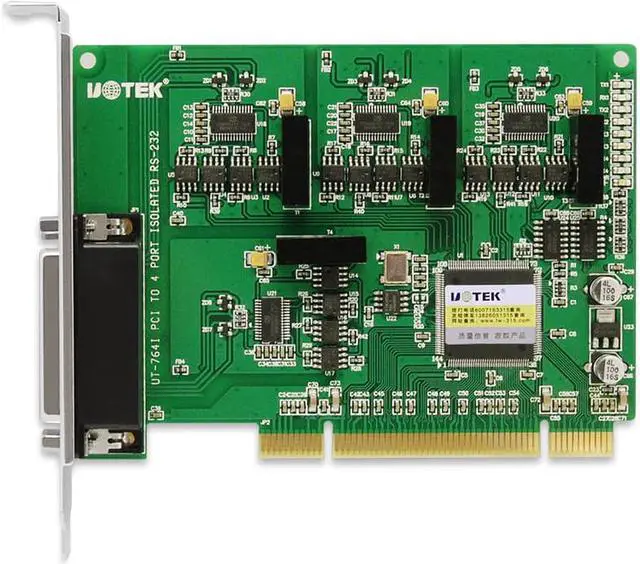

The UT-764i opto-isolated PCI converter card, compatible with RS-232C standard, is capable of converting single-ended PCI signals to RS-232 signals with a built-in opto-isolator, capable of providing isolation voltages up to 2500Vrms, with a fast transient voltage suppressor protector, which is designed to protect the RS-232 interface with today's advanced TVS (Transient Voltage Suppressor) transient voltage suppressor, under normal conditions, the TVS tube is a high resistance state, when the TVS tube is subjected to an instantaneous high-voltage shock at both ends, it can reduce the impedance at both ends at a high rate, absorbing a large current, so that the voltage at both ends is clamped at a predetermined value, protecting the circuit components behind it from damage due to transient High-voltage shock and damage. This protector can effectively suppress lightning and ESD, providing 500W of lightning surge protection power per line, as well as surge voltages and transient over-voltages generated by various causes on the line, and the extremely small inter-pole capacitance ensures high-speed transmission of the RS-232 interface.
