UOTEK USB to RS232 Converter Adapter USB2.0 Conversion Connector with Isolation UT-8102 Support Win8/Win10/XP/Vista/7/8/8.1/10/CE/Mac/Linux

Parameter:
Standards: USBV 1.1, 2.0, RS-232 EIA
USB signal: VCC, DATA-, DATA+, GND, FG
RS-232 signal: RXD, TXD, GND
Working mode: Asynchronous, point to point
Direction control: Adopts data flow direction auto control technology, distinguish and control the data transmission direction automatically
Baud rate: 300-115, 200bps, serial signal baudrate auto detection
Overload capacity: Supports point to point
Transmission distance: Less than 5m for USB port, 5m for RS-232 port
Lightning protection: RS-232 port 8/20us 3000A

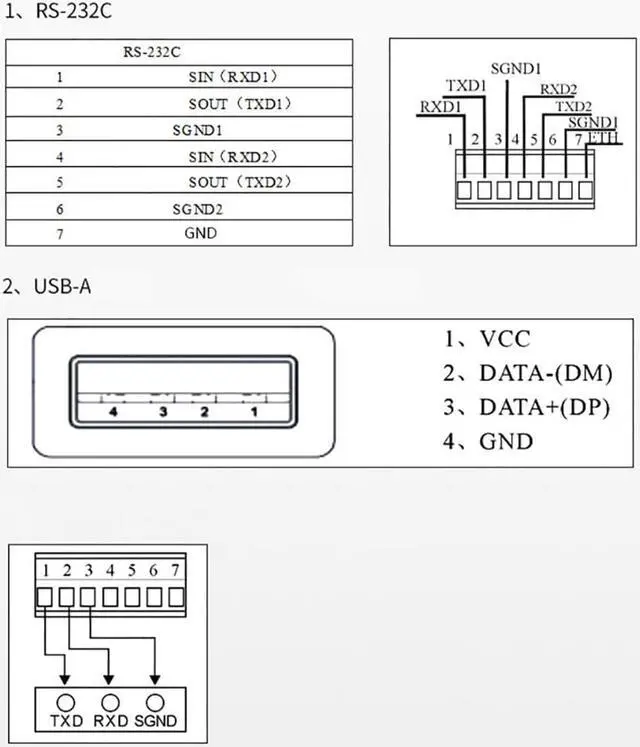

Connector: USB-B female, 5.08 terminal block

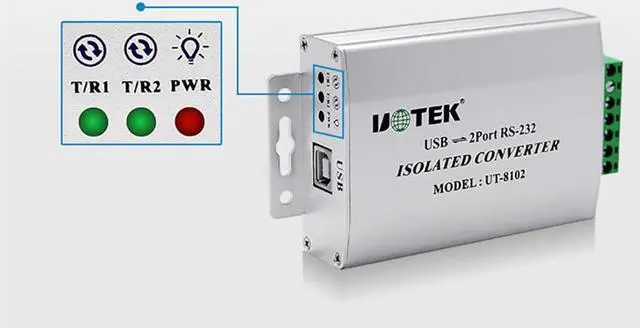

Signal indicator: Port1, port2, power
Transmission media: Twisted pair or shielded cable
Operating temperature: -40 to 85, relative humidity 5% to 95%
Supports Win8/Win10/Win2000/2003/2008/2012/XP/Vista/7/8/ 8.1 /10/CE/Mac/Linux

As the development of PC, USB port starts to replace most of the low speed external ports from old PC. In industrial field, most of the devices or equipments are still using RS-232 interface. In this situation, we need to use USB to RS-232 converter to complete the data transmission between PC and RS-232 equipment.

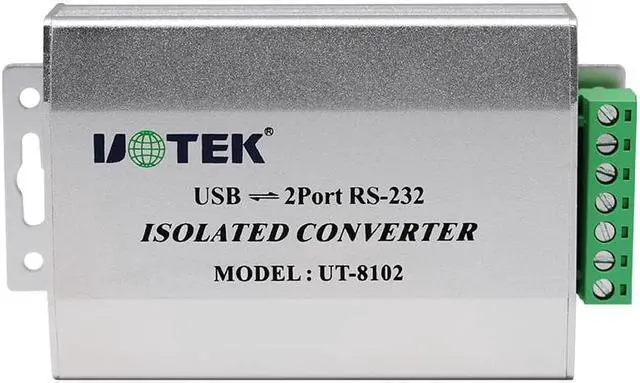

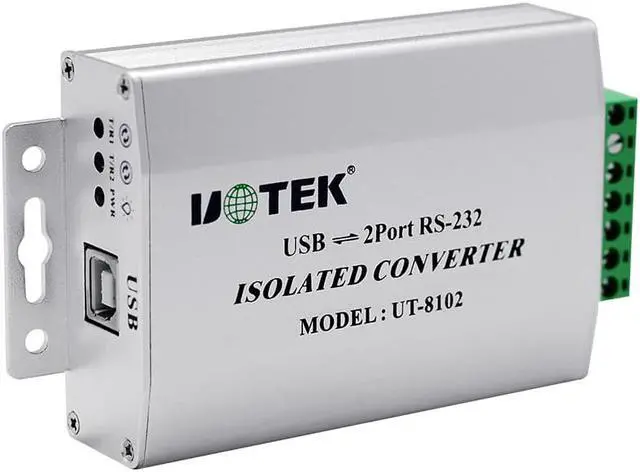

UT-8102 is a universal USB to 2 RS-232 ports converter without external power. It complies with USB, RS-232 standards; it converts single side USB signal to RS-232. This converter is with built-in zero delay auto receiving and transmitting conversion, and unique I/O circuit auto control data flow direction, plug & play. It is compatible with current communication software and hardware.
UT-8102 converter provides connection for point to point communication. The baud rate can be 300-115, 200bps. The power and data flow indicators indicate the working status.
