- With the continuous development of the PC industry, USB interfaces are gradually replacing various low-speed peripheral interfaces of old PCs. However, many important devices in industrial environments still use RS-232 interface designs. Therefore, many users use USB to RS-232 converters to achieve data transmission between PC and RS-232 devices.
- UT-8232 is a universal USB/RS-232 converter that is compatible with USB and RS-232 standards and does not require an external power supply. It can convert single-ended USB signals into RS-232 signals. The converter has zero-delay automatic receive and transmit conversion and unique I/O circuitry that automatically controls the data flow direction, making it plug-and-play. It ensures compatibility with all existing communication software and interface hardware.
- UT-8232 can provide reliable connections for point-to-point communication. It supports signal conversion from USB to RS-232 and has a data communication speed of 300-460800bps.
- Standards: Compliant with USB V1.1, 1.0, 2.0 standards and EIA RS-232 standard.
- USB Signals: VCC, DATA-, DATA+, GND, FG.
- RS-232 Signals: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI.
- Working Mode: Asynchronous working, point-to-point working.
- Direction Control: Uses automatic data flow control technology to automatically detect and control the direction of data transmission.
- Baud Rate: 300-460800bps, automatically detects serial port signal rate.
- Load Capacity: Supports point-to-point communication mode.
- Transmission Distance: RS-232 end can reach up to 5 meters, USB end can reach up to 5 meters.
- Interface Protection: ±15KV electrostatic protection.
- Interface Form: USB-A interface male head, connected to DB9 male head connector.
- Transmission Medium: Twisted pair or shielded wire.
- Operating Environment: -40°C to 85°C, relative humidity from 5% to 95%.
- Compatibility: Supports Windows 95/98/2000/2008/XP/Vista/win7/8/8.1/10/11, MAC, Linux, etc.
overview:
With the continuous development of the PC industry, USB interfaces are gradually replacing various low-speed peripheral interfaces of old PCs. However, many important devices in industrial environments still use RS-232 interface designs. Therefore, many users use USB to RS-232 converters to achieve data transmission between PC and RS-232 devices.

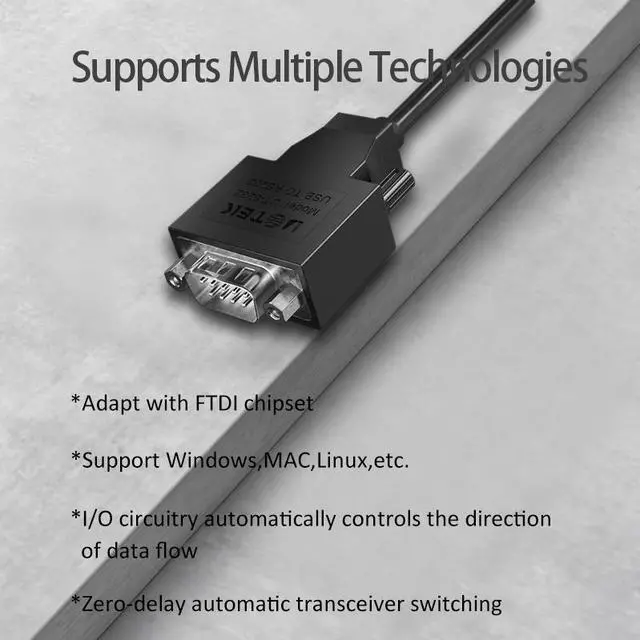

UT-8232 is a universal USB/RS-232 converter that is compatible with USB and RS-232 standards and does not require an external power supply. It can convert single-ended USB signals into RS-232 signals. The converter has zero-delay automatic receive and transmit conversion and unique I/O circuitry that automatically controls the data flow direction, making it plug-and-play. It ensures compatibility with all existing communication software and interface hardware.
UT-8232 can provide reliable connections for point-to-point communication. It supports signal conversion from USB to RS-232 and has a data communication speed of 300-460800bps.
Parameter:
1.
Standards: Compliant with USB V 1.1, 1.0, 2.0 standards and EIA RS-232 standard.
2.
USB Signals: VCC, DATA-, DATA+, GND, FG.
3.
RS-232 Signals: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI.
4.
Working Mode: Asynchronous working, point-to-point working.
5.
Direction Control: Uses automatic data flow control technology to automatically detect and control the direction of data transmission.
6.
Baud Rate: 300-460800bps, automatically detects serial port signal rate.
7.
Load Capacity: Supports point-to-point communication mode.
8.
Transmission Distance: RS-232 end can reach up to 5 meters, USB end can reach up to 5 meters.
9.
Interface Protection: ±15KV electrostatic protection.
10.

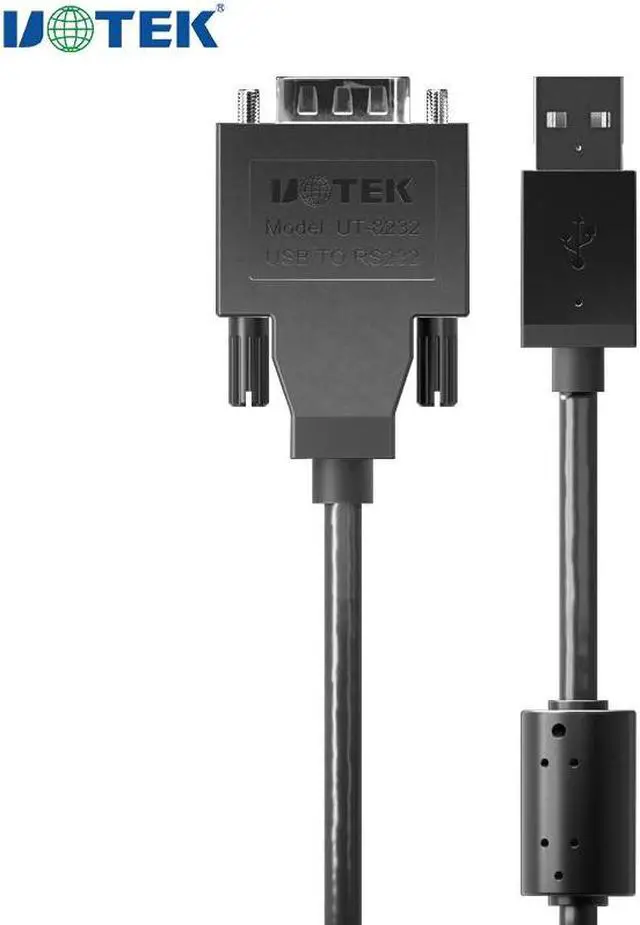

Interface Form: USB-A interface male head, connected to DB9 male head connector.
11.

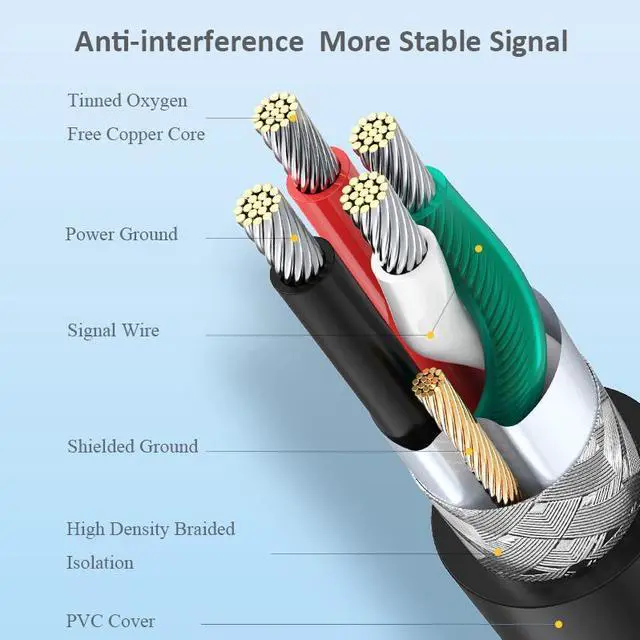

Transmission Medium: Twisted pair or shielded wire.
12.
Dimensions: 153mm x 34mm x 16mm.
13.
Operating Environment: -40°C to 85°C, relative humidity from 5% to 95%.
14.
Compatibility: Supports Windows 95/98/2000/2008/XP/Vista/win7/8/ 8.1 /10/11, MAC, Linux, etc.
