UT-8823F is a universal USB/RS-232 converter that does not require an external power supply, is compatible with USB and RS-232 standards, and can convert single-ended USB signals into RS-232 signals. The converter has zero-delay automatic send/receive conversion and unique I/O circuitry that automatically controls the direction of data flow without any handshake signals (such as RTS, DTR, etc.) or jumper settings, plug and play, ensuring compatibility with all existing communication software and interface hardware.

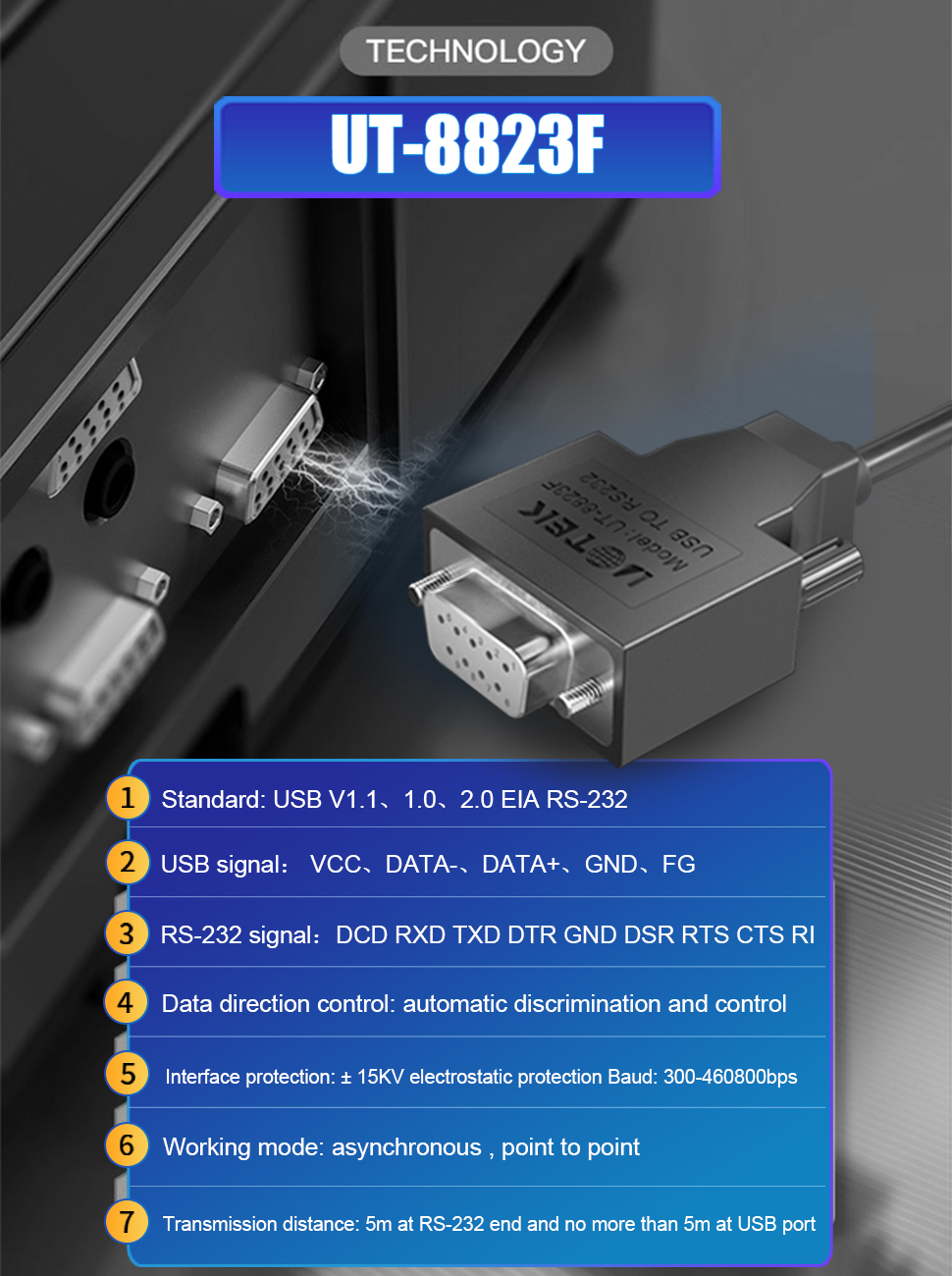

1.Standard: Compliant with USBV1.1, 1.0, 2.0 standards, EIA RS-232 standard
2. USB signal: VCC, DATA-, DATA+, GND, FG
3. RS-232 signal: DCD RXD TXD DTR GND DSR RTS CTS RI
4. Operation mode: Asynchronous operation, point-to-point operation
5. Direction control: Adopts data flow automatic control technology, automatically identifies and controls the direction of data transmission
6. Baud rate: 300-460800bps, automatically detects the serial port signal rate
7. Load capacity: Supports point-to-point communication mode
8. Transmission distance: 5 meters for RS-232 end, not exceeding 5 meters for USB port
9. Interface protection: ±15KV electrostatic protection
10. Interface form: USB end A-type interface male head, connected by DB9 female head connector
11. Transmission medium: Twisted pair or shielded wire
12. Operating environment: -40 to 85Celsius, relative humidity from 5% to 95%
13. Support Windows95/98/2000/2008/xp/Vista/win7/8/8.1/10/11, MAC, Linux, etc.
overview:
With the continuous development of the PC industry, USB interfaces are gradually replacing various low-speed peripheral interfaces of old PCs. However, many important devices in industrial environments still use RS-232 interface designs. Therefore, many users use USB to RS-232 converters to achieve data transmission between PC and RS-232 devices.
UT-8232 is a universal USB/RS-232 converter that is compatible with USB and RS-232 standards and does not require an external power supply. It can convert single-ended USB signals into RS-232 signals. The converter has zero-delay automatic receive and transmit conversion and unique I/O circuitry that automatically controls the data flow direction, making it plug-and-play. It ensures compatibility with all existing communication software and interface hardware.
UT-8232 can provide reliable connections for point-to-point communication. It supports signal conversion from USB to RS-232 and has a data communication speed of 300-460800bps.
Parameter:
1.
Standards: Compliant with USB V 1.1, 1.0, 2.0 standards and EIA RS-232 standard.
2.
USB Signals: VCC, DATA-, DATA+, GND, FG.
3.

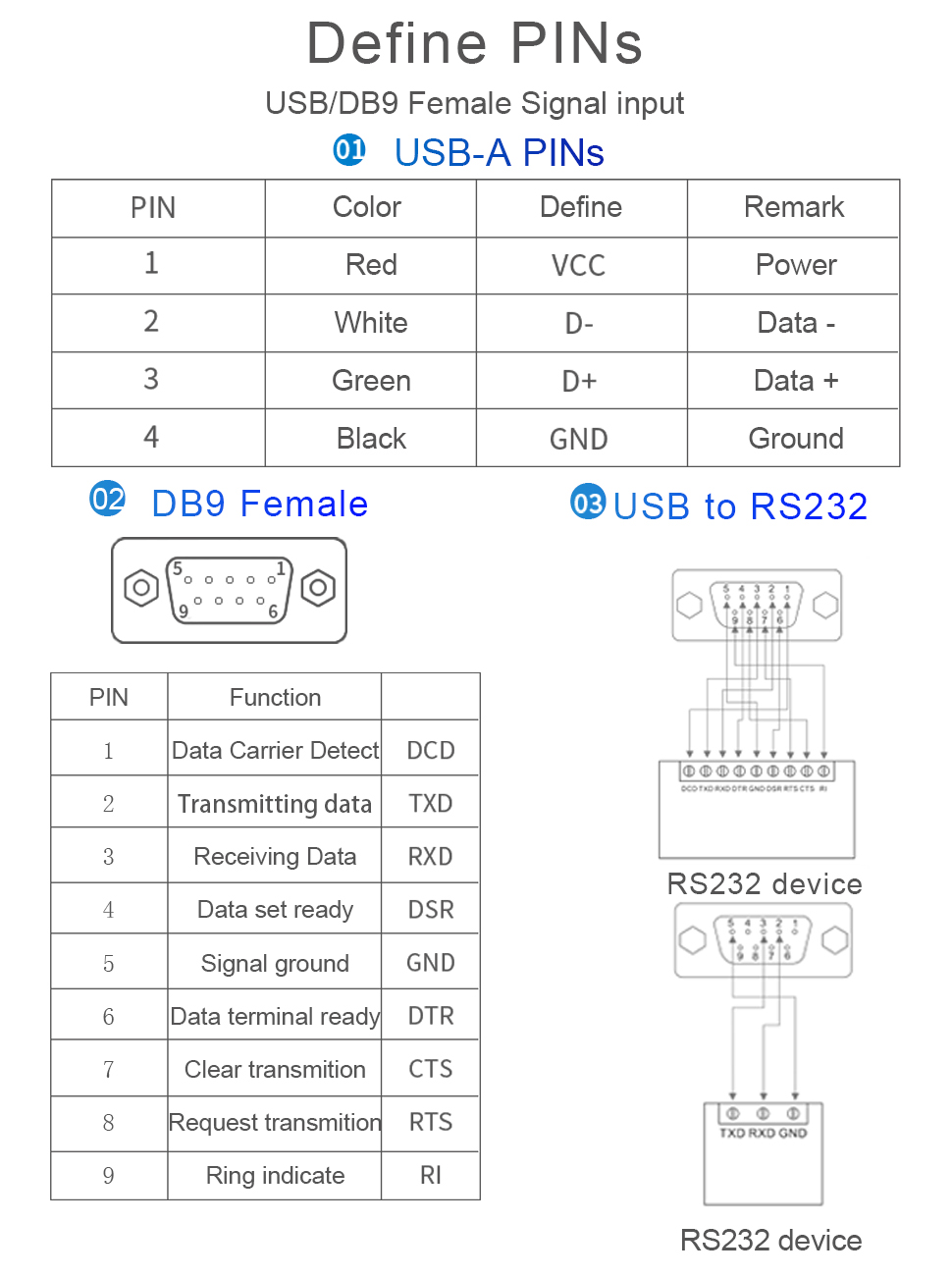

RS-232 Signals: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI.
4.
Working Mode: Asynchronous working, point-to-point working.
5.
Direction Control: Uses automatic data flow control technology to automatically detect and control the direction of data transmission.
6.
Baud Rate: 300-460800bps, automatically detects serial port signal rate.
7.
Load Capacity: Supports point-to-point communication mode.
8.
Transmission Distance: RS-232 end can reach up to 5 meters, USB end can reach up to 5 meters.
9.
Interface Protection: ±15KV electrostatic protection.
10.
Interface Form: USB-A interface male head, connected to DB9 Female head connector.
11.

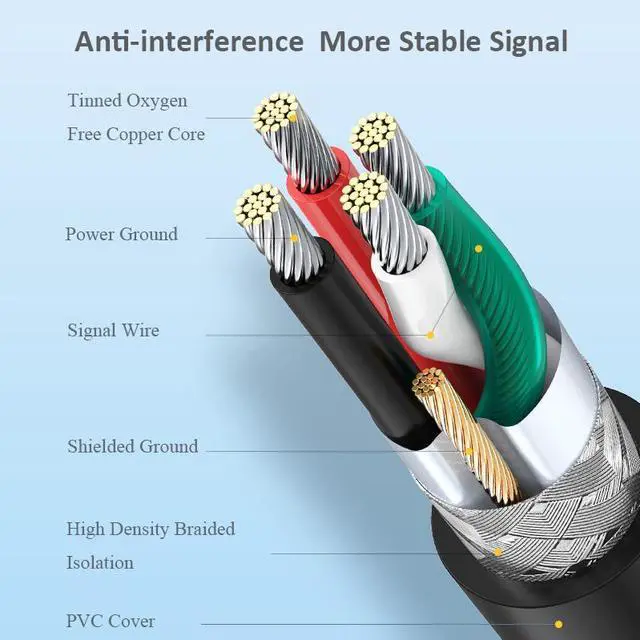

Transmission Medium: Twisted pair or shielded wire.
12.

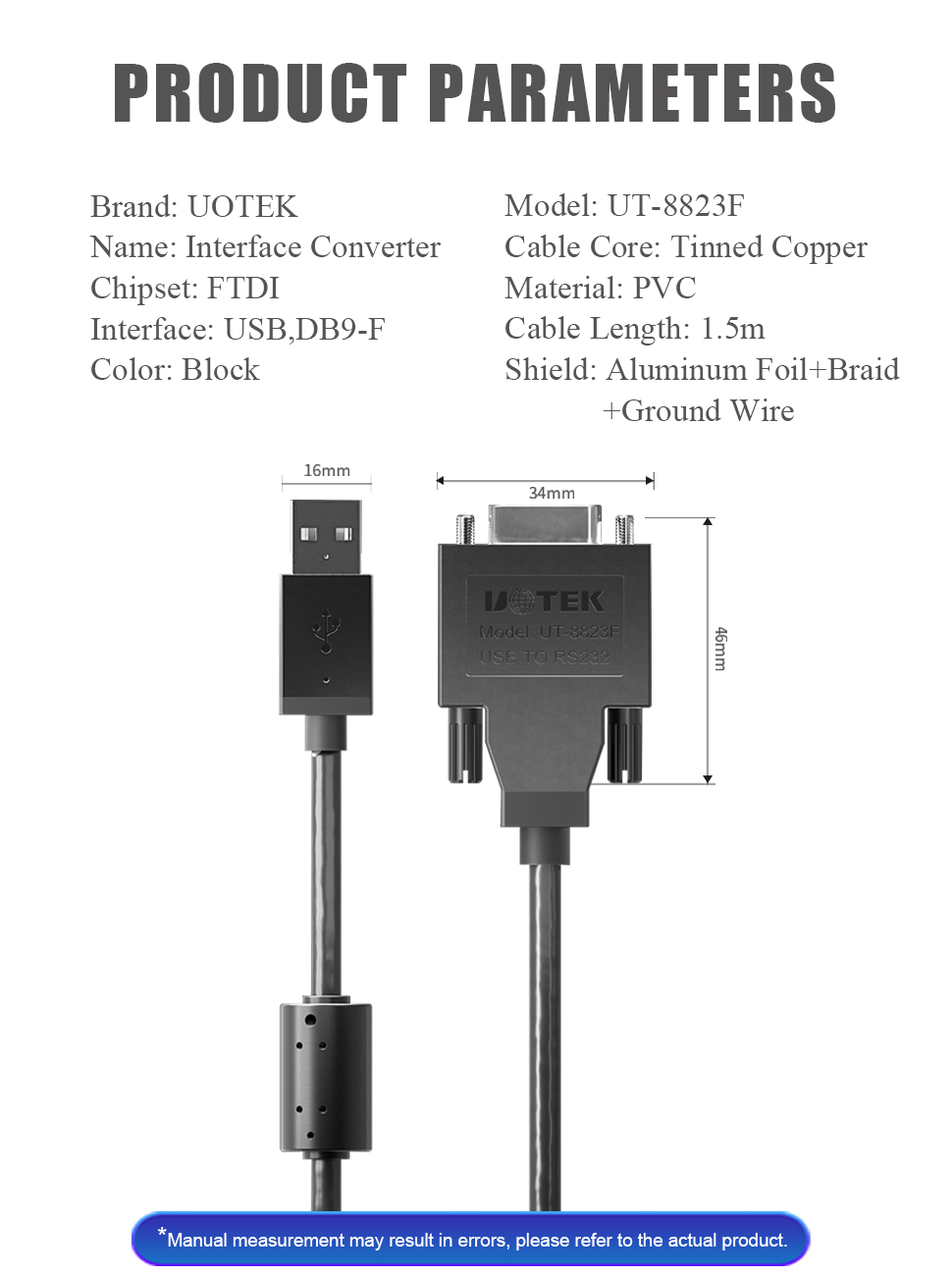

Dimensions: 153mm x 34mm x 16mm.
13.
Operating Environment: -40°C to 85°C, relative humidity from 5% to 95%.
14.
Compatibility: Supports Windows 95/98/2000/2008/XP/Vista/win7/8/ 8.1 /10/11, MAC, Linux, etc.
