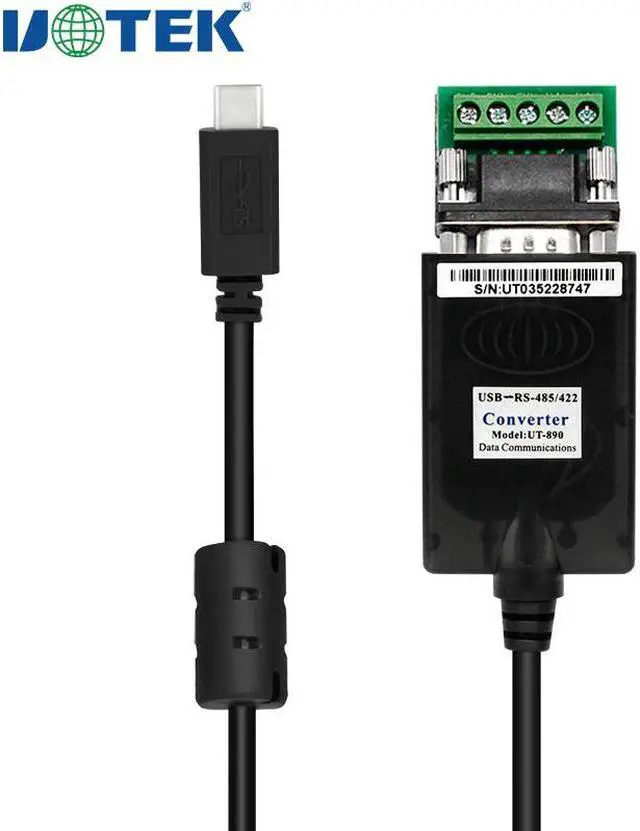

UOTEK 4.9FT Type C Cable USB-C to RS-485 RS-422 Converter 1.5M RS485 RS422 Adpater 5Pin DB9 Connector with FT232 Magnetic Ring Terminal Blocks UT-890-TC
- UT-890-TC is a USB Type-C interface to serial RS-485/422 converter that meets high standard industrial grade specifications with high cost performance.
- The adapter contains a powerful FTDI chipset, and its stability and compatibility are its outstanding advantages over other chips.
- The converter comes with an indicator light at the serial port end to determine whether the communication is abnormal by the light on and flashing condition.
- This converter can also be used outdoors in addition to indoor use. Its working temperature is -40 to 85, which can better adapt to the bad weather.
- This product is widely used in modems, barcode machines, tax control machines, CNC machines, etc. If your machine complies with RS-485/422 standard, then this product will be a good choice.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
UT-890-TC is a USB Type-C to RS-485/422 converter, it is industrial grade, with strong chip, strong compatibility. The product is with indicator light. This product is widely used in modem, bar code machine, tax control machine, PDA, numerical control machine, industrial machine, instrument and so on.
Parameter:
Standards: USB V 1.1, 1.0, 2.0, 3.1, RS-485/RS-422 EIA
USB signal: VCC, DATA+, DATA-, GND, FG

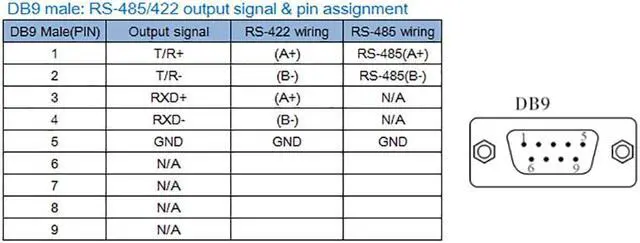

RS-485 signal: T/R+, T/R-, GND
RS-422 signal: T/R+, T/R-, RXD+, RXD-, GND
Working mode: Asynchronous, point to point or point to multi-point, 2-wire half duplex, 4-wire full duplex
Direction control: Adopts flow direction auto-control technology, auto identify and control the flow transmission direction
Baud rate: 300-921, 600bps
Load capcity: Supports point to multi-point, allows to connect up to 32 sets RS-422 or RS-485 device
Transmission distance: RS-485/422 1, 200m (9600bps), USB no more than 5m
Port protection: 600W surge, ±15KV ESD protection
Connector: USB-C male, DB9 male
Signal: TXD, RXD
Transmission media: Twisted-pair or shielded wire
Baud rate: 921, 600bps 300M
38, 400bps 600M
9, 600bps 1.2KM
Dimension: 55mmX36mmX18mm
Working temperature: -40 to 85
Relative humidity: 5% to 95%
Supports Win2000/2003/2008/2012/XP/Vista/7/8/ 8.1 /10/CE/Mac/Linux
Parameter:
Standards: USB V 1.1, 1.0, 2.0, 3.1, RS-485/RS-422 EIA
USB signal: VCC, DATA+, DATA-, GND, FG
RS-485 signal: T/R+, T/R-, GND
RS-422 signal: T/R+, T/R-, RXD+, RXD-, GND
Working mode: Asynchronous, point to point or point to multi-point, 2-wire half duplex, 4-wire full duplex
Direction control: Adopts flow direction auto-control technology, auto identify and control the flow transmission direction
Baud rate: 300-921, 600bps
Load capcity: Supports point to multi-point, allows to connect up to 32 sets RS-422 or RS-485 device
Transmission distance: RS-485/422 1, 200m (9600bps), USB no more than 5m
Port protection: 600W surge, ±15KV ESD protection
Connector: USB-C male, DB9 male
Signal: TXD, RXD
Transmission media: Twisted-pair or shielded wire
Baud rate: 921, 600bps 300M
38, 400bps 600M
9, 600bps 1.2KM
Dimension: 55mmX36mmX18mm
Working temperature: -40 to 85
Relative humidity: 5% to 95%
Supports Win2000/2003/2008/2012/XP/Vista/7/8/ 8.1 /10/CE/Mac/Linux
