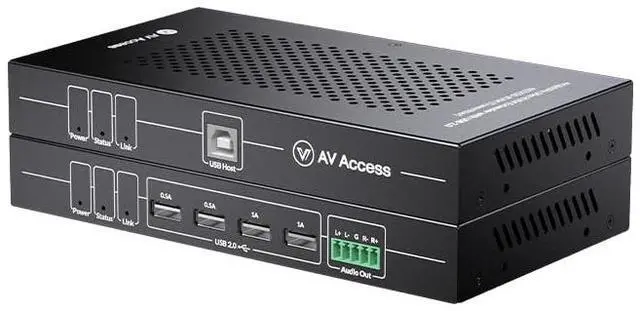

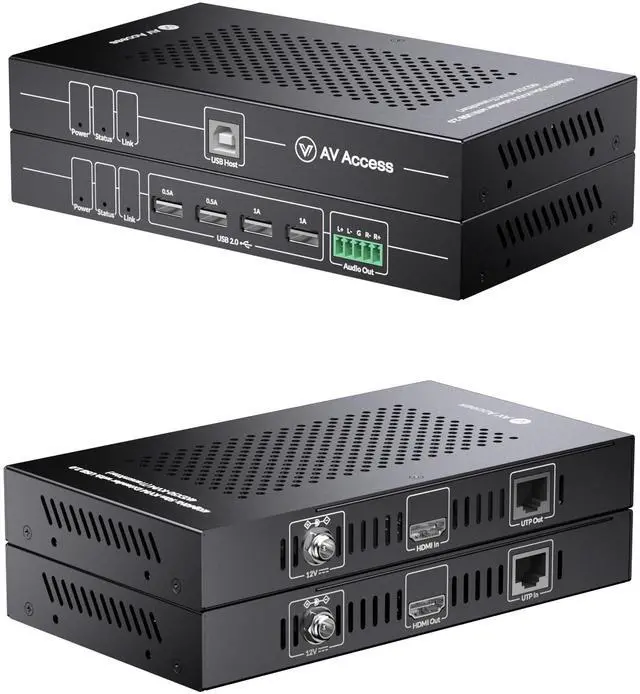

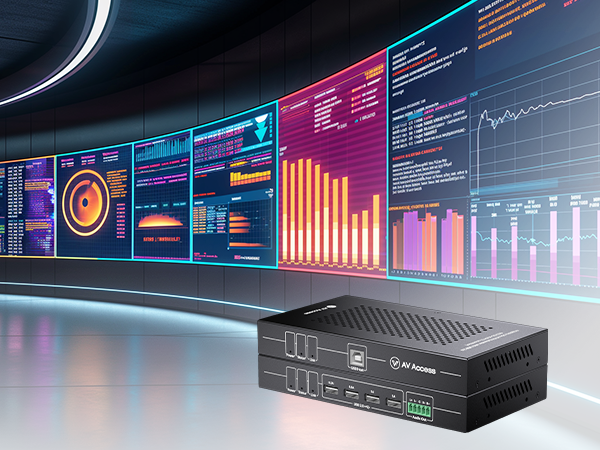

New 4K HDMI KVM Extender with Zero Latency
Extends 4K@60Hz HDMI and USB 2.0 signals up to 164ft/50m over a single Cat cable, with zero loss or delay.
Plug & Play
Works with different operating systems, like Windows 10/8/7/XP, Mac OS and Linux. No driver is required; just plug and play.

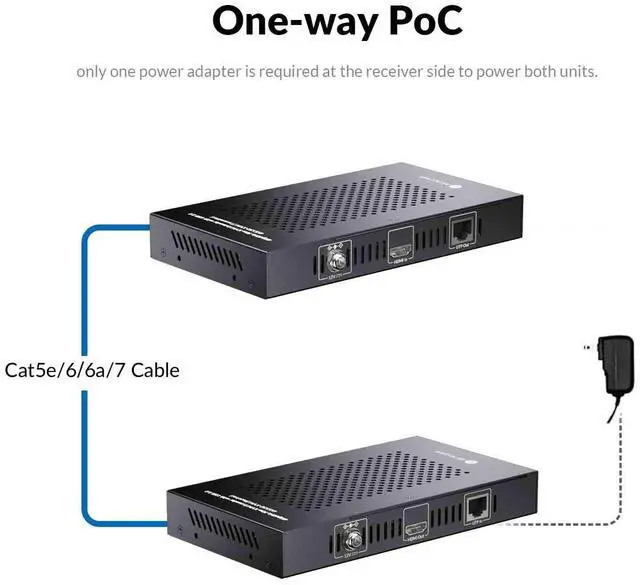

One-Way PoC Function
The 4K HDMI transmitter can be powered by the receiver via a Cat cable, so only one power supply is needed at the receiver side to power both units.
Zero Latency
Transmits 4K@60Hz 4:4:4 visually lossless HDMI signal up to 164ft over a single Cat 5e/6/6a/7 cable, with zero loss or delay.
4K@60Hz
HDMI 2.0 & HDCP 2.2 compliant. Support up to 4K@60Hz 4:4:4.
School Server Room
Servers/PCs are normally stored in the server center of a school so that the IT staff can easily manage them at one place. 4KEX50-KVM helps connect the server room and a multi-media classroom, teachers can easily control it through the keyboard, mouse and projector/monitor.
Enterprise Data Center
The 4K KVM extender plays an indispensable role for employees to have remote access from their workstations and they work in a better environment as the bulk of heat and noise is placed away.
4K UHD & Zero Latency
This 4K HDMI KVM extender is HDMI 2.0 and HDCP 2.2 compliant. It allows you to extend up to 4K@60Hz 4:4:4 (2560&1440@144Hz/120Hz/60Hz, 1080P@240Hz/165Hz/144Hz/120Hz/60Hz) visually lossless HDMI signal over a single Cat 5e/6/6a/7 cable, with zero latency.

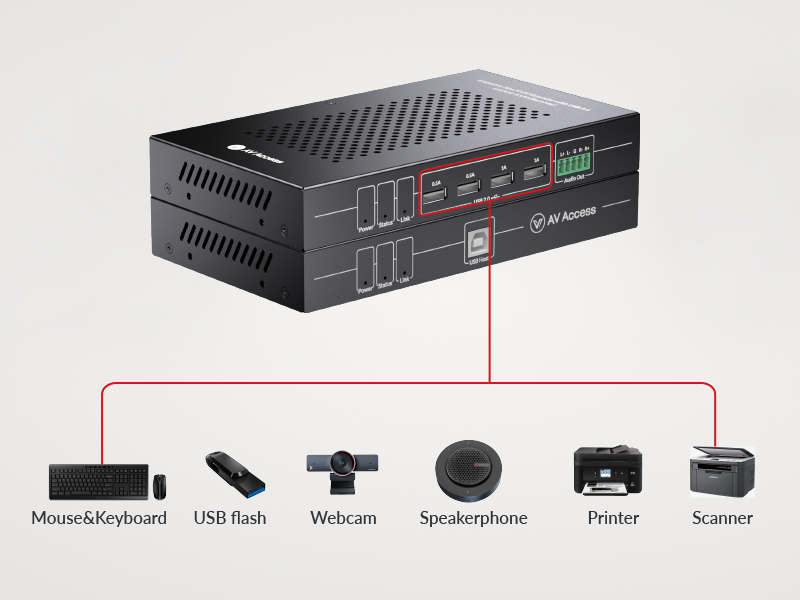

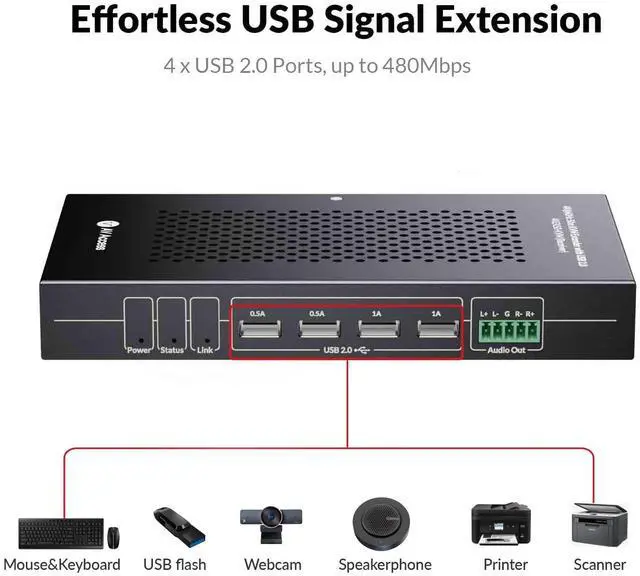

Effortless USB Signal Extension
Designed with 4x USB 2.0 peripheral port on the receiver, up to 480Mbps totally, this 4K HDMI balun allows you to extend mouse, keyboard, printer, scanner or other USB 2.0 devices up to 164ft/50m. Two of the USB ports support 1A higher current output, so you can easily connect high-power USB devices, such as USB camera or USB hard disk.

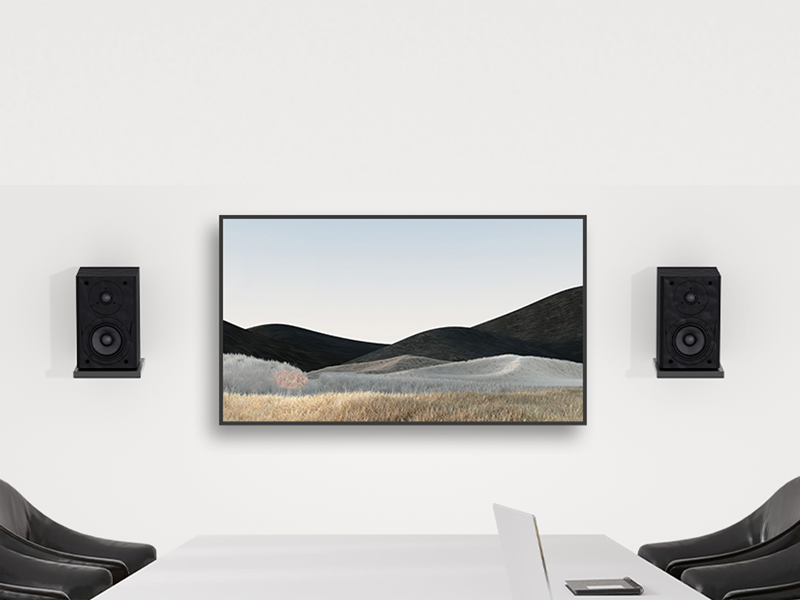

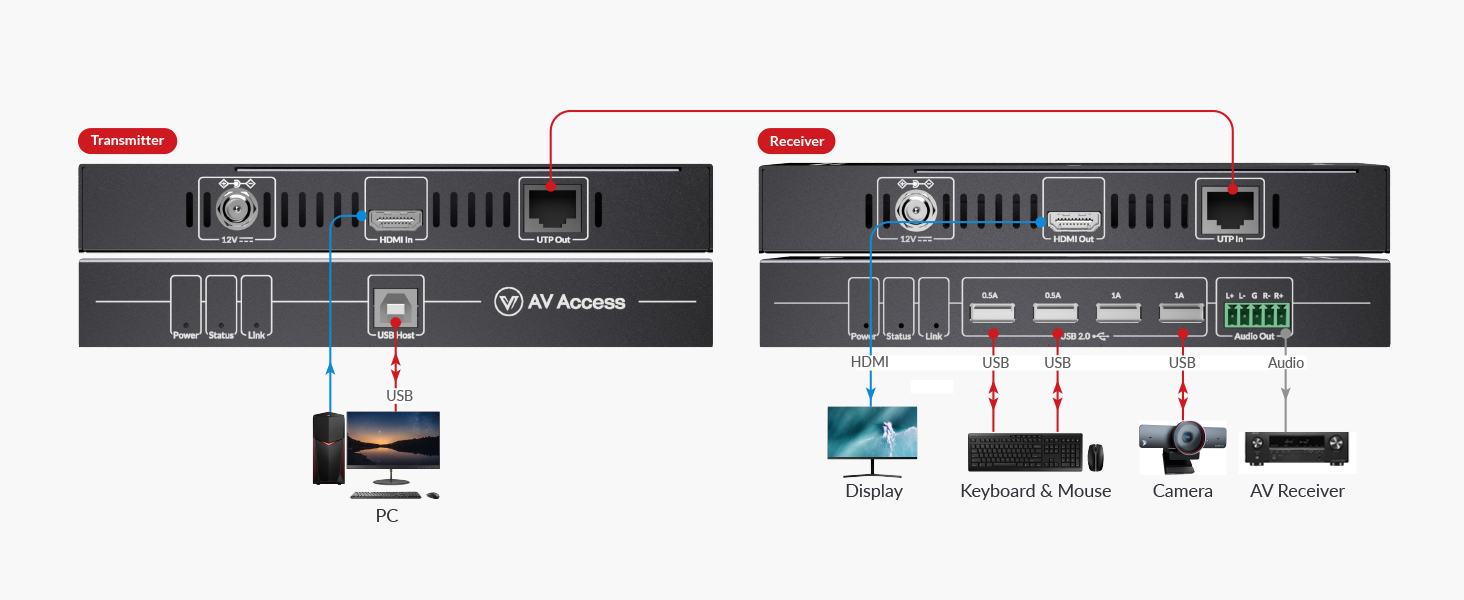

HDMI Audio Extraction in Meeting Rooms
This 4K KVM extender can work flawlessly with AV Access eShare series presentation systems in a large meeting room for efficient presentation and collaboration. Built with a 5-pin phoenix audio de-embedding port on the receiver, it allows you to extend the presentation system’s HDMI/USB signals and extract HDMI audio to an audio system as well. Now all attendees in the room can hear everything clearly.
KVM EXTENDER
 Model: 4KEX50-KVM |  Model: 4KEX100-KVM |  Model: 4KIP100-KVM |  Model: HDEX80-KVM |  Model: HDEX60-DM |  Model: 4KEX100-KVM-H2 | |
|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — |
Price | — | — | — | — | — | — |
Dual Monitor | x | x | x | x | v | x |
Video Resolution | 4K@60Hz 4:4:4,2K@144Hz | 4K@60Hz 4:2:0, 1080p@120Hz | 4K@30Hz, 1080p@120Hz | 1080p @60Hz | 1080p @60Hz | 4K@60Hz |
Transmission Range | 164ft (50m) | 330ft (100m) | 390ft (120m) | 260ft (80m) | 197ft (60m) | 330ft (100m) |
IR | ? | ? | ? | ? | ? | ? |
RS232 | ? | ? | ? | ? | ? | ? |
POE | Uni-Direction | Uni-Direction | No | Bi-Direction | Uni-Direction | Uni-Direction |
Router/Switch Compatible | No | No | Yes. Up to 16 Sets | No | No | No |
HDMI Version | 2.0 | 1.4 | 1.4 | 1.3 | 1.3 | 2.0 |
HDCP Version | 2.2 | No | 1.4 | 1.4 | 1.4 | 2.2 |
USB Port | 4 x USB 2.0 | 4 x USB 2.0 | 3 x USB 2.0 | 2 x USB 2.0 | 4 x USB 2.0 | 4 x USB 2.0 |
EDID Dip Switch | ? | ? | ? | ? | ? | ? |
New 4K HDMI KVM Extender with Zero Latency
Extends 4K@60Hz HDMI and USB 2.0 signals up to 164ft/50m over a single Cat cable, with zero loss or delay.
Plug & Play
Works with different operating systems, like Windows 10/8/7/XP, Mac OS and Linux. No driver is required; just plug and play.
One-Way PoC Function
The 4K HDMI transmitter can be powered by the receiver via a Cat cable, so only one power supply is needed at the receiver side to power both units.
Zero Latency
Transmits 4K@60Hz 4:4:4 visually lossless HDMI signal up to 164ft over a single Cat 5e/6/6a/7 cable, with zero loss or delay.
4K@60Hz
HDMI 2.0 & HDCP 2.2 compliant. Support up to 4K@60Hz 4:4:4.
School Server Room
Servers/PCs are normally stored in the server center of a school so that the IT staff can easily manage them at one place. 4KEX50-KVM helps connect the server room and a multi-media classroom, teachers can easily control it through the keyboard, mouse and projector/monitor.
Enterprise Data Center
The 4K KVM extender plays an indispensable role for employees to have remote access from their workstations and they work in a better environment as the bulk of heat and noise is placed away.
4K UHD & Zero Latency
This 4K HDMI KVM extender is HDMI 2.0 and HDCP 2.2 compliant. It allows you to extend up to 4K@60Hz 4:4:4 (2560&1440@144Hz/120Hz/60Hz, 1080P@240Hz/165Hz/144Hz/120Hz/60Hz) visually lossless HDMI signal over a single Cat 5e/6/6a/7 cable, with zero latency.
Effortless USB Signal Extension
Designed with 4x USB 2.0 peripheral port on the receiver, up to 480Mbps totally, this 4K HDMI balun allows you to extend mouse, keyboard, printer, scanner or other USB 2.0 devices up to 164ft/50m. Two of the USB ports support 1A higher current output, so you can easily connect high-power USB devices, such as USB camera or USB hard disk.

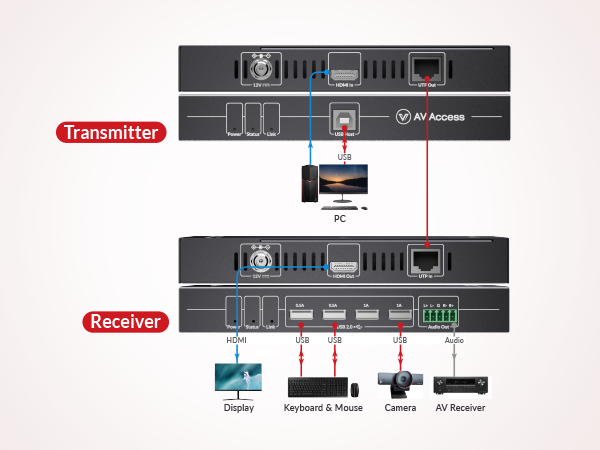

HDMI Audio Extraction in Meeting Rooms
This 4K KVM extender can work flawlessly with AV Access eShare series presentation systems in a large meeting room for efficient presentation and collaboration. Built with a 5-pin phoenix audio de-embedding port on the receiver, it allows you to extend the presentation system’s HDMI/USB signals and extract HDMI audio to an audio system as well. Now all attendees in the room can hear everything clearly.
KVM EXTENDER
Model: 4KEX50-KVM
Model: 4KEX100-KVM
Model: 4KIP100-KVM
