AV Access KVM Switch with Docking Station
 iDock B23 |  iDock C20 |  iDock C10 |  iDock P10 |  iDock B10 (8K KVM) |  iDock M10 (for MacBook) |  iDock D23 | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Computers | 1 Laptop + 1 Desktop | 2 Laptops | 1 Laptop + 1 Desktop | 1 Laptop + 1 Desktop | 1 Laptop + 1 Desktop | 1 MacBook + 1 Desktop | 2 Desktop (NOT for laptop) |

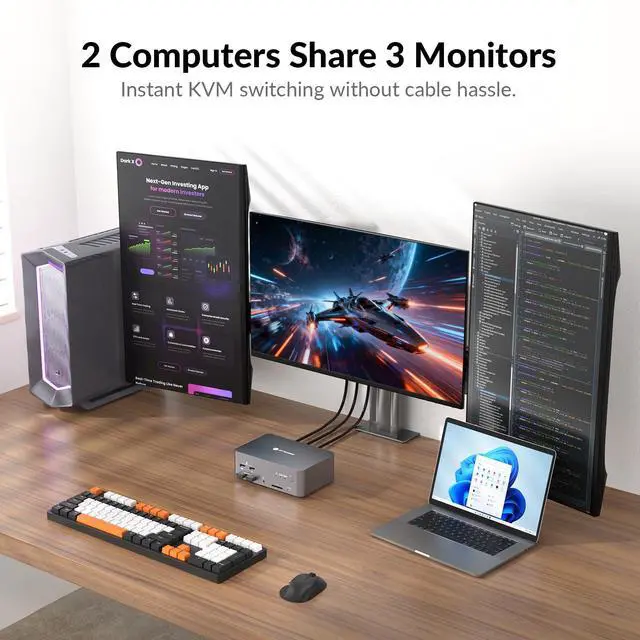

Monitors | Triple Monitor | Dual Monitor | Dual Monitor | Dual Monitor | Dual Monitor | Dual Monitor | Triple Monitor |
Video Interface | Type-C, DP, HDMI | Type-C, HDMI | Type-C, DP, HDMI | Type-C, DP, HDMI | Type-C, DP, HDMI | Type-C, DP, HDMI | DP |

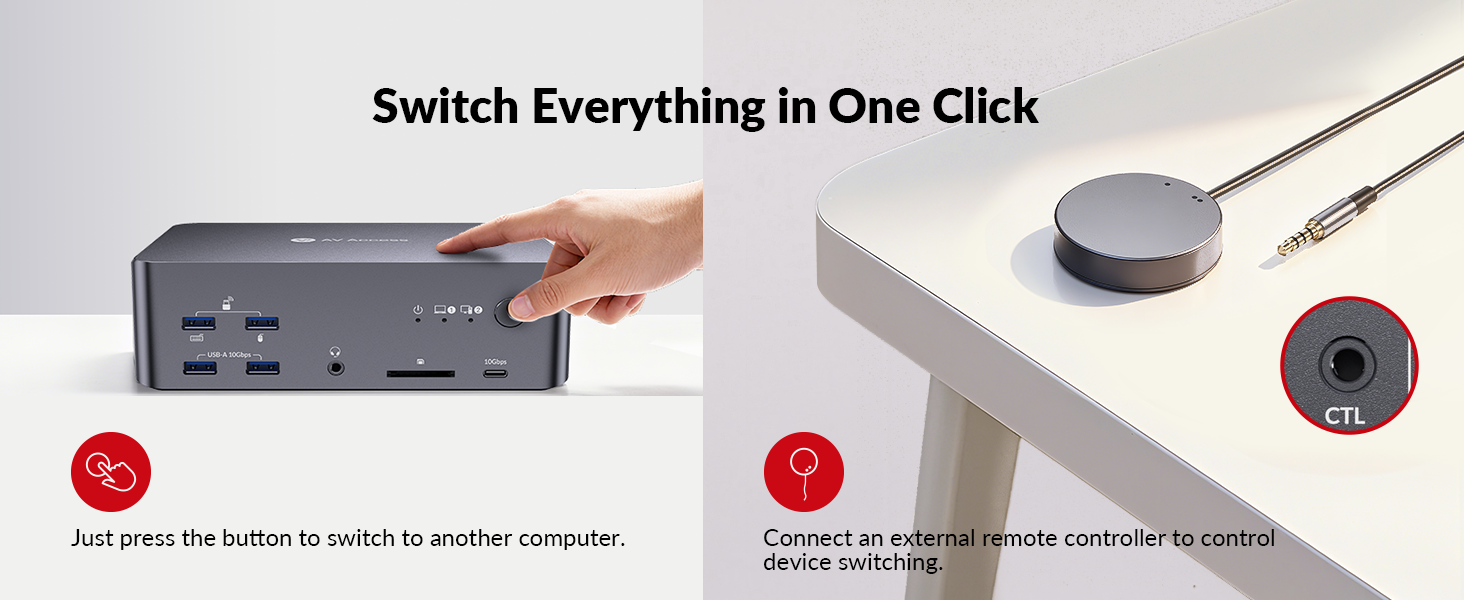

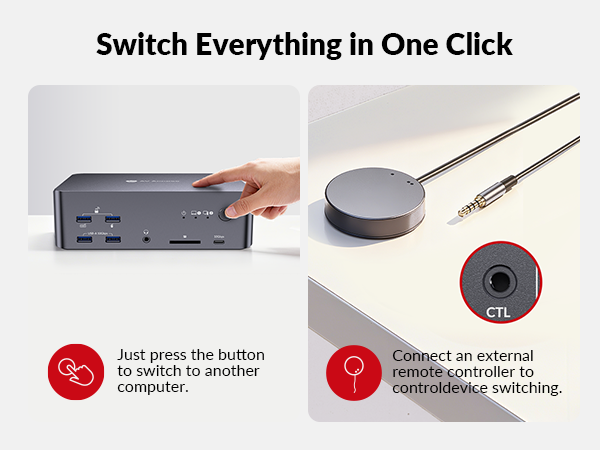

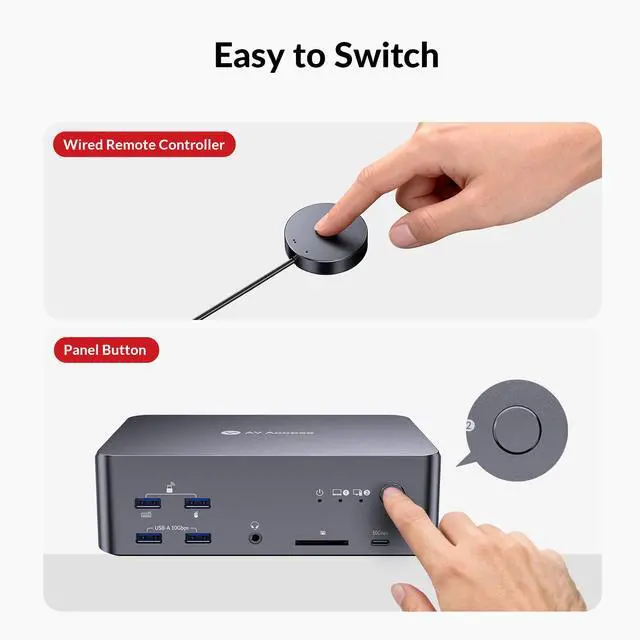

Control | Panel Button/Remote Button | Panel Button/Remote Button | Panel Button | Panel Button/Remote Button | Panel Button/Remote Controller | Panel Button/Remote Controller | Panel Button/Hotkey |
Remote Switch Button | v(included) | v(not included) | × | v(included) | v(included) | v(included) | v(not included) |

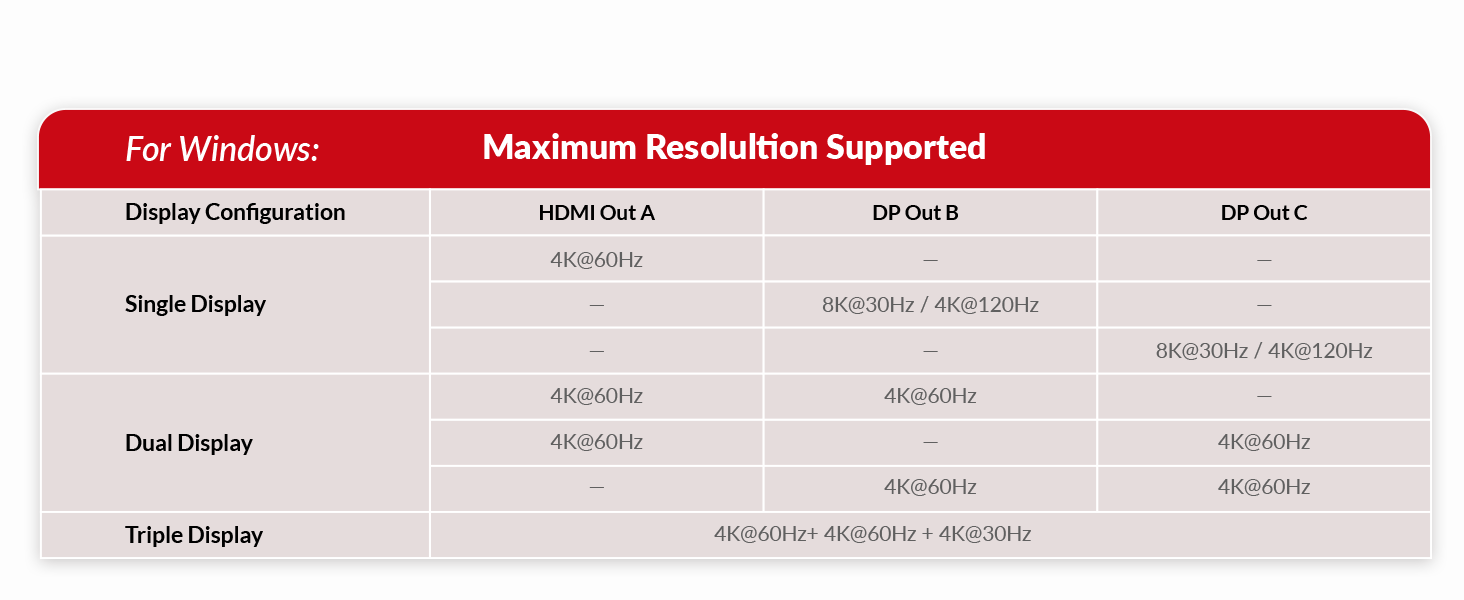

Video Resolution | 8K@30Hz 4K@60Hz | 4K@60Hz 2K@144Hz 1080P@240Hz | 4K@60Hz 2K@144Hz 1080P@240Hz | 4K@60Hz 3440x1440@60Hz | 8K@60Hz, 4K@165Hz | 4K@60Hz 2K@144Hz 1080P@240Hz | 8K@60Hz 4K@165Hz 1080P@144Hz |

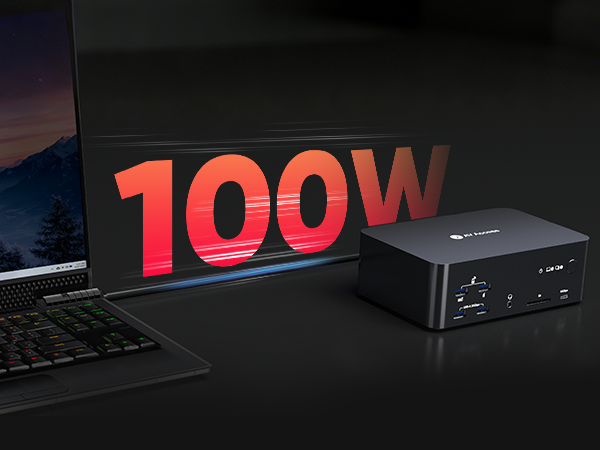

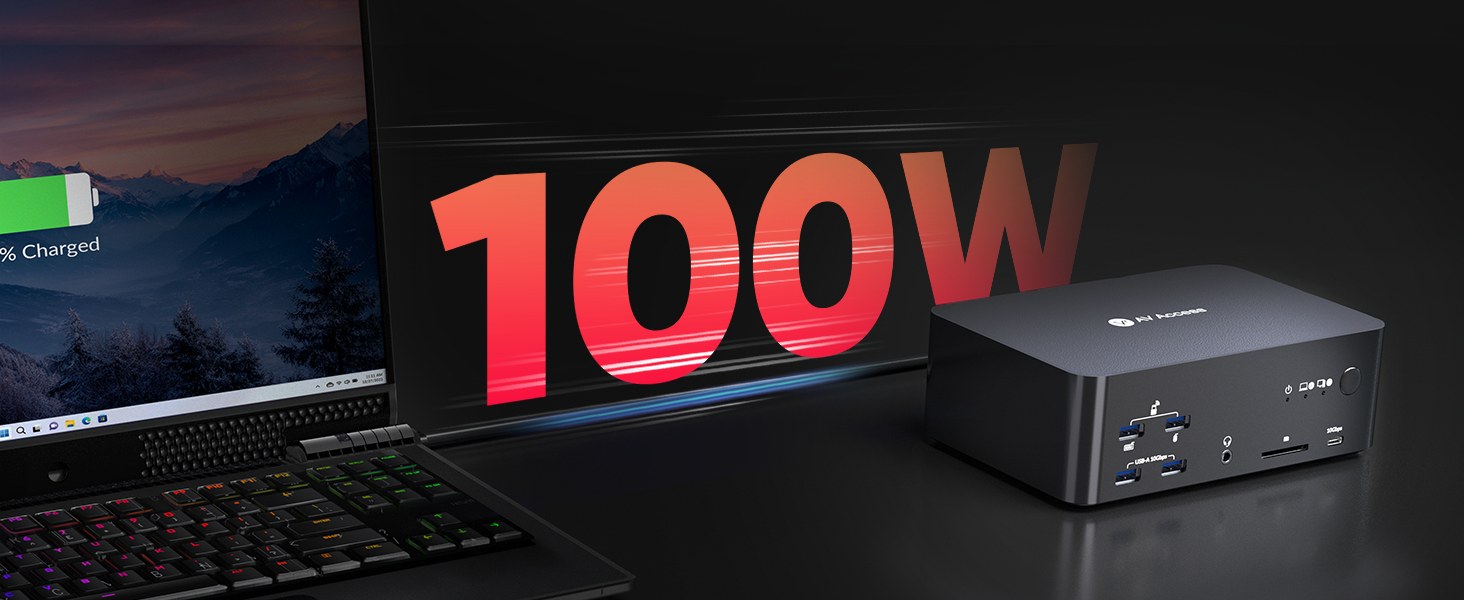

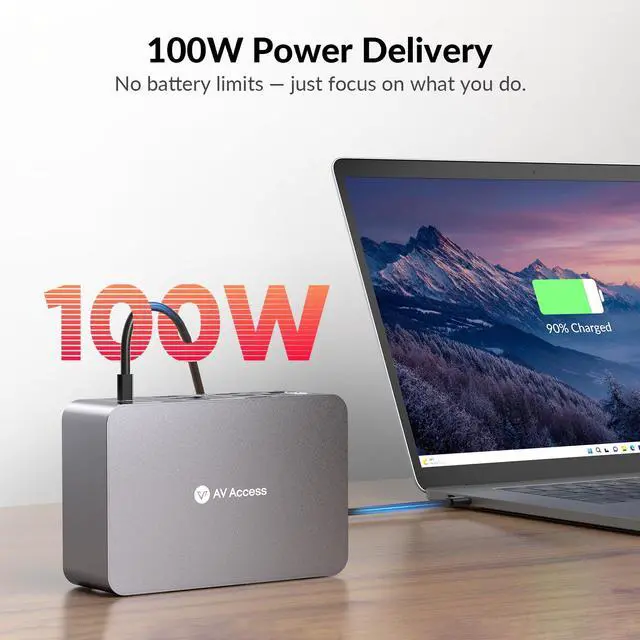

Power Delivery | v | v | v | v | v | v | × |
EDID Emulation | × | v | v | v | × | v | × |

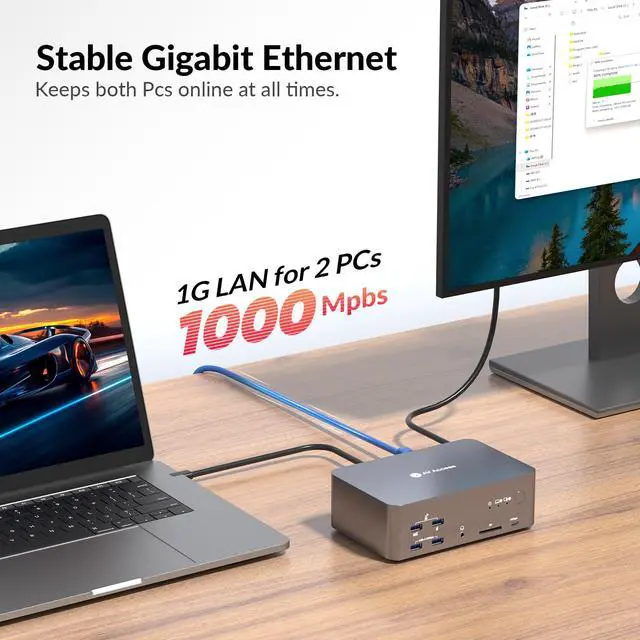

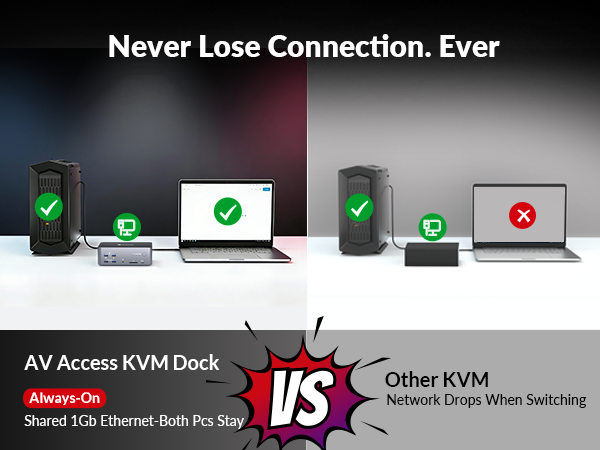

Ethernet Connection | v (for Laptop and Desktop) | v | v (Laptop only) | v (Laptop only) | v (for Laptop and Desktop) | v (for Mac and Desktop) | v |

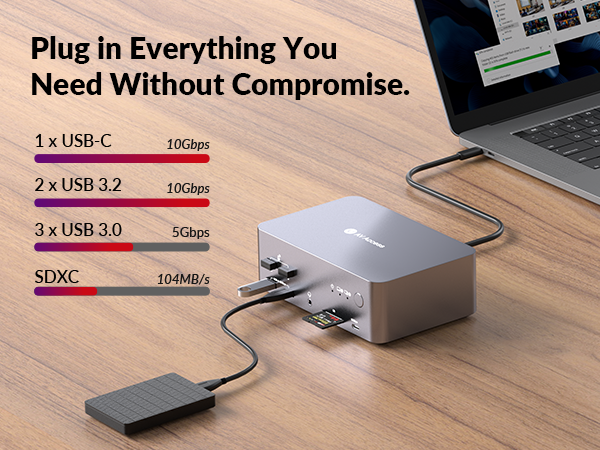

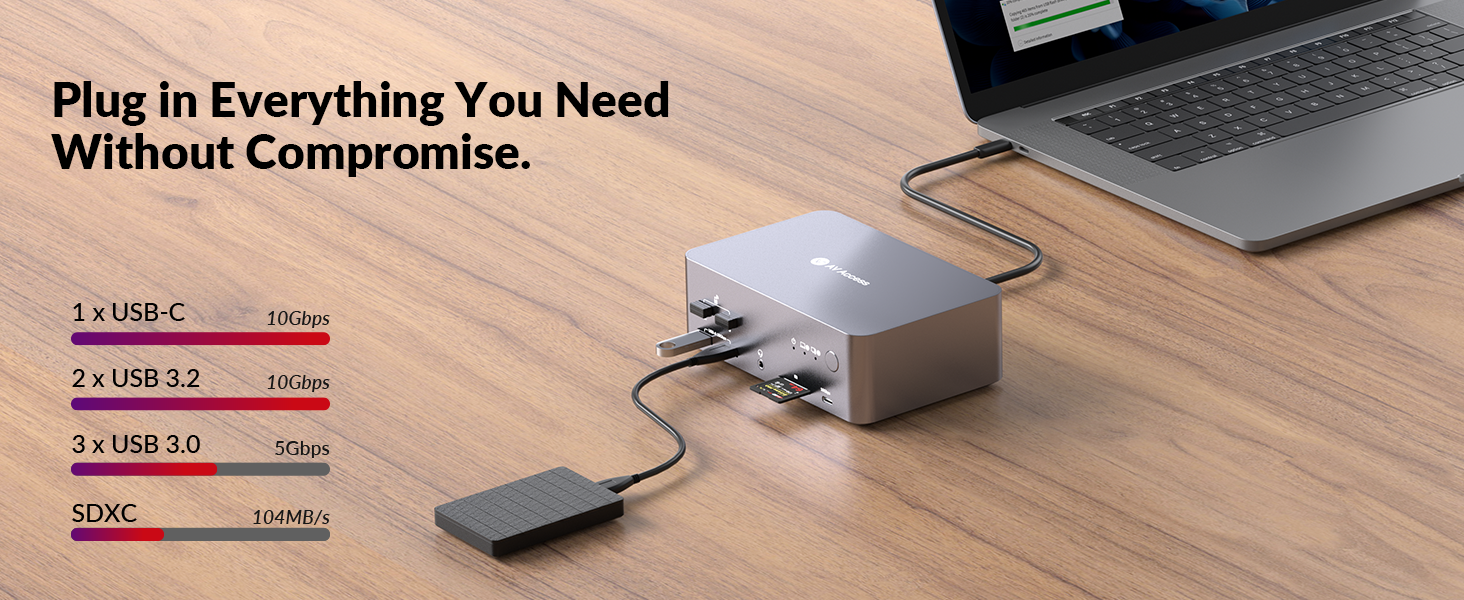

USB Peripherals | 1*USB-C3.2, 3*USB3.0, 2*USB3.2 | 1*USB-C 3.0,4*USB 2.0,2*USB3.0 | 1*USB-C3.0,2*USB2.0,3*USB3.0 | 1*USB-C3.0,2*USB2.0,2*USB3.0 | 1*USB-C3.2,2*USB 3.0,3*USB 3.2 | 1*USB-C3.2, 2*USB3.0, 2*USB3.2 | 1*USB1.1,1*USB2.0,4*USB3.0 |
SD Card | v | v | × | v | v | v | v |
Cables included | 1*USB B-A,2*DP,1*HDMI,1* USB-C | 2*USB-C | 1*USB B-A,1*DP,1*HDMI,1* USB-C | USB-A to C, USB-C | USB-A,USB-C 3.2,HDMI 2.1,DP1.4 | USB-A to C,Dual-USB-C ,HDMI,DP | 2*USB B-A,6*DP |

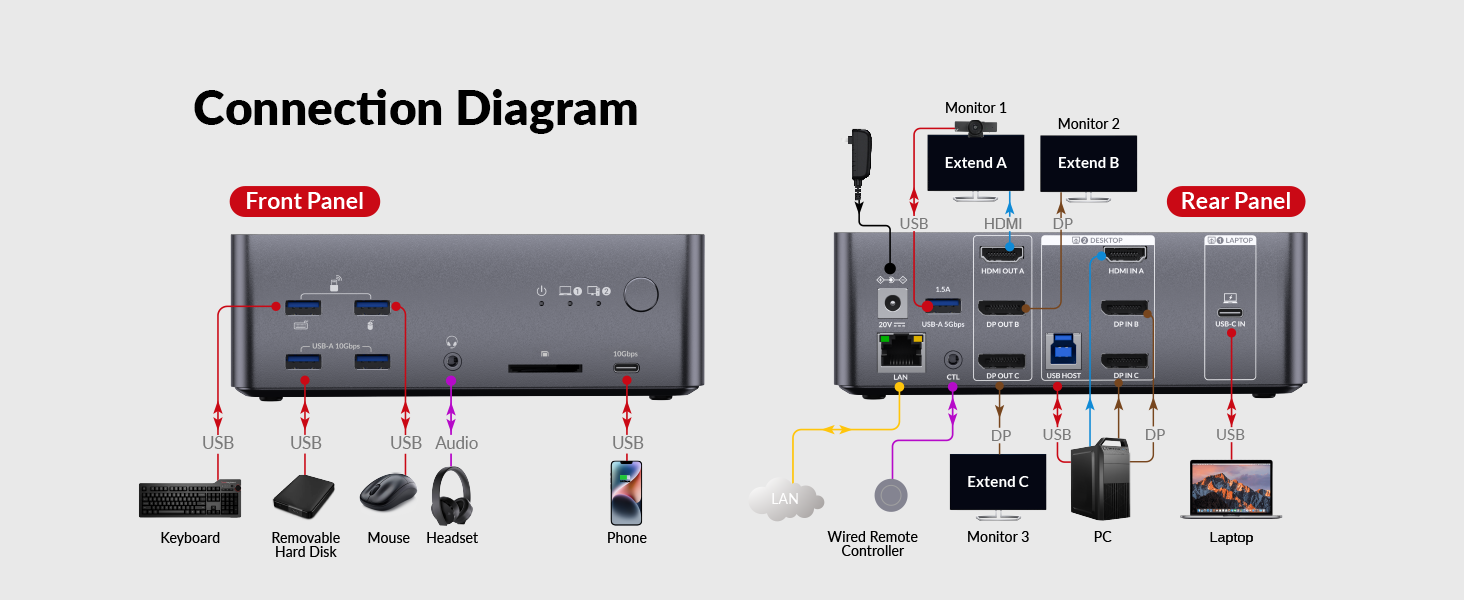

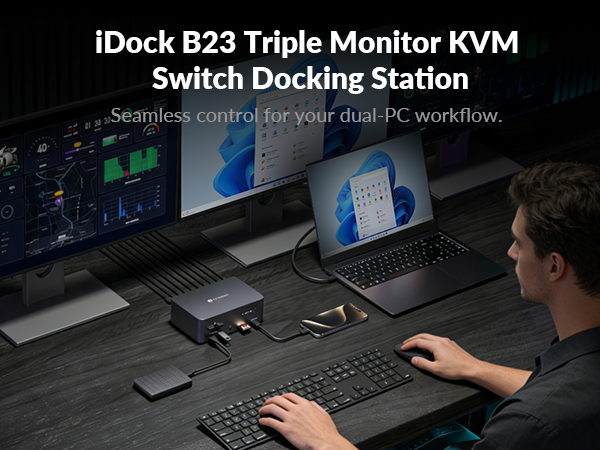

Can I use iDock B23 with two monitors?
Yes, you can just connect to two monitors. Just be careful how input ports and output ports work in pairs (eg, HDMI IN A with HDMI OUT A). If you are using one laptop, one desktop and two monitors, iDock C10 or iDock B10 is better for you.
Does iDock B23 work well for gamers?
Yes, iDock B23 is designed for gamers. There is no latency caused by the KVM switch and it supports up to 8K@60hz, 4K@165hz resolutions. With three monitors, you can multitask more easily - chat with groups, search for tips while you are playing.

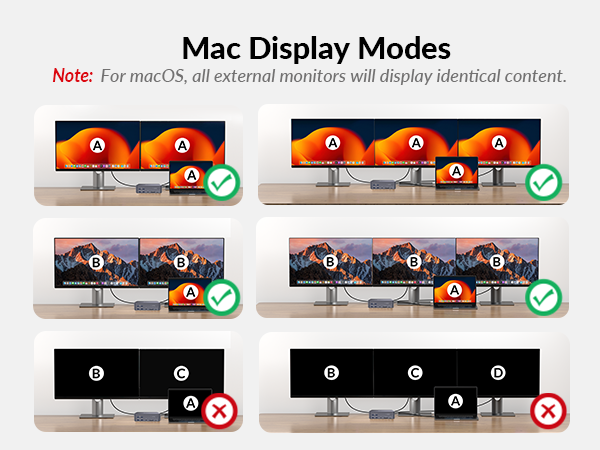

Can I use a MacBook with iDock B23?

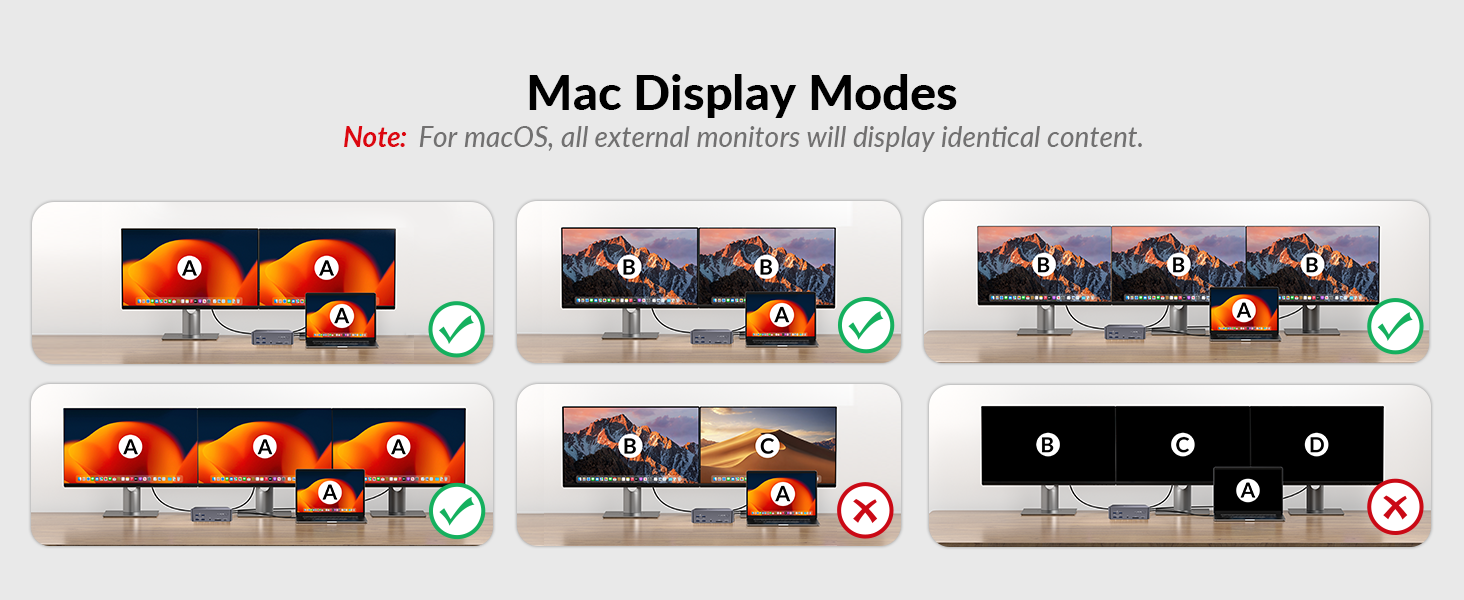

Not really. If you connect to a Mac device, you will get three duplicate screens.
Does the iDock B23 support G-Sync, FreeSync, and VRR?
Yes, the iDock B23 supports G-Sync, FreeSync, and VRR.
Does iDock B23 support ultra-wide screens?
Yes. iDock B23 supports ultra-wide resolutions such as 3840*1440@240Hz/120Hz, 3840*1080@240Hz/120Hz, 3440*1440@240Hz/120Hz.
AV Access KVM Switch with Docking Station
iDock B23 | iDock C20 | iDock C10 | iDock P10 | iDock B10 (8K KVM) | iDock M10 (for MacBook) | iDock D23 |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Computers | ||||||
| 1 Laptop + 1 Desktop | 2 Laptops | 1 Laptop + 1 Desktop | 1 Laptop + 1 Desktop | 1 Laptop + 1 Desktop | 1 MacBook + 1 Desktop | 2 Desktop (NOT for laptop) |
| Monitors | ||||||
| Triple Monitor | Dual Monitor | Dual Monitor | Dual Monitor | Dual Monitor | Dual Monitor | Triple Monitor |
| Video Interface | ||||||
| Type-C, DP, HDMI | Type-C, HDMI | Type-C, DP, HDMI | Type-C, DP, HDMI | Type-C, DP, HDMI | Type-C, DP, HDMI | DP |
| Control | ||||||
| Panel Button/Remote Button | Panel Button/Remote Button | Panel Button | Panel Button/Remote Button | Panel Button/Remote Controller | Panel Button/Remote Controller | Panel Button/Hotkey |
| Remote Switch Button | ||||||
| v(included) | v(not included) | × | v(included) | v(included) | v(included) | v(not included) |
| Video Resolution | ||||||
| 8K@30Hz 4K@60Hz | 4K@60Hz 2K@144Hz 1080P@240Hz | 4K@60Hz 2K@144Hz 1080P@240Hz | 4K@60Hz 3440x1440@60Hz | 8K@60Hz, 4K@165Hz | 4K@60Hz 2K@144Hz 1080P@240Hz | 8K@60Hz 4K@165Hz 1080P@144Hz |
| Power Delivery | ||||||
| v | v | v | v | v | v | × |
| EDID Emulation | ||||||
| × | v | v | v | × | v | × |
| Ethernet Connection | ||||||
| v (for Laptop and Desktop) | v | v (Laptop only) | v (Laptop only) | v (for Laptop and Desktop) | v (for Mac and Desktop) | v |
| USB Peripherals | ||||||
| 1*USB-C3.2, 3*USB3.0, 2*USB3.2 | 1*USB-C 3.0,4*USB 2.0,2*USB3.0 | 1*USB-C3.0,2*USB2.0,3*USB3.0 | 1*USB-C3.0,2*USB2.0,2*USB3.0 | 1*USB-C3.2,2*USB 3.0,3*USB 3.2 | 1*USB-C3.2, 2*USB3.0, 2*USB3.2 | 1*USB1.1,1*USB2.0,4*USB3.0 |
| SD Card | ||||||
| v | v | × | v | v | v | v |
| Cables included | ||||||
| 1*USB B-A,2*DP,1*HDMI,1* USB-C | 2*USB-C | 1*USB B-A,1*DP,1*HDMI,1* USB-C | USB-A to C, USB-C | USB-A,USB-C 3.2,HDMI 2.1,DP1.4 | USB-A to C,Dual-USB-C ,HDMI,DP | 2*USB B-A,6*DP |
Can I use iDock B23 with two monitors?
Yes, you can just connect to two monitors. Just be careful how input ports and output ports work in pairs (eg, HDMI IN A with HDMI OUT A). If you are using one laptop, one desktop and two monitors, iDock C10 or iDock B10 is better for you.
Does iDock B23 work well for gamers?
Yes, iDock B23 is designed for gamers. There is no latency caused by the KVM switch and it supports up to 8K@60hz, 4K@165hz resolutions. With three monitors, you can multitask more easily - chat with groups, search for tips while you are playing.
Can I use a MacBook with iDock B23?
Not really. If you connect to a Mac device, you will get three duplicate screens.
Does the iDock B23 support G-Sync, FreeSync, and VRR?
Yes, the iDock B23 supports G-Sync, FreeSync, and VRR.
Does iDock B23 support ultra-wide screens?
Yes. iDock B23 supports ultra-wide resolutions such as 3840*1440@240Hz/120Hz, 3840*1080@240Hz/120Hz, 3440*1440@240Hz/120Hz.
