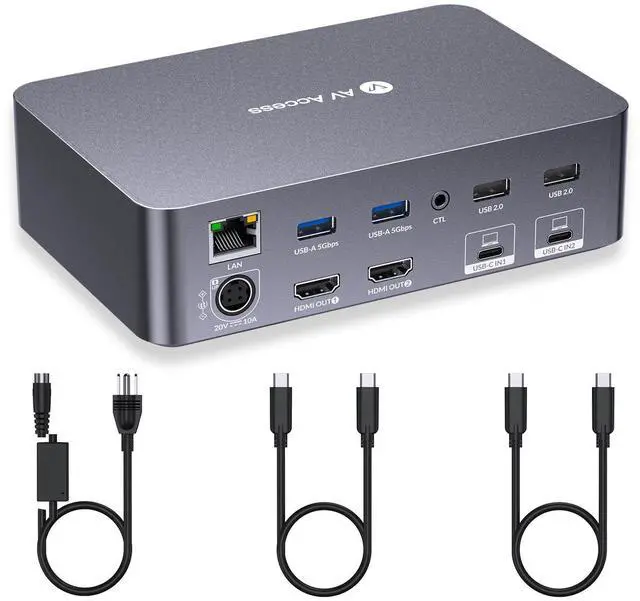

Package Contents
Before you start the installation of the product, please
check the package contents:
Switch Docking x 1
Power Adapter (20V/10A) x 1
USB-C to USB-C cable (USB 3.2 Gen 2x1, 1m) x 2
User Manual x 1
Features
Dual USB-C 2x1 KVM Switch Docking Station with Dual Monitor.

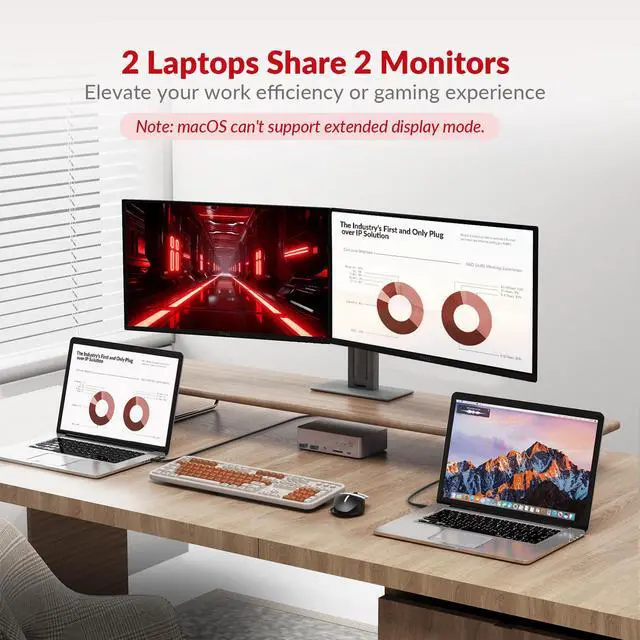

Two 4K@60Hz outputs for dual monitors KVM application.

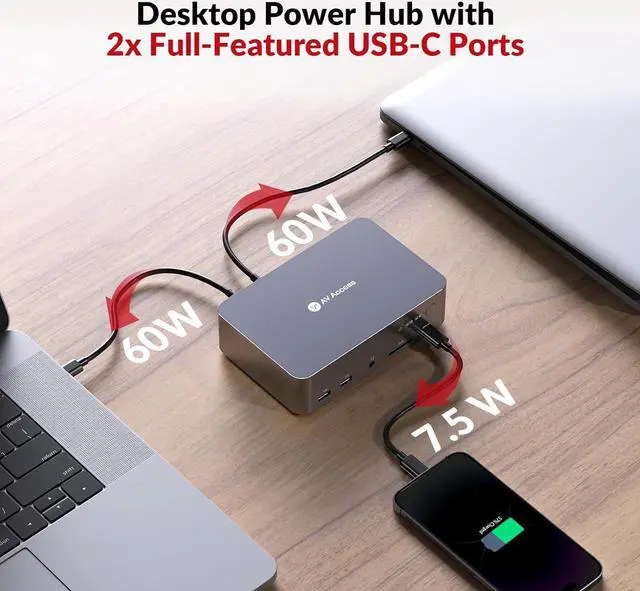

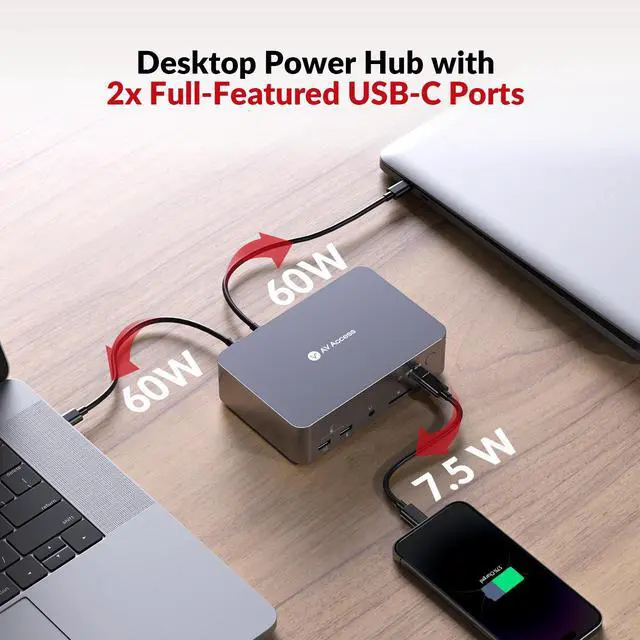

Two full-featured USB-C inputs support dual 4K@60Hz video transmission, USB 3.0 data, and 60W charging.
USB-C input supports DP MST mode with dual 4K@60Hz outputs.

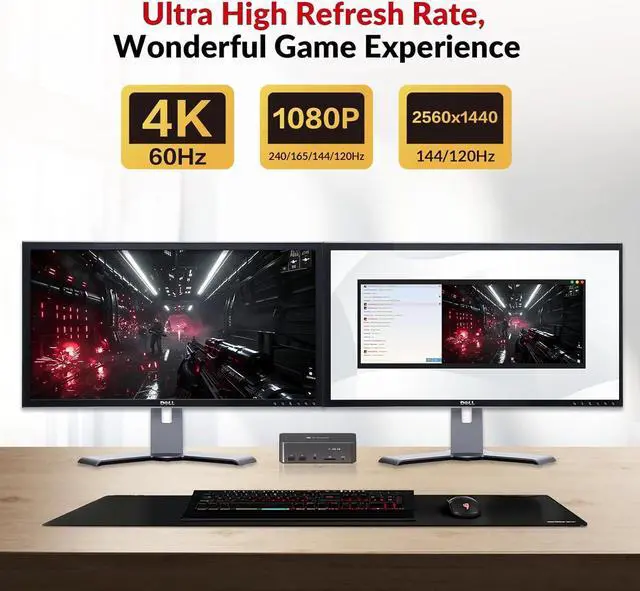

Supports high refresh rates such as 240Hz, 165Hz, and 144Hz.
Support1080P@240Hz/165Hz/144Hz/60Hz, 2560x1440@144Hz/120Hz/60Hz, 4K@60Hz and other resolutions.
Supports automatic wake-up function, which automatically wakes up the standby computer when switching.

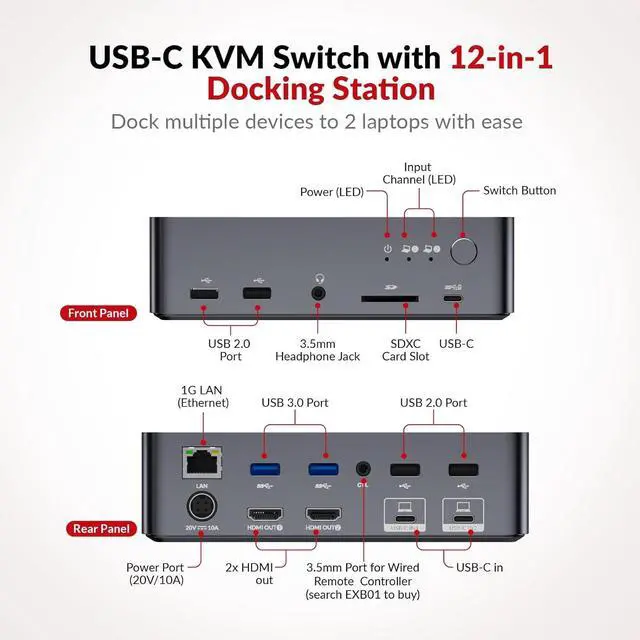

Supports multiple peripheral ports,
including:
?One USB-C data-only port, support for USB-C (up to 5Gb/s, 1.5A power output) data transmission.
?Two USB 3.0 ports, support for USB-A (up to 5Gb/s, 1A power output).
?Four USB 2.0 ports, support for USB-A (up to 480Mb/s).
?One CTL port, support for extended button control device connection.

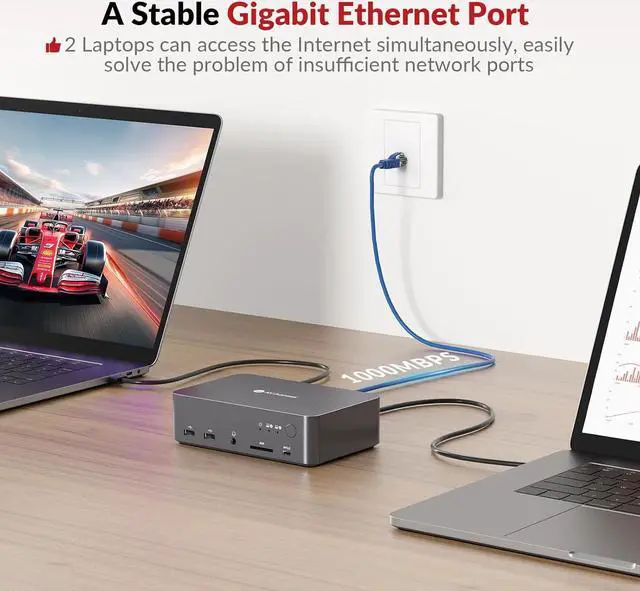

?One LAN port, support for 1Gb Ethernet performance.
?One SDXC card slot, up to 104MB/s.
?One 3.5 mm composite headphone jack.
No driver is required, plug and play.
