Overview:

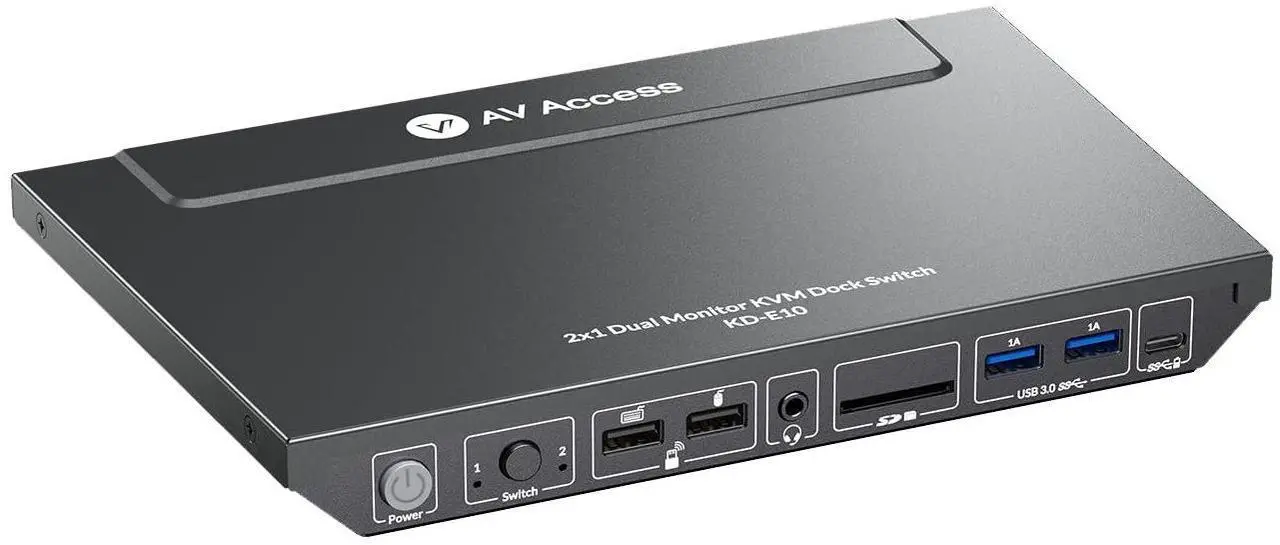

KD-E10 is a multi-function 2x1 KVM switch docking for personal home office and entertainment. It can be used as the core device for home office, which can be connected to a USB-C laptop for meeting and office, and it can also be connected to a desktop to provide users with gaming and entertainment needs. This device provides simple device connection and switching methods, sharing a series of external devices between laptop and desktop, such as mouse, keyboard, mobile hard disk, camera or speakerphone.
Features:
Two 4K@60Hz outputs for dual monitors KVM application.

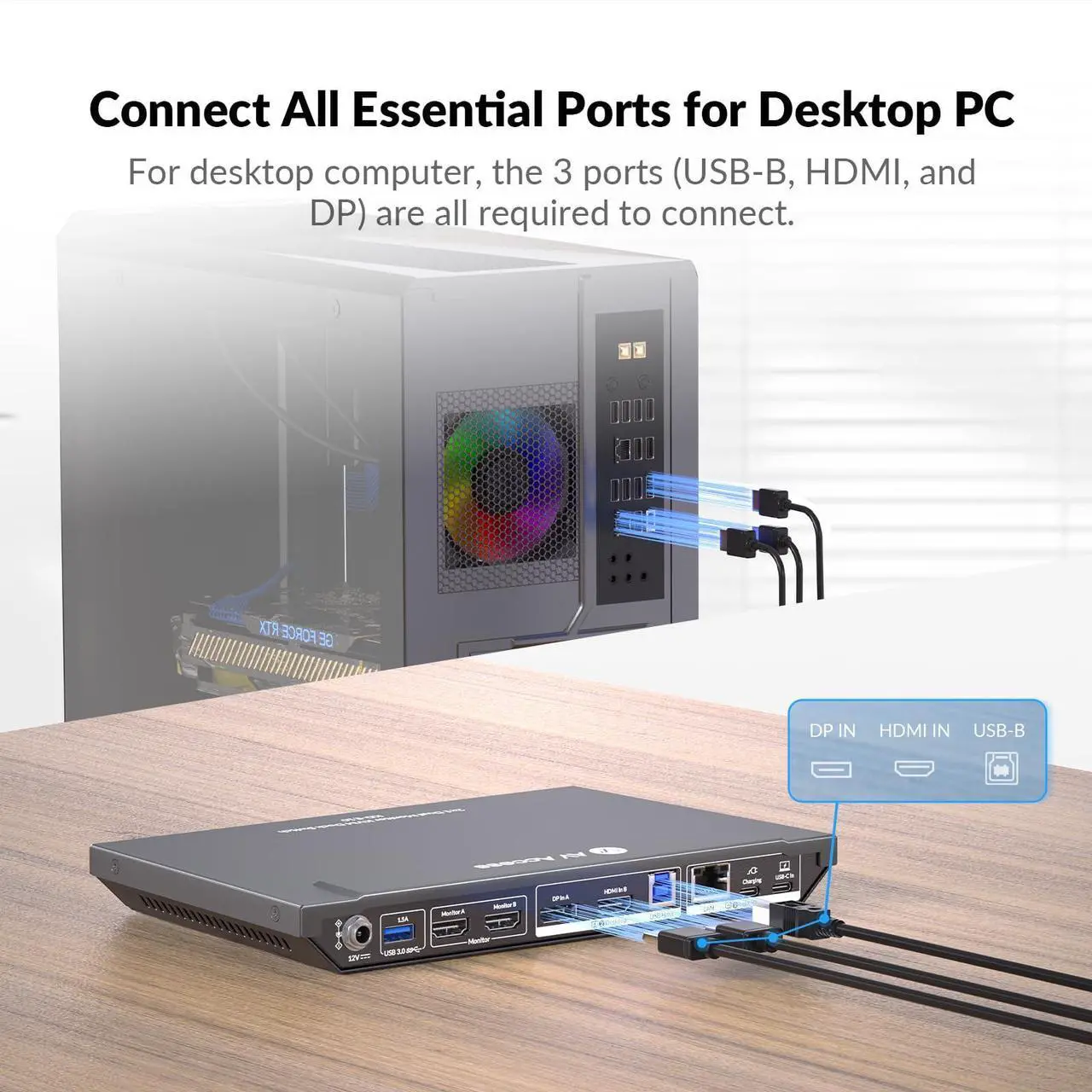

2x1 Switch with one USB-C for the laptop and one combined HDMI+DP+USB-B 3.0 for the desktop.

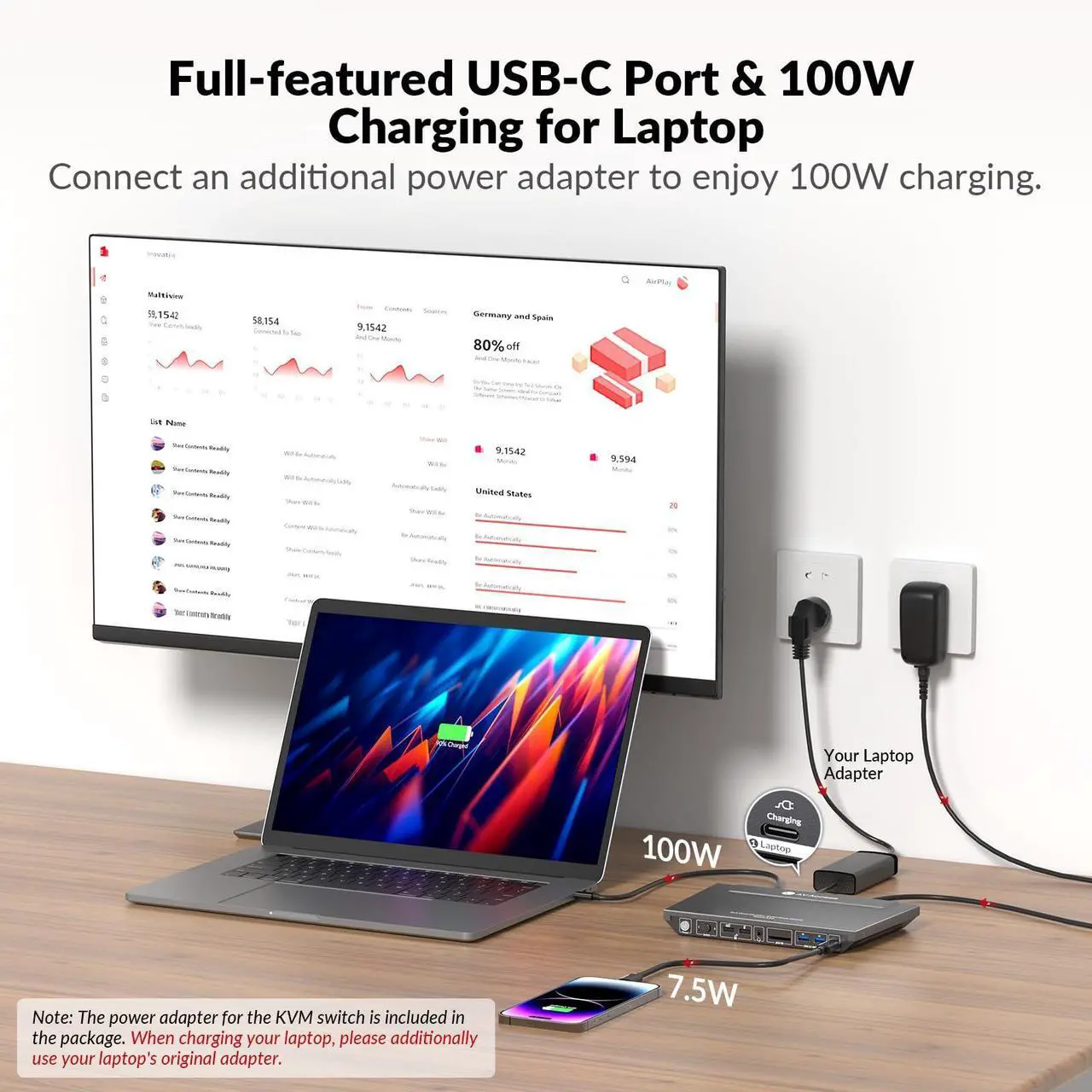

One full-featured USB-C input supports 4K@60Hz video transmission, USB 3.0 data, and 100W charging (when an external USB-C power adapter is connected).
Both inputs and outputs support HDCP 2.2 and HDCP 1.4.

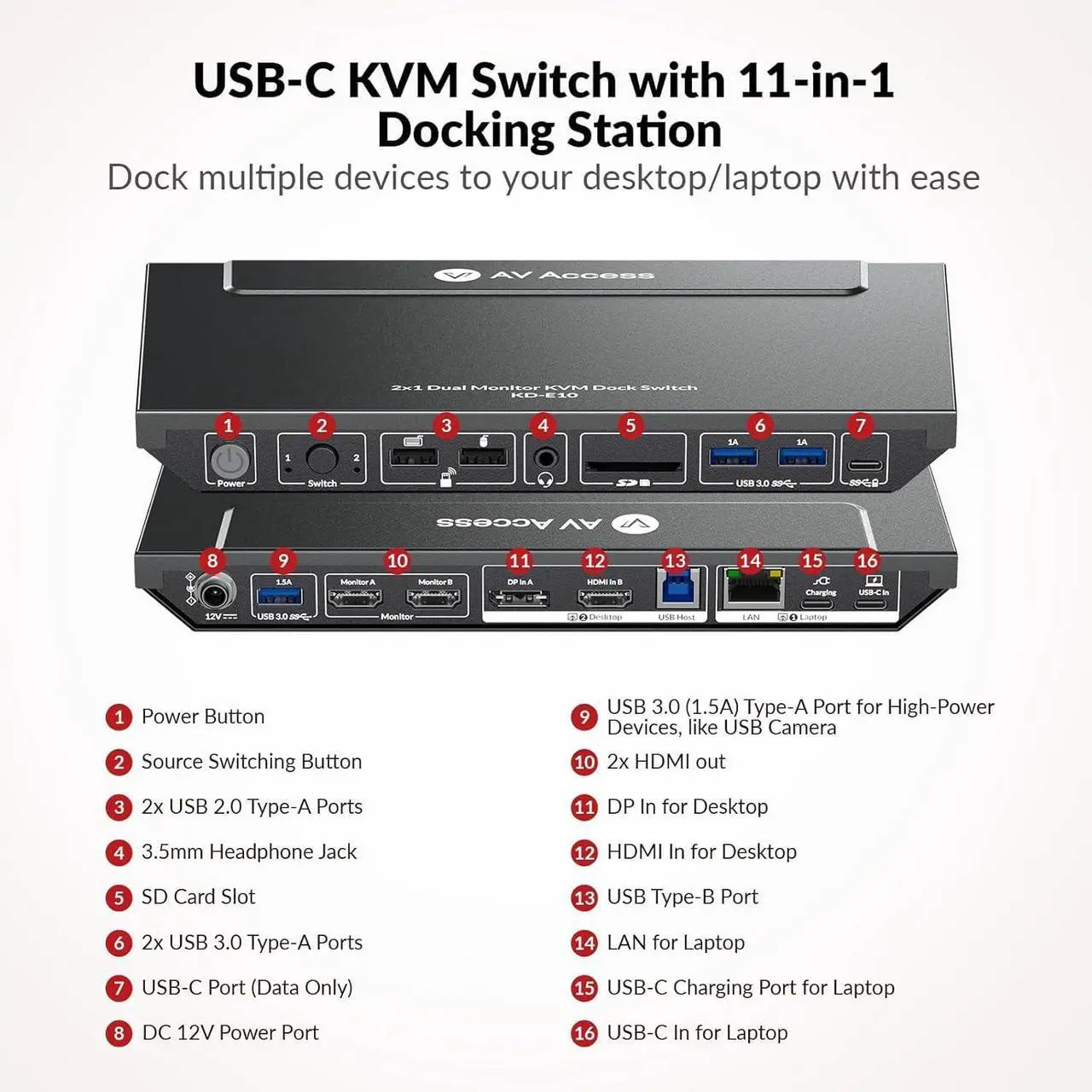

Provides multiple peripheral ports,
including:
3x USB 3.0 type-A ports, support USB 3.0 standard, and 5Gbps data transfer rate of per port. Two of the three ports support 5V/1A power output, and the other one supports 5V/ 1.5A power output;
1x USB 3.0 type-C port (data only), supports USB 3.0 standard, 5Gbps data transfer rate, and 1.5A current output.
2x USB 2.0 type-A ports, supports USB 2.0 standard, and 480Mbps data transfer rate;
1x SDXC card slot, supports up to 2TB SDXC card inserted, and maximum data transmission is 104MB/s;

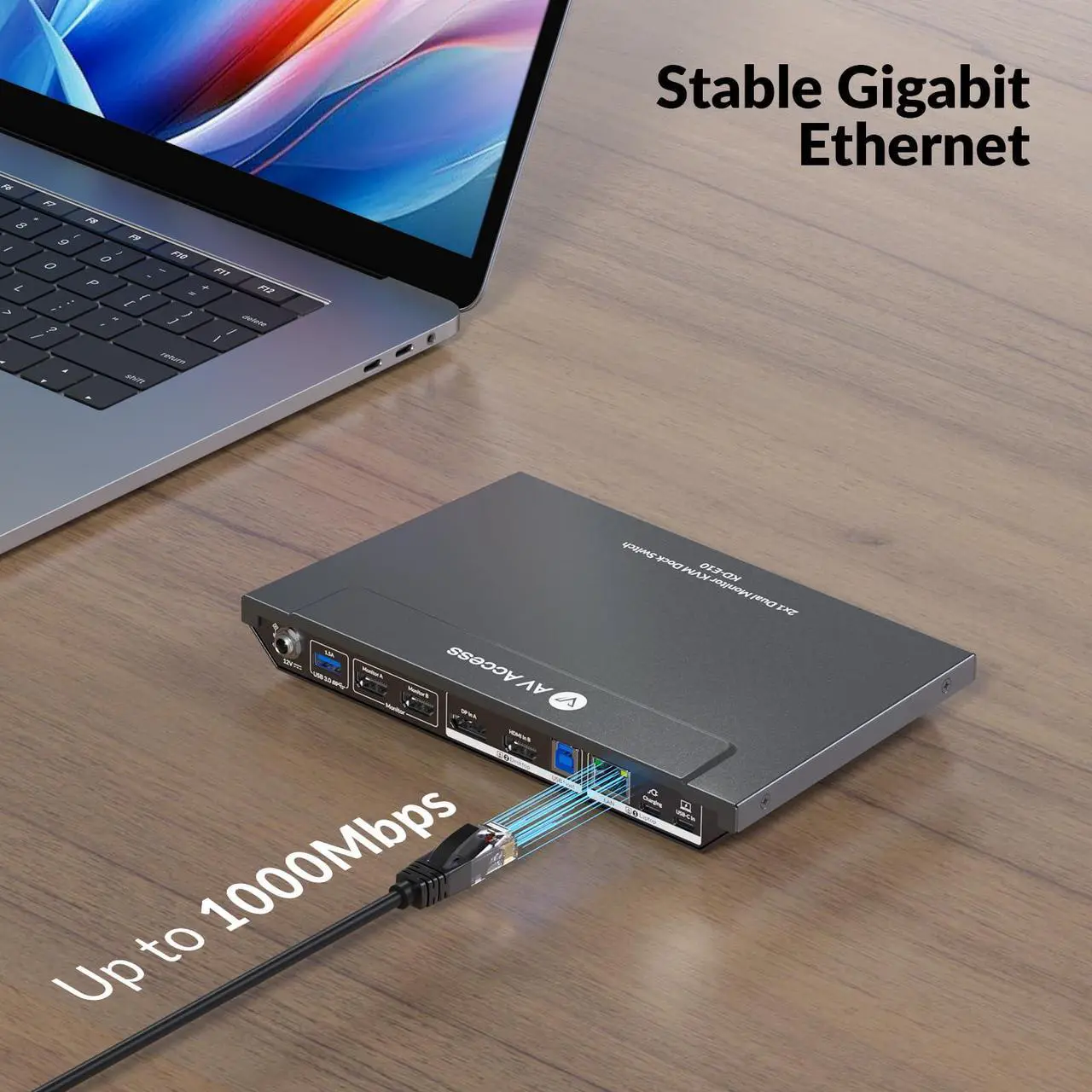

1x LAN port, support for 1Gb Ethernet performance (For USB-C Laptop only);
1x 3.5 mm TRRS (stereo + mic) headset port.
Support CEC trigger on HDMI outputs. When the current channel detects an input signal, it sends a CEC Power-ON command to the corresponding HDMI output port.
Support automatic wake-up function, which automatically wakes up the standby computer when switching.
Package Contents:
Before you start the installation of the product, please check the package contents
Switcher x 1
Power Adapter (DC 12V 3A) x 1
USB 3.2 Gen 2 Type-C to Type-C Cable (L = 1m) x 1
USB 3.0 Type-B to Type-A Cable (L = 1.5 m) x 1
HDMI 2.0 Cable x 1
DP 1.2 a Cable x 1
User Manual x 1
