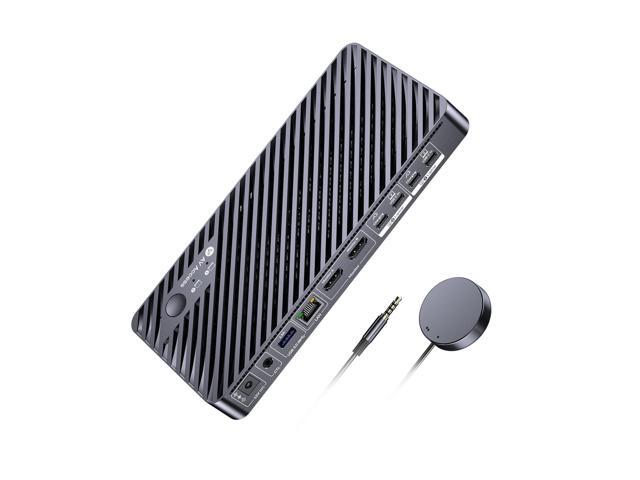

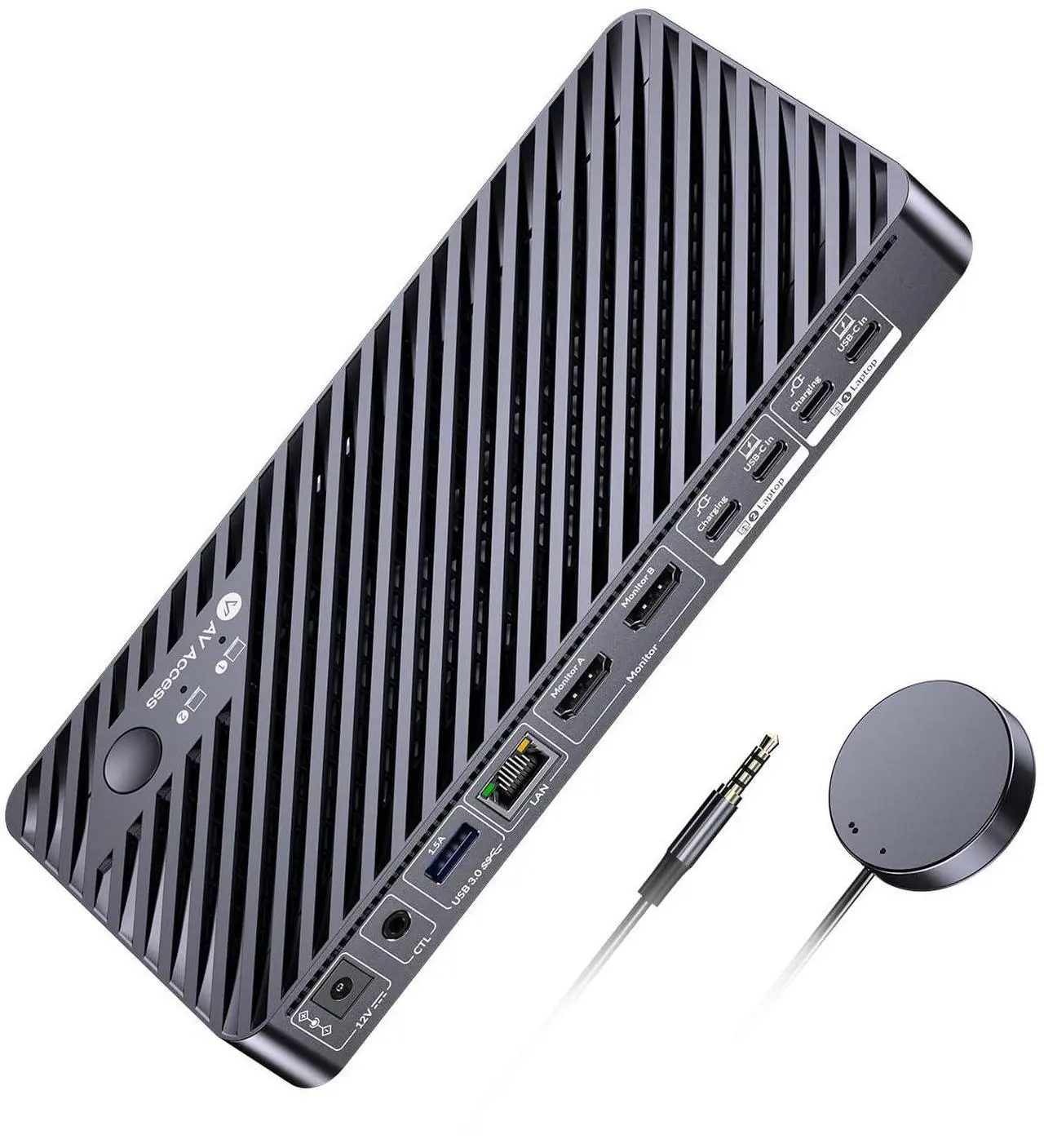

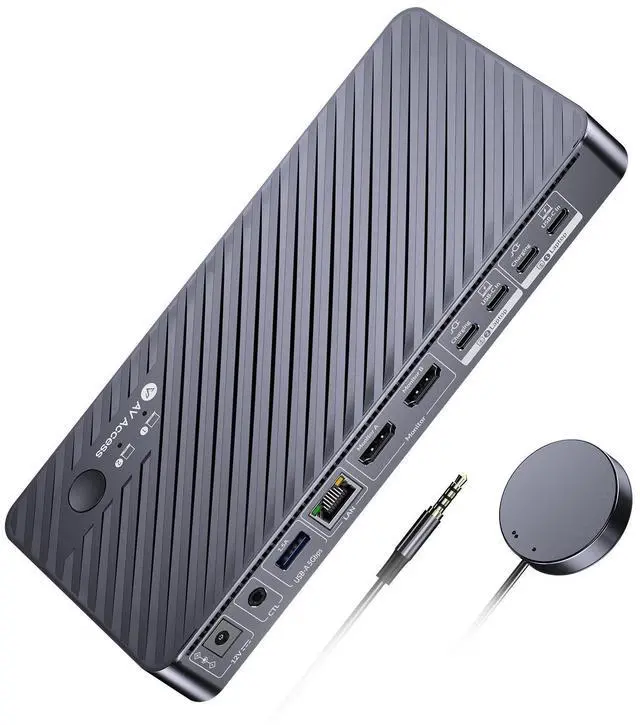

AV Access Docking Station KVM Switch 2 Monitors 2 Laptops, 4K KVM Switch Dual Monitor, 100W PD for Each PC, 1G Ethernet, EDID Emulation, Ideal for Home Office & Gaming(KD-E20)

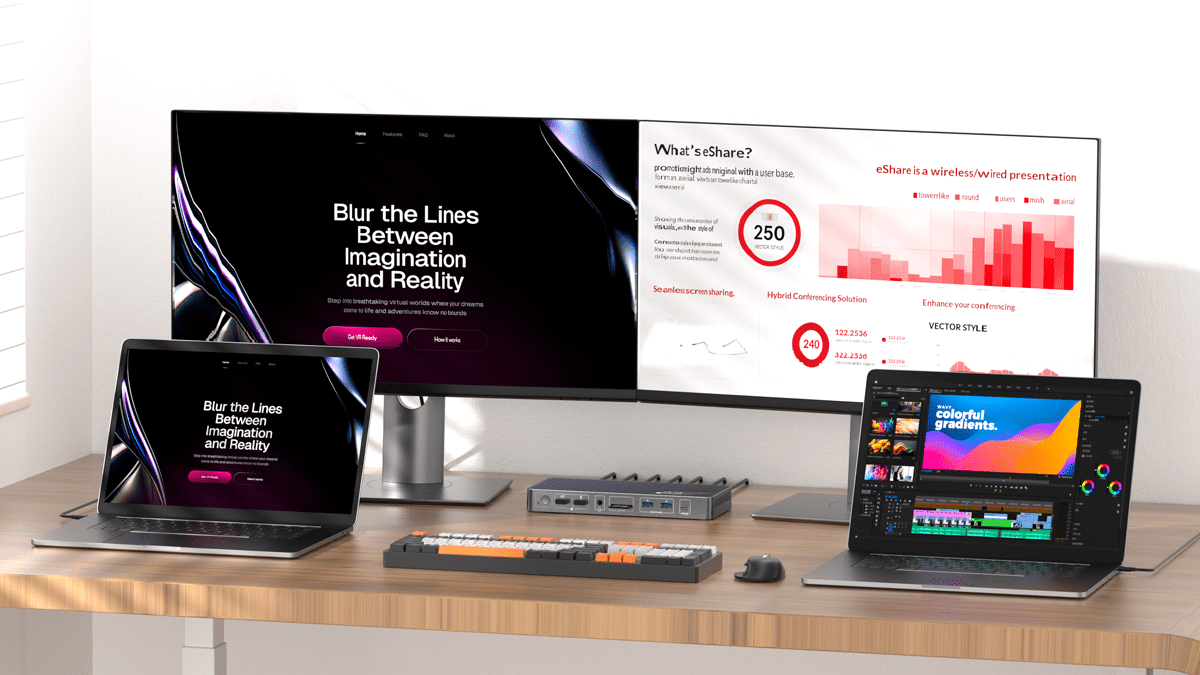

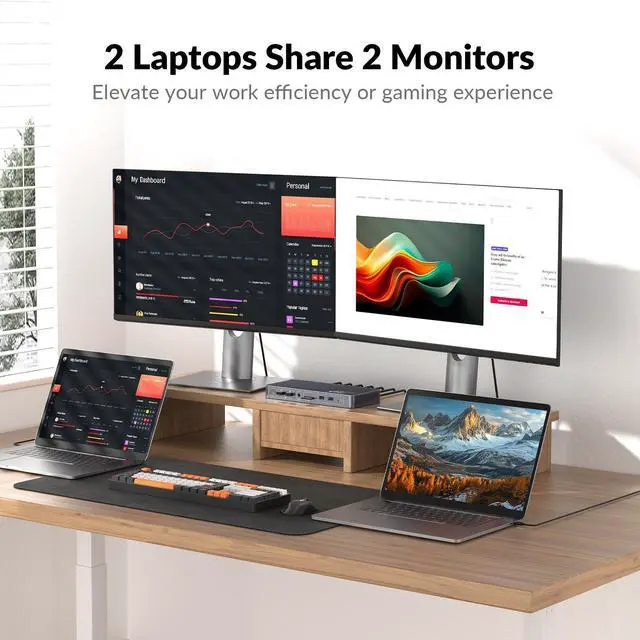

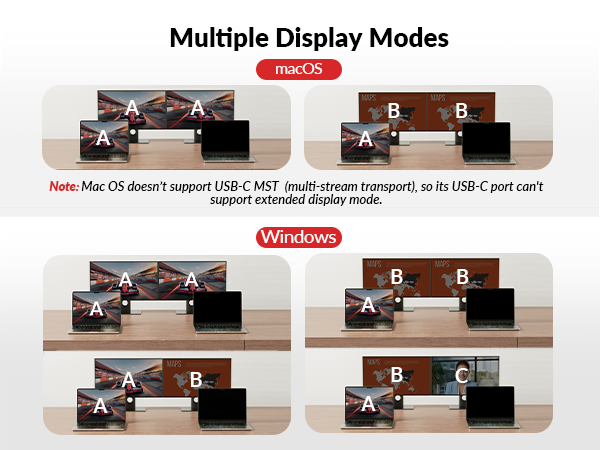

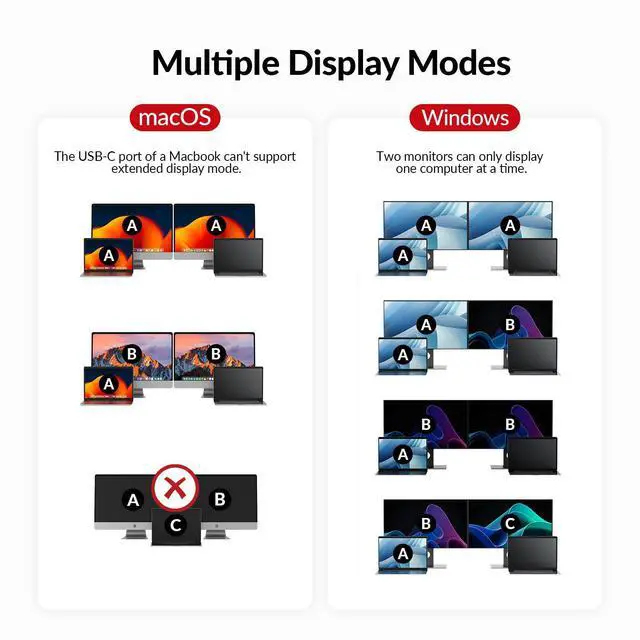

- Dual-Laptop Docking & Dual Monitors: Connect two laptops and enjoy dual 4K@60Hz displays for efficient multitasking.

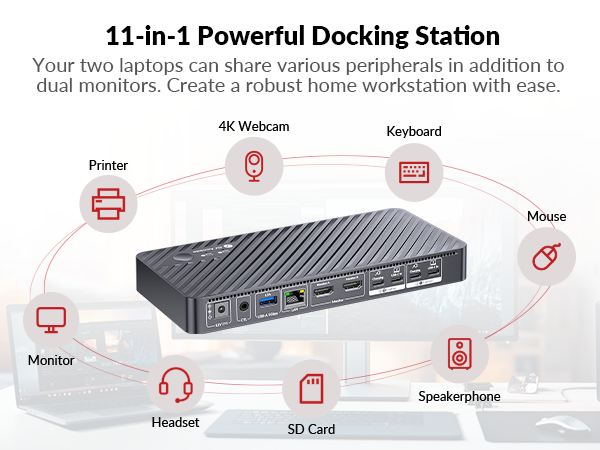

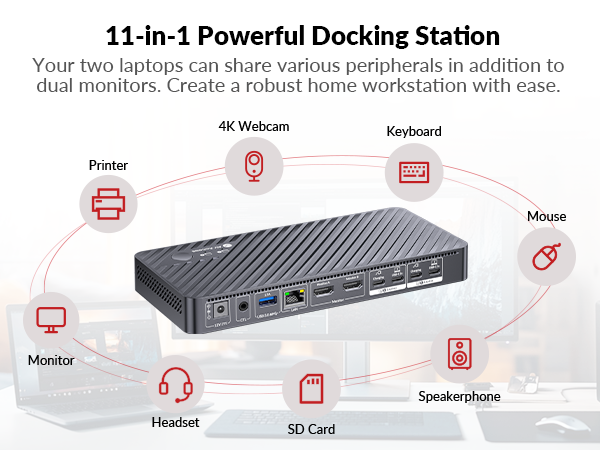

- 11-in-1 Docking Station: Expand your workspace with multiple ports, including HDMI, USB, Ethernet, and more.1G LAN Port: Ensure stable and fast wired network for both laptops, no matter which laptop you switch to.

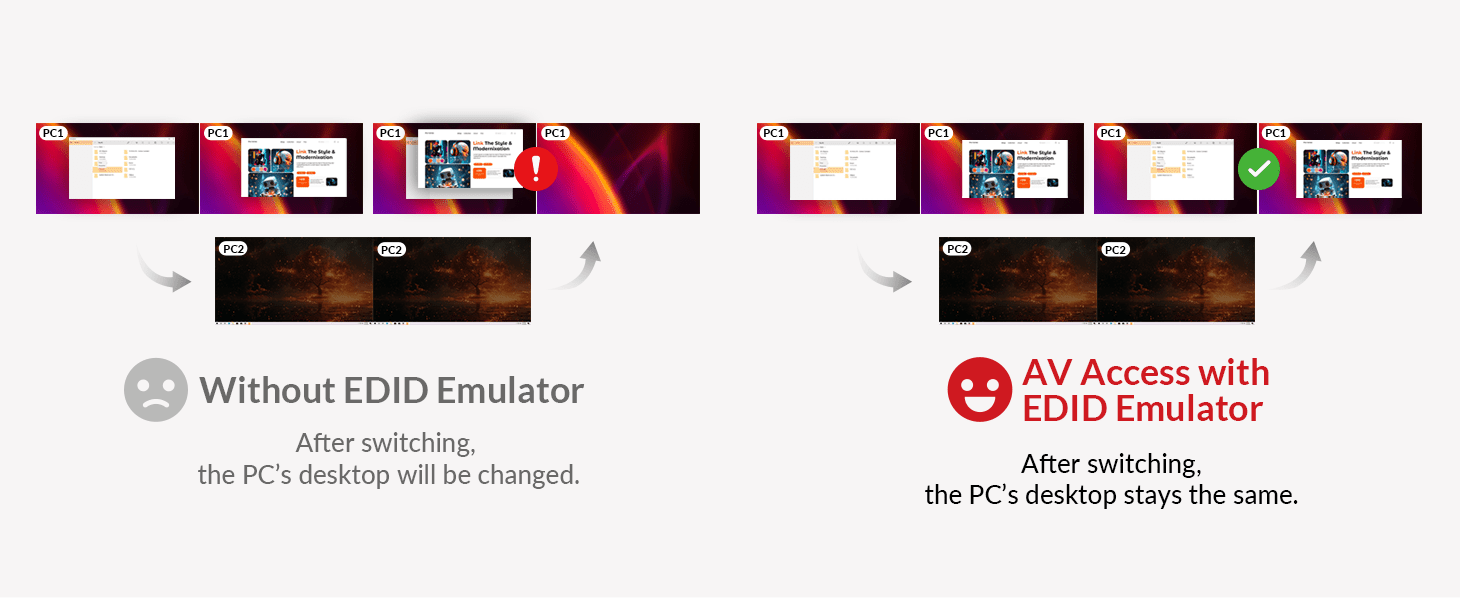

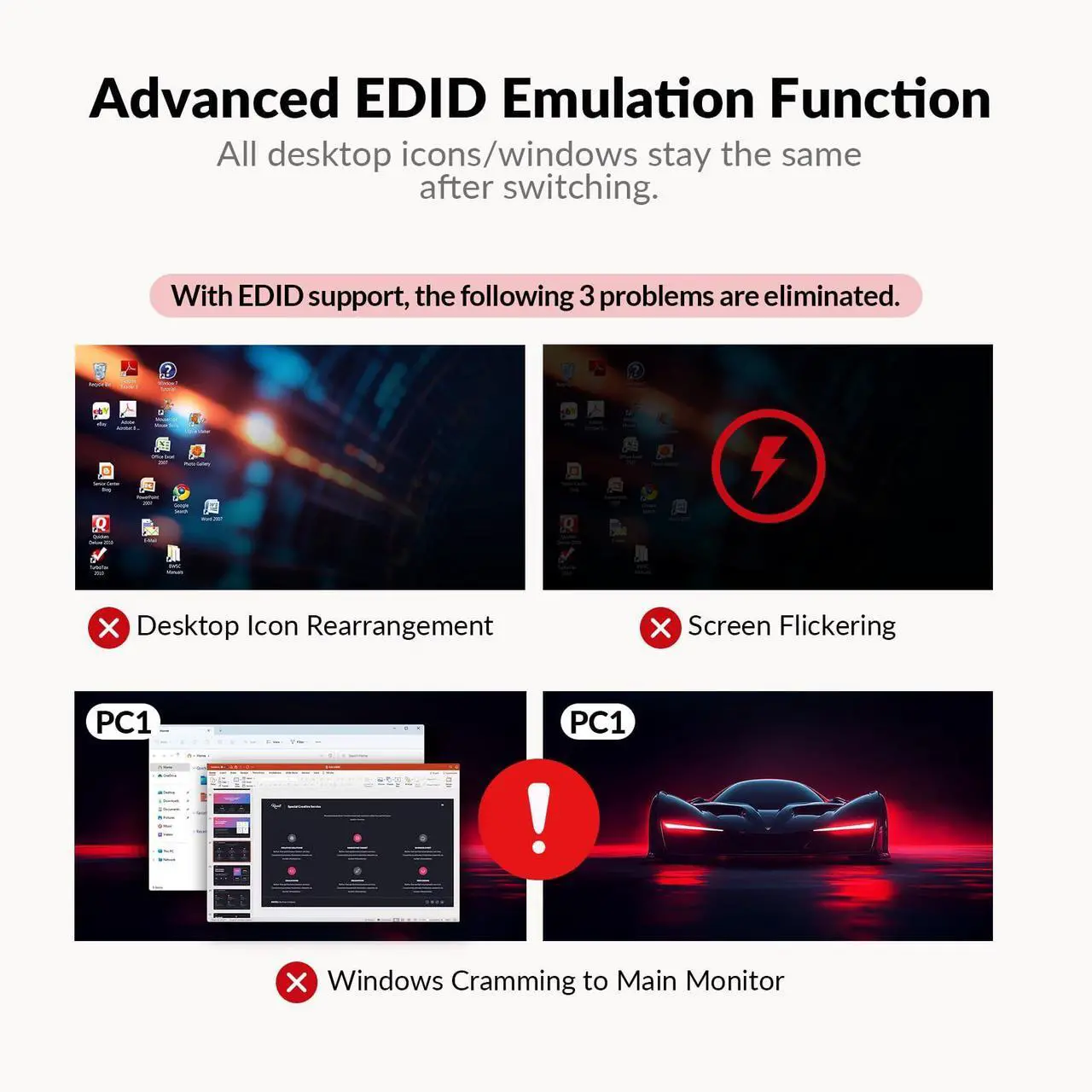

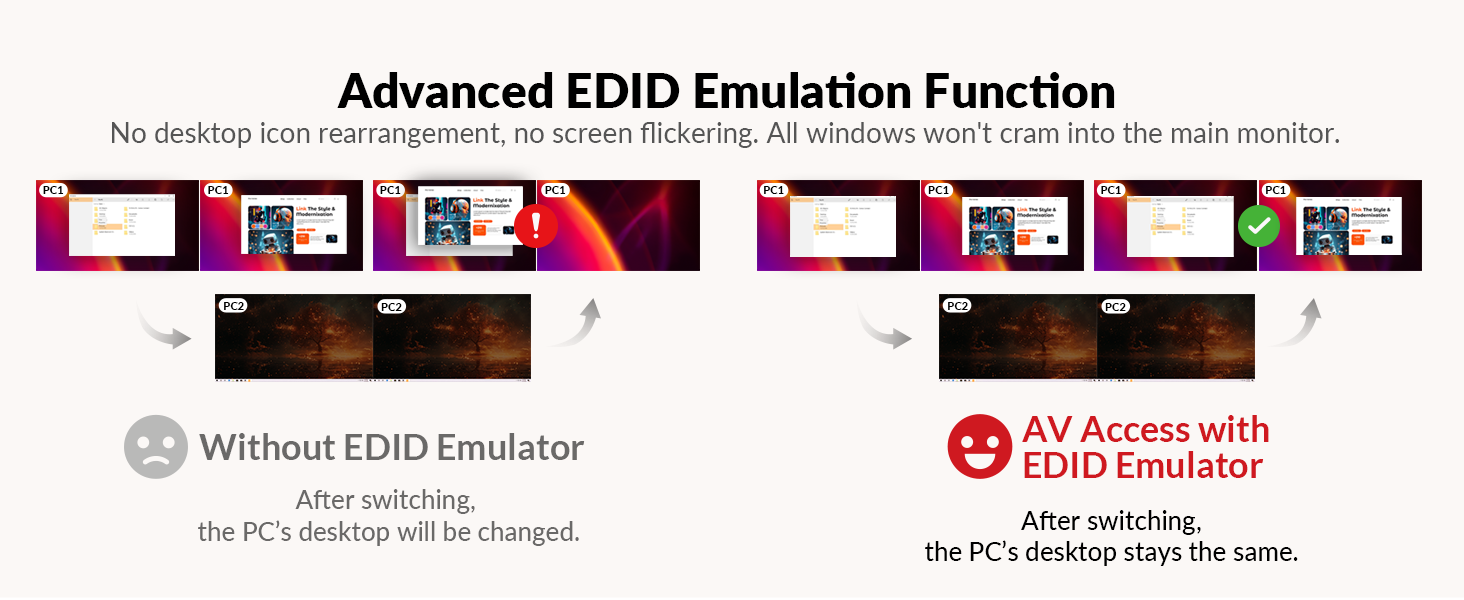

- EDID Emulation: Prevents screen flickering and icon rearrangement when switching devices.

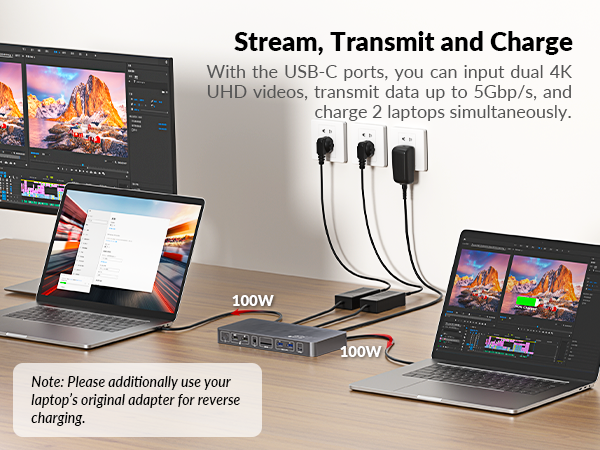

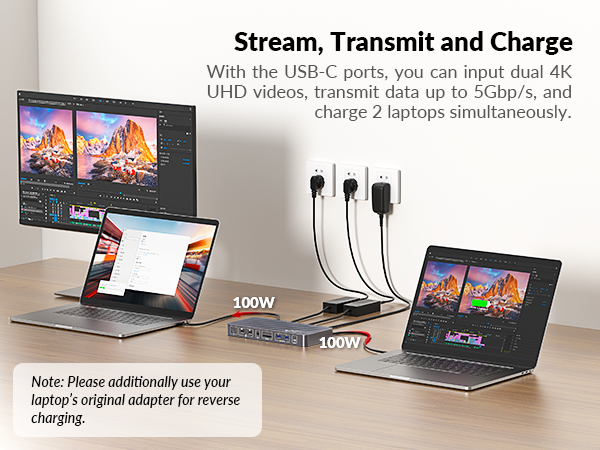

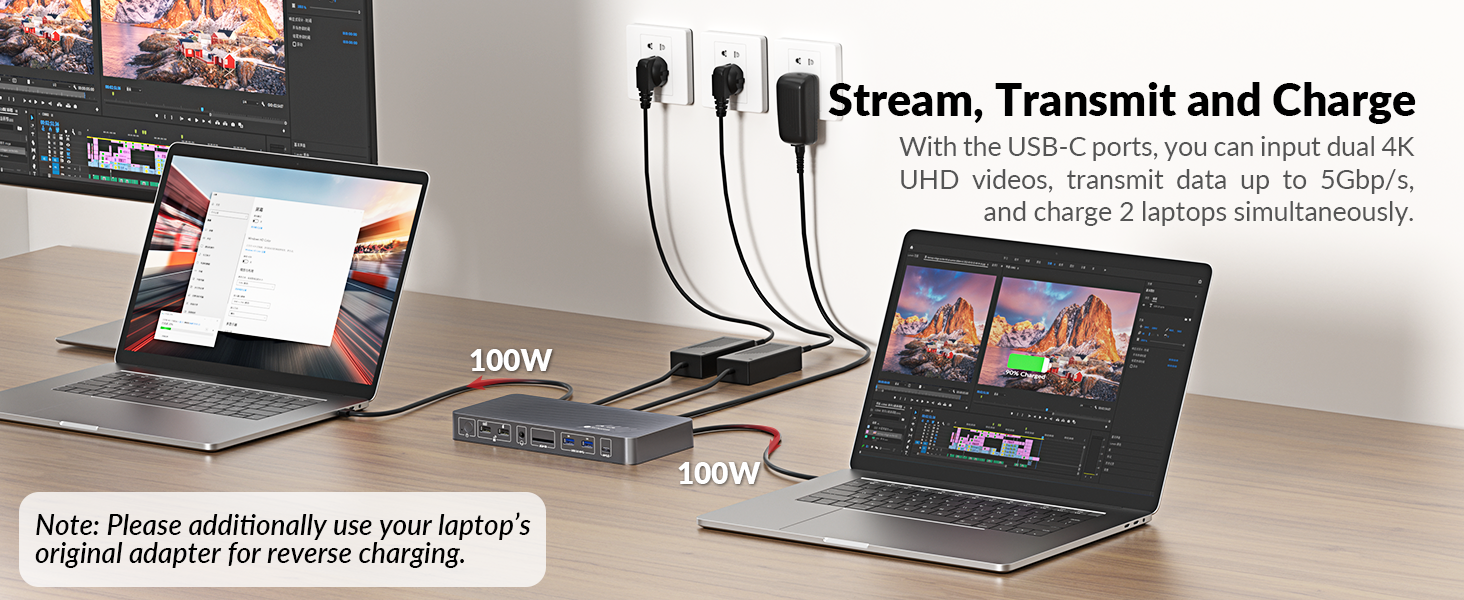

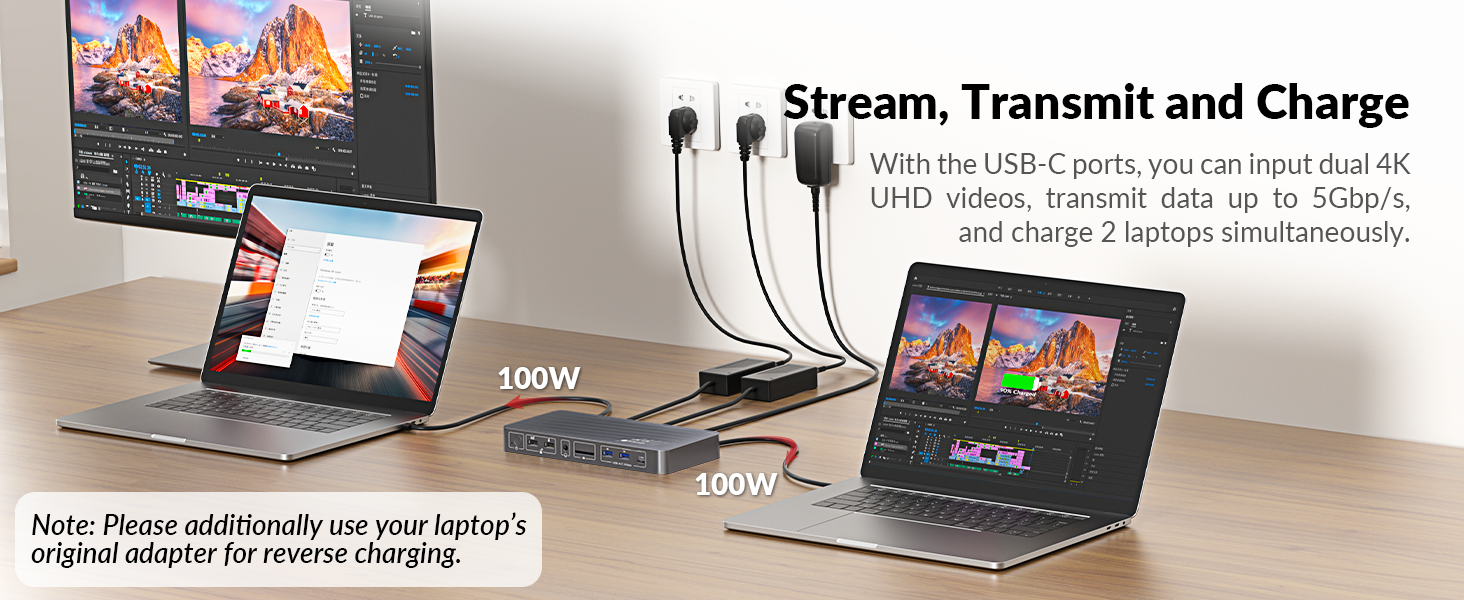

- Full-Featured USB-C: One USB-C connection supports dual 4K@60Hz videos, up to 5Gbp/s data transfer, Gigabit Ethernet, and up to 100W charging (additional power adapter required for laptops charging).

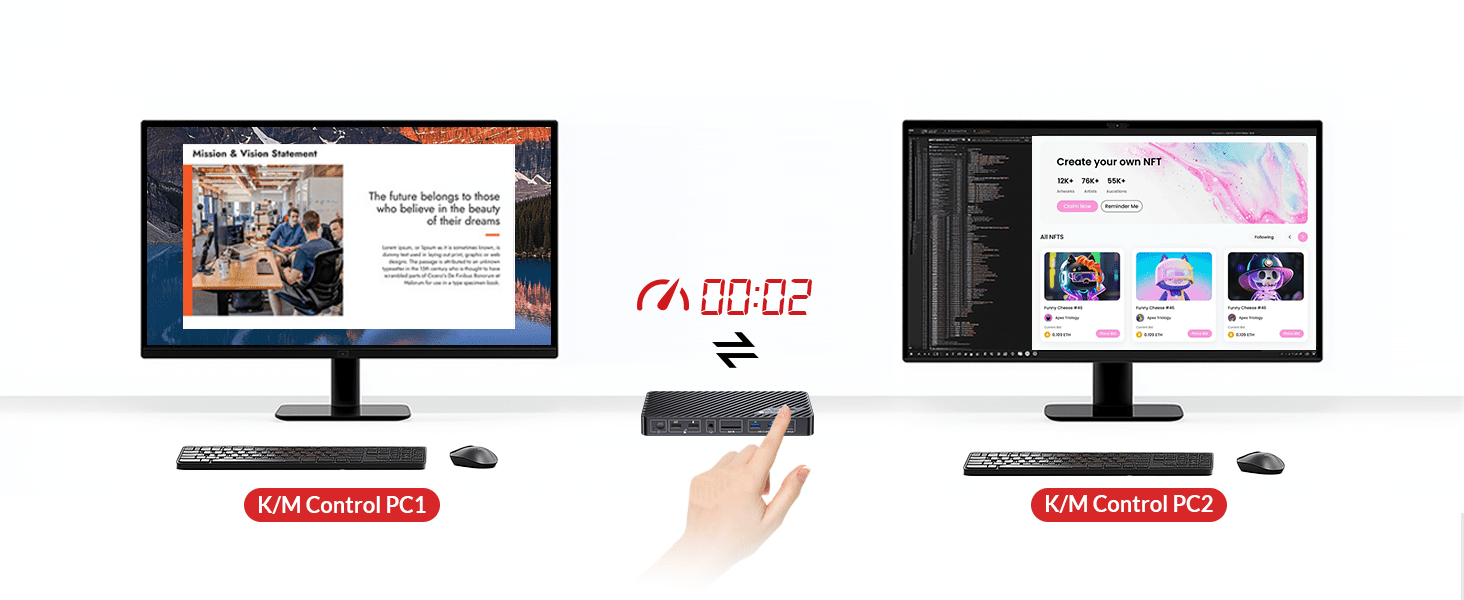

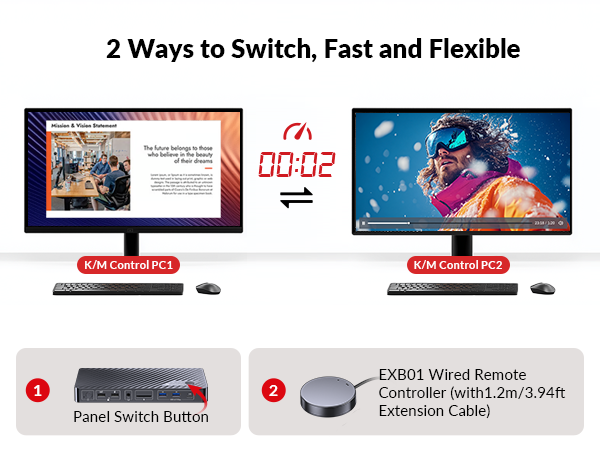

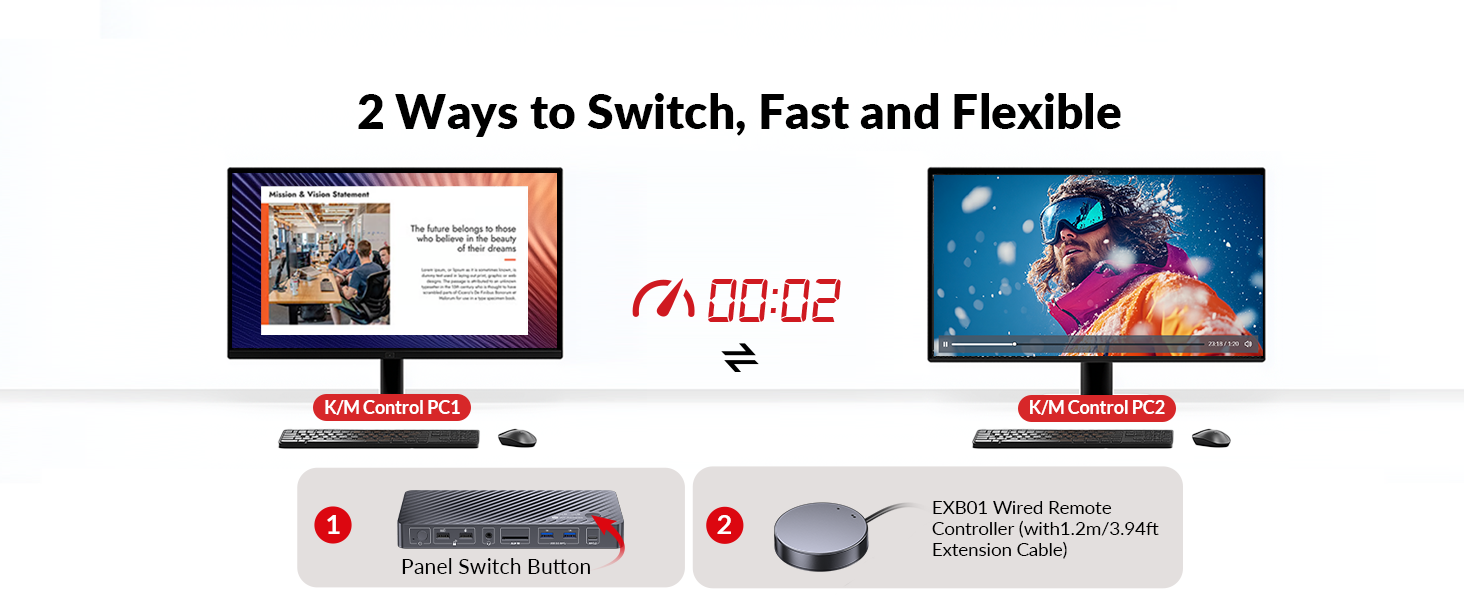

- Fast Switching: Seamless transitions between devices in just 2-3 seconds.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:

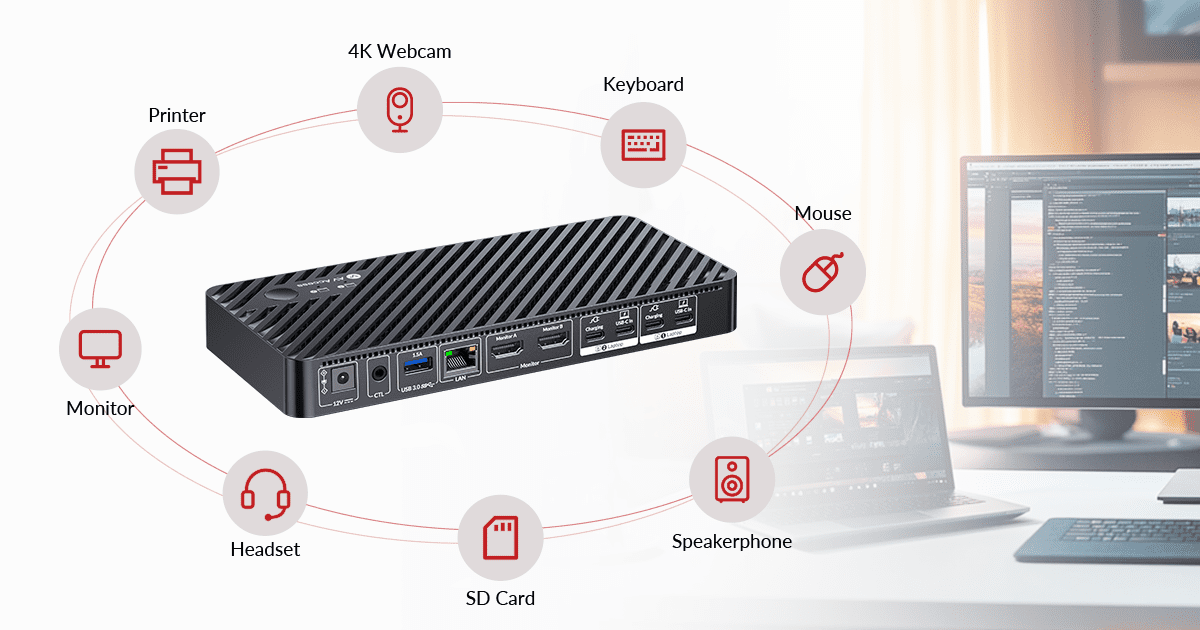

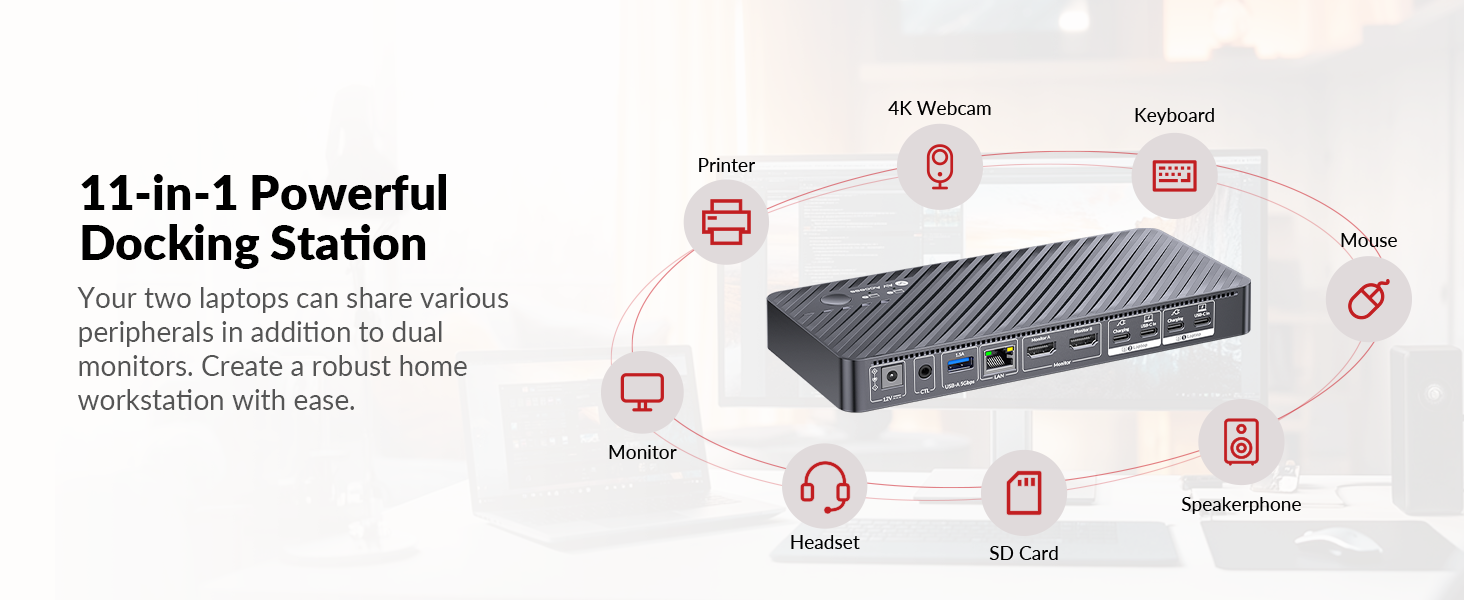

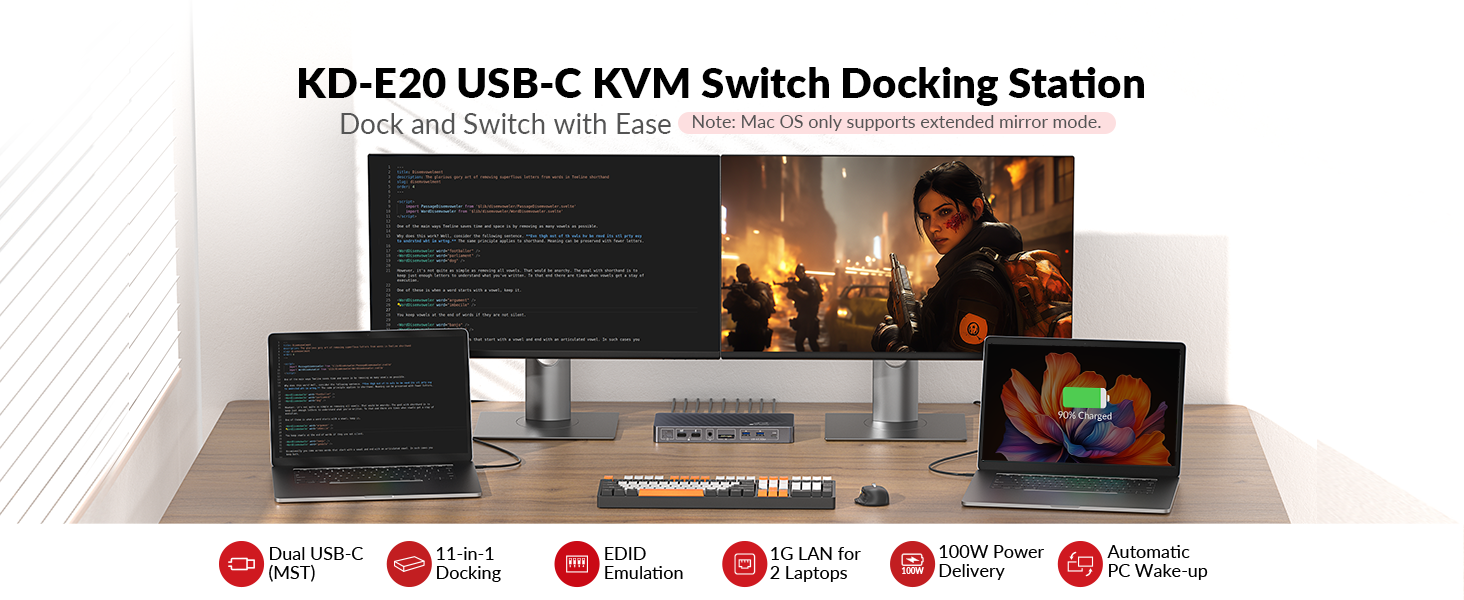

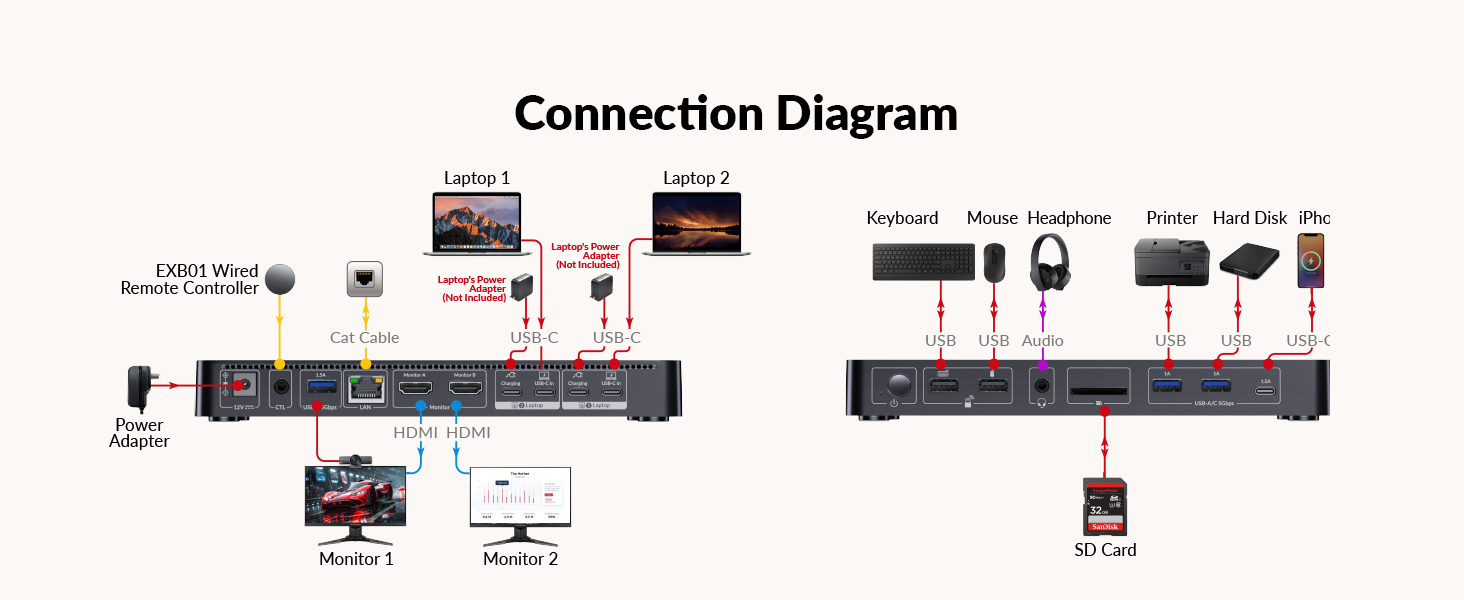

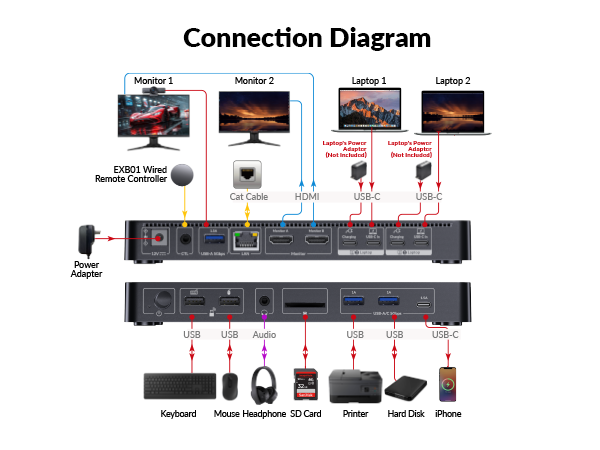

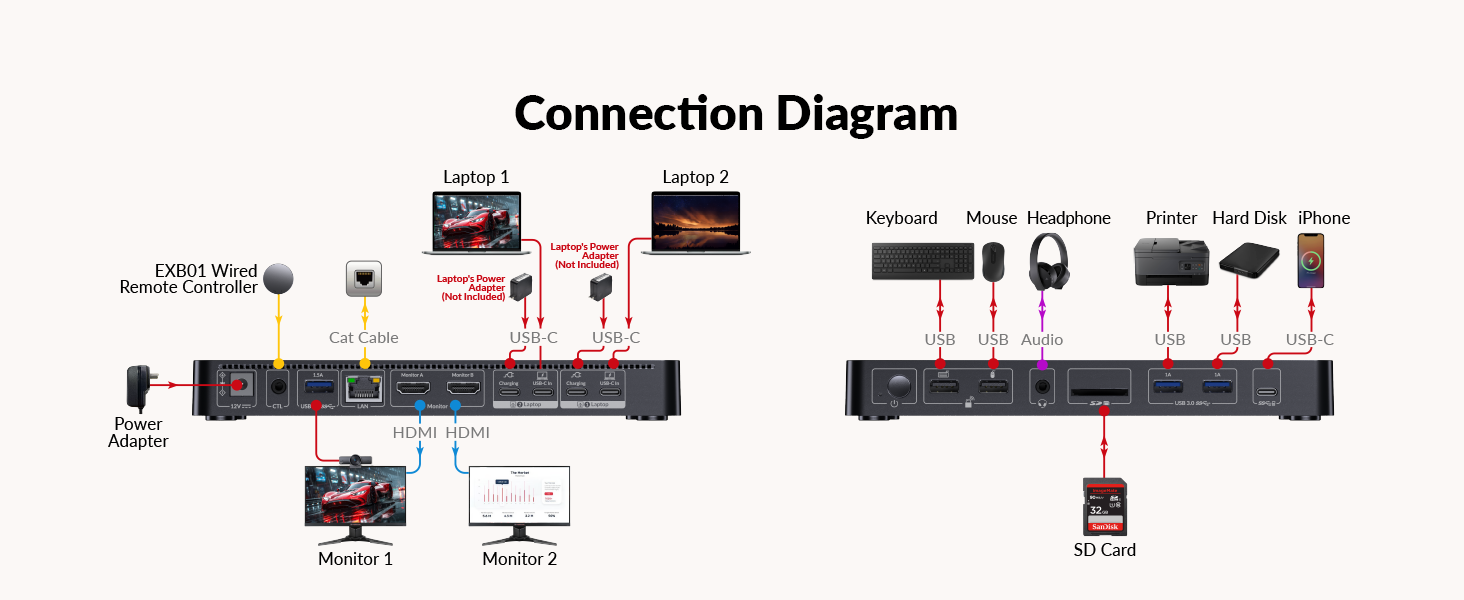

KD-E20 is a multi-function 2x1 KVM switch docking for personal home officeand entertainment. It can be used as the core device for home or office, which can be connected to two USB-C laptops and two HDMI monitors. This device provides simple device connection and switching methods, sharing a series of external devices between laptops, such as mouse, keyboard, mobile hard disk, camera or speakerphone.
Features:

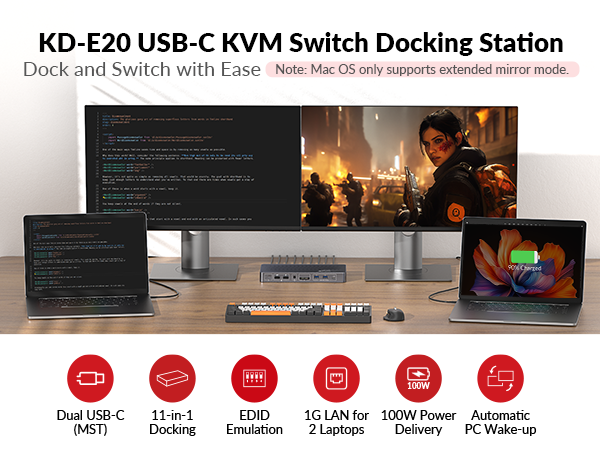

2x1 KVM switch docking, switch between two USB-C laptops to two HDMI 2.0 monitors.

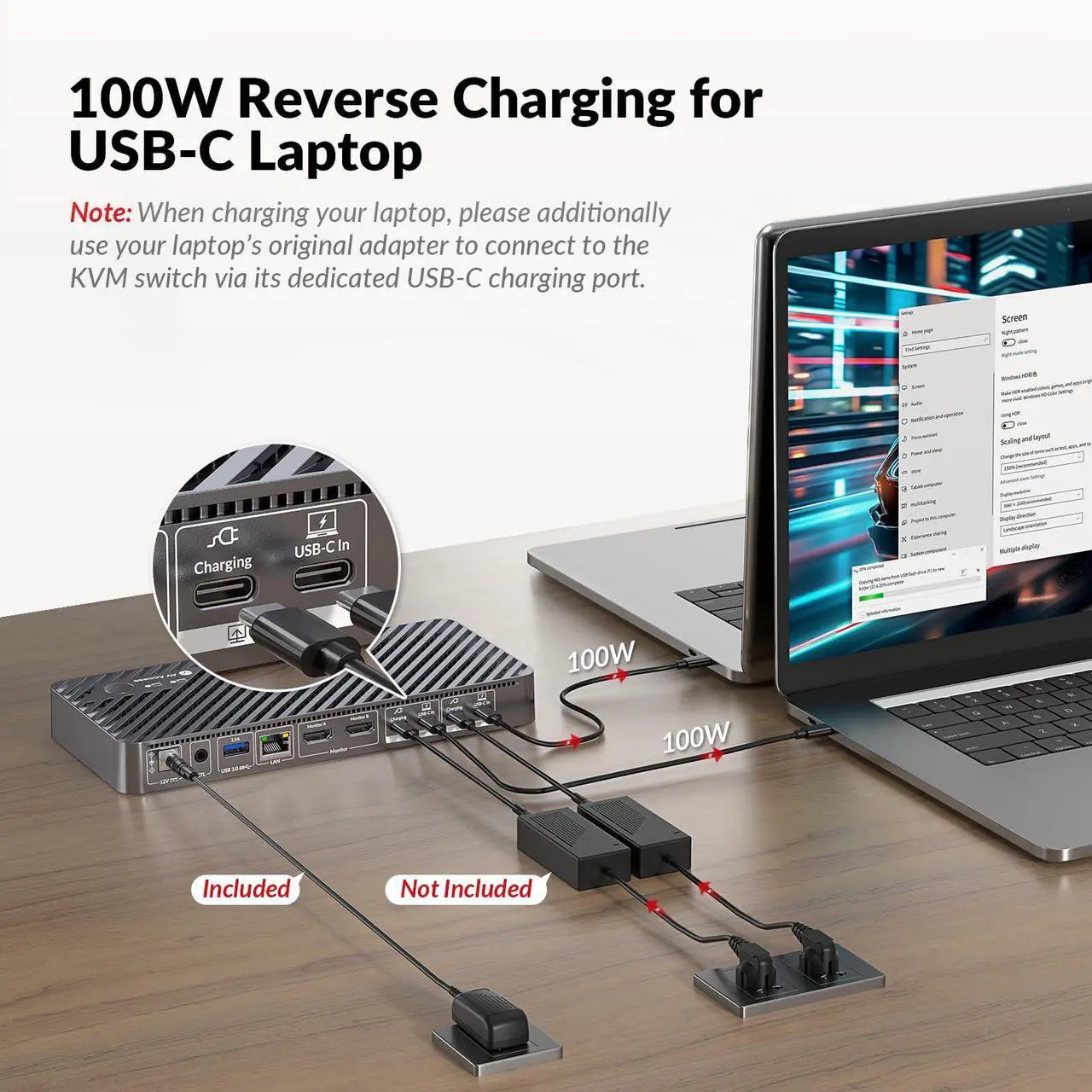

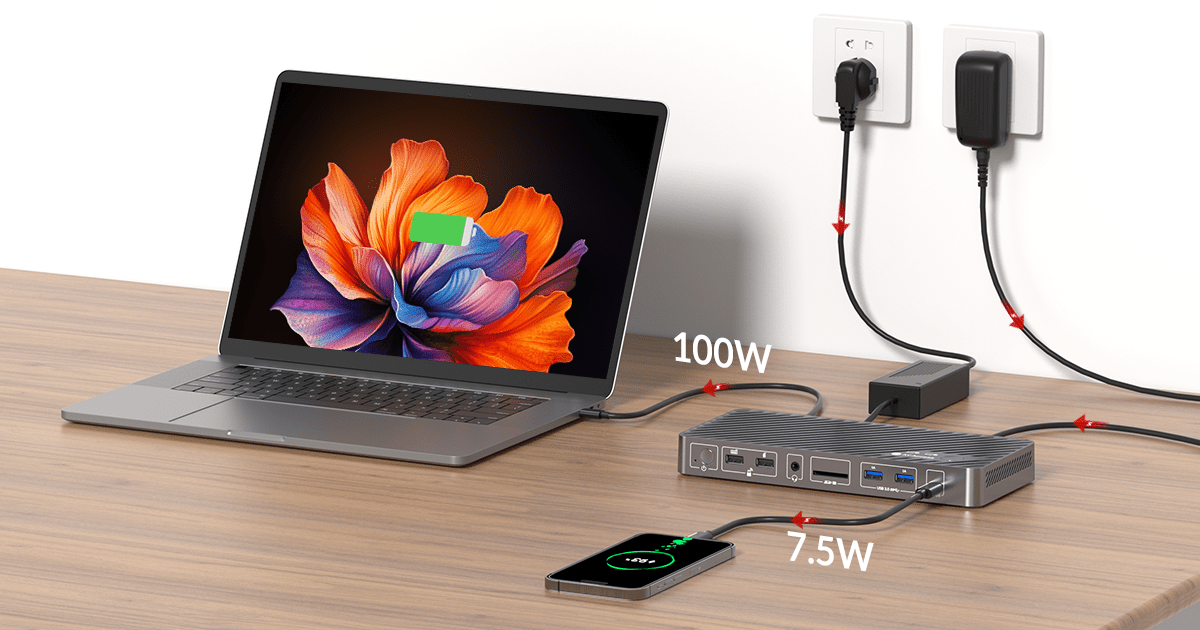

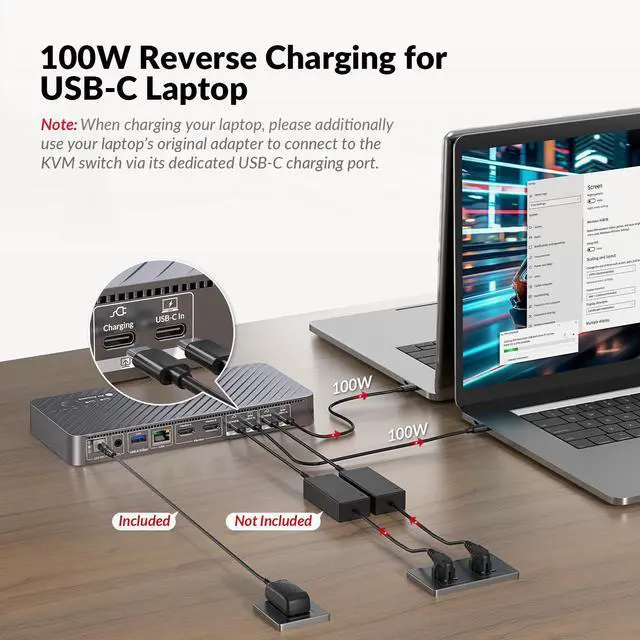

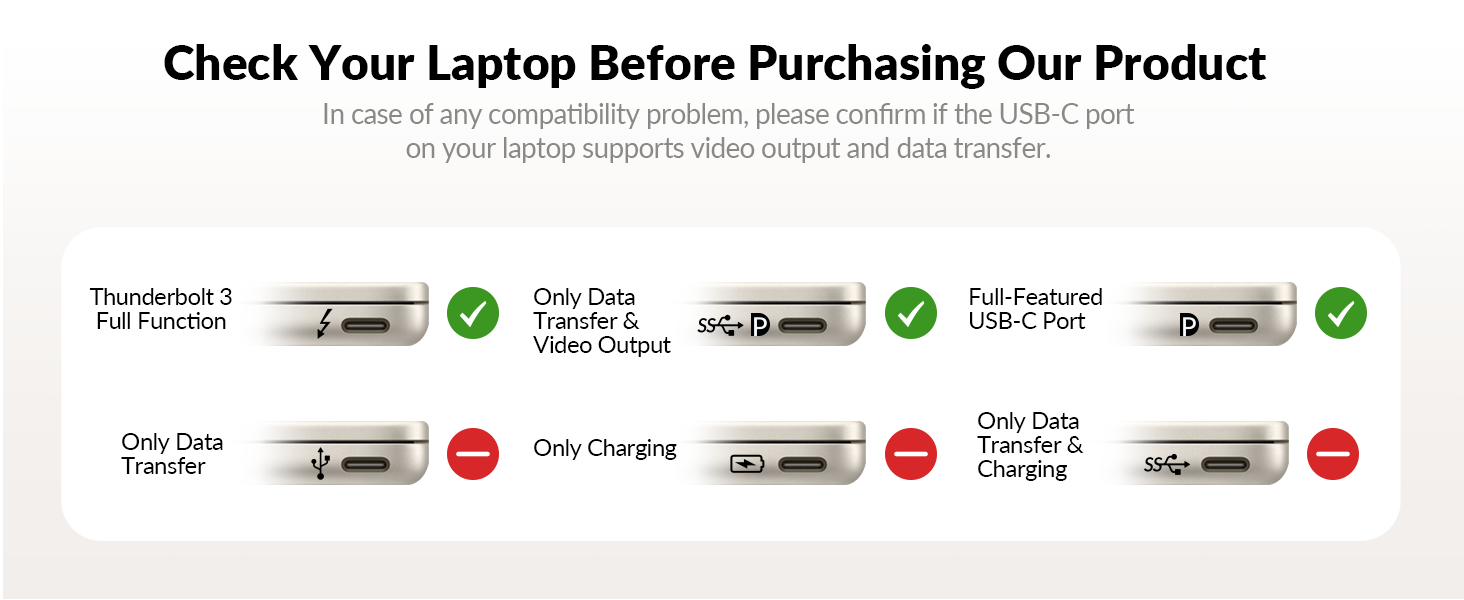

Two full-featured USB-C inputs support 4K@60Hz video transmission, USB 3.0 data, and 100W charging (when an external USB-C power adapter is connected).
Inputs and outputs support high refresh rates, like 2560×1440@144Hz /120Hz and 1080P@240Hz / 165Hz / 144Hz / 120Hz.

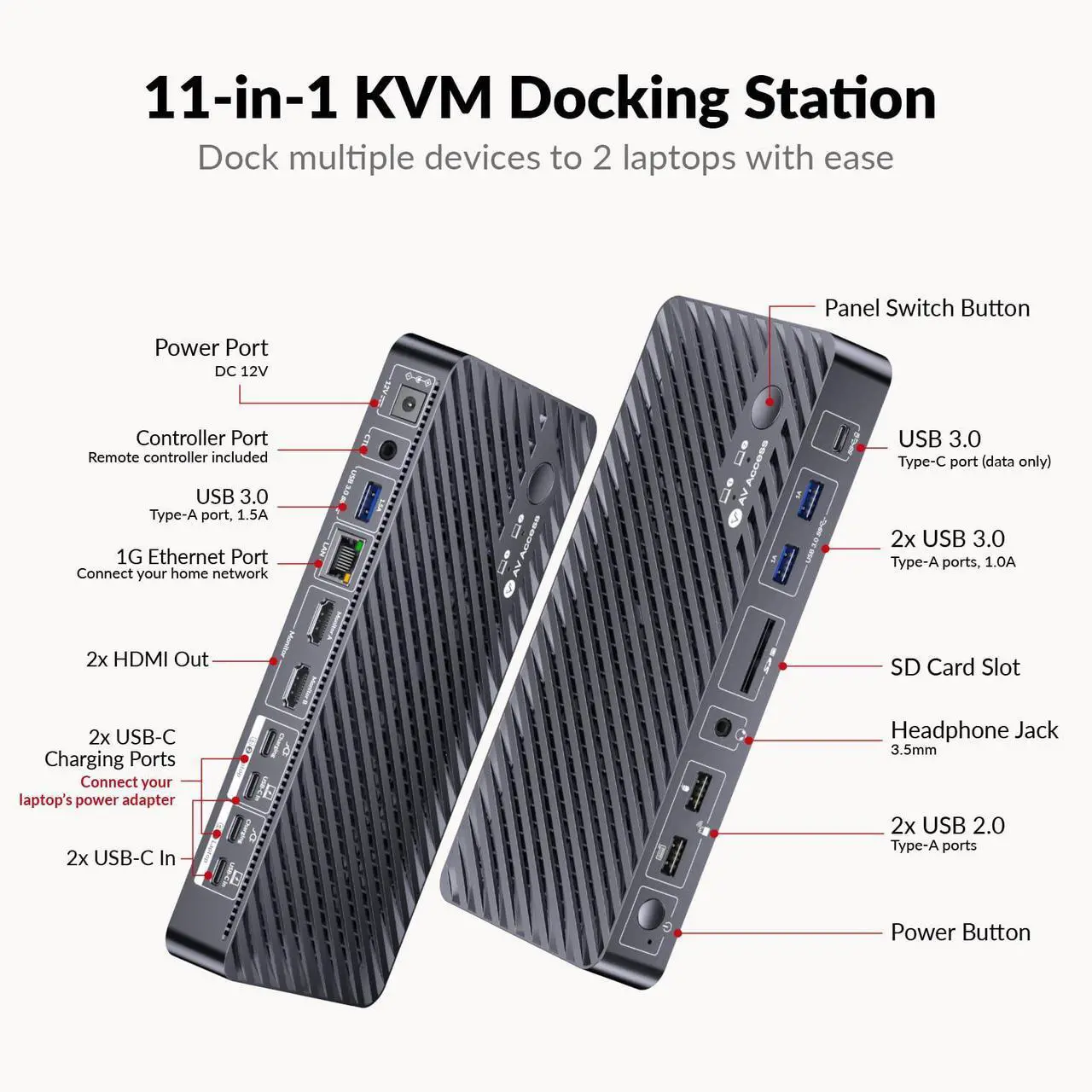

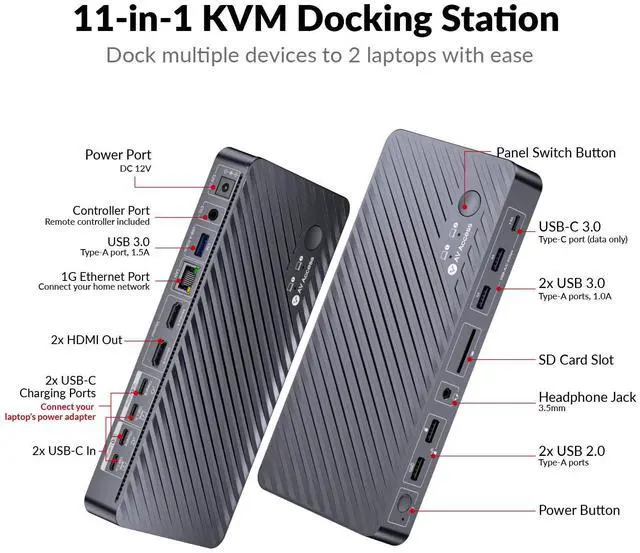

Provides multiple peripheral ports,
including:
3x USB 3.0 type-A ports, support USB 3.0 standard, and 5Gbps data transfer rate of per port. Two of the three ports support 5V/1A power output, and the other one supports 5V/ 1.5A power output;
1x USB 3.0 type-C port (data only), supports USB 3.0 standard, 5Gbps data transfer rate, and 1.5A current output.
2x USB 2.0 type-A ports, supports USB 2.0 standard, and 480Mbps data transfer rate;
1x SDXC card slot, supports up to 2TB SDXC card inserted, and maximum data transmission is 104MB/s;

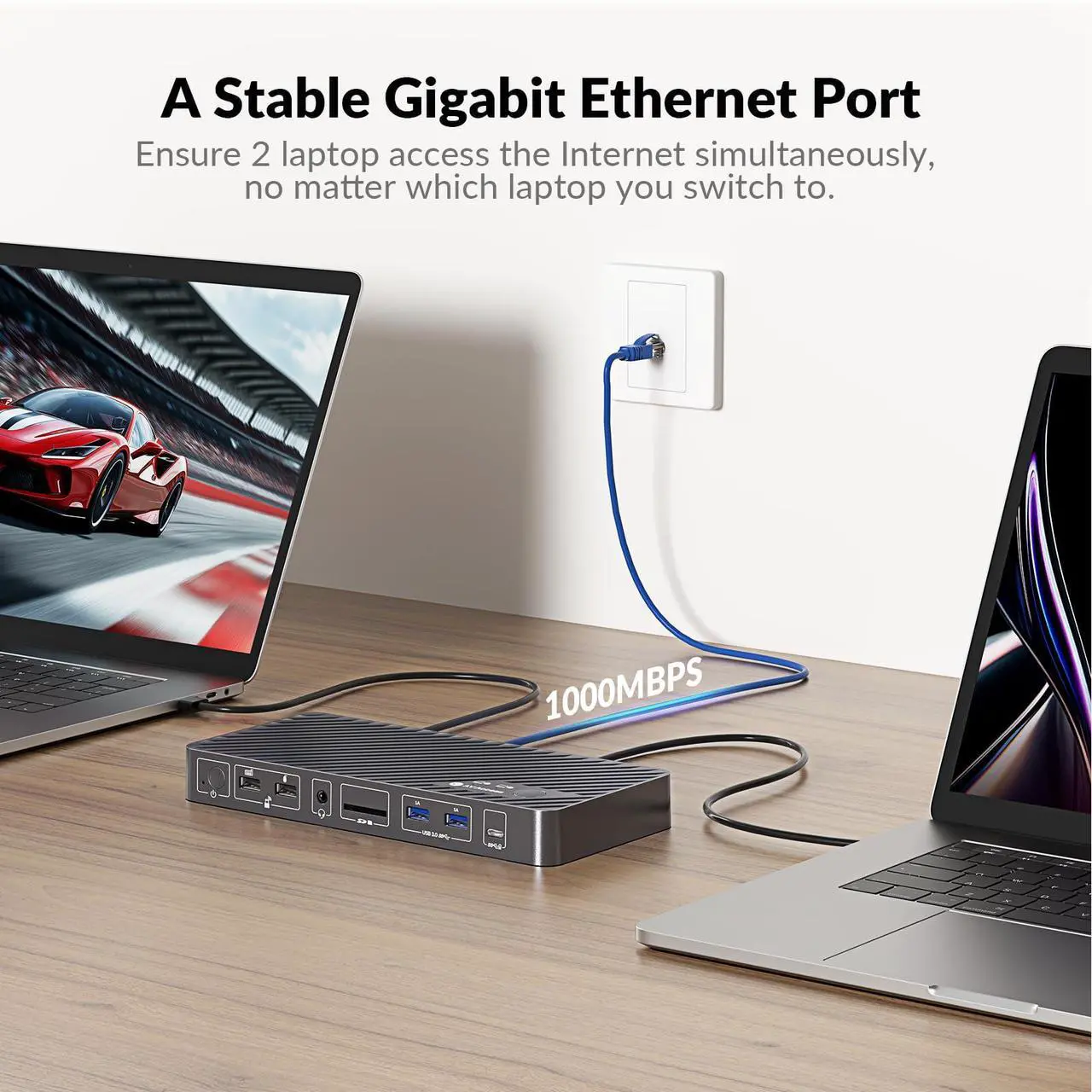

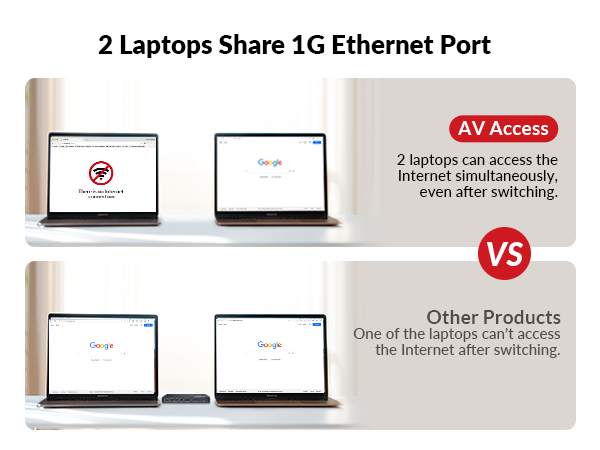

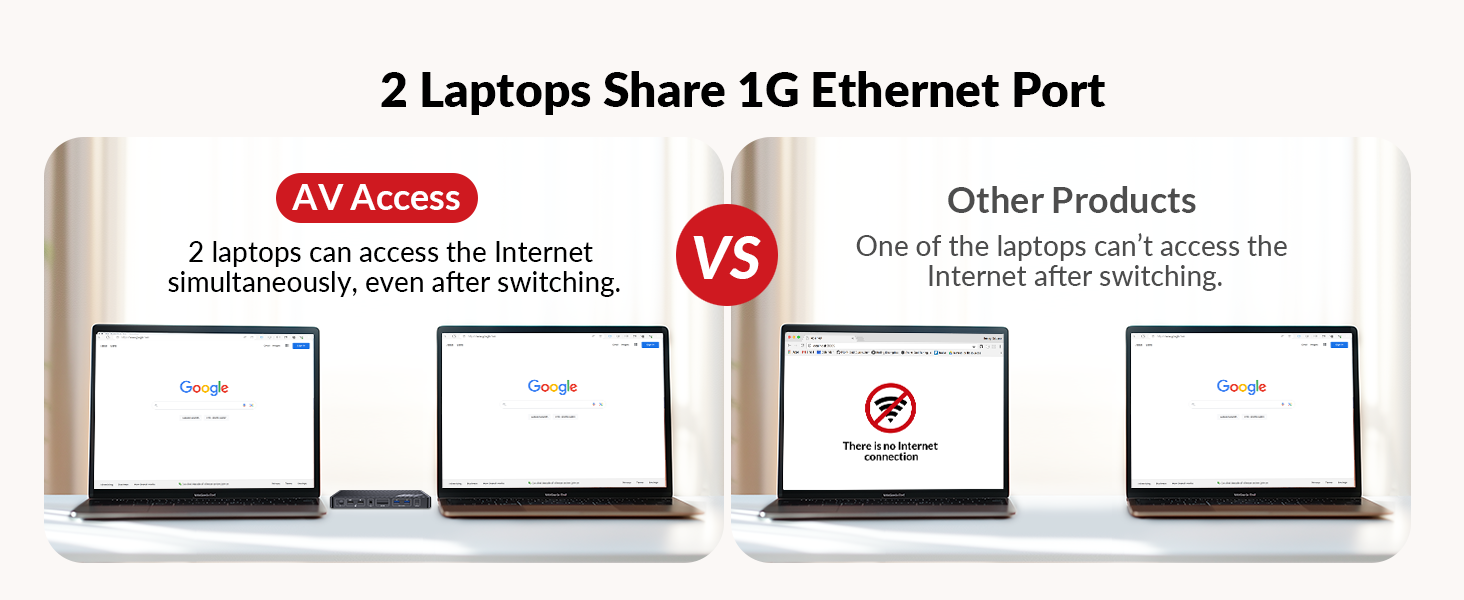

1x LAN port, support for 1Gb Ethernet performance (work with two USB-C Laptops simultaneously);
1x 3.5 mm TRRS (stereo + mic) headset port.
Support CEC trigger on HDMI outputs. When the current channel detects an input signal, it sends a CEC Power-ON command to the corresponding HDMI output port.
Support automatic wake-up function, which automatically wakes up the standby computer when switching.

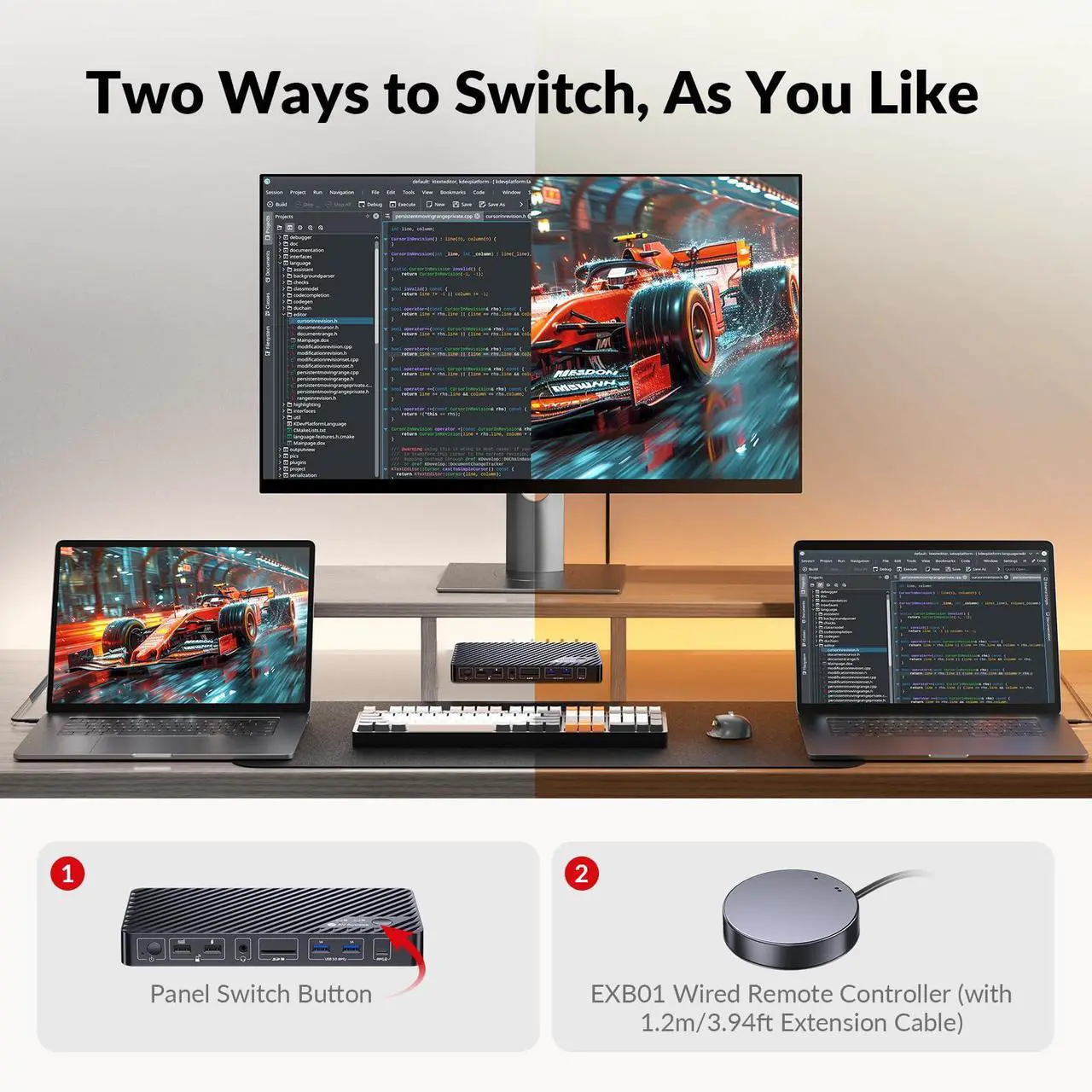

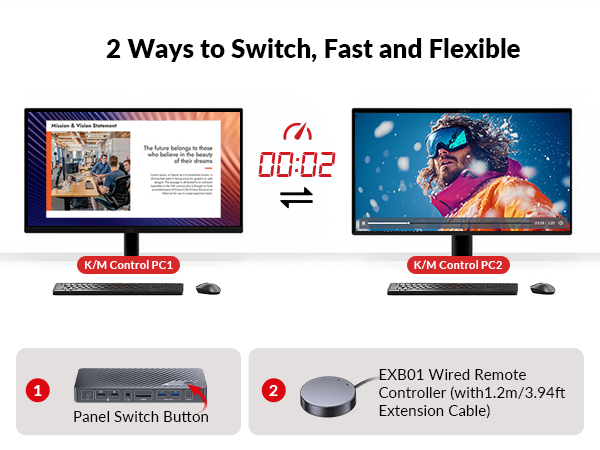

Support connecting to the Wired Remote Controller (EXB01) for remote switching.
Package Contents:
Before you start the installation of the product, please check the package contents
Switcher x 1
Power Adapter (DC 12V/3A) x 1
USB 3.2 Gen 2 Type-C to Type-C Cable (L = 1m) x 2
Wired Remote Controller (EXB01) x1
User Manual x 1
