Overview:
U3EX100 is a new generation of USB 3.2 & USB 3.0 extender. It supports USB 3.2 Gen 1 standard with up to 5Gbit/s USB data transmission rate, and is backward compatible with USB 3.0, USB 2.0, and USB 1.1 specifications. This USB extender can extend the USB 3.2 & USB 3.0 data up to 100m/330ft via a single Cat 6A/7 F/FTP or U/FTP cable. It has a built-in 4-port USB hub in the receiver, which can be connected to multiple USB devices. Pure hardware architecture is compatible with Control / Bulk / Interrupt / Isochronous transmission protocols. For multiple USB device scenarios, this extender can also be used with an external USB 3.2 & 3.0 hub.
The transmitter can be powered by the USB Type-C host, and the receiver can be powered by the local power source. The extender supports USB VBUS pass-through, if the USB Host port of the transmitter is not connected to a host device, the USB Device ports on the receiver have no VBUS output.
Features:

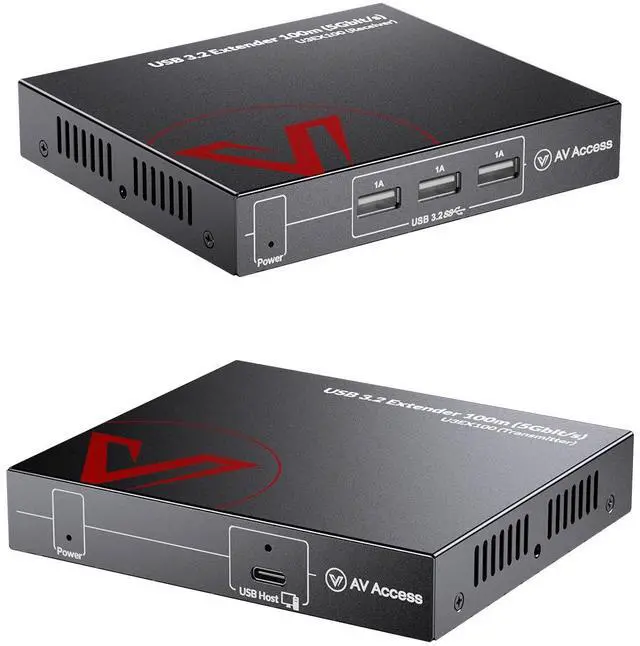

Slim profile, easy to install anywhere.
Support USB 3.2 Gen 1 standard, and backward compatible with USB 3.0, USB 2.0, and USB 1.1 standard.
Supports up to 5Gbit/s data transfer rate.

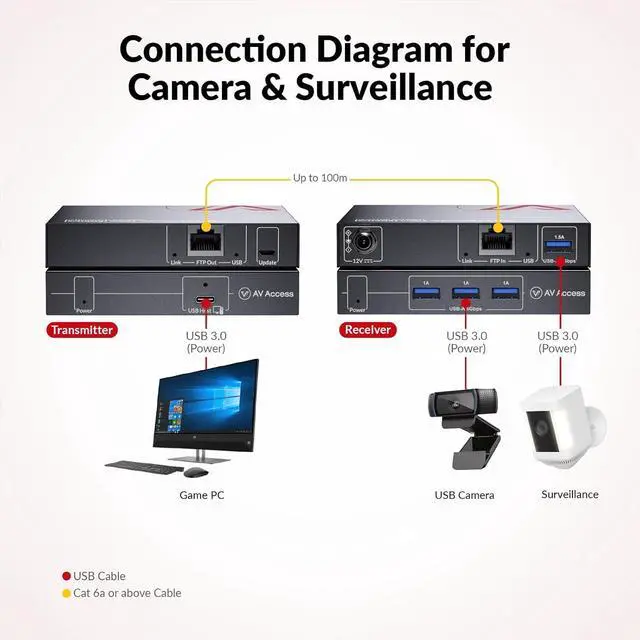

Support up to 100m transmission via Cat 6A/7 F/FTP or U/FTP cable.

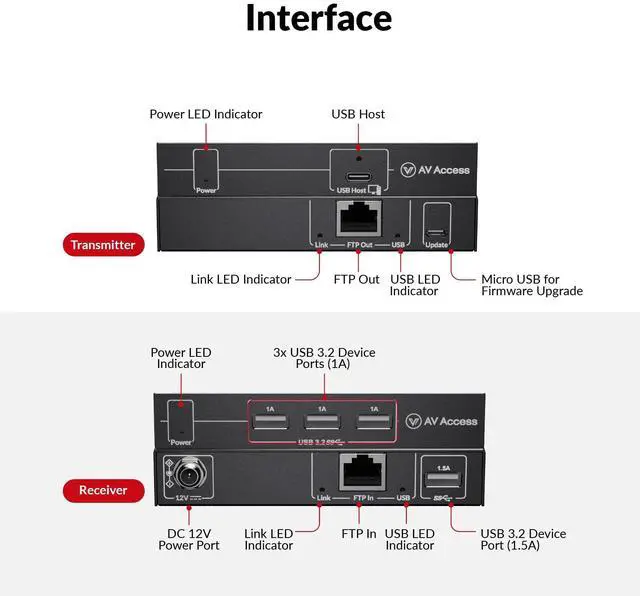

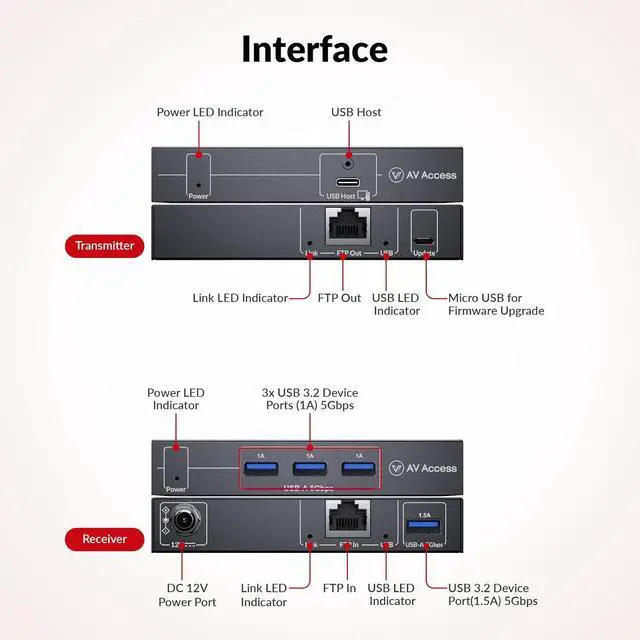

One USB-C host port for connected to the laptop.
Provide four USB 3.2 & 3.0 device ports on RX, including one 1.5A port for connecting high-power USB devices.
Pure hardware architecture is compatible with Control / Bulk /Interrupt / Isochronous transmission protocols.

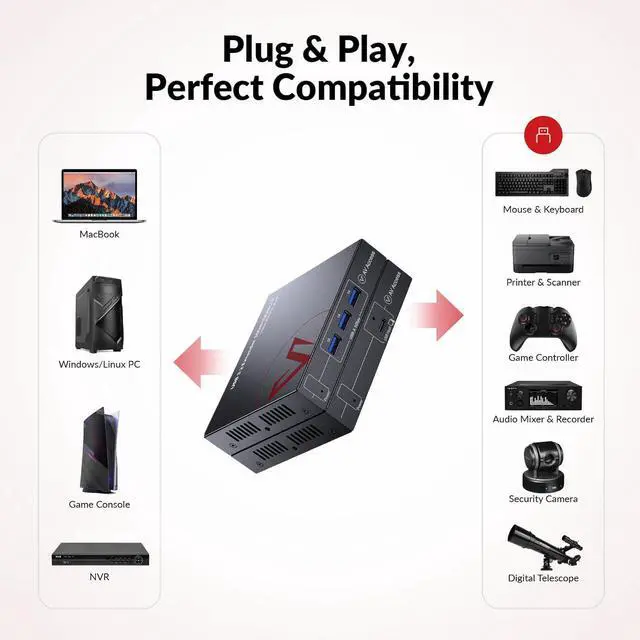

Plug and play, no driver required, compatible with multiple operating systems.
Support FW update via Micro-USB.
Package Contents:
Before you start the installation of the product, please
check the package contents:

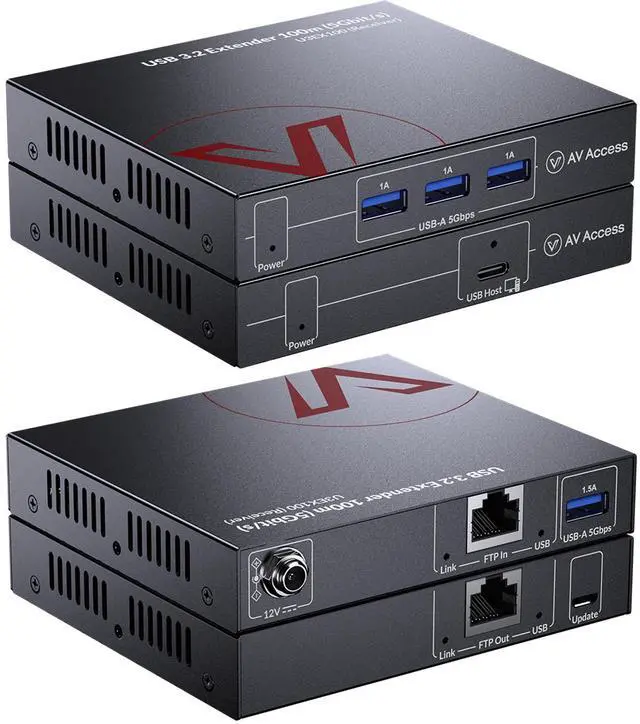

Transmitter x 1
Receiver x 1
Power Adapter (DC 12V 3A) x 1
USB Type-C to Type-C Cable (L=2m) x 1
Mounting Brackets (with Screws) x 4
User Manual x 1
