| Frequency Band | Tri-Band WiFi 2.4GHz(2400 - 2485 MHz)/5GHz(5150 - 5850 MHz)/6GHz(5900 - 7125MHz) |
| Support | 802.11 b/g/n/ac/ax/wifi 6/wifi 6e |
| Gain | 9dBi |
| VSWR | <1.8 |
| Polarization | Linear Vertical |
| Direction | Omni-directional |
| Impedance | 50 ohm |

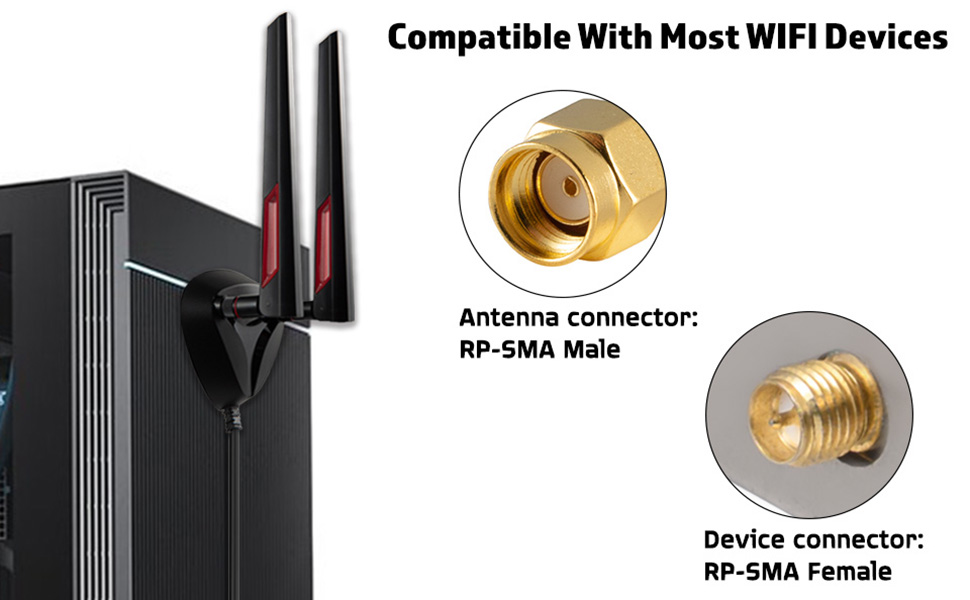

| Connector | Dual RP-SMA male (has no pin) |

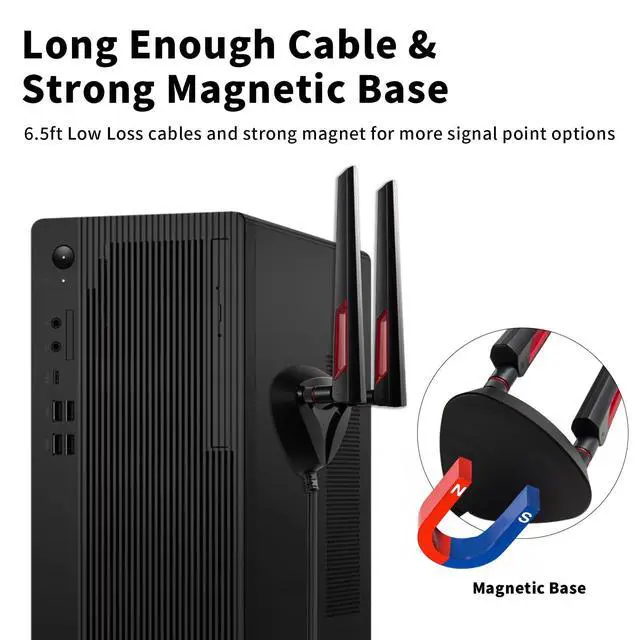

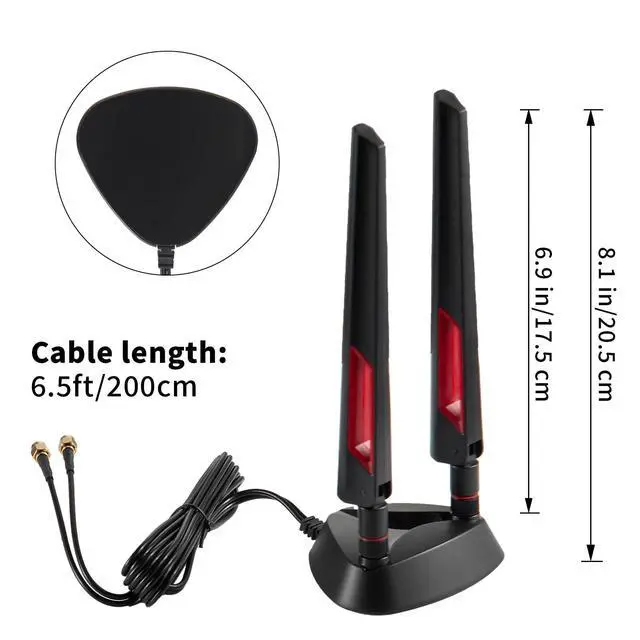

| Extension Cable | 6.5feet/ 2m |
| Application | WiFi router, PC desktop PCIe wifi card, WiFi USB adapter, WLAN AP & Hotspot ; WiFi IP security cameras, vehicle backup cameras; FPV drone controller and receiver,FPV camera monitor. |
1. Gain: 9dbi
2. Frequency Range: Tri-Band WiFi 2.4GHz (2400 - 2485 MHz),5GHz/5.8GHz (5150 - 5850 MHz), 6GHz5900-7125MHz
3. connectors: Dual RP-SMA Male
4. VSWR: < 1.8;
5. Impedance: 50 ohm
6. Direction: Omni-directional
7. compliance with: 802.11 b/g/n/ac/ax/wifi 6/wifi 6e;
| Antenna | Radio |
| Brand | eifagur |
| Color | 9dBi |
| Number of Channels | 85 |
| Impedance | 50 Ohms |
| Maximum Range | 100 Meters |
| Manufacturer | eifagur |
| Number of Items | 1 |
| Package Dimensions | 9.69 x 5.67 x 1.61 inches |
| Item Weight | 8.4 ounces |
| Item model number | B0D1G6Z8YB |
| Date First Available | April 11, 2024 |
