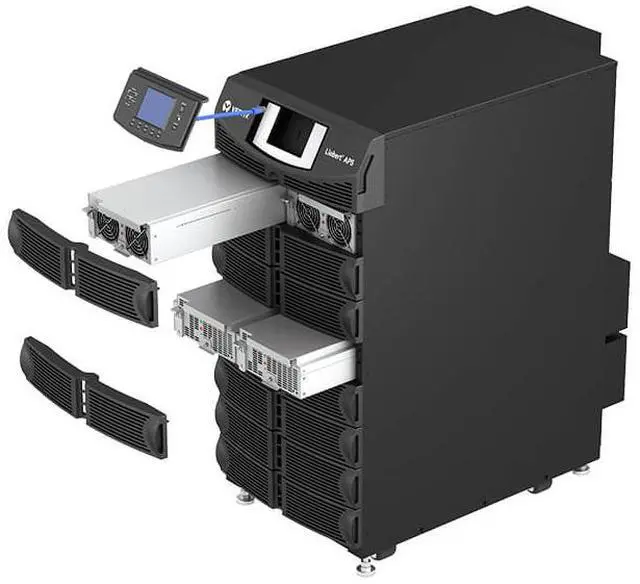

Vertiv Liebert AL4D0NHXGNNXLKB, 20kVA/18.0kW, 208VAC LLG in, 208/120VAC out, 8min runtime - Hot swappable power, battery and control modules allow for maintenance on the system without disturbance - OEM
- Power / Device Type: UPS
- Power Device / Form Factor: Rack/Tower
- UPS Technology: Double Conversion; Online
- Voltage Output: 208/120VAC
- Power / Voltage Required: 208VAC
- Min Operating Temperature: 0 Celsius
- Max Operating Temperature: 40 Celsius
- Humidity Range Operating: 0 - 95%, non-condensing
- Power / Provided (W): 18 KW
- Power Provided (VA): 20000 VA
- Surge Suppression: Yes
- Battery / Run Time: 8 min
- Battery Technology: VRLA; Lithium-ion
- COO: CHINA
- Model: AL4D0NHXGNNXLKB
- Width: 17 Inch
- Depth: 34 Inch
- Height: 49 Inch
- Weight: 704 lbs.
+
+
Learn more about the Vertiv AL4D0NHXGNNXLKB
| Brand | Vertiv |
|---|---|
| Series | Liebert |
| Model | AL4D0NHXGNNXLKB |
| International Version | 208V |
|---|---|
| Input Voltage Range | 200/208/220/230/240 VAC |
| Input Frequency | 40 Hz to 70 Hz auto-sensing |
| Input Connection | 3-Wire (L-L-G) |
| VA Rating | 20kVA |
|---|---|
| Watts | 18kW |
| Output Frequency | 60Hz default; 50/60Hz user-configurable |
| Battery Type | Lithium Ion |
|---|---|
| Battery Run Time | Full Load: 8 mins. Half Load: 17 mins. |
| Temperature | Operating temperature: 32°F - 104°F (0°C - 40°C) |
|---|---|
| Humidity | 0 - 95%, non-condensing |
| Dimensions | 49" x 17" x 34" |
|---|---|
| Weight | 704 lbs. |
| First Listed on Newegg | June 03, 2026 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Only Return Policy.
- Read full return policy for details.
