Delivers seamless KVM control and 4k video transmission.
Allows for greater distance with the Fiber Option.
Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
Plug-and-play with no drivers or software to install, and no on-site configuration required.
Faster throughput with updated USB
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Vertiv LV5520T-400
Model
Brand
Vertiv Avocent
Series
LV5520
Model
LV5520T-400
Part Number
LV5520T-400
Details
Type

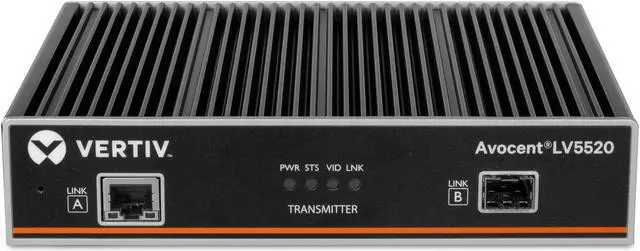

Avocent®4K dual-head KVM extender
Console Connectors
4 x Tri-color status LEDs 2 x DisplayPort out (second port is a duplicate) 4 x USB2.0 full speed Type A Mic in, headset and speaker out RJ12 serial port RJ45 and SFP+ ports
Video Resolution
4096x2160 @ 60Hz
LED Indicators
4 x Tri-color status LEDs
Environmental
Temperature
Storage Temperature: -10°C to 50°C/14°F to 122°F Operating Temperature: 0°C to 40°C/32°F to 104°F
Humidity
0% to 80% (non-condensing)
Features
Power Features
100 - 240 VAC, 47/63Hz 12 VDC 18W output from power supply unit
USB Features
USB or Stereo (Line In, Line Out)
Features
Dual-head keyboard, video, and mouse extender Compatible with all known operating systems No drivers required 5Gb/s CATx or 10Gb/s fiber with ultra-low latency adaptive video stream compression USB: Up to two channels of 24-bit, 96kHz sampled PCM audio
Dimensions & Weight
Dimensions
186mm/7.32”, 39mm/1.54”, 148mm/5.83”
Weight
2.73 lbs.
Additional Information
First Listed on Newegg
February 09, 2025
