Learn more about the Vertiv VP43301
Model| Brand | Vertiv |
|---|
| Series | Geist |
|---|
| Model | VP43301 |
|---|
Details| Type | Monitored |
|---|
| Rack Size | 0U |
|---|
| Style | Vertical |
|---|
| Certifications | FCC Part 15 Class A Conformance
UL Listed 60950 |
|---|
| ROHS | Yes |
|---|
| Connectivity | Network Connection: Dual 10/100Mbps Ethernet
USB Support: Yes
Serial Connection: RS232 via RJ45 |
|---|
Input| Input Voltage | 200 - 240V |
|---|
| Input Frequency | 50/60 Hz |
|---|
| Maximum Input Current | 30A |
|---|
| Regulatory Derated Input Current | 20A |
|---|
| Input Connector(s) | NEMA L6-30P Twistlock |
|---|
| Cord Length | 10 ft |
|---|
Output| Output Voltage | 208V |
|---|
| Output Connector(s) | 36 Combination C13/C19 |
|---|
| Overload Protection | (2) 20A Double Pole Magnetic Breakers (22kAIC Rated) |
|---|

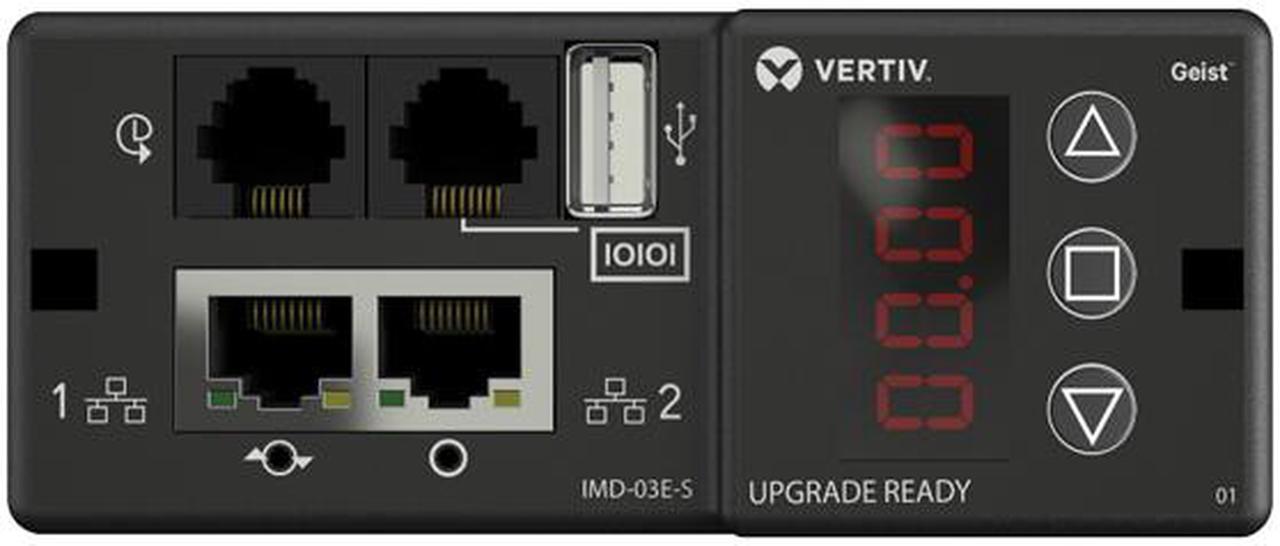

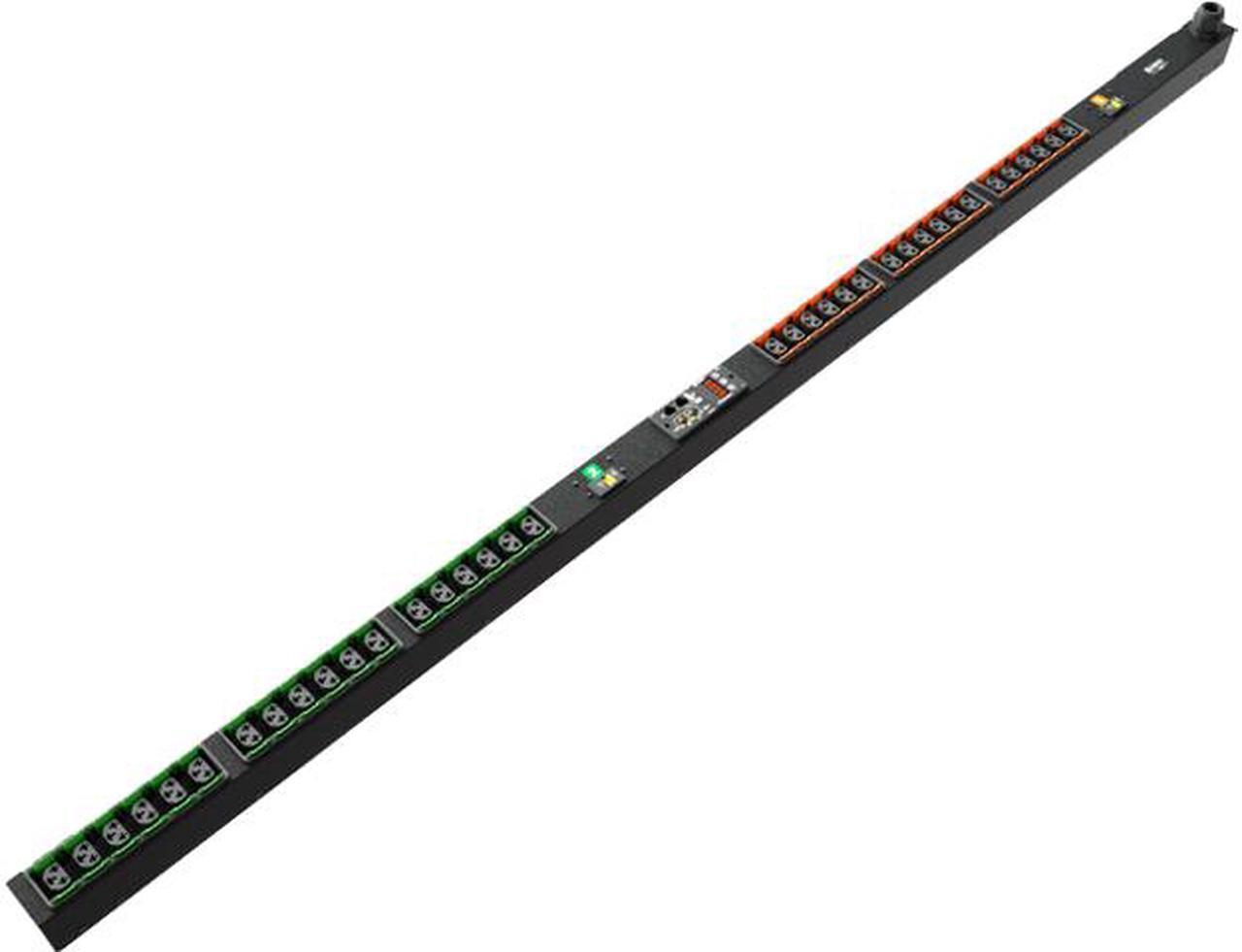

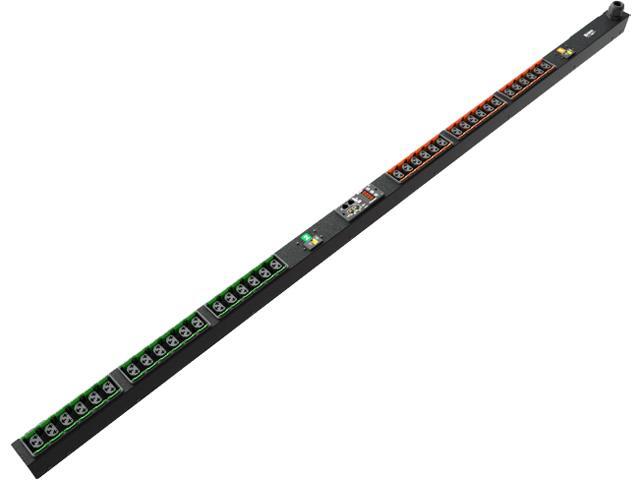

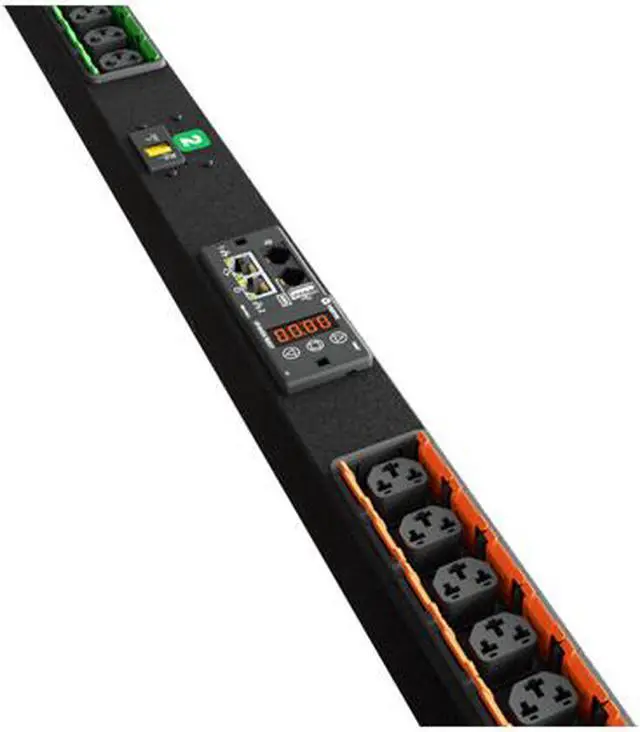

Feature| Features | The Vertiv Geist VP43301 rPDU is a versatile rack power distribution unit featuring 36 Combination C13/C19 Outlets. The VP43301 is a 30A, 208V single phase upgradeable rack PDU with an L6-30P plug and 10 ft power cord. The VP43301 provides unit level remote power monitoring and environmental monitoring capabilities with the addition of optional environmental sensors. Remotely monitor and manage the rPDU through any web browser or via serial communication. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord and are also P-Lock compatible. The hot-swappable IMD provides peace of mind that as business needs change the technology can easily be updated. |
|---|
Dimensions & Weight| Dimensions | 2.00" x 66.25" x 2.00" |
|---|
Additional Information| Date First Available | April 22, 2025 |
|---|
