VIA EPIA M10000 VIA C3 1GHz with FanProcessor VIA CLE266 Mini ITX
- VIA C3/EDEN EBGA Processor
- DDR 266
- S3 Graphics UniChrome Pro IGP
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the VIA / VPSD EPIA M10000
| Brand | VIA |
|---|---|
| Model | EPIA M10000 |
| CPU | VIA C3 1GHz with FanProcessor |
|---|---|
| With Cooler | Yes |
| CPU Type | VIA C3/EDEN EBGA Processor |
|---|---|
| FSB | 133/100 MHz |
| North Bridge | VIA CLE266 |
|---|---|
| South Bridge | VIA VT8235M |
| Number of Memory Slots | 1x184pin |
|---|---|
| Memory Standard | DDR 266 |
| Maximum Memory Supported | 1GB |
| PCI Express x16 | None |
|---|---|
| PCI Slots | 1 x PCI Slot |
| PATA | 2 x ATA 100 4 Dev. Max |
|---|
| Onboard Video Chipset | S3 Graphics UniChrome Pro IGP |
|---|
| Audio Chipset | VIA VT1616 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | VIA VT6103 |
|---|---|
| LAN Speed | 10/100Mbps |
| Max LAN Speed | 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub + TV-Out |
| USB 1.1/2.0 | 2 x USB 2.0 |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 2.0 connector supports 2 ports |
|---|---|
| Onboard 1394 | 2 x 1394a connectors support 2 ports |
| Features | Onboard TV Out VIA VT1622M TV out BIOS Award BIOS 2/4Mbit flash memory System Monitoring & Management CPU voltage monitoring Wake-on-LAN, Keyboard Power-on, Timer Power-on System power management AC power failure recovery Operating Temperature 0~50°C Operating Humidity 0% ~ 93% (relative humidity; non-condensing) |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |

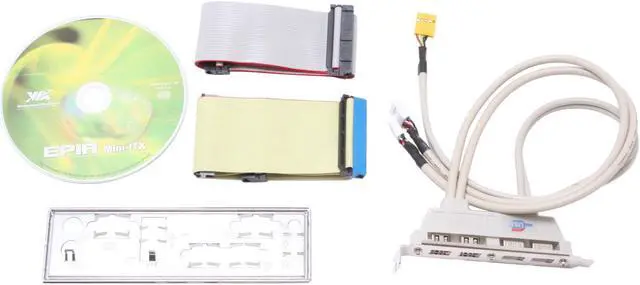

| Package Contents | EPIA M10000 Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable IEEE 1394 and USB Bracket |
|---|
| Date First Available | June 12, 2006 |
|---|
